Sugatsune

HG-TLAJ Torque Hinge

The HG-TLAJ is a stainless-steel surface-mounted torque hinge with built-in spring assistance, offering smooth lid operation within a 0–100° range and adjustable retaining torque up to 3.5 Nm. By combining lift-assist and free-stop functionality, the HG-TLAJ ensures safe, ergonomic, and controlled lid movement.
  • Adjustable Retaining Torque

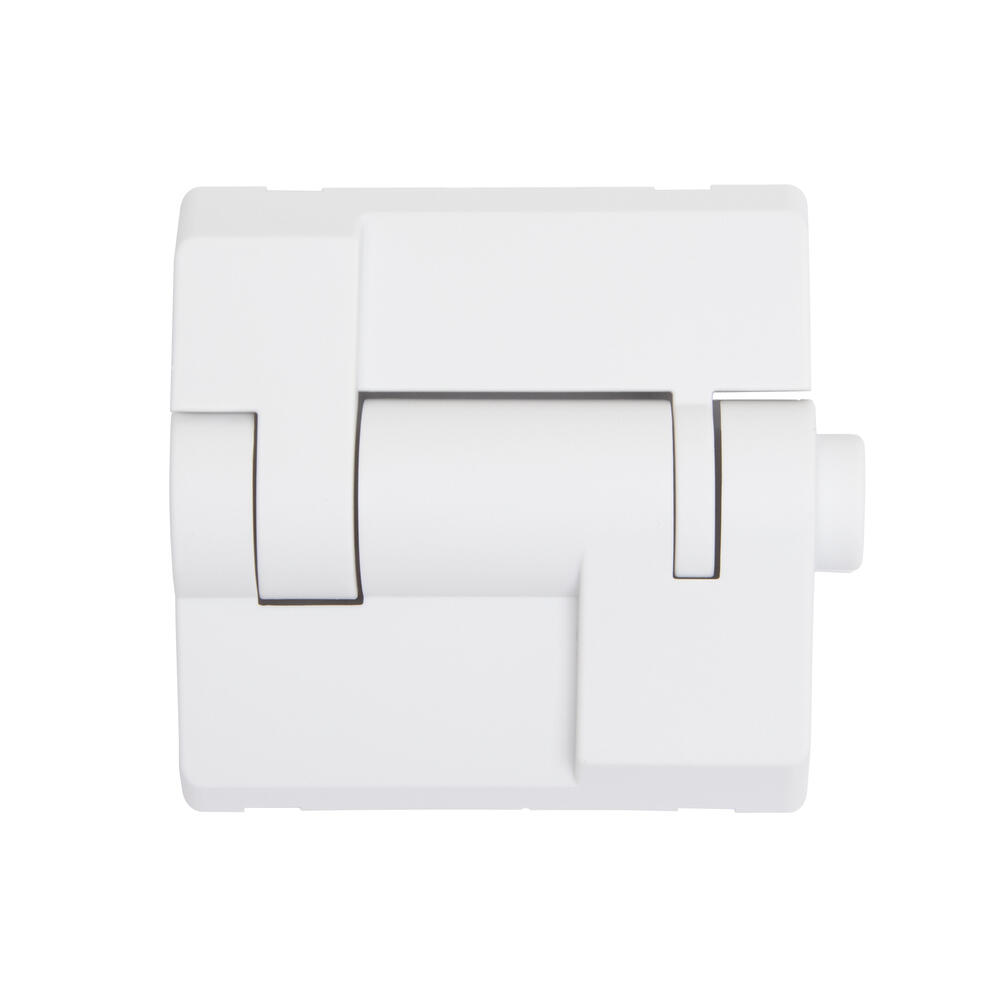

  • Optional Cover
  • Hinge to support opening top heavy lids

Selected variant

Available in several variants

Selected variant

Technical data

Material Stainless steel
Retaining Torque 0~3.5Nm
Spring Assist Force 2.2~2.9 Nm
Surface finish Barrel Polished
Temperature range 0 °C~40 °C
Weight 218 g

Product description

The HG‑TLAJ is a stainless‑steel, surface-mounted torque hinge featuring built‑in spring assistance and adjustable retaining torque, ideal for top‑opening lids and panels. Its lift‑assist spring supports opening and closing within a 0–100° range, reducing effort and improving ergonomics. The hinge’s retaining torque, ranging from 03.5 Nm, is easily tuned using a 10 mm hex key for tailored resistance. Made of stainless steel with polished finish and complemented by a 430 stainless or plastic cover (optional), it has been durability tested for 50,000 open/close cycles and operates between 0 °C and 40 °C.

In real-world applications, the HG‑TLAJ excels in safety-critical and precision-focused industries such as medical devices, laboratory analysers, and factory‑automation equipment where controlled lid motion is essential. By enabling free-stop positioning and effortless lift, it eliminates sudden drops and facilitates holistic cleaning and maintenance without removing lids.

Accessories

Related

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions
Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts Material Retaining Torque Spring Assist Force Surface finish Weight Price
Stainless steel
0~3.5Nm
2.2~2.9 Nm
Barrel Polished
218 g
Stainless steel
0~3.5Nm
3.5~4.5 Nm
Barrel Polished
222 g
PBT
41 g

Selected variant

Select a variant in the list
