BASLER
Approvals | CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL |
---|---|
Digital inputs | 3 |
Digital outputs | 2 |

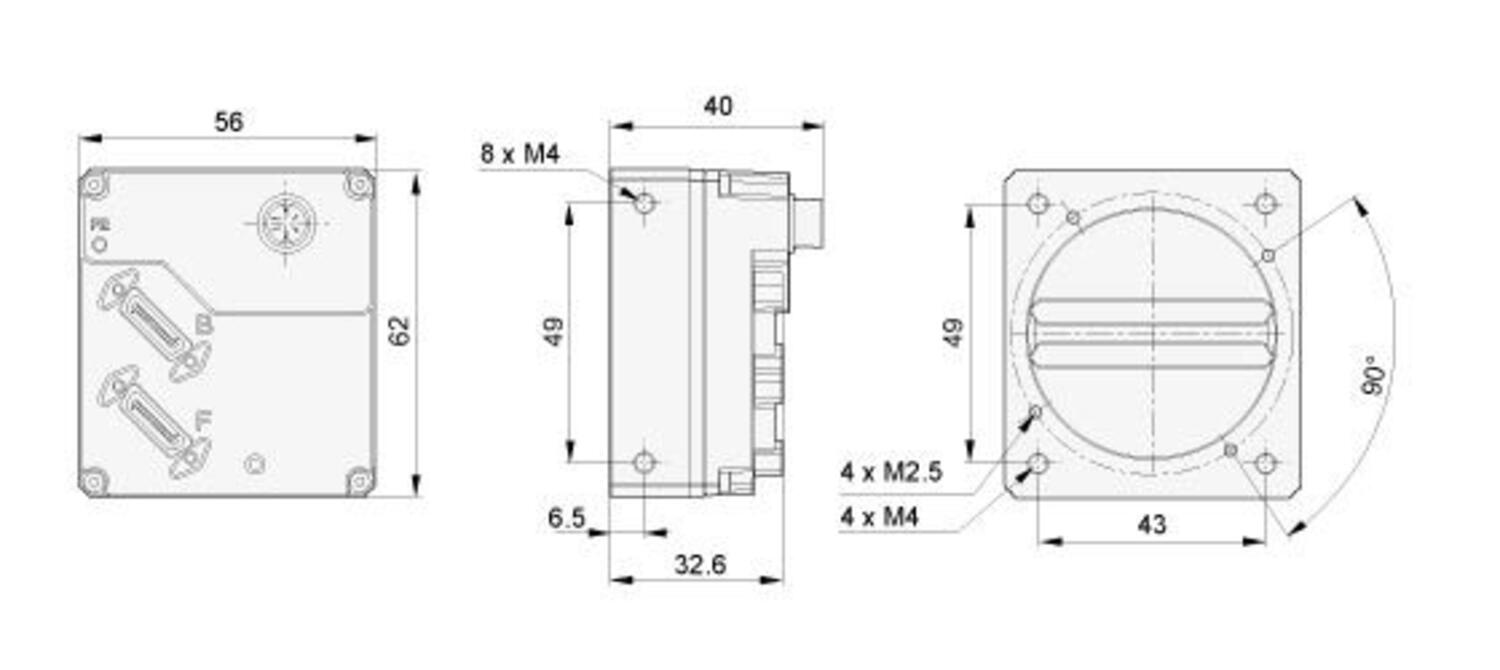

Height | 62 mm |
Interface | GigE |
IP class | IP30 |
Length | 36 mm |
Lens barrel | C-mount, F-mount, M42, M58 |
Line speed max | 51 kHz |
Mono/color | Mono |
Operating temperature | -10°C ... 60°C |
Pixel size | 7 x 7 |
Power consumption | 3 W |
---|---|
Resolution | 2k |
Resolution max | 2048 x 1 px |
Sensor model | DR-2k-7 |
Sensor size | 14.3 mm |
Sensor supplier | Awaiba |
Sensor Type | CMOS |
Shutter type | Global |
Weight | 240 g |
Width | 56 mm |

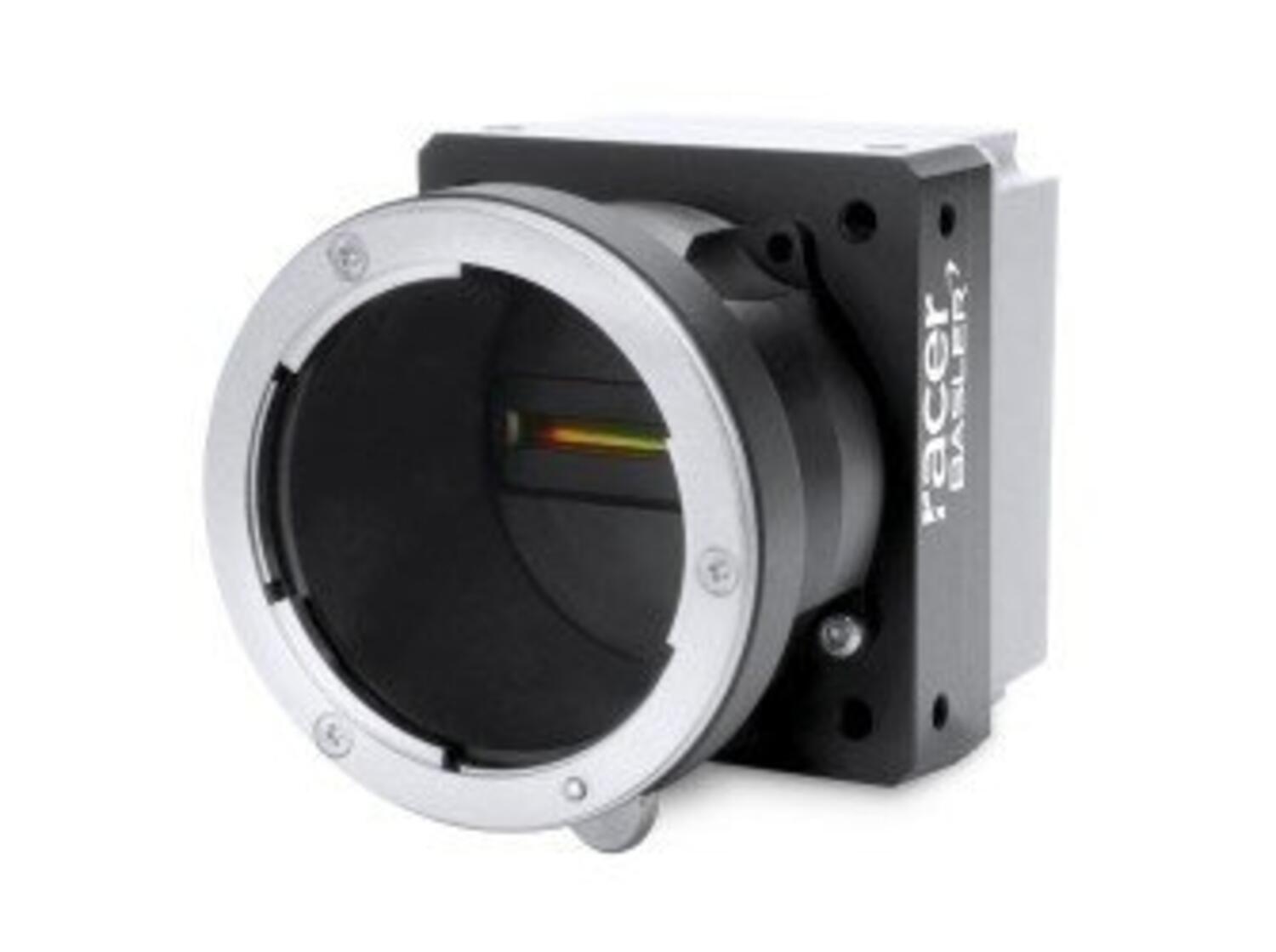

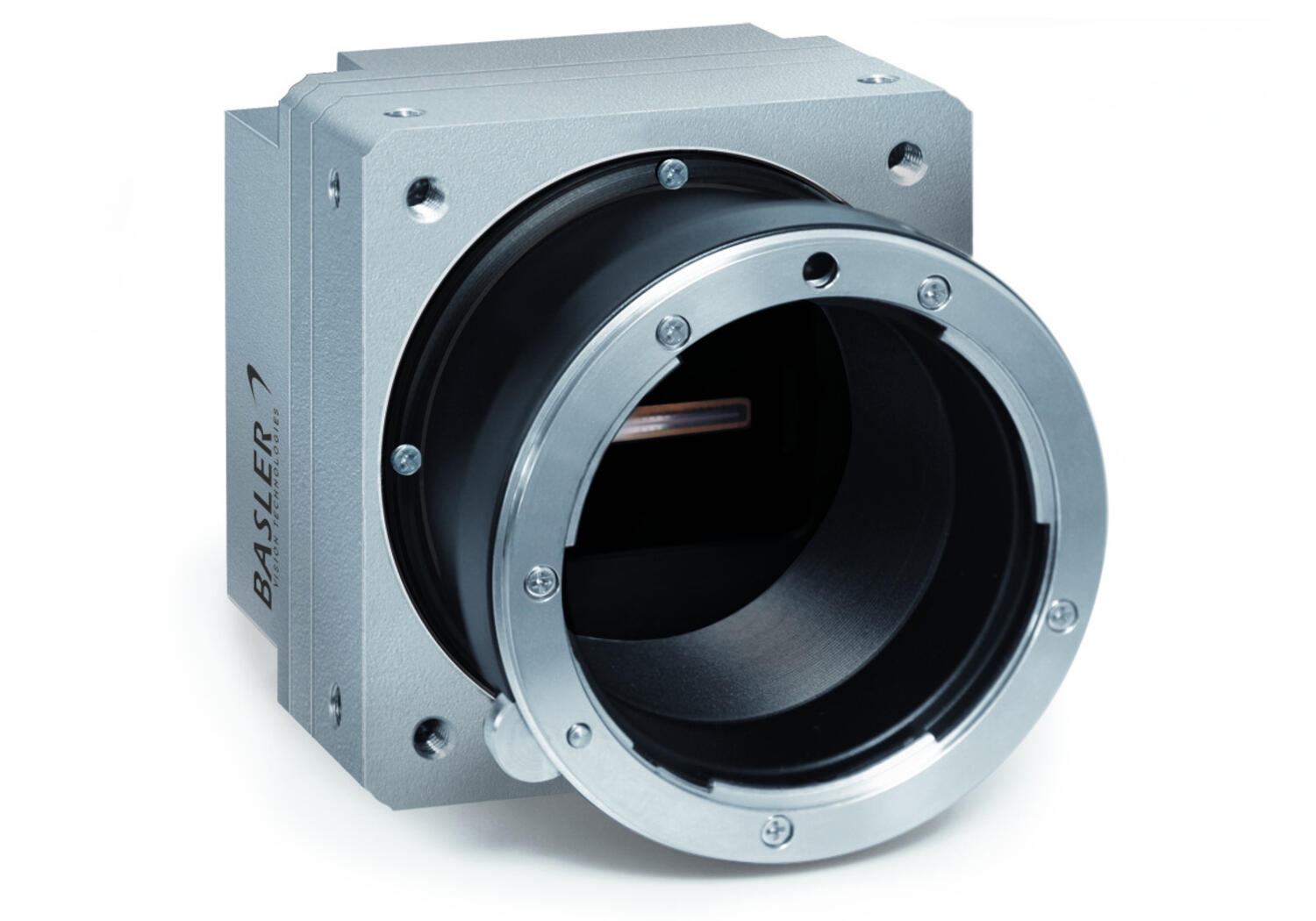

Basler’s Racer series of line scan cameras are compact, high-performance imaging solutions tailored for continuous material inspection in industrial environments.With resolutions ranging from 2k to 12k and line rates up to 80 kHz via Camera Link and 51 kHz via GigE, these cameras offer flexibility to meet various application needs.Their slim form factor (56 mm width) and lightweight design (approximately 240 g) make them ideal for integration into multi-camera systems and space-constrained setups.Equipped with global shutter CMOS sensors, they deliver high-quality, low-noise images, even under low-light conditions, thanks to their efficient heat dissipation and low power consumption.
In practical applications, Basler Racer cameras excel in web inspection (e.g., film, paper, textiles), sorting and packaging (e.g., mail, food products), and transportation-related inspections (e.g., underfloor, rail, container).The integration of GigE Vision 2.0 standard enables synchronous operation and real-time triggering over Ethernet, reducing the need for additional hardware.Models with Power over Camera Link (PoCL) functionality simplify system design by combining power and data transmission into a single cable, lowering overall system costs.Basler's comprehensive pylon SDK and open-source drivers facilitate seamless integration and development, ensuring that Racer cameras are a versatile and cost-effective choice for high-speed, high-resolution line scan imaging tasks.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.
Many UV products have garnered attention for their advanced features, catering to the high demand for manufacturing sector inspections. The scope of applications against this backdrop is vast, with requests increasing for improved performance and features.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Approvals | Digital inputs | Digital outputs | Interface | Length | Line speed max | Operating temperature | Pixel size | Power consumption | Resolution | Resolution max | Sensor model | Sensor size | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Racer GigE Camera, DR-2K-7 14.3mm CMOS, 2k, Mono
Art:
RAL2048-48GM
Copied
|
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
|
3
|
2
|
GigE
|
36 mm
|
51 kHz
|
-10°C ... 60°C
|
7 x 7
|
3 W
|
2k
|
2048 x 1 px
|
DR-2k-7
|
14.3 mm
|
240 g
|
| ||
![]()
Racer GigE Camera, DR-4K-7 28.7mm CMOS, 4k, Mono
Art:
RAL4096-24GM
Copied
|
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
|
3
|
2
|
GigE
|
36 mm
|
26 kHz
|
0°C ... 50°C
|
7 x 7
|
4 W
|
4k
|
4096 x 1 px
|
DR-4k-7
|
28.7 mm
|
240 g
|
| ||
![]()
Racer GigE Camera, DR-6K-7 43mm CMOS, 6k, Mono
Art:
RAL6144-16GM
Copied
|
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
|
3
|
2
|
GigE
|
36 mm
|
17 kHz
|
0°C ... 50°C
|
7 x 7
|
4.5 W
|
6k
|
6144 x 1 px
|
DR-6k-7
|
43 mm
|
240 g
|
| ||
![]()
Racer GigE Camera, DR-8K-3.5 28.7mm CMOS, 8k, Mono
Art:
RAL8192-12GM
Copied
|
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
|
3
|
2
|
GigE
|
36 mm
|
12 kHz
|
0°C ... 50°C
|
3.5 x 3.5
|
5.5 W
|
8k
|
8192 x 1 px
|
DR-8k-3.5
|
28.7 mm
|
240 g
|
| ||
![]()
Racer GigE Camera, DR-12K-3.5 43mm CMOS, 12k, Mono
Art:
RAL12288-8GM
Copied
|
CE, EAC, FCC, GenICam, GigE Vision, RoHS, UL
|
3
|
2
|
GigE
|
36 mm
|
8 kHz
|
0°C ... 50°C
|
3.5 x 3.5
|
6.5 W
|
12k
|
12288 x 1 px
|
DR-12k-3.5
|
43 mm
|
240 g
|
| ||
![]()
Racer CameraLink Camera, DR-2k-7 14.3mm CMOS, 2k, Mono
Art:
RAL2048-80KM
Copied
|
CE, EAC, FCC, GenICam, RoHS, UL
|
4
|
4
|
Camera Link
|
34 mm
|
80 kHz
|
0°C ... 50°C
|
7 x 7
|
3 W
|
2k
|
2048 x 1 px
|
DR-2k-7
|
14.3 mm
|
210 g
|
| ||
![]()
Racer CameraLink Camera, DR-4K-7 28.7mm CMOS, 4k, Mono
Art:
RAL4096-80KM
Copied
|
CE, EAC, FCC, GenICam, RoHS, UL
|
4
|
4
|
Camera Link
|
34 mm
|
80 kHz
|
0°C ... 50°C
|
7 x 7
|
4 W
|
4k
|
4096 x 1 px
|
DR-4k-7
|
28.7 mm
|
210 g
|
| ||
![]()
Racer CameraLink Camera, DR-6K-7 43mm CMOS, 6k, Mono
Art:
RAL6144-80KM
Copied
|
CE, EAC, FCC, GenICam, RoHS, UL
|
4
|
4
|
Camera Link
|
34 mm
|
80 kHz
|
0°C ... 50°C
|
7 x 7
|
4.5 W
|
6k
|
6144 x 1 px
|
DR-6k-7
|
43 mm
|
210 g
|
| ||
![]()
Racer CameraLink Camera, DR-8K-3.5 28.7mm CMOS, 8k, Mono
Art:
RAL8192-80KM
Copied
|
CE, EAC, FCC, GenICam, RoHS, UL
|
4
|
4
|
Camera Link
|
34 mm
|
80 kHz
|
0°C ... 50°C
|
3.5 x 3.5
|
5.5 W
|
8k
|
8192 x 1 px
|
DR-8k-3.5
|
28.7 mm
|
210 g
|
| ||
![]()
Racer CameraLink Camera, DR-12K-3.5 43mm CMOS, 12k, Mono
Art:
RAL12288-66KM
Copied
|
CE, EAC, FCC, GenICam, RoHS, UL
|
4
|
4
|
Camera Link
|
34 mm
|
66 kHz
|
0°C ... 50°C
|
3.5 x 3.5
|
6.5 W
|
12k
|
12288 x 1 px
|
DR-12k-3.5
|
43 mm
|
210 g
|
|
