AUTOVIMATION
Autovimation Mammoth Enclosures
Â
The Mammoth enclosure protects large MV-cameras of up to 90 x 150mm cross section, for instance larger line scan or thermal cameras (Dalsa Spyder, e2V_ELiiXA, Flir A600 series and more). It is available with 180, 250 and 300mm internal length. As with other dovetail enclosures, the camera mounts in any position so the front lens can always be placed right behind the front window. Dovetail adapters on two enclosure sides make the Mammoth compatible to autoVimation's Machine-Vision Construction Kit.
Â
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!
Â
- Robust enclosure, max. camera size up to 90x150mm
- Maximum lens diameter 90mm in profile, 78mm in front lid

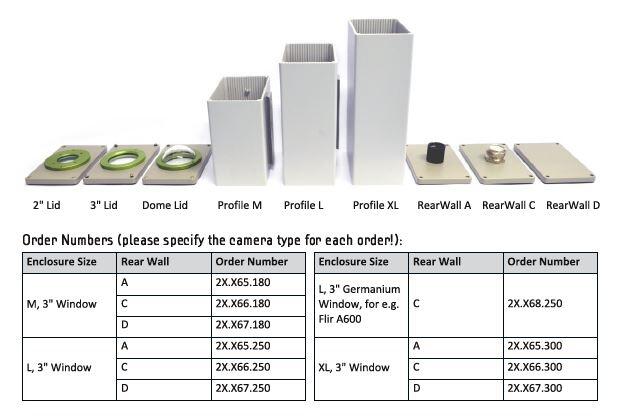

- Inner length 199mm (M), 259mm (L) and 309mm (XL)
- Excellent heat dissipation, IP65 rated

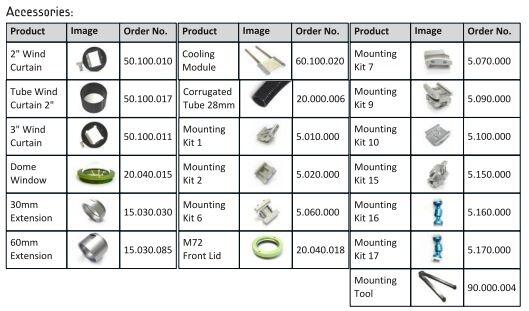

- Wide selection of accessories available for mounting and maintenance
Selected variant

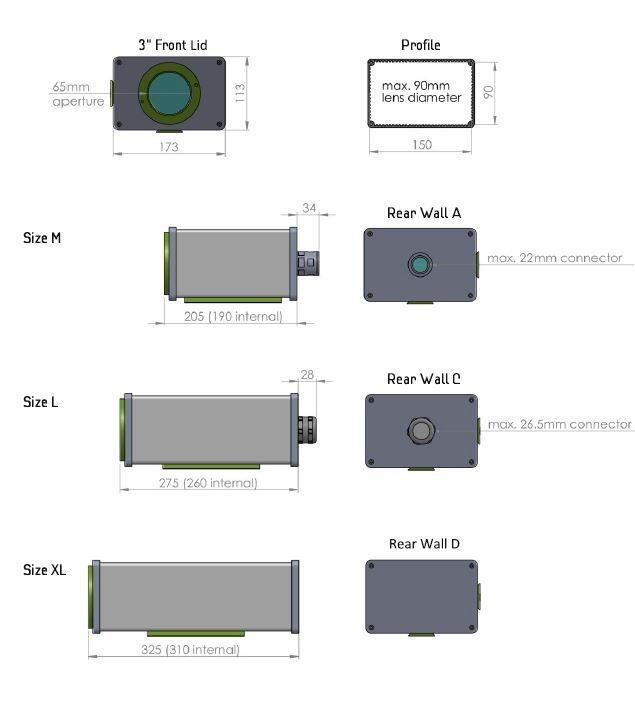

Technical data
| Height | 113 mm |
|---|---|
| Housing material | Powder coated marine aluminum |
| Inner length | 189 mm |
| IP class | IP65 |
| Length | 207 mm |
| Max camera height | 90 mm |
| Max camera width | 150 mm |
| Max connector size | 26.5 mm |
|---|---|
| Max lens diameter | 90 mm |
| Weight | 2300 g |
| Width | 173 mm |
| Window seal | EPDM |
Product description
Â
The Mammoth enclosure protects large MV-cameras of up to 90 x 150mm cross section, for instance larger line scan or thermal cameras (Dalsa Spyder, e2V_ELiiXA, Flir A600 series and more). It is available with 180, 250 and 300mm internal length. As with other dovetail enclosures, the camera mounts in any position so the front lens can always be placed right behind the front window. Dovetail adapters on two enclosure sides make the Mammoth compatible to autoVimation's Machine-Vision Construction Kit.
Â
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!
Â
