DATASENSING - S5N-PA - Straight M18 Photoelectric Sensor

The S5N series of photoelectric sensors offers a wide range of optic functions including, retro reflective, diffuse proximity, background suppression and through beam. They are available with both radial or axial optics and with 2m embedded cable or M12 connection in plastic or metal housing. This sensor offers excellent solutions for all industrial applications, presenting a flat plastic housing with dual fixing holes to guarantee excellent mounting flexibility.



Features & benefits:



·Wide range suitable for all the industrial applications

·Cable or M12 connection

·Flat sides for further mounting options



Applications:



·Automatic machines

·Packaging lines

·Transportation lines

·Automatic warehouses



Read more

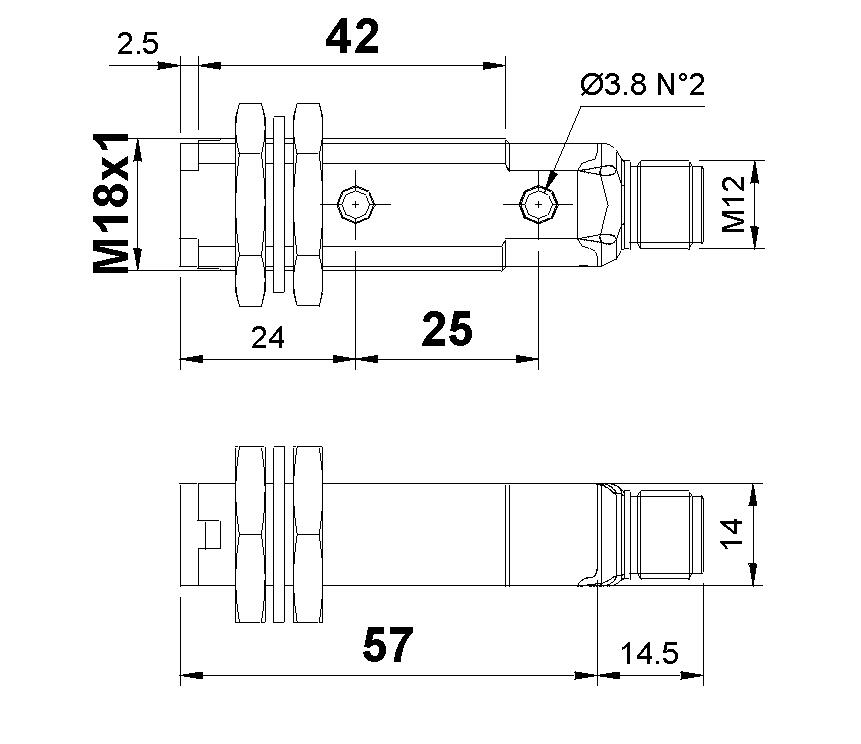

  • M18 barrel housing
  • Embedded cable or M12 connector
  • Flat sides for easy mounting
  • PNP or NPN output

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CE, UL
Distance max 25000 mm
Distance min 0 mm
Electrical connection M12 4-pin connector
Function Dark on / Light on
IP class IP67
LED indicator Yes
Lens material PMMA
Light type IR LED
Material of body PBT
Output current max 0.1 A
Photocell technology Through beam emitter
Power consumption max 0.035 A
Reaction time 2 ms
Sensitivity setting No
Storage temperature max 70 °C
Storage temperature min -25 °C
Supply voltage 10-30 V DC
Temperature operational max 55 °C
Temperature operational min -25 °C
Type of light LED
Weight 25 g

Product description

The S5N series of photoelectric sensors offers a wide range of optic functions including, retro reflective, diffuse proximity, background suppression and through beam. They are available with both radial or axial optics and with 2m embedded cable or M12 connection in plastic or metal housing. This sensor offers excellent solutions for all industrial applications, presenting a flat plastic housing with dual fixing holes to guarantee excellent mounting flexibility.



Features & benefits:



·Wide range suitable for all the industrial applications

·Cable or M12 connection

·Flat sides for further mounting options



Applications:



·Automatic machines

·Packaging lines

·Transportation lines

·Automatic warehouses



Accessories

Related products

Related

Parts Cable length Distance max Distance min Electrical connection Light type Output Photocell technology Range Reaction time Sensing distance Sensitivity setting Weight Price
25000 mm
0 mm
M12 4-pin connector
IR LED
Through beam emitter
2 ms
No
25 g
2000 mm
25000 mm
0 mm
Embedded 2m cable
IR LED
Through beam emitter
2 ms
No
75 g
25000 mm
0 mm
M12 4-pin connector
Red LED
PNP
Through beam receiver
2 ms
Yes
25 g
2000 mm
25000 mm
0 mm
Embedded 2m cable
Red LED
PNP
Through beam receiver
2 ms
Yes
75 g
25000 mm
0 mm
M12 4-pin connector
IR LED
NPN
Through beam receiver
2 ms
Yes
25 g
2000 mm
25000 mm
0 mm
Embedded 2m cable
IR LED
NPN
Through beam receiver
2 ms
Yes
75 g
M12 4-pin connector
Red LED
PNP
Fiber amblified
30 / 100 mm
0.5 ms
30 / 100 mm
Yes
25 g
2000 mm
Embedded 2m cable
Red LED
PNP
Fiber amblified
30 / 100 mm
0.5 ms
30 / 100 mm
Yes
75 g
M12 4-pin connector
Red LED
NPN
Fiber amblified
30 / 100 mm
0.5 ms
30 / 100 mm
Yes
25 g
2000 mm
Embedded 2m cable
Red LED
NPN
Fiber amblified
30 / 100 mm
0.5 ms
30 / 100 mm
Yes
75 g
400 mm
0 mm
M12 4-pin connector
IR LED
PNP
Diffuse proximity
0.5 ms
Yes
25 g
400 mm
0 mm
M12 4-pin connector
IR LED
PNP
Diffuse proximity
0.5 ms
Yes
25 g
2000 mm
400 mm
0 mm
Embedded 2m cable
IR LED
PNP
Diffuse proximity
0.5 ms
Yes
75 g
400 mm
0 mm
M12 4-pin connector
IR LED
NPN
Diffuse proximity
0.5 ms
Yes
25 g
2000 mm
400 mm
0 mm
Embedded 2m cable
IR LED
NPN
Diffuse proximity
0.5 ms
Yes
75 g
700 mm
0 mm
M12 4-pin connector
IR LED
PNP
Diffuse proximity
0.5 ms
Yes
25 g
2000 mm
700 mm
0 mm
Embedded 2m cable
IR LED
PNP
Diffuse proximity
0.5 ms
Yes
75 g
700 mm
0 mm
M12 4-pin connector
IR LED
NPN
Diffuse proximity
0.5 ms
Yes
25 g
2000 mm
700 mm
0 mm
Embedded 2m cable
IR LED
NPN
Diffuse proximity
0.5 ms
Yes
75 g
4000 mm
100 mm
M12 4-pin connector
Red LED
PNP
Retro reflective
0.5 ms
Yes
25 g
4000 mm
100 mm
M12 4-pin connector
Red LED
PNP
Polorised retro reflective
0.5 ms
Yes
25 g
2000 mm
4000 mm
100 mm
Embedded 2m cable
Red LED
PNP
Polorised retro reflective
0.5 ms
Yes
75 g
4000 mm
100 mm
M12 4-pin connector
Red LED
NPN
Polorised retro reflective
0.5 ms
Yes
25 g
2000 mm
4000 mm
100 mm
Embedded 2m cable
Red LED
NPN
Polorised retro reflective
0.5 ms
Yes
75 g
1300 mm
100 mm
M12 4-pin connector
Red LED
PNP
Retro reflective for transparents
0.5 ms
Yes
25 g
2000 mm
1300 mm
100 mm
Embedded 2m cable
Red LED
PNP
Retro reflective for transparents
0.5 ms
Yes
75 g
1300 mm
100 mm
M12 4-pin connector
Red LED
NPN
Retro reflective for transparents
0.5 ms
Yes
25 g
2000 mm
1300 mm
100 mm
Embedded 2m cable
Red LED
NPN
Retro reflective for transparents
0.5 ms
Yes
75 g
