 The FDLIS series is a compact terminal designed for the distribution of power.
Â
The range consists of six different blocks that can be used in single or 3 phase installation of up to 32A
Solid wires or stranded cables with ferrules can be directly inserted into the terminals without the need of any tools.
These blocks include a version that connects directly to the din rail for the Earth connection.
Â
Where there is a need to disconnect the Neutral circuit, without the removal of the cables, there is a neutral disconnect terminal that is designed to accommodate a 10 x 3 mm neutral busbar. There is no need for an additional fixing plate because the NT terminal snaps the neutral busbar securely into place.
Â
General data |
|
|---|---|
| Rated impulse voltage | 6 kV |
| Colour | Beige |
| Rated wire cross section | 4 mm² |
| Rated voltage IEC | 400 V |
| Mounting | TS 35 |
| Contamination degree | 3 |
| Load current max | 32 A |
| Rated current IEC | 32 A |
| Approvals | CSA, CSA US, KEMA KUR, EAC |
| Overvoltage category | III |
Dimensions |
|
| Height TS 35/7.5 | 49 mm |
| Length | 100 mm |
| Width | 5,1 mm |
Connection data |
|
| Cross connect channels | 2 Â |
| Cross section stranded wire to | 4 mm² |
| Cross section single wire from | 0,2 mm² |
| Connections | 4 |
| Cross section stranded wire from | 0,2 mm² |
| Special connections | Busbar 10 x 3mm |
| Rated wire cross section to (AWG) | 10 |
| Rated wire cross section from (AWG) | 26 |
*Invisible Heading* |
|
|---|---|
| Cross section stranded with ferrule from | 0,2 mm² |
| Cross section stranded with ferrule to | 2,5 mm² |
| Stripping length | 12 mm |
| Cross section single wire to | 4 mm² |
| Plug gauge acc. EN 60 947-1 | A3 |
Materials |
|
| Flammability class | UL94-V0 |
| Operating temperature from | -40 °C |
| Operating temperature to | 120 °C |
| Insulation material | Polyamide 6.6 |
Approvals |
|
| Rated current CSAus | 25 A |
| Rated voltage CSAus | 300 V |
| CSA test standard | C22.2 No 158 |
| CSAus test standard | UL 1059 |
| Rated current CSA | 25 A |
| Rated voltage CSA | 300 V |
| EAC test standard | TR ZU 004/2011 |
Additional data |
|
| Pack size | 50 Â |
| Country of origin | BG |
| Tariff code | 85369010 |
| Weight | 21 g |
 The FDLIS series is a compact terminal designed for the distribution of power.
Â
The range consists of six different blocks that can be used in single or 3 phase installation of up to 32A
Solid wires or stranded cables with ferrules can be directly inserted into the terminals without the need of any tools.
These blocks include a version that connects directly to the din rail for the Earth connection.
Â
Where there is a need to disconnect the Neutral circuit, without the removal of the cables, there is a neutral disconnect terminal that is designed to accommodate a 10 x 3 mm neutral busbar. There is no need for an additional fixing plate because the NT terminal snaps the neutral busbar securely into place.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Additional information | Width | Connections | Special connections | KEMA KEUR test standard | Pack size | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|

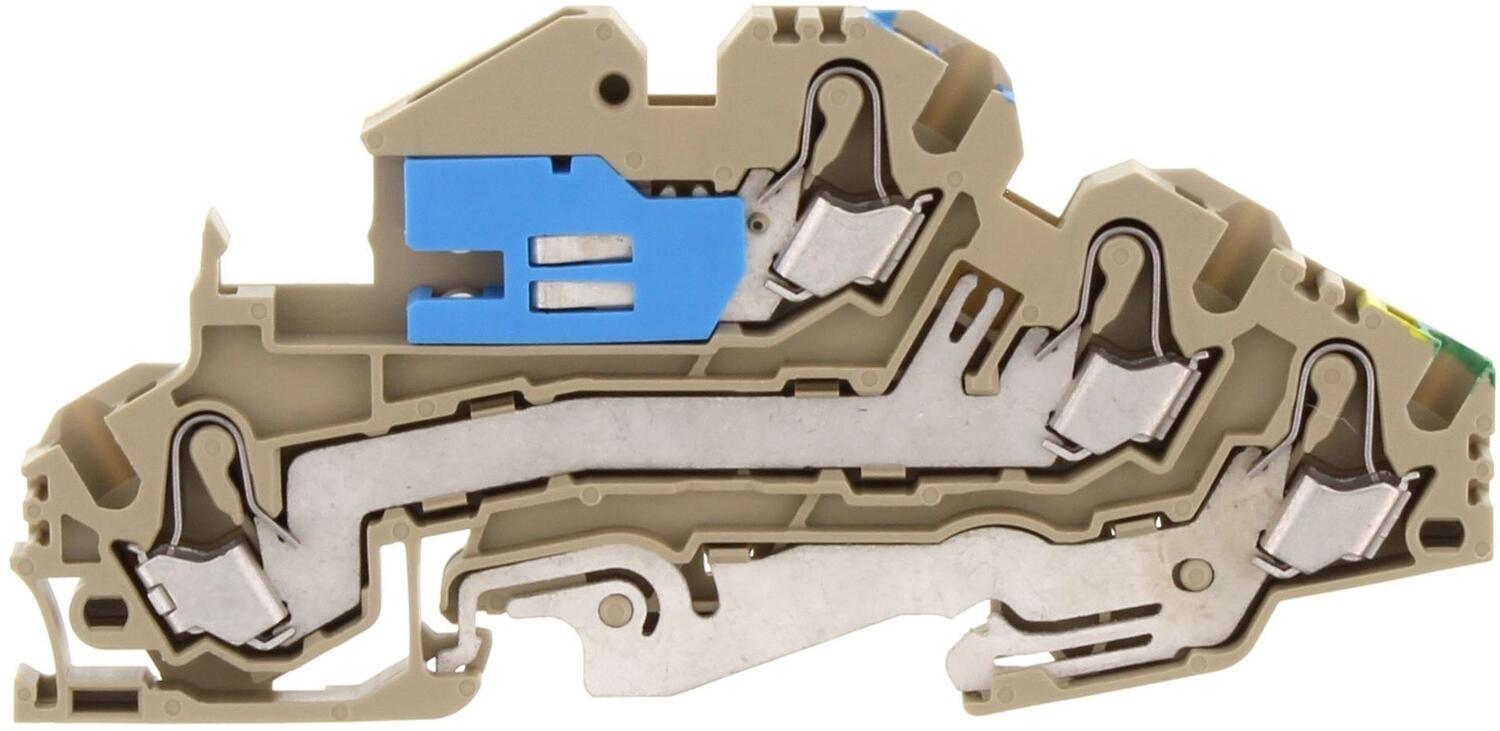

FDLIS 2,5-4 NT/L/PE
Art:
3240.2
Copied
|
|
5,1 mm
|
4
|
Busbar 10 x 3mm
|
|
50
|
21 g
|
| ||

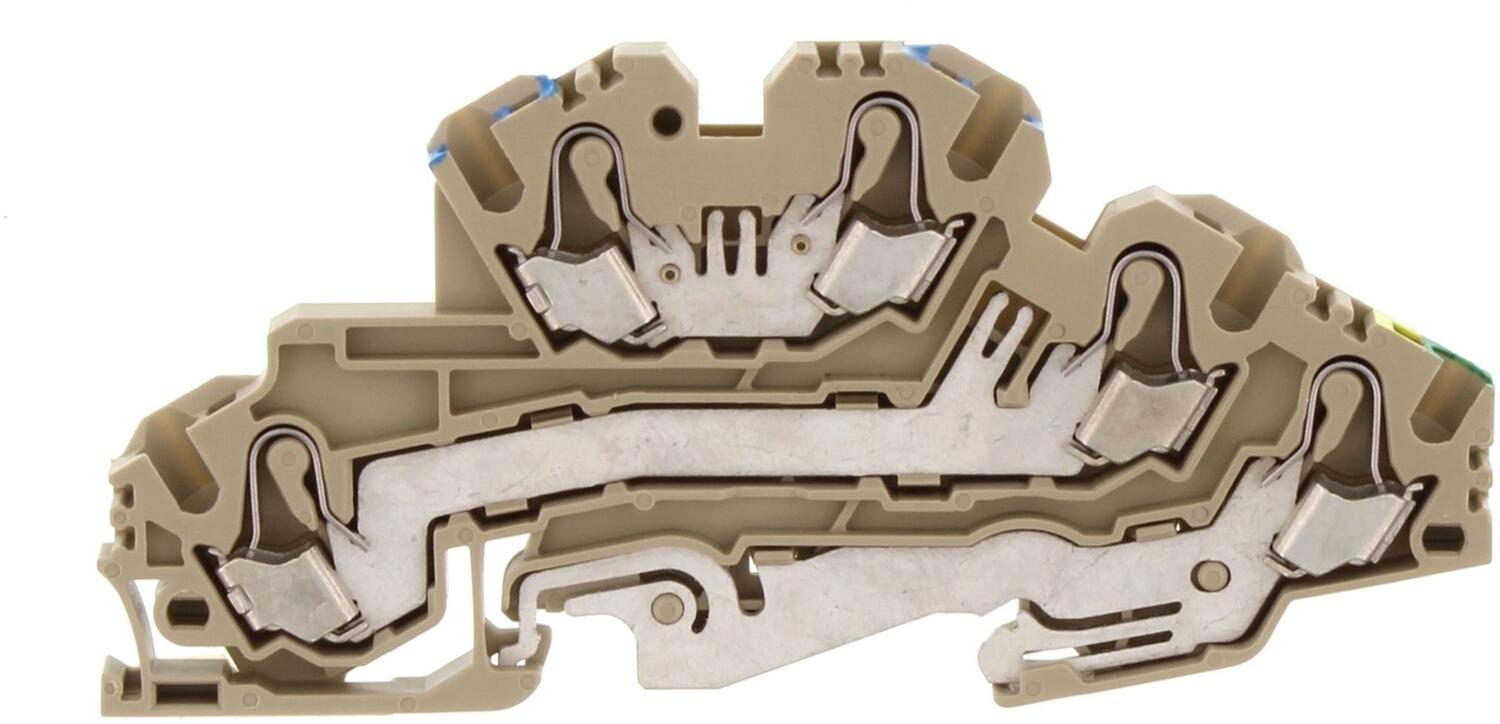

FDLIS 2,5-4 N/L/PE
Art:
3241.2
Copied
|
|
5,1 mm
|
5
|
|
|
50
|
21 g
|
| ||
FDLIS 2,5-4 L/L/PE
Art:
3242.2
Copied
|
|
5,1 mm
|
5
|
|
|
50
|
21 g
|
| ||
FDLIS 2,5-4 N/L
Art:
3243.2
Copied
|
|
5,1 mm
|
4
|
|
EN 60947-7-1:2009
|
50
|
15,4 g
|
| ||

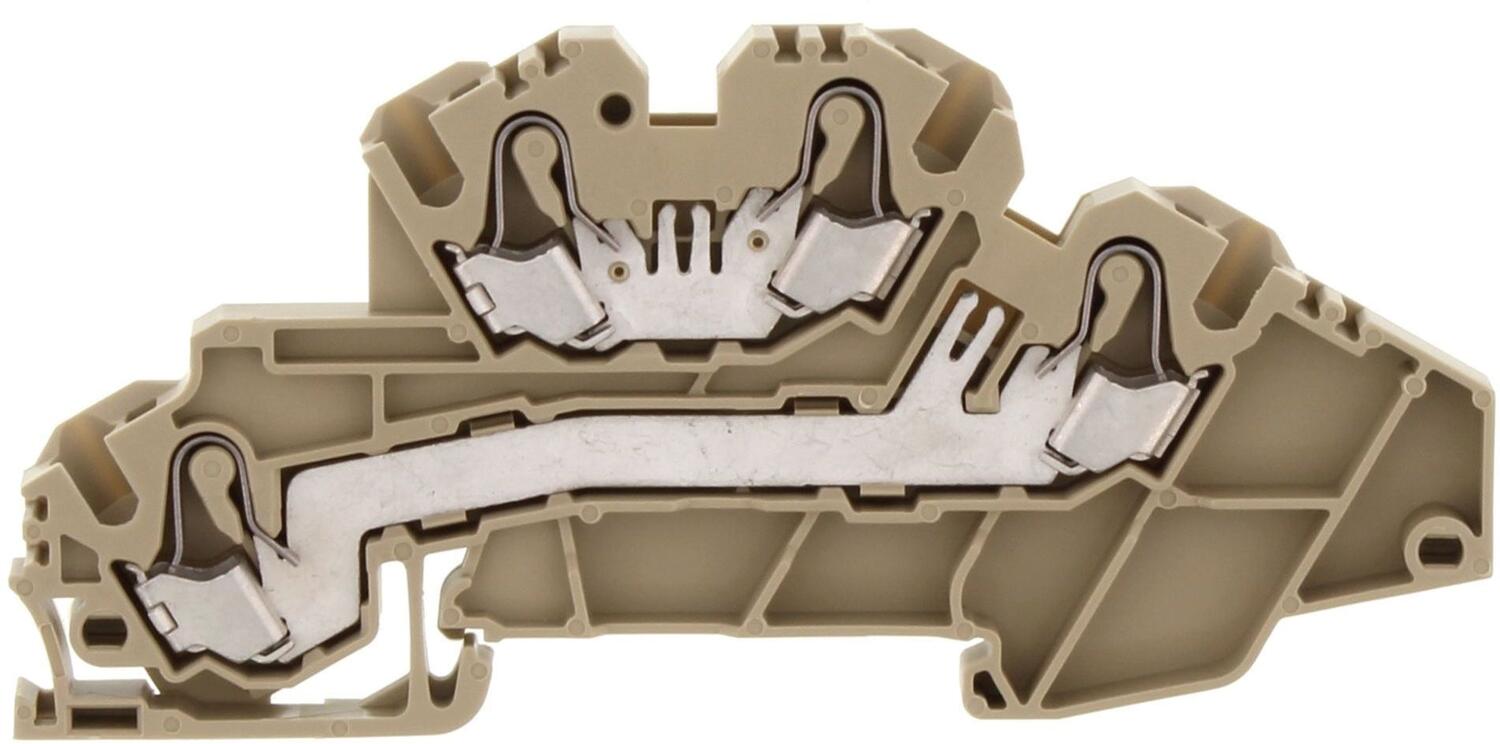

FDLIS 2,5-4 L/L
Art:
3244.2
Copied
|
|
5,1 mm
|
4
|
|
EN 60947-7-1:2009
|
50
|
15,4 g
|
| ||
FDLIS 2,5-4 N
Art:
3245.2
Copied
|
|
5,1 mm
|
2
|
|
EN 60947-7-1:2009
|
50
|
11 g
|
| ||

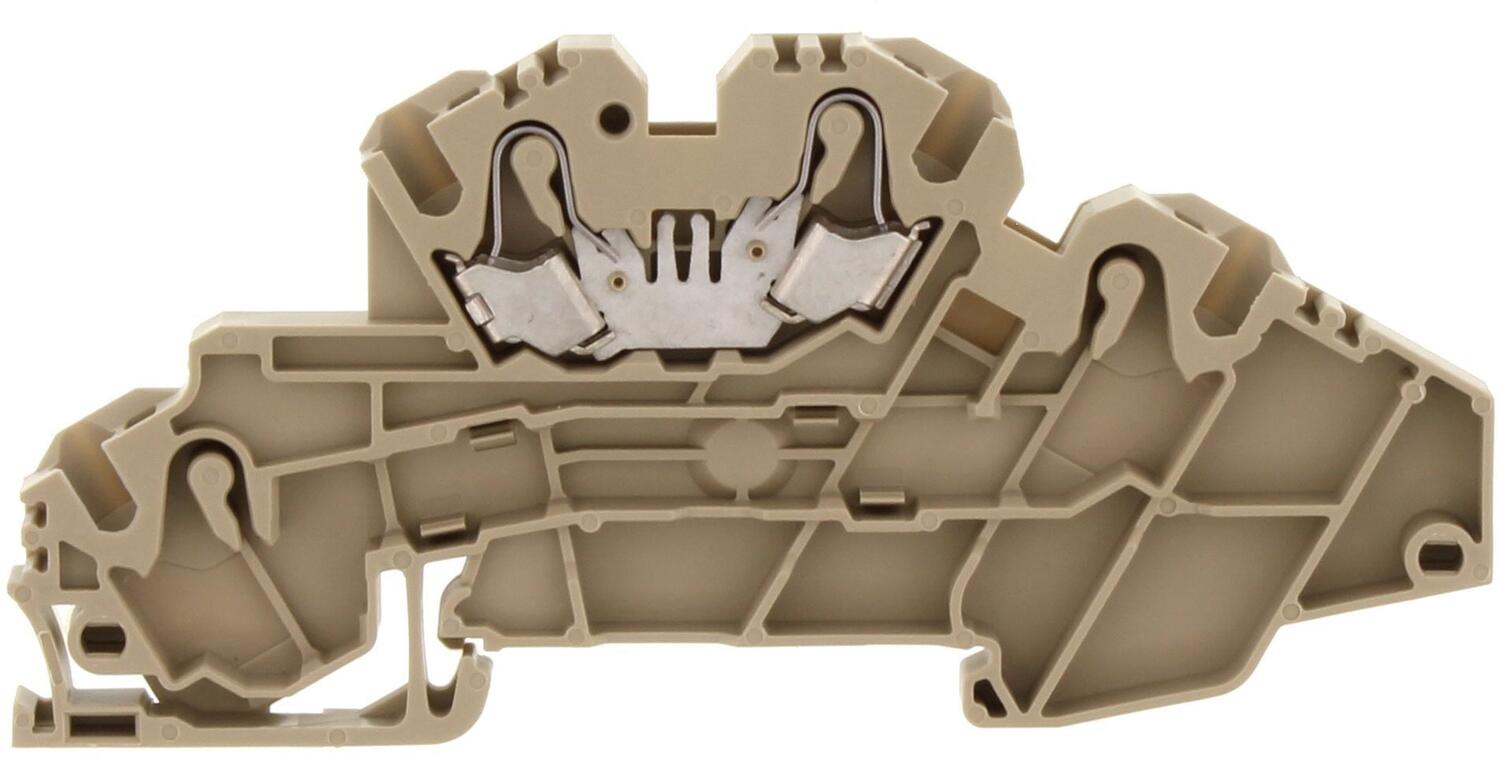

FDLIS 2,5-4 L
Art:
3246.2
Copied
|
|
5,1 mm
|
2
|
|
EN 60947-7-1:2009
|
50
|
10 g
|
| ||

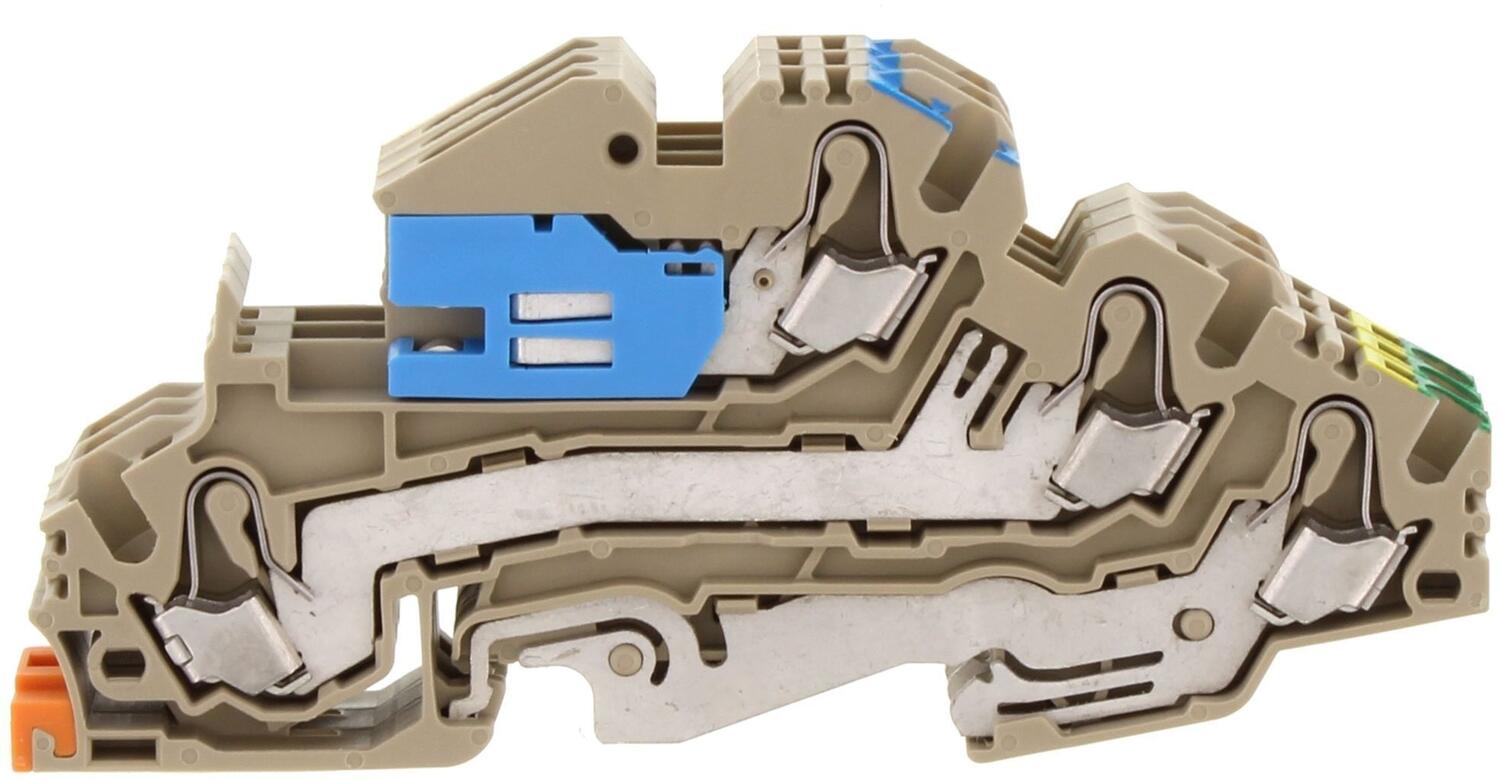

FDLIS B 2,5-4 3NT/3L/3PE
Art:
3247.2
Copied
|
block for AC application
|
15,3 mm
|
12
|
Busbar 10 x 3mm
|
|
16
|
63 g
|
| ||

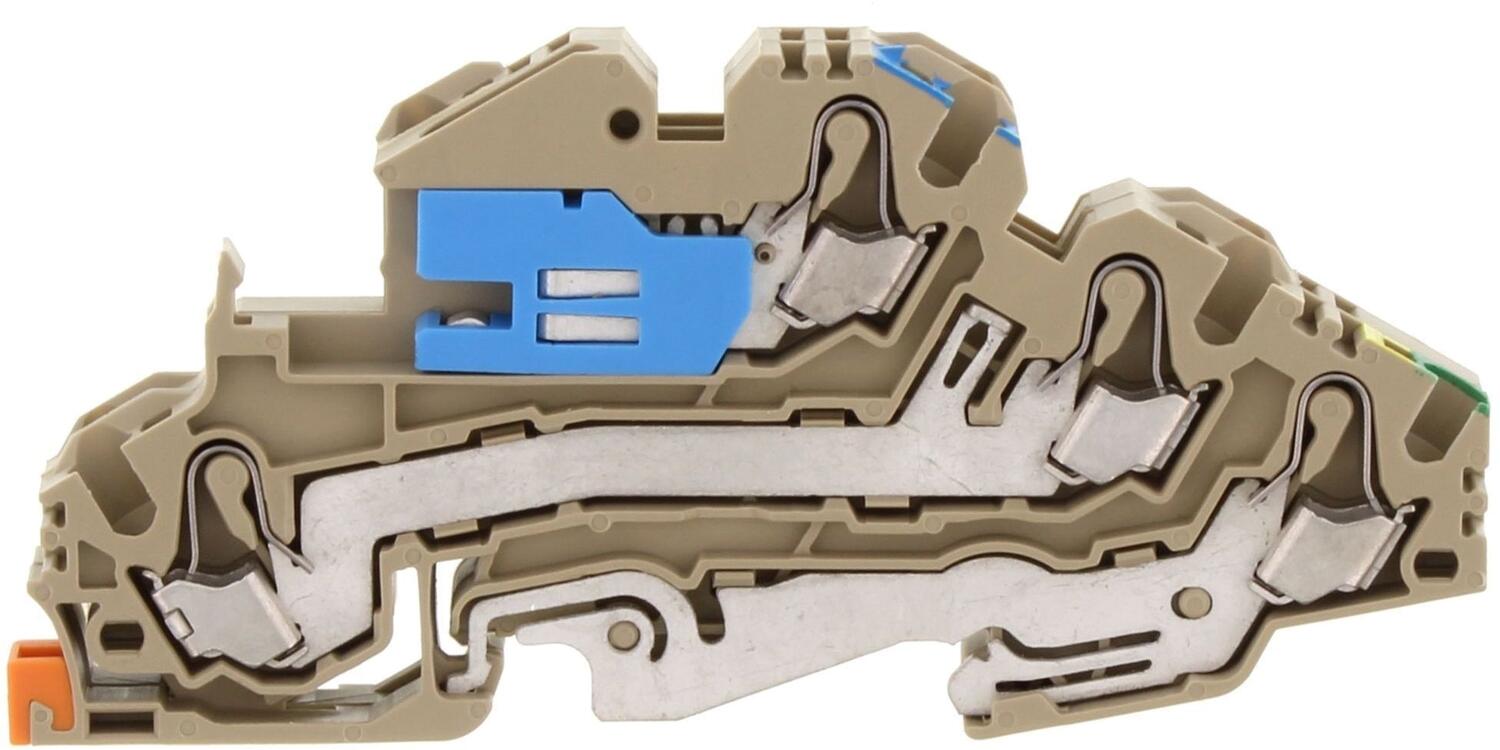

FDLIS B 2,5-4 NT/3L/PE
Art:
3248.2
Copied
|
block for 3-phase application
|
10,2 mm
|
7
|
Busbar 10 x 3mm
|
|
25
|
35,78 g
|
| ||

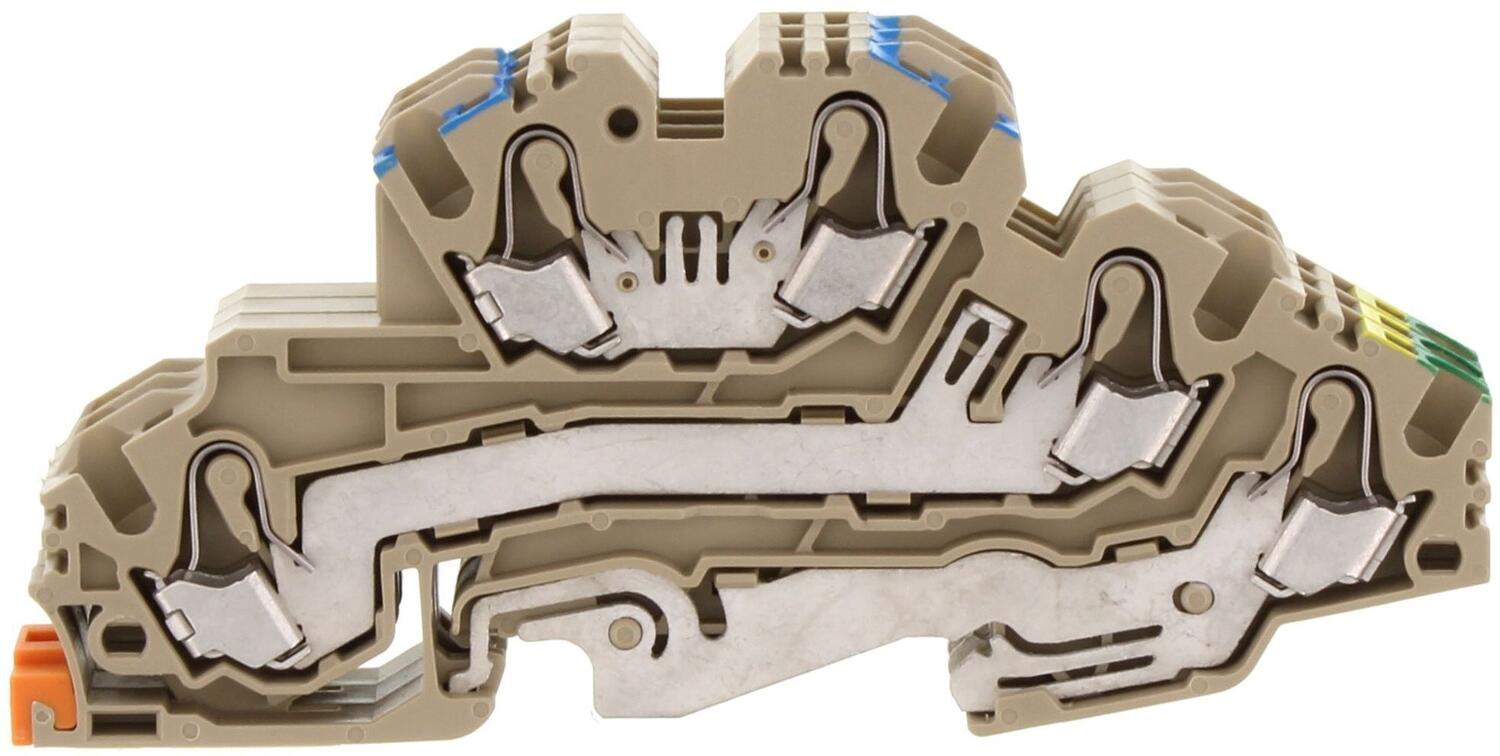

FDLIS B 2,5-4 3L/3N/3PE
Art:
3249.2
Copied
|
block for AC application
|
15,3 mm
|
15
|
|
|
16
|
62 g
|
| ||

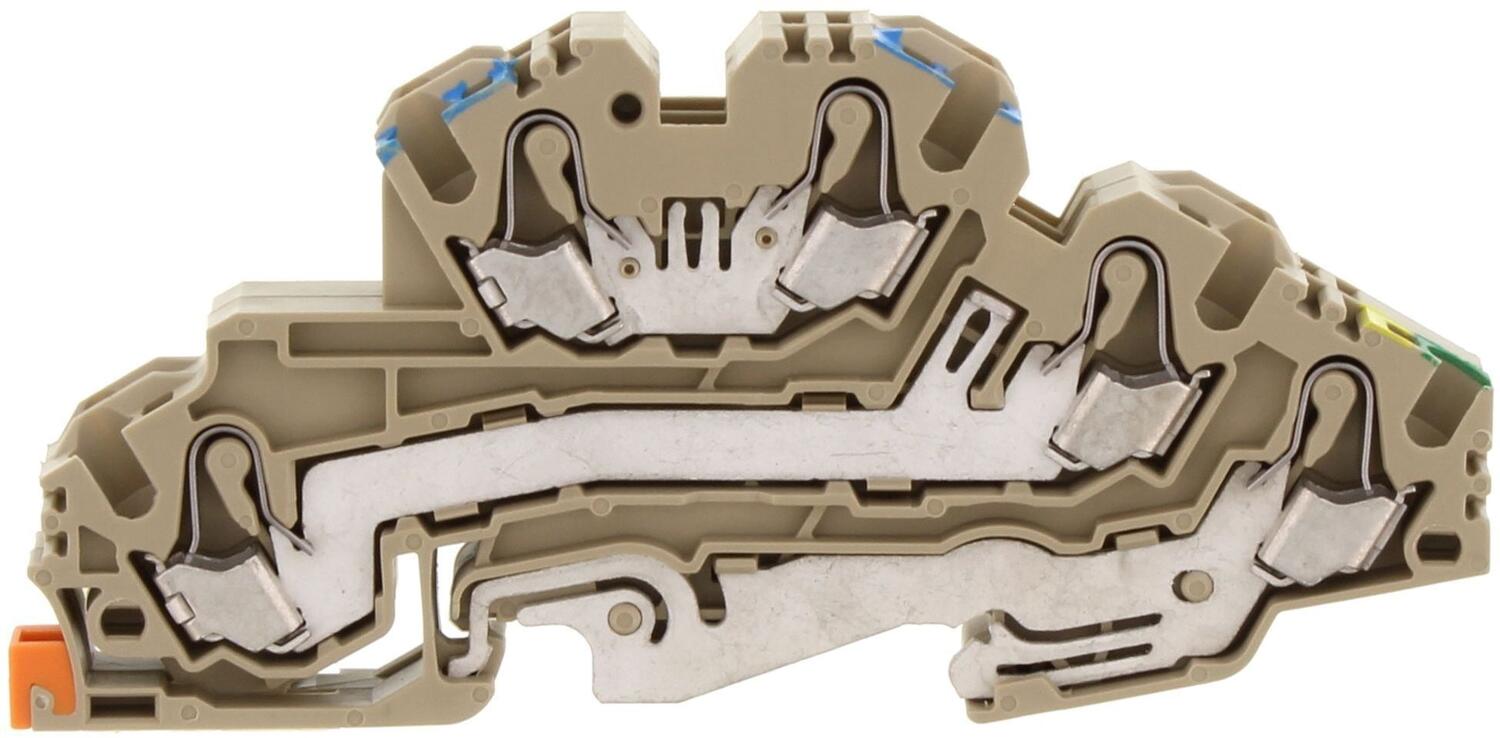

FDLIS B 2,5-4 3L/N/PE
Art:
3250.2
Copied
|
block for 3-phase application
|
10,2 mm
|
9
|
|
|
25
|
37 g
|
| ||

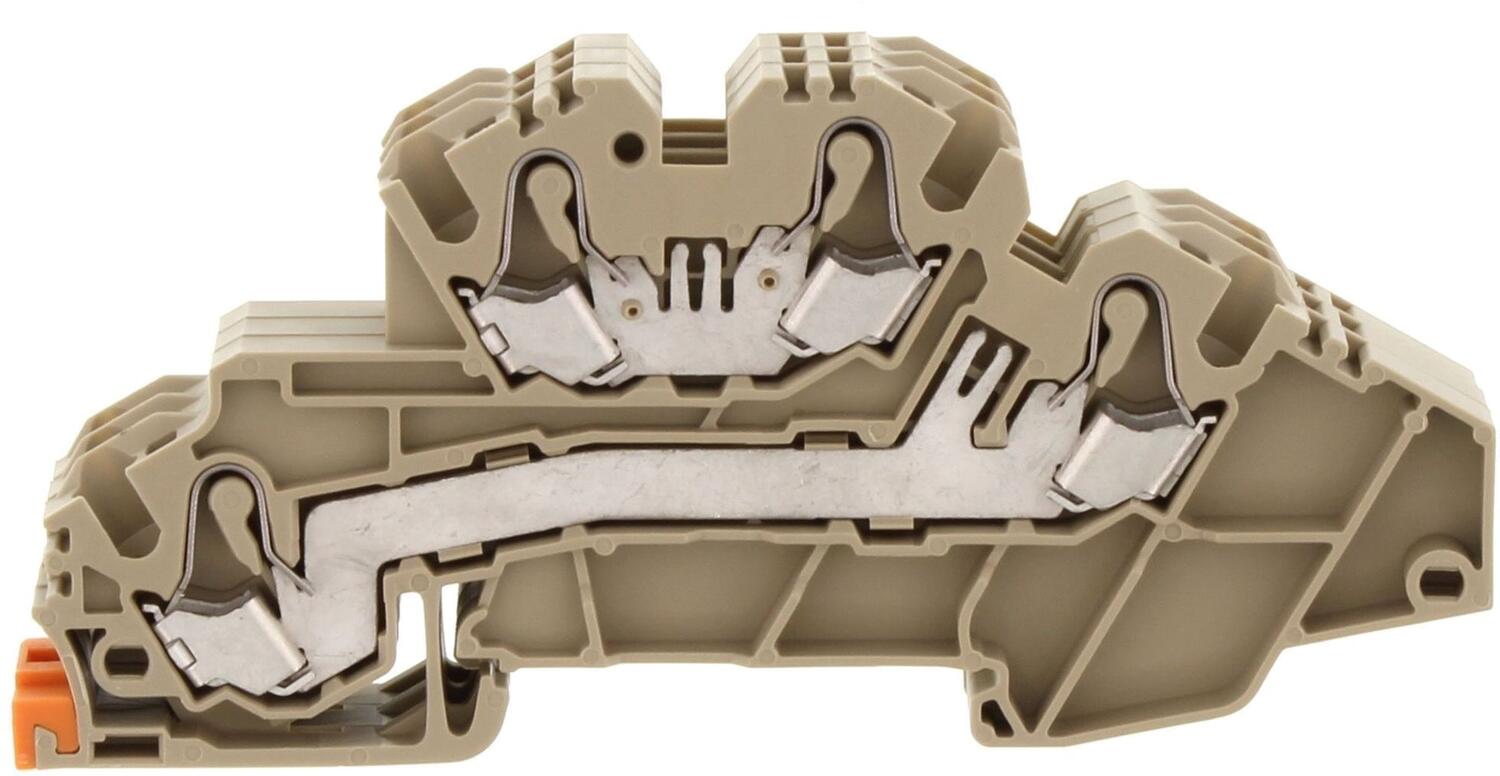

FDLIS B 2,5-4 6L
Art:
3251.2
Copied
|
|
15,3 mm
|
12
|
|
EN 60947-7-1:2009
|
16
|
47,2 g
|
| ||

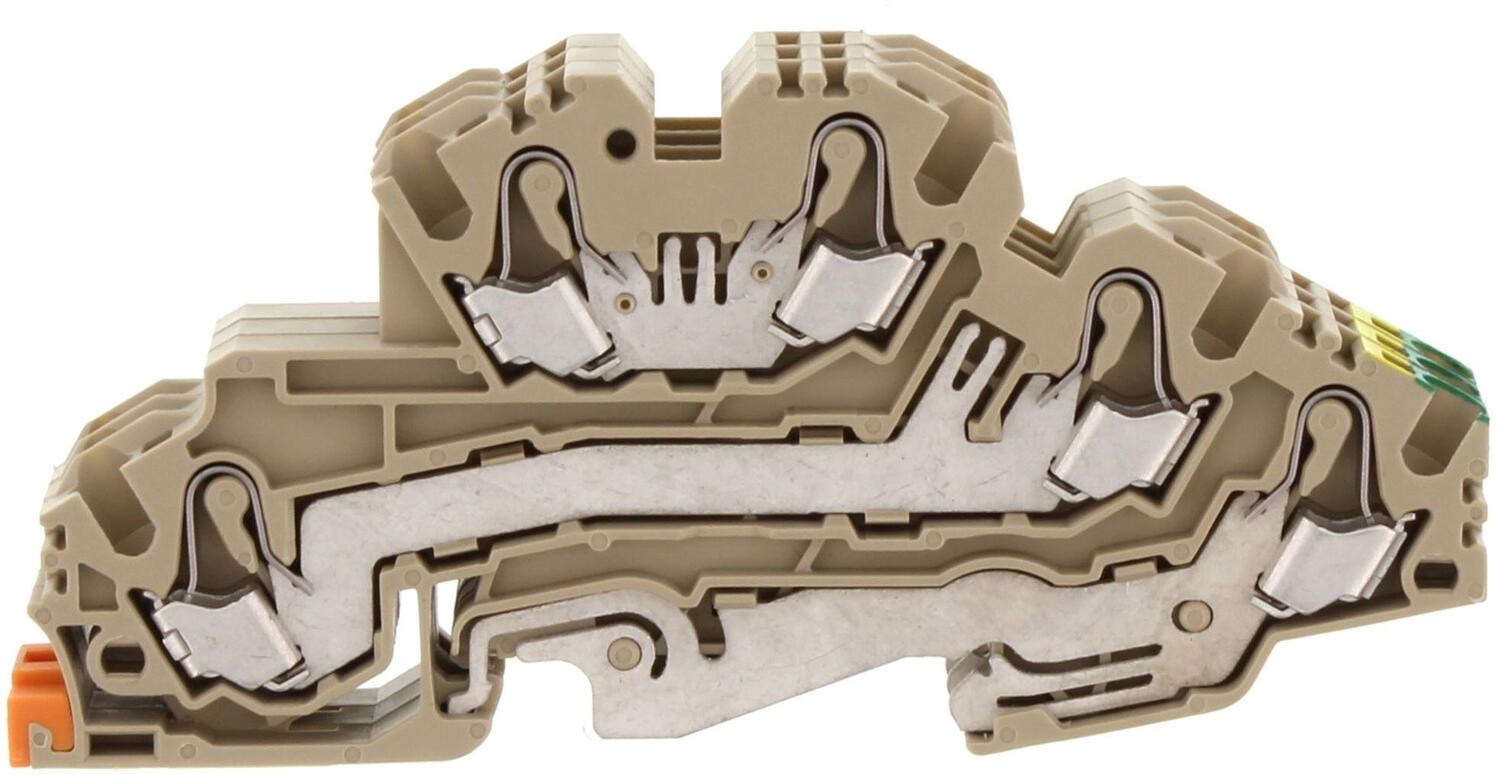

FDLIS B 2,5-4 6L/3PE
