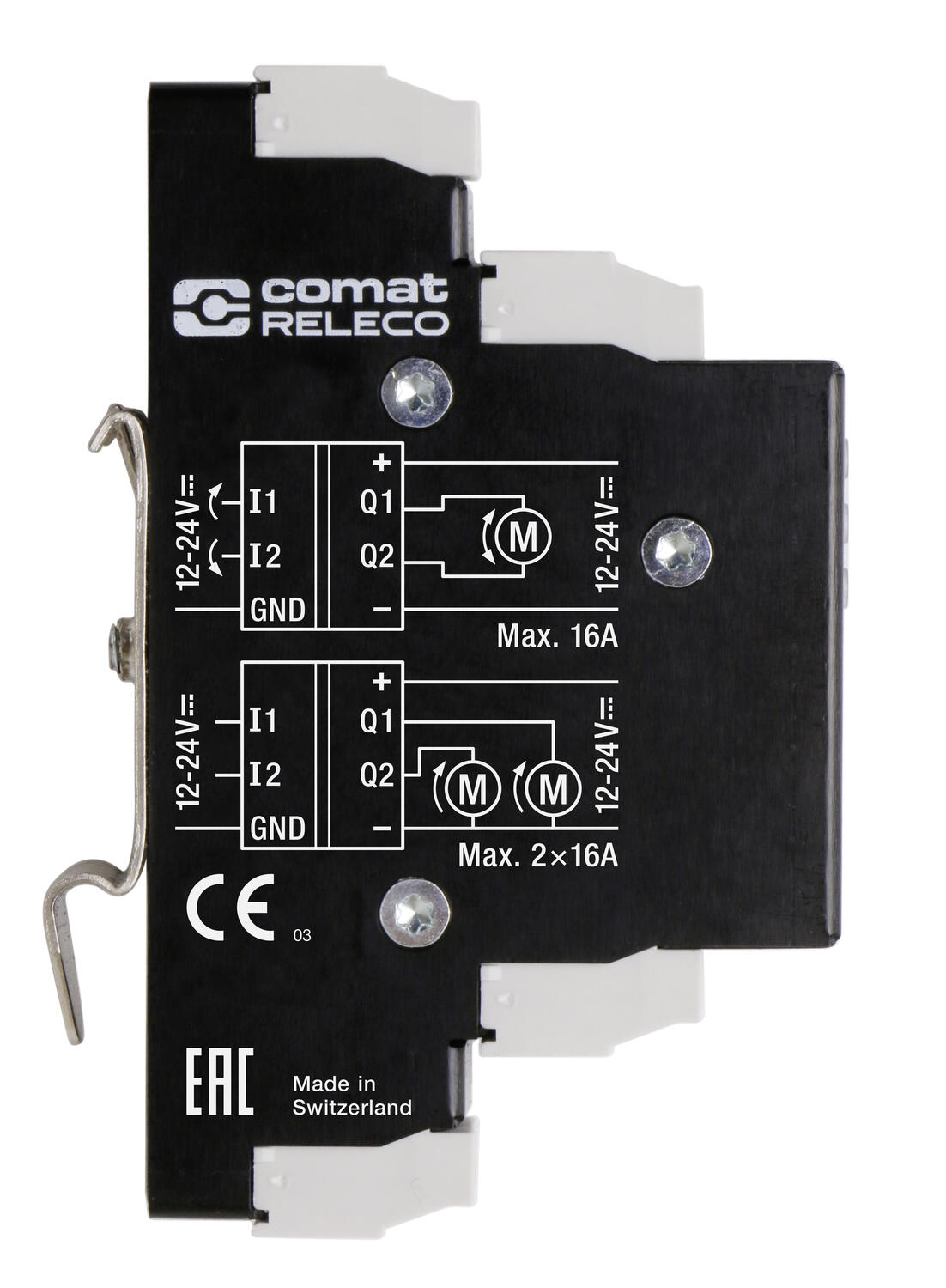

DC Motor Control CMC1

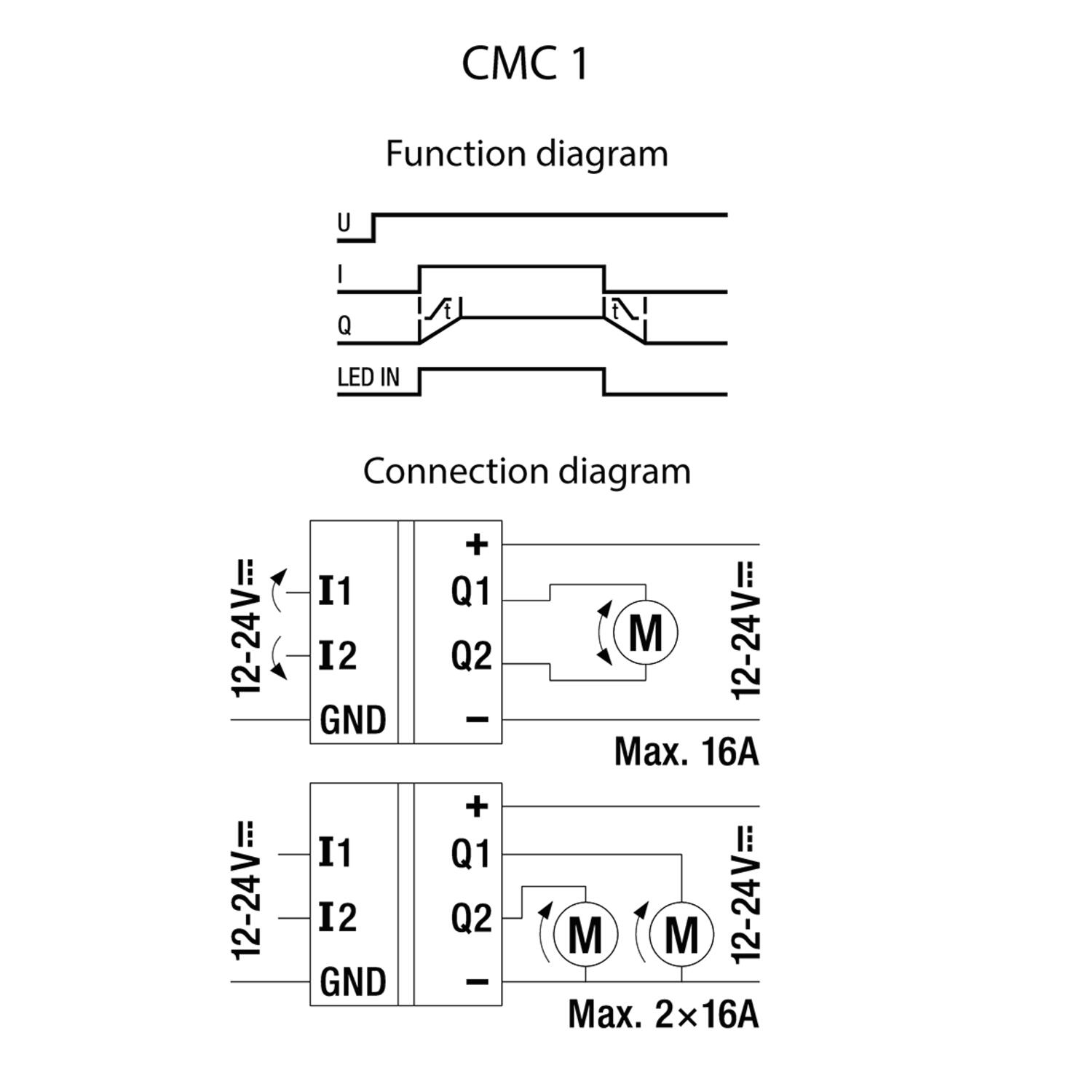

The CMC is a control device for DC motors and permits operation in both rotating directions, i. e. the direction of rotation can be reversed with the input signal. Alternatively, two motors can be operated in the same direction.

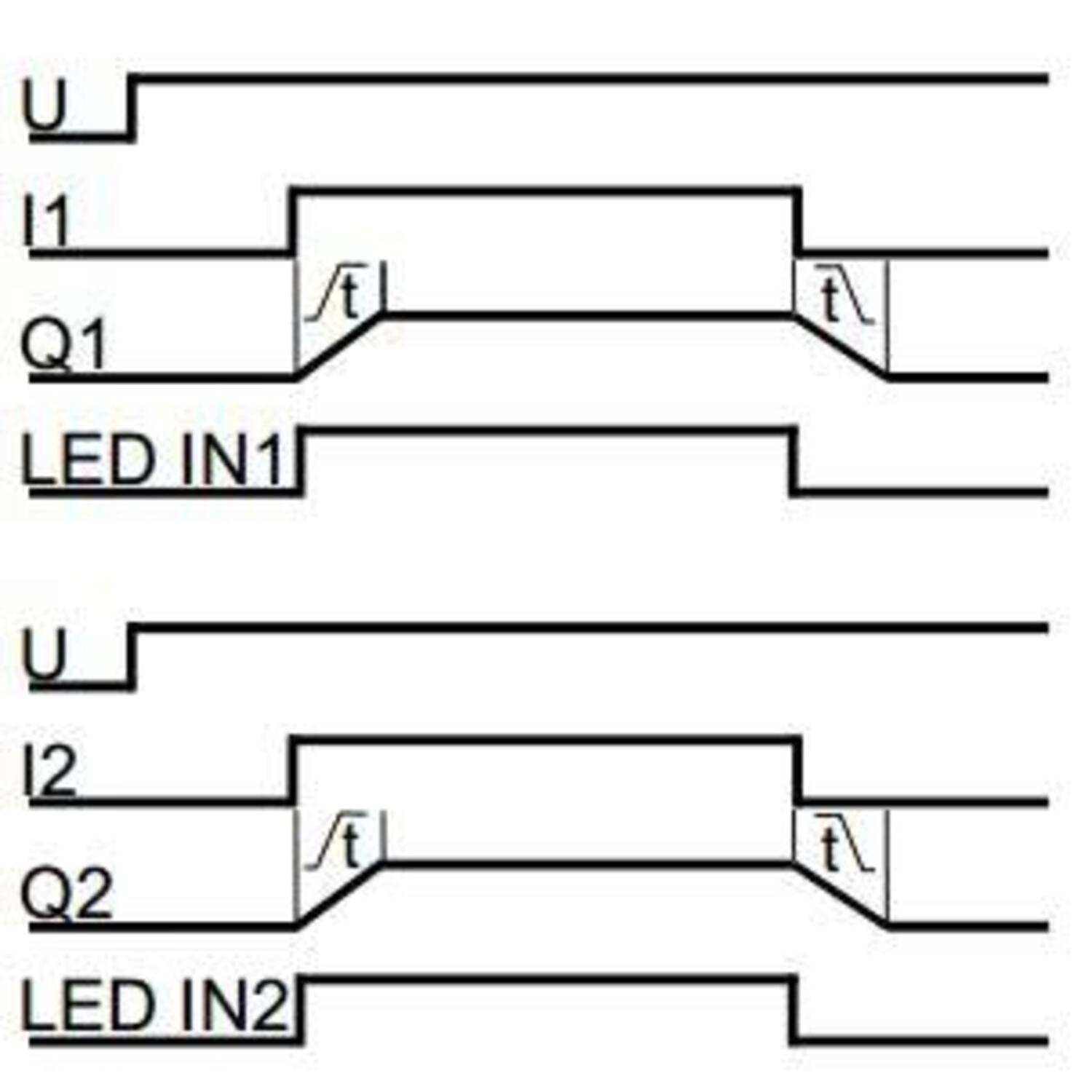

The CMC1 also allows to control lamps or electromagnets. The start and breaking ramps of the connected loads can be adjusted by two potentiometers in the time range of 0 - 4 seconds.
- 12-24 V dc control input
- 16 A continuous 20 A inrush current
- Adjustable start/break ramps
- DC motors up to 384 W

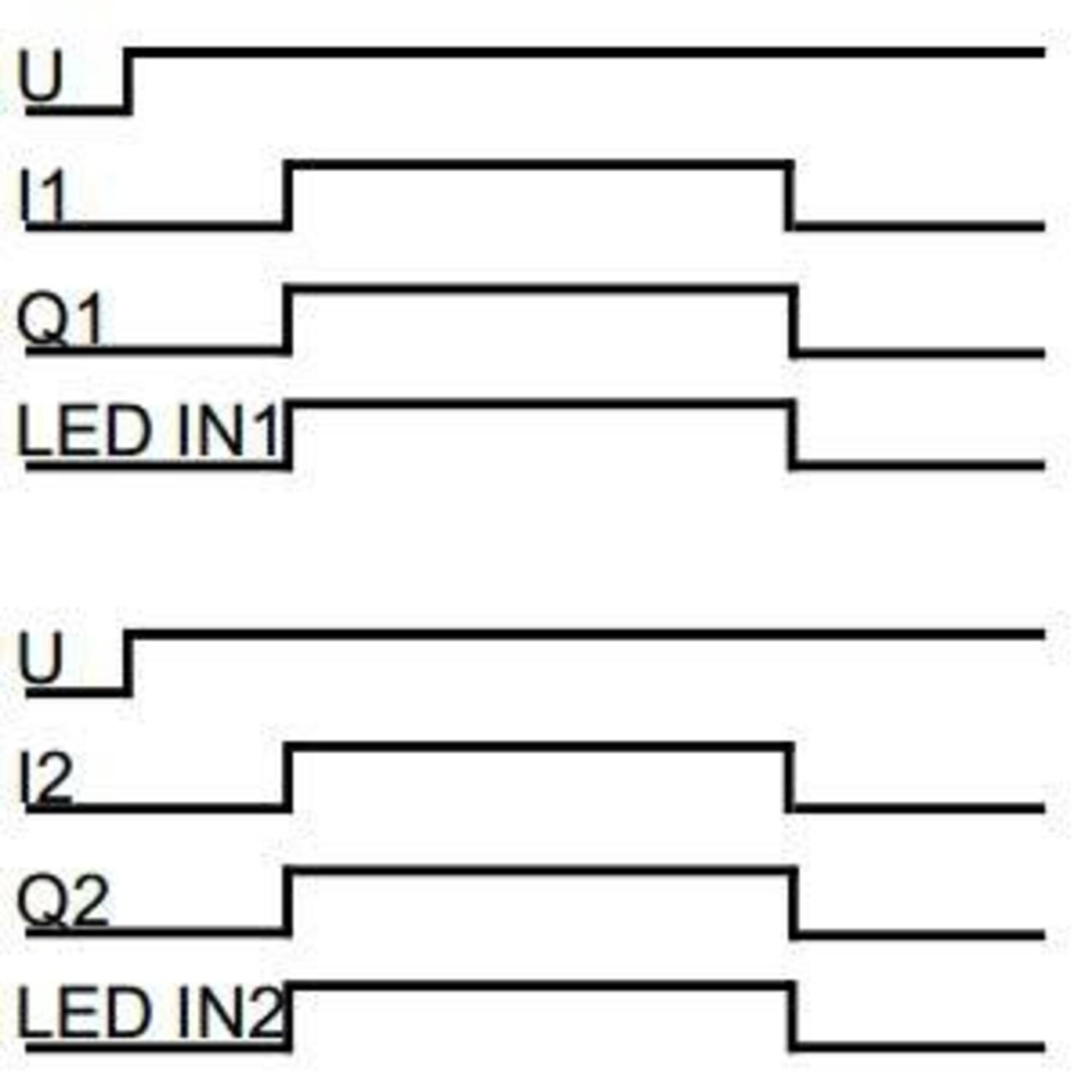

- Fixed speed
Selected variant
Technical data
| Approvals | CE, RoHS |
|---|---|
| Breaking capacity current | 16 A |
| Connection area multiple conductors | 2,5mm2 |
| Inrush max | 20 A |
| IP class | IP20 |
| Load voltage dc max | 28 V |
| Load voltage dc min | 8 V |
| Material | Aluminium |
| Power consumption 12 V dc max | 120 mW |
| Power consumption 24 V dc max | 240 mW |
| Recommended humidity | 10 till +95 % (ej kondenserande) |
|---|---|
| Storage temperature max | 85 °C |
| Storage temperature min | -40 °C |
| Switching capacity | 384 W |
| Temperature operational max | 60 °C |
| Temperature operational min | -25 °C |
| Weight | 80 g |

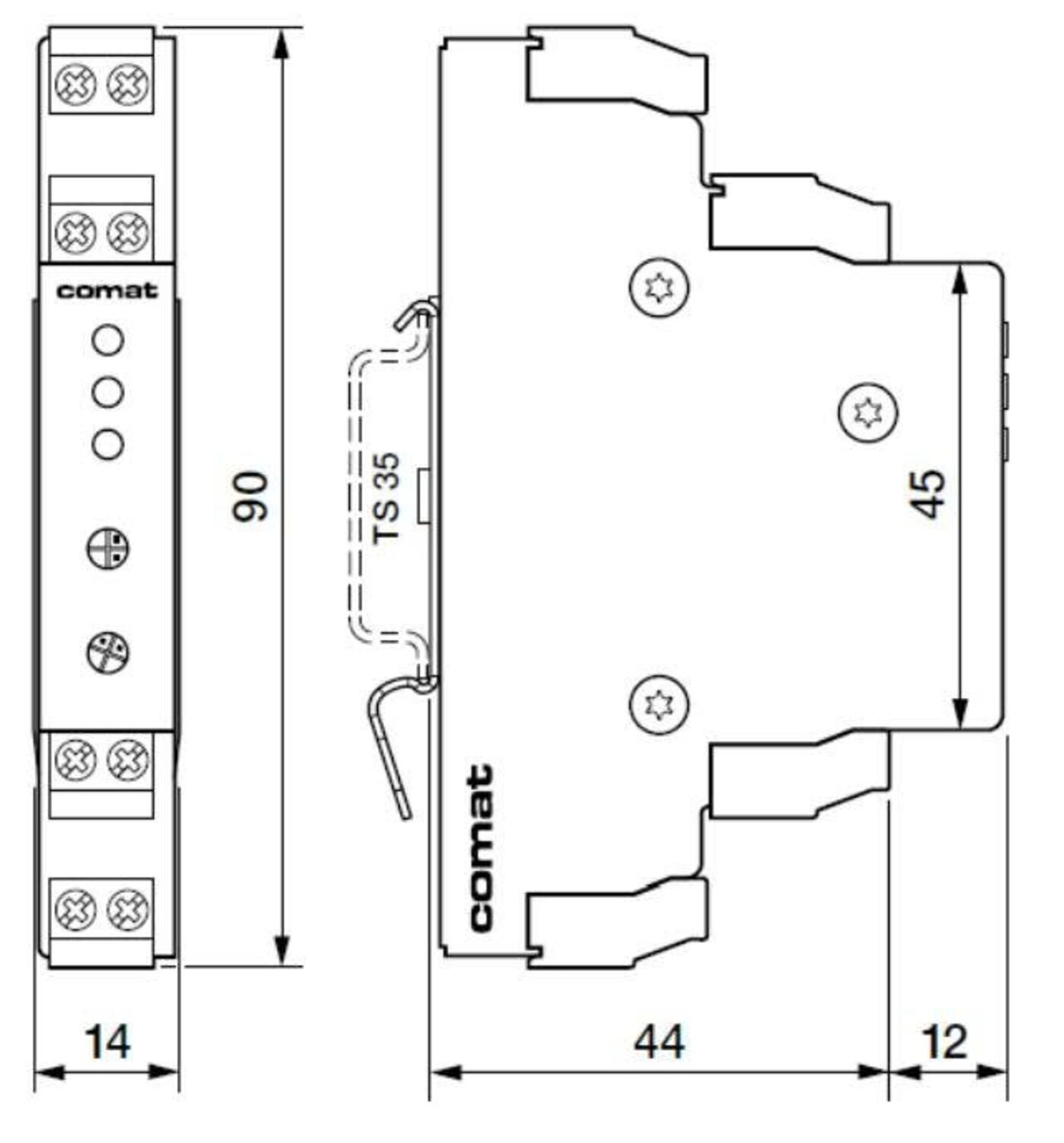

| Width | 14 mm |
Downloads
Product description
The CMC is a control device for DC motors and permits operation in both rotating directions, i. e. the direction of rotation can be reversed with the input signal. Alternatively, two motors can be operated in the same direction.
The CMC1 also allows to control lamps or electromagnets. The start and breaking ramps of the connected loads can be adjusted by two potentiometers in the time range of 0 - 4 seconds.
