Breaking capacity current | 16 A |
---|---|
Breaking Voltage | 400 V |
Coil voltage ac/dc | 230 V AC/DC |
Connection area multiple conductors | 2,5 mm2 Coil / 6 mm2 contacts |
Contact material | AgNi |
Contact type | 2 NC |
Inrush | 50 A |
Inrush max | 50 A |
IP class | IP20 |
Mechanical life expectancy | DC1 ≤ 300 cycles/h; AC1 ≤ 600 cycles/h |
Number of contacts | 2 |
Power consumption | 2.1 VA / 2.1 W |
Recommended min load | 50 mA/17 V |
---|---|
Release time | 20…50ms |
Response time | 15…45ms |
Storage temperature max | 80 °C |
Storage temperature min | -30 °C |
Switching voltage | 160 V |
Temperature operational max | 55 °C |
Temperature operational min | -15 °C |
Weight | 130 g |

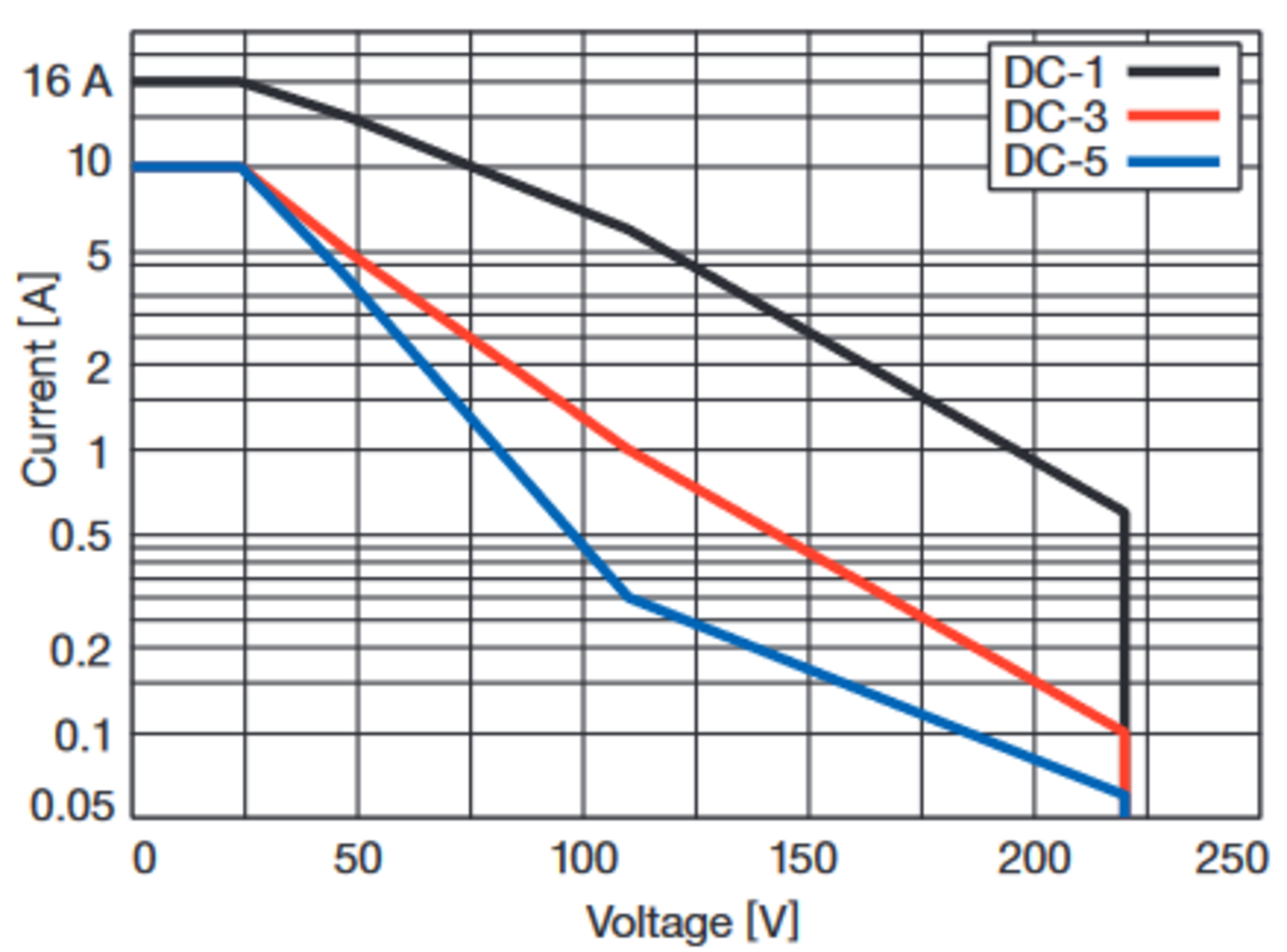

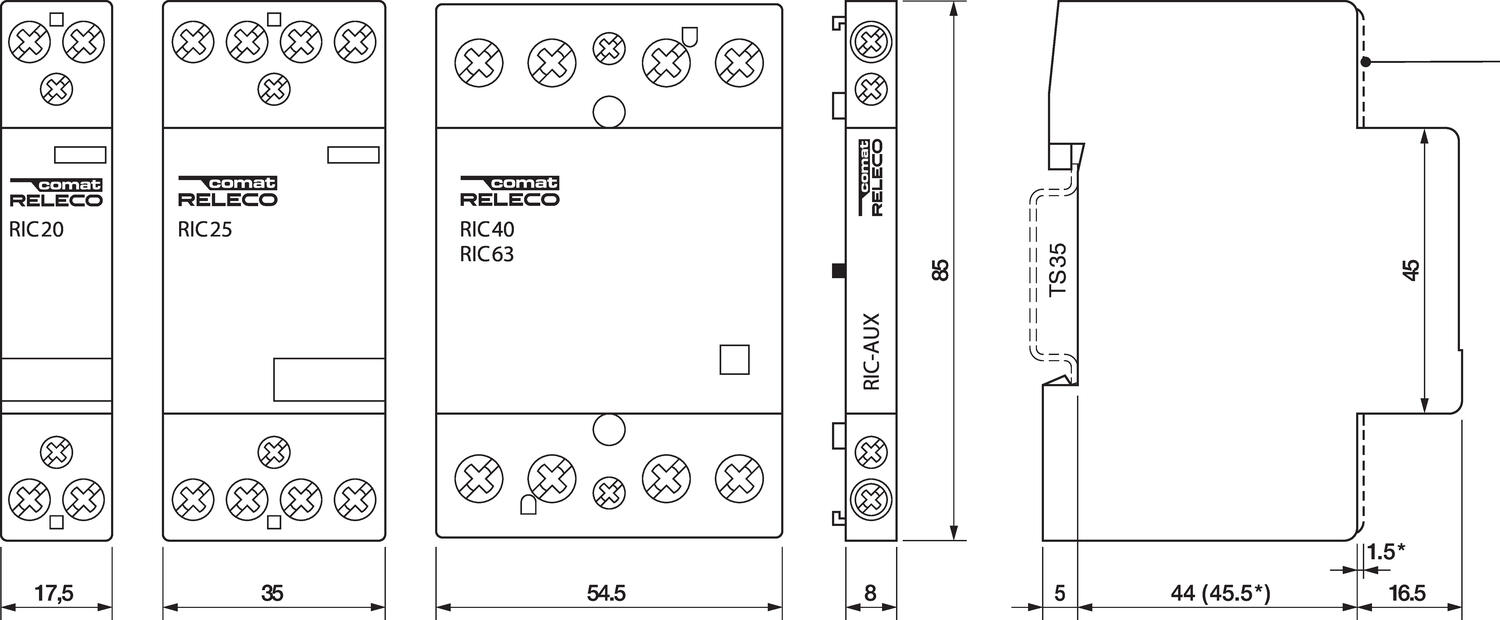

Width | 17,5 mm |
Working Un | -15 %/+10 % Un |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Breaking capacity current | Coil voltage ac/dc | Contact material | Contact type | Inrush | Inrush max | Number of contacts | Power consumption | Recommended tightening torque | Release time | Response time | Switching voltage | Weight | Width | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Contactor 16A 2xN/C 230Vacdc
Art:
RIC16-020UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
2 NC
|
50 A
|
50 A
|
2
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Contactor 16A 1xN/C 230Vacdc
Art:
RIC16-010UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
1 NC
|
50 A
|
50 A
|
1
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Contactor 16A 4xN/C 230Vacdc
Art:
RIC16-040UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
4 NC
|
50 A
|
50 A
|
4
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
170 g
|
35 mm
|
| ||
![]()
Contactor 16A 2xN/O 230Vacdc
Art:
RIC16-200UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
2 NO
|
50 A
|
50 A
|
2
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Contactor 16A 1xN/C 1xN/O 230Vacdc
Art:
RIC16-110UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
1 NO + 1 NC
|
50 A
|
50 A
|
2
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Contactor 16A 1xN/O 230Vacdc
Art:
RIC16-100UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
1 NO
|
50 A
|
50 A
|
1
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Contactor 16A 2xN/C 2xN/O 230Vacdc
Art:
RIC16-220UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
2 NO
|
50 A
|
50 A
|
4
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
170 g
|
35 mm
|
| ||
![]()
Contactor 16A 4xN/O 230Vacdc
Art:
RIC16-400UC230
Copied
|
16 A
|
230 V AC/DC
|
AgNi
|
4 NO
|
50 A
|
50 A
|
4
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
160 V
|
170 g
|
35 mm
|
| ||
![]()

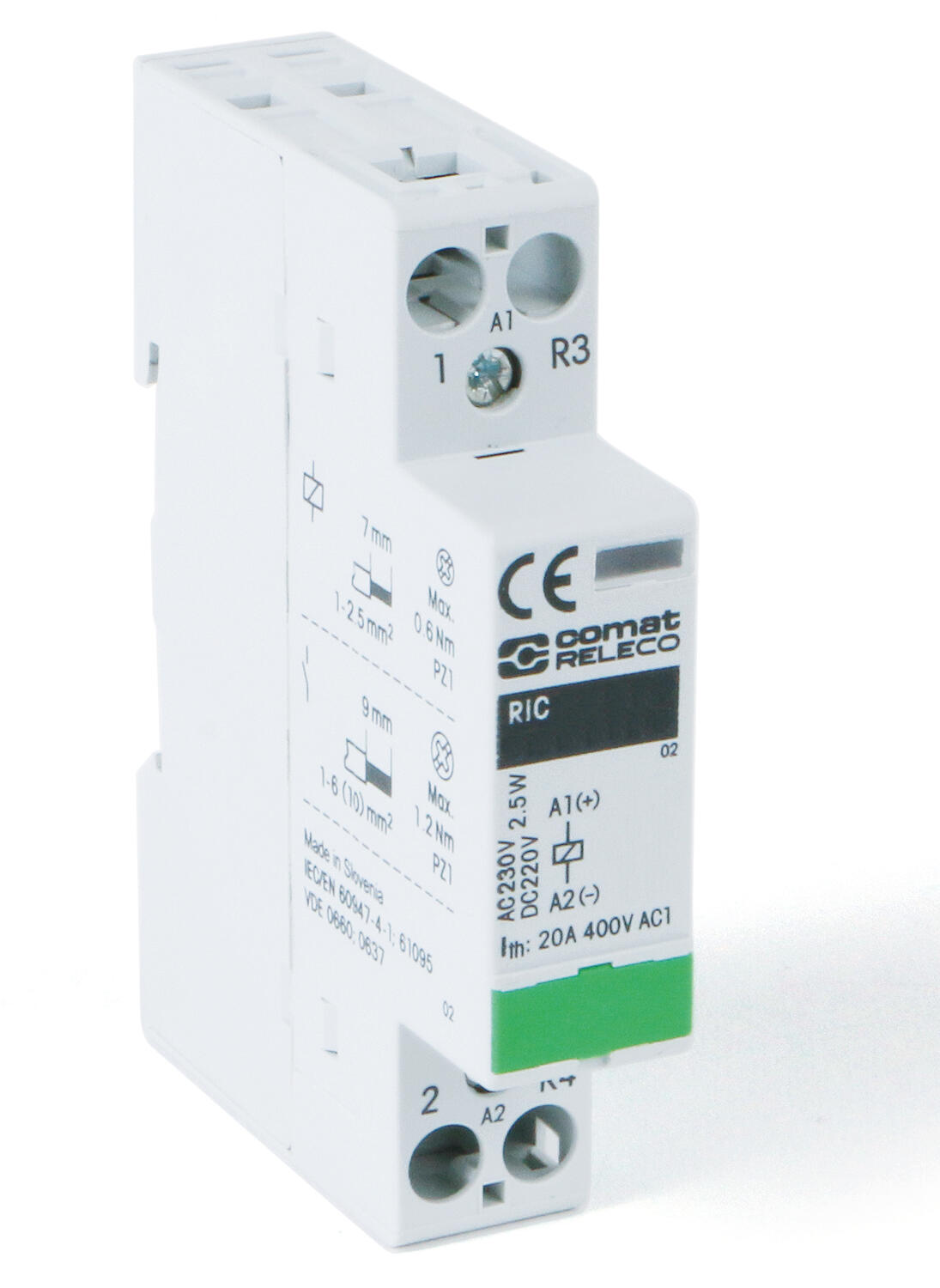

Installation Contactor, 20A/2xNO/230V
Art:
RIC20-200UC230
Copied
|
20 A
|
230 V AC/DC
|
AgNi
|
2 NO
|
50 A
|
180 A
|
2
|
2.1 VA / 2.1 W
|
1,2
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Installation Contactor, 20A/2xNC/230V
Art:
RIC20-020UC230
Copied
|
20 A
|
230 V AC/DC
|
AgNi
|
2 NC
|
50 A
|
180 A
|
2
|
2.1 VA / 2.1 W
|
1,2
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Installation Contactor,20A/1NO+1NC/230V
Art:
RIC20-110UC230
Copied
|
20 A
|
230 V AC/DC
|
AgNi
|
1 NO + 1 NC
|
50 A
|
180 A
|
2
|
2.1 VA / 2.1 W
|
1,2
|
20…50ms
|
15…45ms
|
160 V
|
130 g
|
17,5 mm
|
| ||
![]()
Installation Contactor, 20A/2xNO/24V
Art:
RIC20-200UC24
Copied
|
20 A
|
24 V AC/DC
|
AgNi
|
2 NO
|
50 A
|
180 A
|
2
|
2.1 VA / 2.1 W
|
|
20…50ms
|
15…45ms
|
17 V
|
130 g
|
17,5 mm
|
| ||
![]()
Installation Contactor, 20A/2xNC/24V
Art:
RIC20-020UC24
Copied
|
20 A
|
24 V AC/DC
|
AgNi
|
2 NC
|
50 A
|
180 A
|
2
|
2.1 VA / 2.1 W
|
1,2
|
20…50ms
|
15…45ms
|
17 V
|
130 g
|
17,5 mm
|
| ||
![]()
Installation Contactor, 20A/1NO+1NC/24V
Art:
RIC20-110UC24
Copied
|
20 A
|
24 V AC/DC
|
AgNi
|
1 NO + 1 NC
|
50 A
|
180 A
|
2
|
2.1 VA / 2.1 W
|
1,2
|
20…50ms
|
15…45ms
|
17 V
|
130 g
|
17,5 mm
|
| ||
![]()

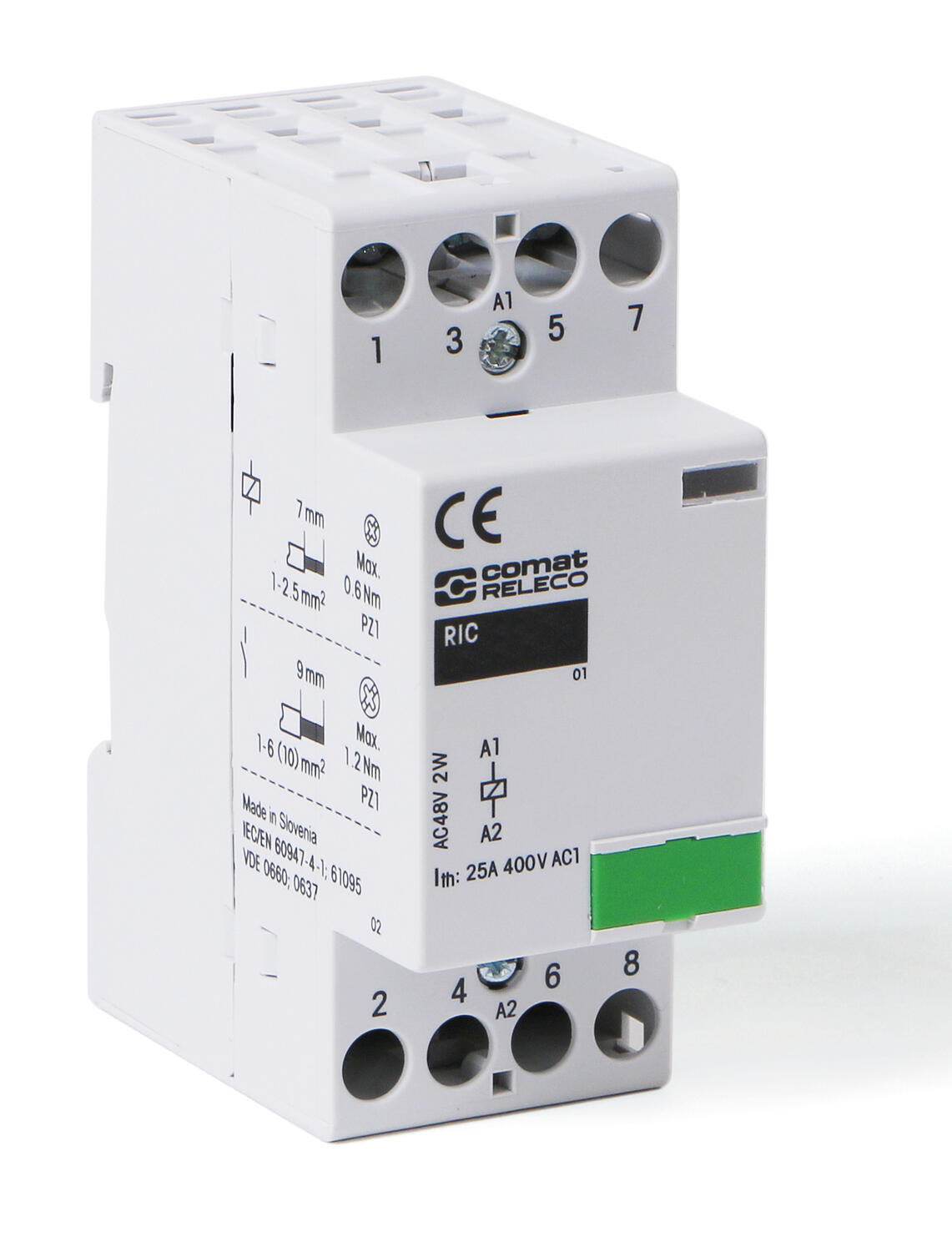

Installation Contactor, 25A/4xNO/24V
Art:
RIC25-400UC24
Copied
|
25 A
|
24 V AC/DC
|
AgNi
|
4 NO
|
60 A
|
280 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20...70ms
|
15…45ms
|
17 V
|
250 g
|
35 mm
|
| ||
![]()
Installation Contactor, 25A/4xNO/230V
Art:
RIC25-400UC230
Copied
|
25 A
|
230 V AC/DC
|
AgNi
|
4 NO
|
60 A
|
280 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20...70ms
|
15…45ms
|
160 V
|
250 g
|
35 mm
|
| ||
![]()
Installation Contactor,25A/2NO+2NC/230V
Art:
RIC25-220UC230
Copied
|
25 A
|
230 V AC/DC
|
AgNi
|
2 NO + 2 NC
|
60 A
|
280 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20...70ms
|
15…45ms
|
160 V
|
250 g
|
35 mm
|
| ||
![]()
Installation Contactor, 25A/2NO+2NC/24V
Art:
RIC25-220UC24
Copied
|
25 A
|
24 V AC/DC
|
AgNi
|
2 NO + 2 NC
|
60 A
|
280 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20...70ms
|
15…45ms
|
17 V
|
250 g
|
35 mm
|
| ||
![]()
Installation contactor, 25A/4xNC/230V
Art:
RIC25-040UC230
Copied
|
25 A
|
230 V AC/DC
|
AgNi
|
4 NC
|
60 A
|
280 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20...70ms
|
15…45ms
|
160 V
|
250 g
|
35 mm
|
| ||
![]()
Installation Contactor, 25A/4xNC/24V
Art:
RIC25-040UC24
Copied
|
25 A
|
24 V AC/DC
|
AgNi
|
4 NC
|
60 A
|
280 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20...70ms
|
15…45ms
|
17 V
|
250 g
|
35 mm
|
| ||
![]()
Contactor 32A 2xN/C 230Vacdc
Art:
RIC32-020UC230
Copied
|
32 A
|
230 V AC/DC
|
AgNi
|
2 NC
|
60 A
|
60 A
|
2
|
2.6 VA / 2.6 W
|
1,2
|
20…70ms
|
15…45ms
|
160 V
|
140 g
|
17,5 mm
|
| ||
![]()
Contactor 32A 1xN/C 1xN/O 230Vacdc
Art:
RIC32-110UC230
Copied
|
32 A
|
230 V AC/DC
|
AgNi
|
1 NC
|
60 A
|
60 A
|
2
|
2.6 VA / 2.6 W
|
1,2
|
20…70ms
|
15…45ms
|
160 V
|
140 g
|
17,5 mm
|
| ||
![]()
Contactor 32A 4xN/C 230Vacdc
Art:
RIC32-040UC230
Copied
|
32 A
|
230 V AC/DC
|
AgNi
|
4 NC
|
60 A
|
60 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20…70ms
|
15…45ms
|
160 V
|
250 g
|
35 mm
|
| ||
![]()
Contactor 32A 2xN/O 230Vacdc
Art:
RIC32-200UC230
Copied
|
32 A
|
230 V AC/DC
|
AgNi
|
2 NO
|
60 A
|
60 A
|
2
|
2.6 VA / 2.6 W
|
1,2
|
20…70ms
|
15…45ms
|
160 V
|
140 g
|
17,5 mm
|
| ||
![]()
Contactor 32A 2xN/C 2xN/O 230Vacdc
Art:
RIC32-220UC230
Copied
|
32 A
|
230 V AC/DC
|
AgNi
|
2 NO + 2 NC
|
60 A
|
60 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20…70ms
|
15…45ms
|
160 V
|
250 g
|
35 mm
|
| ||
![]()
Contactor 32A 4xN/O 230Vacdc
Art:
RIC32-400UC230
Copied
|
32 A
|
230 V AC/DC
|
AgNi
|
4 NO
|
60 A
|
60 A
|
4
|
2.6 VA / 2.6 W
|
1,2
|
20…70ms
|
15…45ms
|
160 V
|
250 g
|
35 mm
|
| ||
![]()

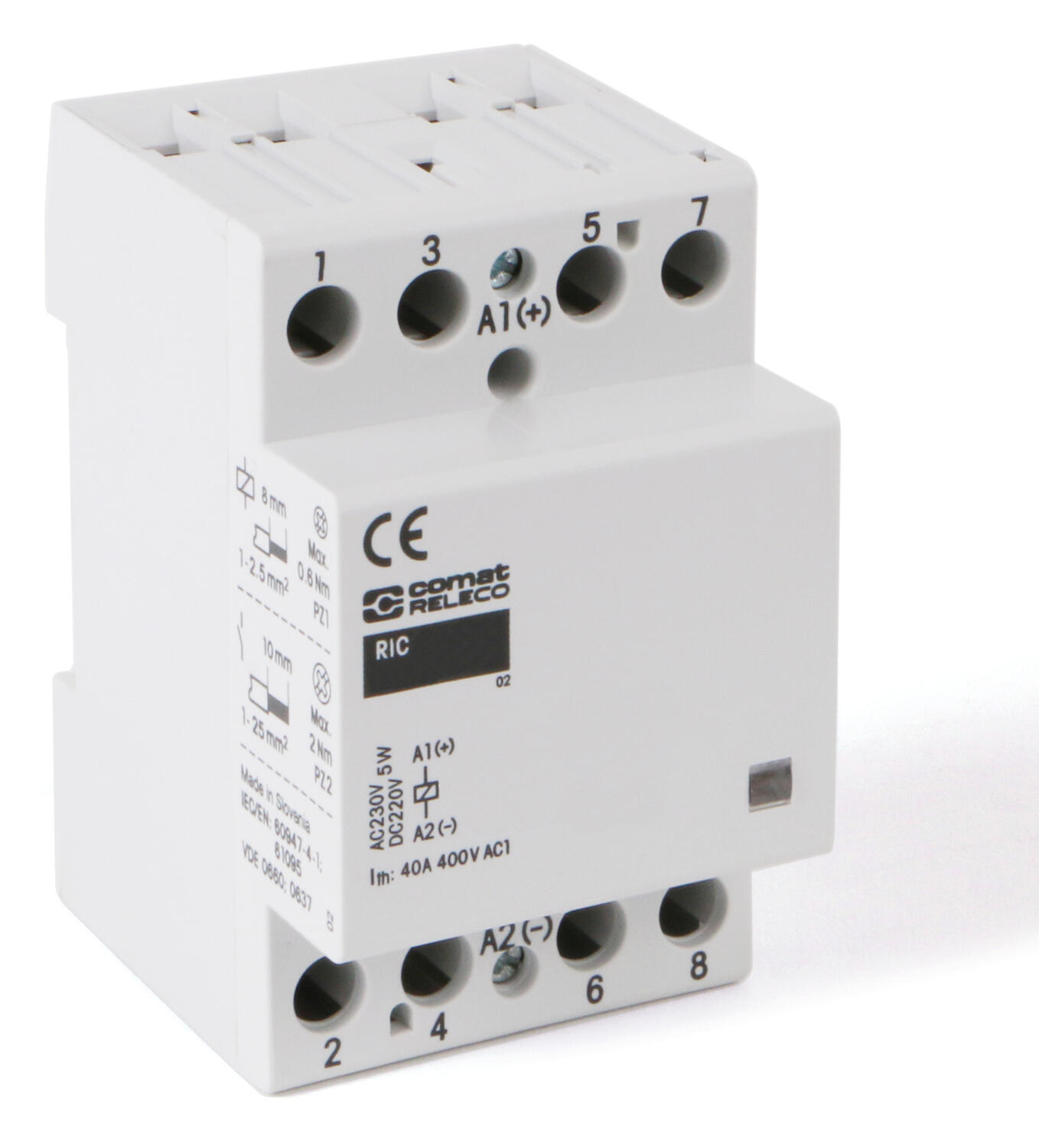

Installation Contactor, 40A/4xNO/230V
Art:
RIC40-400UC230
Copied
|
40 A
|
230 V AC/DC
|
AgSnO2
|
4 NO
|
170 A
|
970 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
160 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation Contactor, 40A/4xNO/24V
Art:
RIC40-400UC24
Copied
|
40 A
|
24 V AC/DC
|
AgSnO2
|
4 NO
|
170 A
|
970 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
17 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation Contactor,40A/2NO+2NC/230V
Art:
RIC40-220UC230
Copied
|
40 A
|
230 V AC/DC
|
AgSnO2
|
2 NO + 2 NC
|
170 A
|
970 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
160 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation contactor, 40A/2NO+2NC/24V
Art:
RIC40-220UC24
Copied
|
40 A
|
24 V AC/DC
|
AgSnO2
|
2 NO + 2 NC
|
170 A
|
970 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
17 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation Contactor, 40A/4xNC/230V
Art:
RIC40-040UC230
Copied
|
40 A
|
230 V AC/DC
|
AgSnO2
|
4 NC
|
170 A
|
970 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
160 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation Contactor, 40A/4xNC/24V
Art:
RIC40-040UC24
Copied
|
40 A
|
24 V AC/DC
|
AgSnO2
|
4 NC
|
170 A
|
970 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
17 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation Contactor, 63A/4xNO/24V
Art:
RIC63-400UC24
Copied
|
63 A
|
24 V AC/DC
|
AgSnO2
|
4 NO
|
240 A
|
1500 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
17 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation Contactor, 63A/4xNO/230V
Art:
RIC63-400UC230
Copied
|
63 A
|
230 V AC/DC
|
AgSnO2
|
4 NO
|
240 A
|
1500 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
160 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation contactor, 63A/2NO+2NC/24V
Art:
RIC63-220UC24
Copied
|
63 A
|
24 V AC/DC
|
AgSnO2
|
2 NO + 2 NC
|
240 A
|
1500 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
17 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation contactor,63A/2NO+2NC/230V
Art:
RIC63-220UC230
Copied
|
63 A
|
230 V AC/DC
|
AgSnO2
|
2 NO + 2 NC
|
240 A
|
1500 A
|
2
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
160 V
|
420 g
|
54,5 mm
|
| ||
![]()
Installation contactor, 63A/4xNC/24V
Art:
RIC63-040UC24
Copied
|
63 A
|
24 V AC/DC
|
AgSnO2
|
4 NC
|
240 A
|
1500 A
|
4
|
5 VA / 5 W
|
3,5
|
35…45ms
|
15…20ms
|
17 V
|
420 g
|
54,5 mm
|
|
Select a variant in the list
