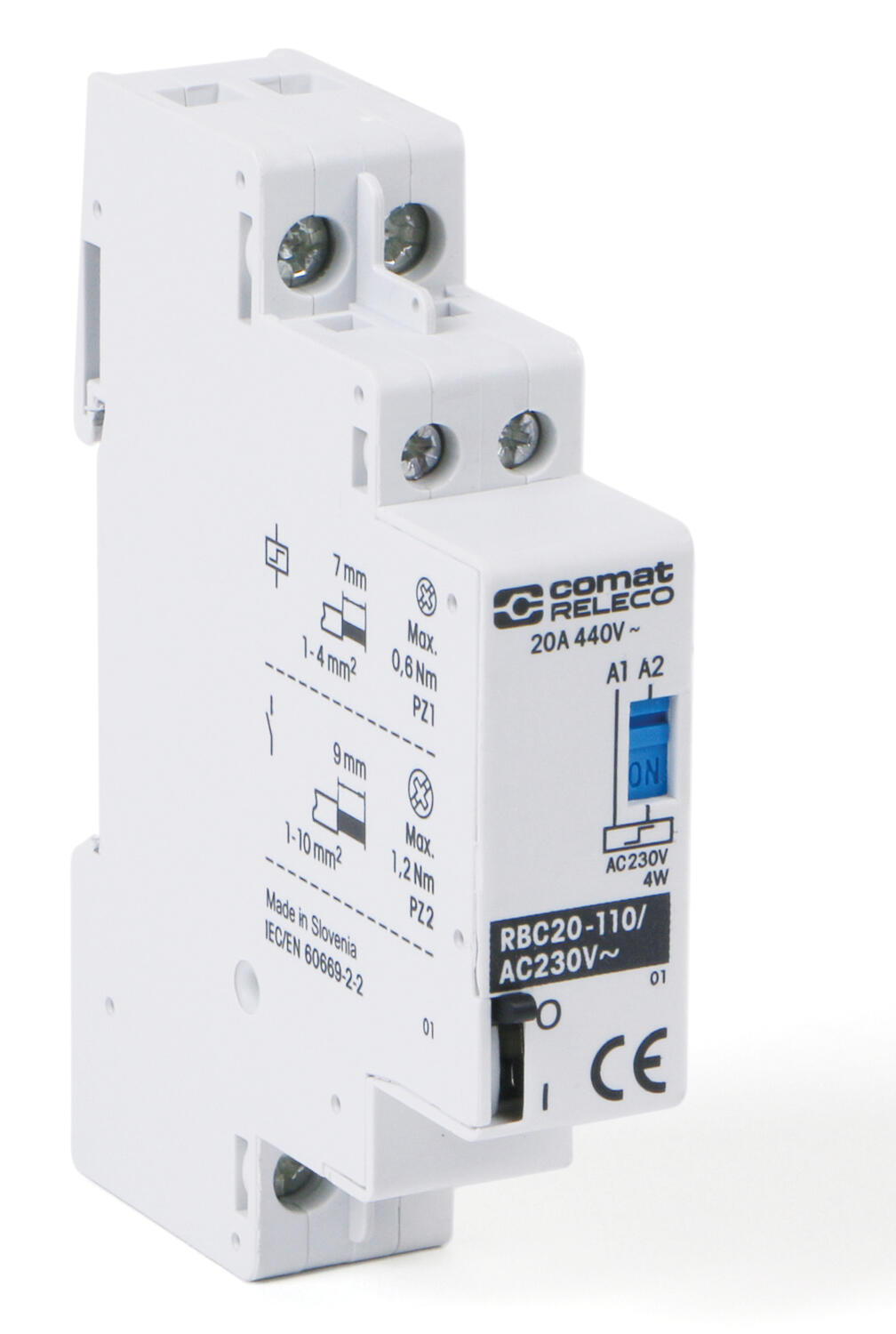

Selected variant
Technical data
| Breaking capacity current | 20 A |
|---|---|
| Coil voltage ac | 230 V AC |
| Contact material | AgNi |
| Contact type | 2 NO |
| Inrush | 50 A |
| Inrush max | 180 A |
| IP class | IP20 |
| Number of contacts | 2 |
| Power consumption | 4 W |
| Recommended min load | 100 mA/10 V |
| Release time | 20…50ms |
| Response time | 15…45 ms |
|---|---|
| Storage temperature max | 80 °C |
| Storage temperature min | -30 °C |
| Switching voltage | 160 V |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Turn-off voltage | 70 V |
| Weight | 132 g |
| Voltage max | 440 V |
| Working Un | -15 %/+10 % av Un |
