The miniature industrial contactors RMC are reliable switching components for increased loads in industrial environments. Thanks to comprehensive accessories such as auxiliary contacts and motor protection units, they are suitable for versatile applications. The RMC miniature contactors offer high performance with a compact shape. The switching capacity is impressive at 8.5 A/4 kW (AC-3) with an installation width of only 35 mm. The contactors can be installed on DIN rail horizontally as well as vertically.
Â
Data |
|
---|---|
Coil voltage | 230 V AC |
Breaking capacity AC3 | 8.5 A |
Operational power AC3 : 1 x 230V | 0.75 kW |
Operational power AC3 : 3 x 230V | 2 kW |
Operational power AC3 : 3 x 400V | 4 kW |
Operational power AC3 : 3 x 500V | 4 kW |
Operational power AC3 : 3 x 690V | 4 kW |
Breaking capacity AC1 | 20 A |
Operational power AC1 : 1 x 230V | 4.4 kW |
Operational power AC1 : 3 x 230V | 7.5 kW |
Operational power AC1 : 3 x 400V | 13 kW |
Operational power AC1 : 3 x 500V | 17.5 kW |
Operational power AC1 : 3 x 690V | 22 kW |
Breaking capacity AC4 | 3.5 A |
Operational power AC4 : 3 x 230V | 0.5 kW |
Operational power AC4 : 3 x 400V | 1.5 kW |
Operational power AC4 : 3 x 500V | 1 kW |
*Invisible Heading* |
|
---|---|
Operational power AC4 : 3 x 690V | 1 kW |
Number of contacts | 4 |
Contact type | 3 + 1 NC Auxiliary |
Auxiliary contact rating AC15 : 1 x 230V | 6 A |
Auxiliary contact rating AC15 : 1 x 400V | 4 A |
Auxiliary contact rating AC15 : 1 x 500V | 2 A |
Auxiliary contact rating AC15 : 1 x 690V | 1 A |
Response time | 10-15ms |
Release time | 6-15ms |
Power consumption | 8.1VA |
Storage temperature min | -30 °C |
Storage temperature max | 80 °C |

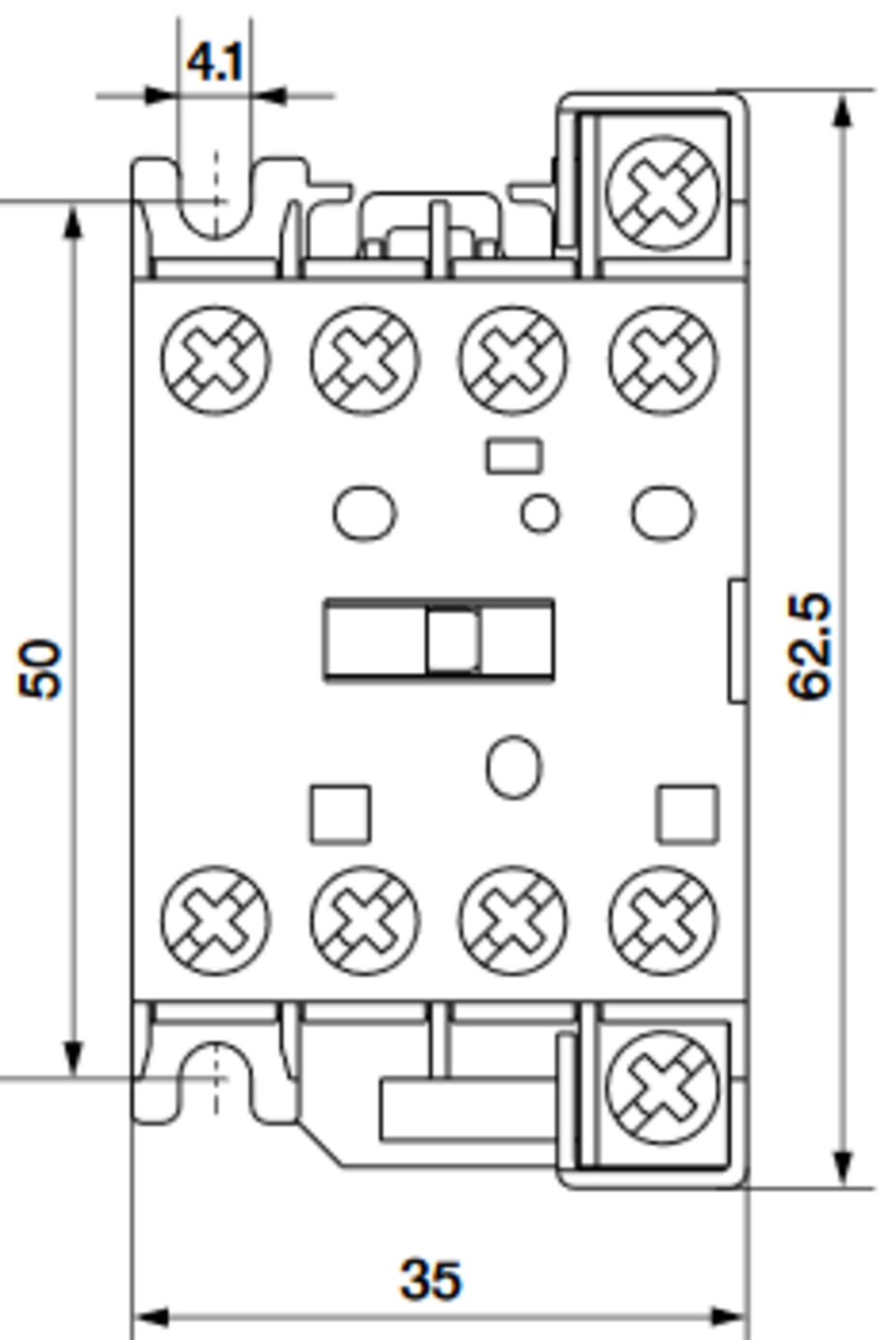

Width | 35 mm |
Weight | 160 g |
Mounting | Horizontal / Vertical |
IP class | IP20 |
The miniature industrial contactors RMC are reliable switching components for increased loads in industrial environments. Thanks to comprehensive accessories such as auxiliary contacts and motor protection units, they are suitable for versatile applications. The RMC miniature contactors offer high performance with a compact shape. The switching capacity is impressive at 8.5 A/4 kW (AC-3) with an installation width of only 35 mm. The contactors can be installed on DIN rail horizontally as well as vertically.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Coil voltage | Breaking capacity AC3 | Operational power AC3 : 1 x 230V | Operational power AC3 : 3 x 230V | Operational power AC3 : 3 x 400V | Operational power AC3 : 3 x 500V | Operational power AC3 : 3 x 690V | Breaking capacity AC4 | Operational power AC4 : 3 x 230V | Operational power AC4 : 3 x 400V | Operational power AC4 : 3 x 500V | Operational power AC4 : 3 x 690V | Contact type | Release time | Power consumption | Width | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Mini contactor NC aux 4kW/8A 230Vac
Art:
RMC08-301/AC230V
Copied
|
230 V AC
|
8.5 A
|
0.75 kW
|
2 kW
|
4 kW
|
4 kW
|
4 kW
|
3.5 A
|
0.5 kW
|
1.5 kW
|
1 kW
|
1 kW
|
3 + 1 NC Auxiliary
|
6-15ms
|
8.1VA
|
35 mm
|
160 g
|
| ||
![]()
Mini contactor NC aux 4kW/8A 24Vac
Art:
RMC08-301/AC24V
Copied
|
24 V AC
|
8.5 A
|
0.75 kW
|
2 kW
|
4 kW
|
4 kW
|
4 kW
|
3.5 A
|
0.5 kW
|
1.5 kW
|
1 kW
|
1 kW
|
3 + 1 NC Auxiliary
|
6-15ms
|
8.1VA
|
35 mm
|
160 g
|
| ||
![]()
Mini contactor NC aux 4kW/8A 24Vdc
Art:
RMC08-301/DC24V
Copied
|
24 V DC
|
8.5 A
|
0.75 kW
|
2 kW
|
4 kW
|
4 kW
|
4 kW
|
3.5 A
|
0.5 kW
|
1.5 kW
|
1 kW
|
1 kW
|
3 + 1 NC Auxiliary
|
6-15ms
|
4W
|
35 mm
|
215 g
|
| ||
![]()
Mini contactor NO aux 4kW/8A 230Vac
Art:
RMC08-310/AC230V
Copied
|
230 V AC
|
8.5 A
|
0.75 kW
|
2 kW
|
4 kW
|
4 kW
|
4 kW
|
3.5 A
|
0.5 kW
|
1.5 kW
|
1 kW
|
1 kW
|
3 + 1 NO Auxiliary
|
6-15ms
|
8.1VA
|
35 mm
|
160 g
|
| ||
![]()
Mini contactor NO aux 4kW/8A 24Vac
Art:
RMC08-310/AC24V
Copied
|
24 V AC
|
8.5 A
|
0.75 kW
|
2 kW
|
4 kW
|
4 kW
|
4 kW
|
3.5 A
|
0.5 kW
|
1.5 kW
|
1 kW
|
1 kW
|
3 + 1 NO Auxiliary
|
6-15ms
|
8.1VA
|
35 mm
|
160 g
|
| ||
![]()
Mini contactor NO aux 4kW/8A 24Vdc
Art:
RMC08-310/DC24V
Copied
|
24 V DC
|
8.5 A
|
0.75 kW
|
2 kW
|
4 kW
|
4 kW
|
4 kW
|
3.5 A
|
0.5 kW
|
1.5 kW
|
1 kW
|
1 kW
|
3 + 1 NO Auxiliary
|
6-15ms
|
4W
|
35 mm
|
215 g
|
| ||
![]()
Mini contactor NC aux 5.5kW/11A 230Vac
Art:
RMC11-301/AC230V
Copied
|
230 V AC
|
11.3 A
|
1.1 kW
|
3 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
5 A
|
0.75 kW
|
2.2 kW
|
1.5 kW
|
1.5 kW
|
3 + 1 NC Auxiliary
|
5-10ms
|
8.1VA
|
45 mm
|
170 g
|
| ||
![]()
Mini contactor NC aux 5.5kW/11A 24Vac
Art:
RMC11-301/AC24V
Copied
|
24 V AC
|
11.3 A
|
1.1 kW
|
3 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
5 A
|
0.75 kW
|
2.2 kW
|
1.5 kW
|
1.5 kW
|
3 + 1 NC Auxiliary
|
5-10ms
|
8.1VA
|
45 mm
|
170 g
|
| ||
![]()
Mini contactor NC aux 5.5kW/11A 24Vdc
Art:
RMC11-301/DC24V
Copied
|
24 V DC
|
11.3 A
|
1.1 kW
|
3 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
5 A
|
0.75 kW
|
2.2 kW
|
1.5 kW
|
1.5 kW
|
3 + 1 NC Auxiliary
|
5-10ms
|
4W
|
45 mm
|
215 g
|
| ||
![]()
Mini contactor NO aux 5.5kW/11A 230Vac
Art:
RMC11-310/AC230V
Copied
|
230 V AC
|
11.3 A
|
1.1 kW
|
3 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
5 A
|
0.75 kW
|
2.2 kW
|
1.5 kW
|
1.5 kW
|
3 + 1 NO Auxiliary
|
5-10ms
|
8.1VA
|
45 mm
|
170 g
|
| ||
![]()
Mini contactor NO aux 5.5kW/11A 24Vac
Art:
RMC11-310/AC24V
Copied
|
24 V AC
|
11.3 A
|
1.1 kW
|
3 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
5 A
|
0.75 kW
|
2.2 kW
|
1.5 kW
|
1.5 kW
|
3 + 1 NO Auxiliary
|
5-10ms
|
8.1VA
|
45 mm
|
170 g
|
| ||
![]()
Mini contactor NO aux 5.5kW/11A 24Vdc
Art:
RMC11-310/DC24V
Copied
|
24 V DC
|
11.3 A
|
1.1 kW
|
3 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
5 A
|
0.75 kW
|
2.2 kW
|
1.5 kW
|
1.5 kW
|
3 + 1 NO Auxiliary
|
5-10ms
|
4W
|
45 mm
|
215 g
|
|
Select a variant in the list
