Selected variant

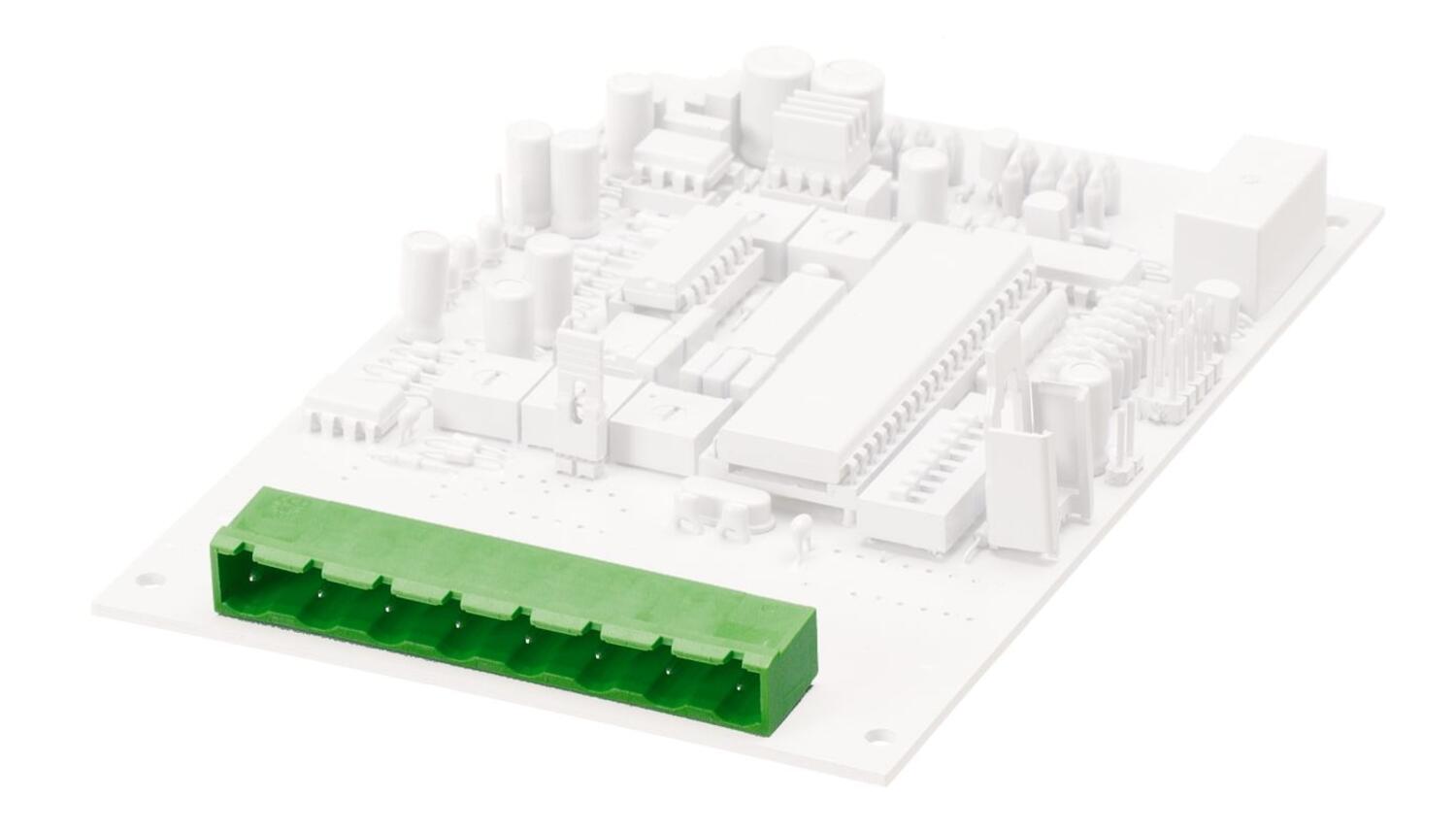

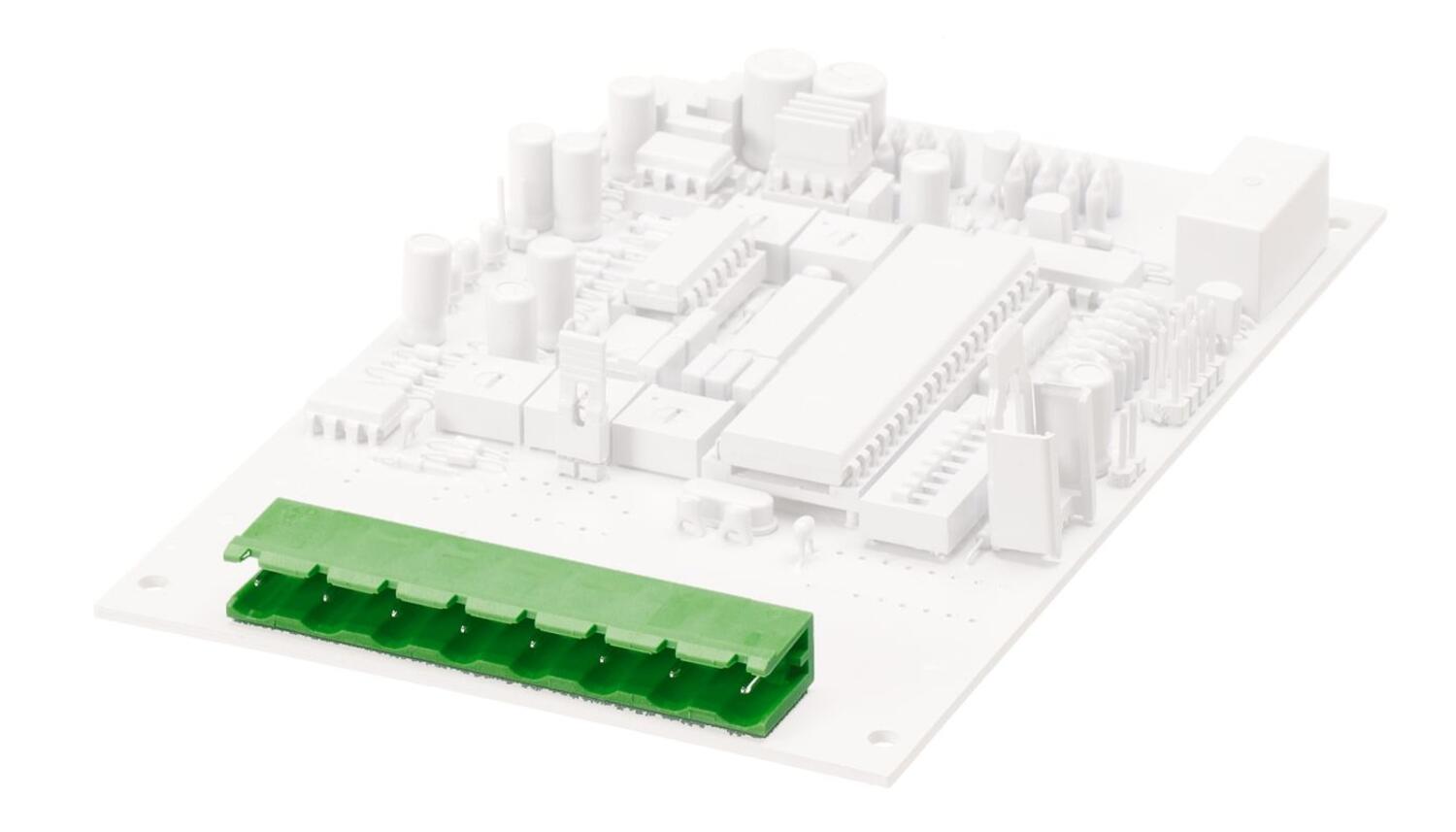

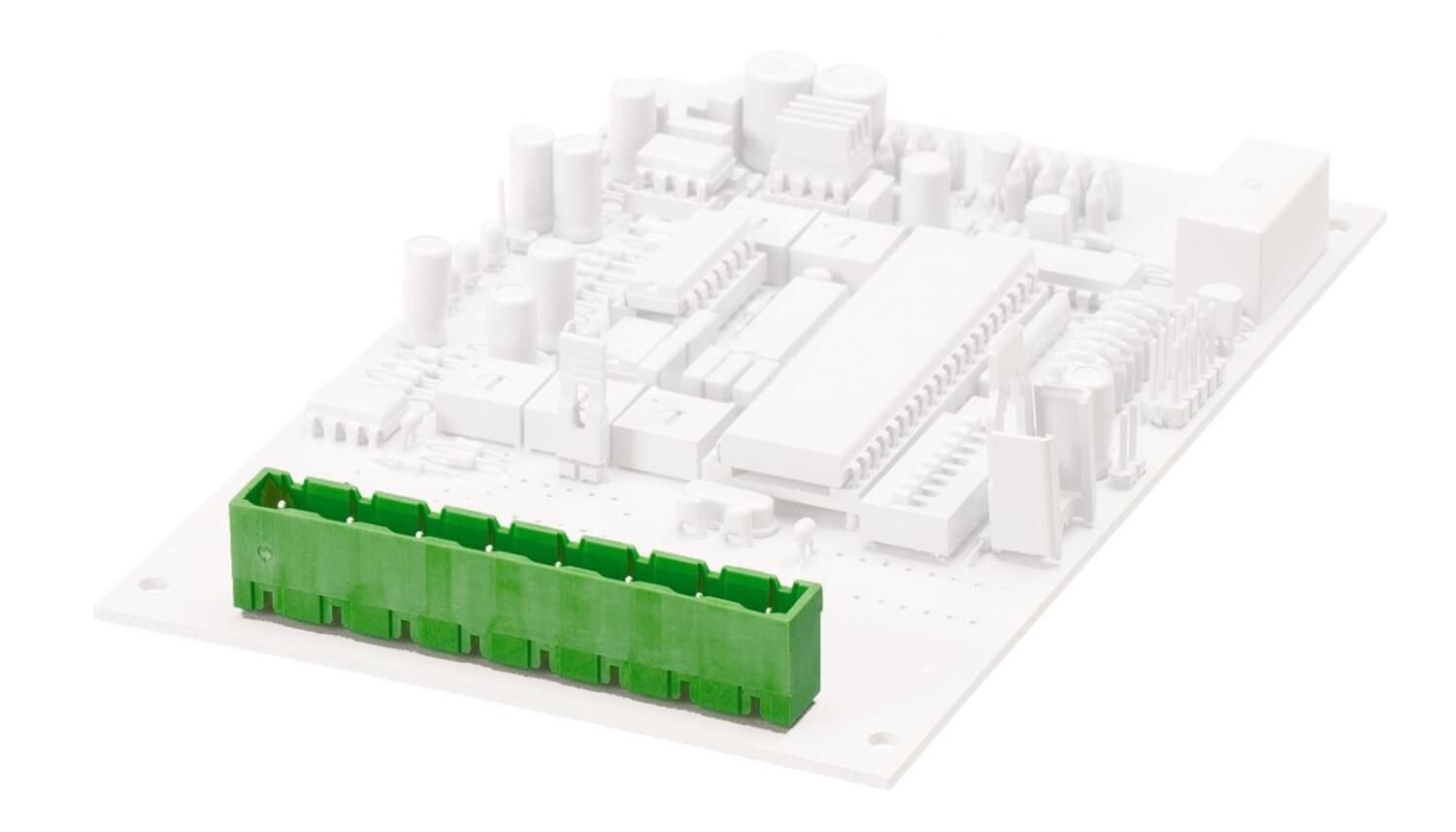

Technical data
General Data |
|
|---|---|
| Type | Header |
| Pitch | 7.62 mm |
| Colour | Green |
| Number of poles | 2 |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated current | 12 A |
| Rated voltage | 400 V |
| Rated impulse voltage | 6 kV |
| Overvoltage category | III |
| Contamination degree | 3 |

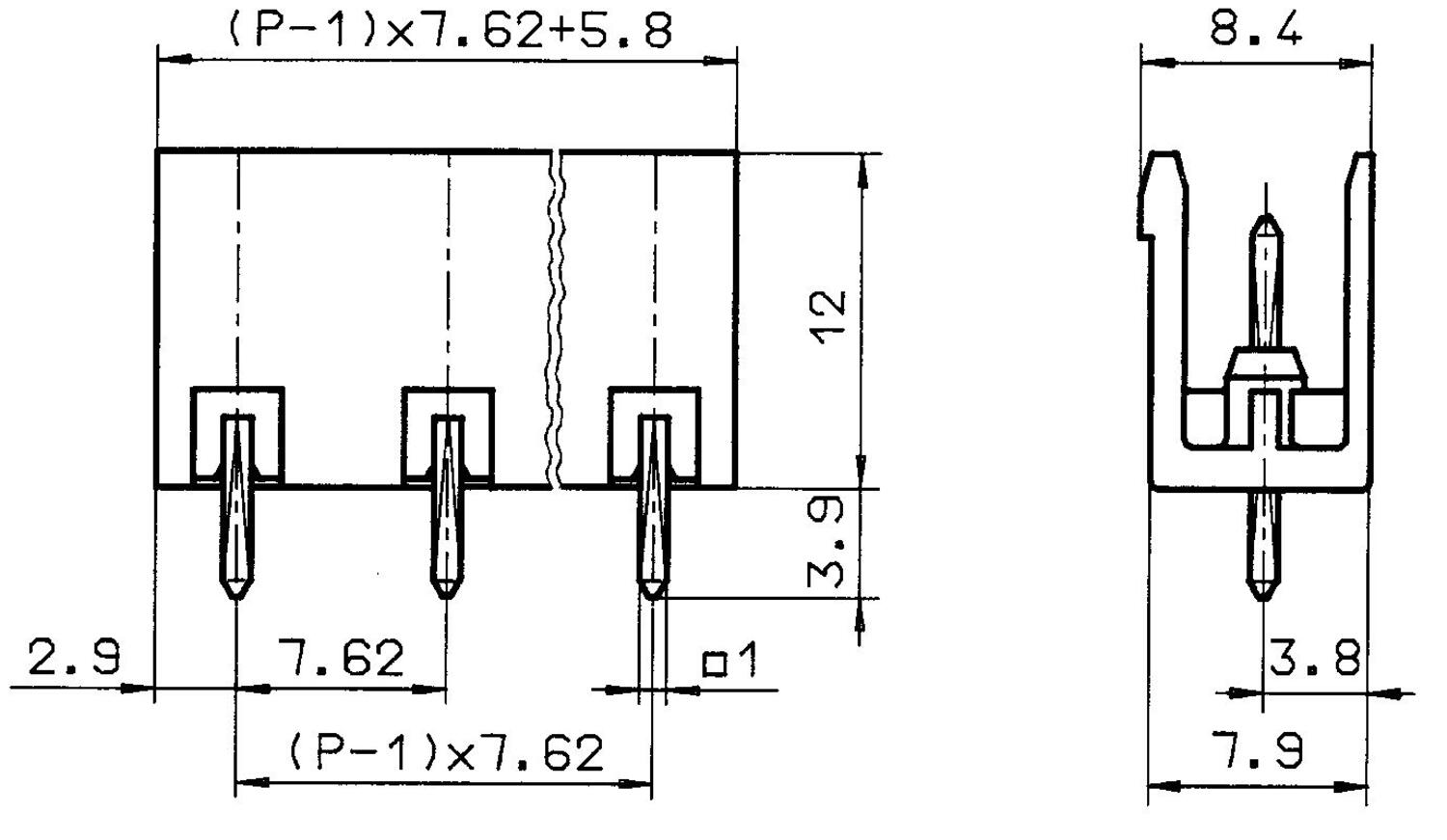

Dimensions |
|
| Length | 8.4 mm |
| Width | 13.42 mm |
| Height | 12 mm |
| Width left | 2.9 mm |
| Width right | 2.9 mm |
| Drillhole diameter | 1.4 mm |
| Diameter of the connection pin | 1 mm |
| Length of pin | 3.9 mm |
Connection Data |
|
| Connector type/principle | Pin header |
| Connector version | Fixed |
| Number of plugin rows | 1 Â |
Materials |
|
| Housing material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Contact pin | Copper alloy |
Approvals |
|
|---|---|
| UL test standard | UL 1059 |
| Rated voltage UL | 300 V |
| Rated current UL | 15 A |
| cUL test standard | CSA 22.2 No.158 |
| Rated voltage cUL | 300 V |
| Rated current cUL | 15 A |
| VDE test standard | DIN EN 61984 |
| Rated voltage VDE | 400 V |
| Rated current VDE | 12 A |
| Plug-in cycles acc. to standard | 100 |
| Recommended wave solder duration max | 4 s |
| Recommended wave solder duration min | 3 s |
| Recommended wave soldering temperature | 265 °C |
| Tariff code | 85366990 |
| Pack size | 50 Â |
| Weight | 0.8 g |
| Angle circuit board / contact | 90° (vertically upwards) |
| Country of origin | QU |
| Current creepage resistance | CTI 600 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^13 Ω x cm |
