CONTA-CLIP

PZK 3010, 3011, 3020, 3021

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

General Data
Type PCB terminal
Pitch 7,5 mm
Colour Light grey
Number of poles 2
Approvals UL, cUL, VDE

Ratings
Rated current 24 A
Rated voltage 750 V
Rated cross section 2,5 mm²
Rated impulse voltage 3 kV
Overvoltage category III
Contamination degree 3

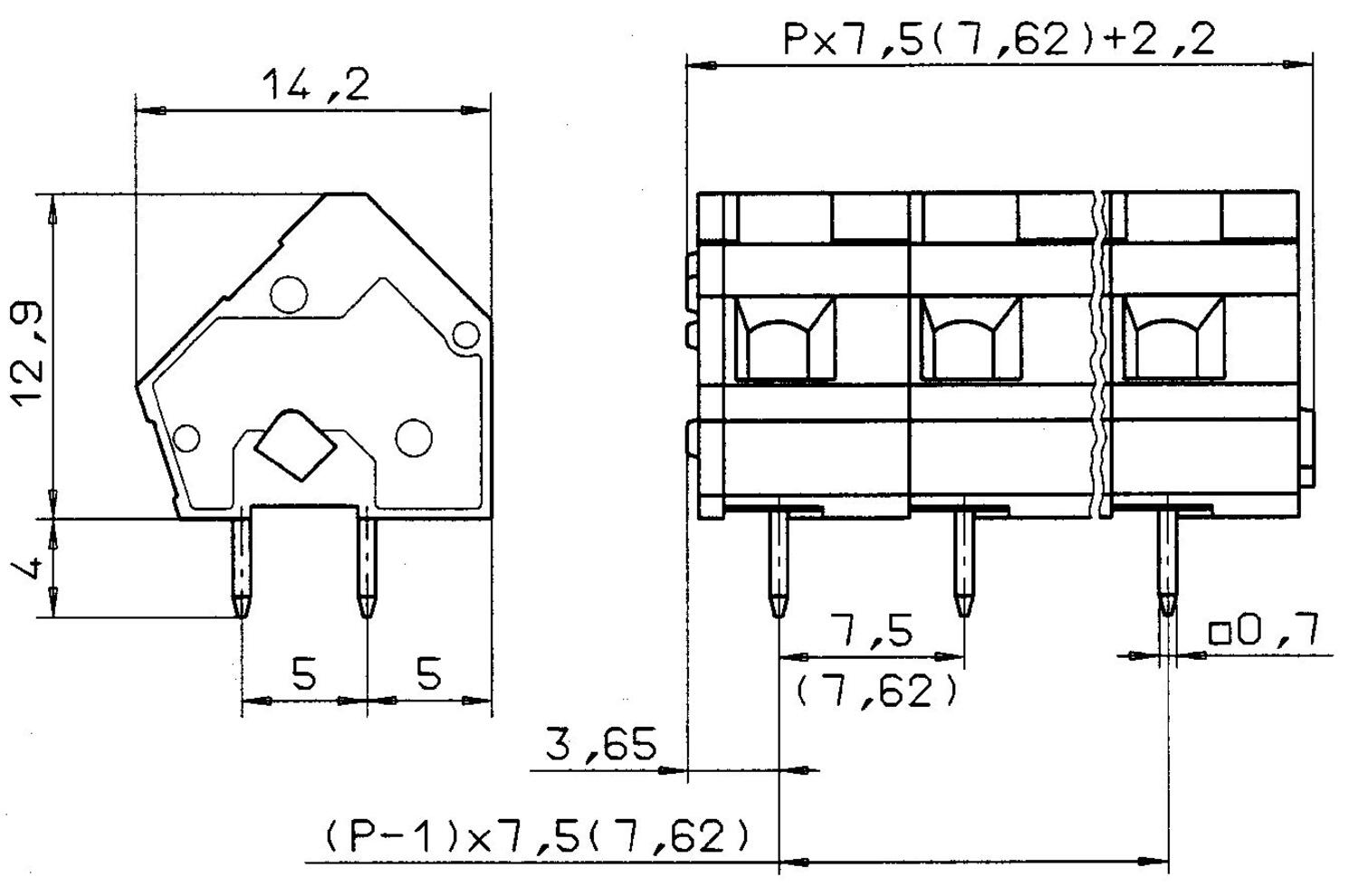

Dimensions
Length 14,2 mm
Width 17,2 mm
Height 12,9 mm
Width left 3,65 mm
Width right 6,05 mm
Drillhole diameter 1,1 mm
Diameter of the connection pin 0,7 mm
Length of pin 4 mm

Connection Data
Connector type/principle Spring clamp
Number of levels 1
Angle of PCB/wire connection 45°/135° (diagonally upwards)
Type of attachment to PCB Connecting contact
Electrical connection type to PCB Solder
Cross section single wire from 0,08 mm²
Cross section single wire to 2,5 mm²
Cross section stranded wire from 0,14 mm²
Cross section stranded with ferrule to 1,5 mm²
Cross section stranded wire to 2,5 mm²
Cross section stranded with ferrule from 0,14 mm²
Rated wire cross section to (AWG) 14
Rated wire cross section from (AWG) 28

*Invisible Heading*
Stripping length 6 mm

Materials
Housing material Polyamide 6.6
Flammability class UL94-V0
Operating temperature from -30 °C
Operating temperature to 105 °C
Main spring Stainless steel
Solder lug Copper alloy

Approvals
UL test standard UL 1059
Rated voltage UL 300 V
Rated current UL 16 A
cUL test standard CSA 22.2 No.158
Rated voltage cUL 300 V
Rated current cUL 16 A
VDE test standard DIN EN 60998
Rated voltage VDE 750 V
Rated current VDE 24 A
Recommended wave solder duration max 4 s
Recommended wave solder duration min 3 s
Recommended wave soldering temperature 265 °C
Tariff code 85369010
Pack size 50
Weight 2,2 g
Connection cycles acc. to standard 10
Country of origin QU
Current creepage resistance CTI 600
Glow wire flammability index (GWFI) GWFI 850
Glow wire ignition temperature (GWIT) GWIT 775
GWFI after-glow time 30 s
GWIT exposure time 5 s
Insulation resistance 1*10^13 Ω x cm

Downloads

Measurements and connections

Technical illustrations

Accessories

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Pitch Colour Number of poles Rated voltage Rated impulse voltage Width Width right Rated current UL Rated current cUL Rated voltage VDE Weight Price
PZK 3010/2/7,50/7,62 LG
Art:
10738.0 Copied
7,5 mm
Light grey
2
750 V
3 kV
17,2 mm
6,05 mm
16 A
16 A
750 V
2,2 g
PZK 3010/2/7,50/7,62 GN
Art:
10738.1 Copied
7,5 mm
Green
2
750 V
3 kV
17,2 mm
6,05 mm
16 A
16 A
750 V
2,2 g
PZK 3011/7.5/2KD 2P LEV TERM GR
Art:
10882.0 Copied
7,5 mm
Light grey
2
750 V
3 kV
17,9 mm
6,75 mm
16 A
16 A
750 V
2,4 g
PZK 3011/2/7,50/7,62-KD GN
Art:
10882.1 Copied
7,5 mm
Green
2
750 V
3 kV
17,9 mm
6,75 mm
16 A
16 A
750 V
2,4 g
PZK 3011/2/7,50/7,62-FD LG
Art:
10930.0 Copied
7,5 mm
Light grey
2
750 V
3 kV
17,9 mm
6,75 mm
16 A
16 A
750 V
4,8 g
PZK 3011/2/7,50/7,62-FD GN
Art:
10930.1 Copied
7,5 mm
Green
2
750 V
3 kV
17,9 mm
6,75 mm
16 A
16 A
750 V
4,8 g
PZK 3020/2/10,00/10,16 LG
Art:
10978.0 Copied
10 mm
Light grey
2
1000 V
3,5 kV
17,2 mm
3,55 mm
15 A
15 A
1000 V
2,4 g
PZK 3020/2/10,00/10,16 GN
Art:
10978.1 Copied
10 mm
Green
2
1000 V
3,5 kV
17,2 mm
3,55 mm
15 A
15 A
1000 V
2,4 g
PZK 3021/2/10,00/10,16-KD LG
Art:
11026.0 Copied
10 mm
Light grey
2
1000 V
3,5 kV
17,9 mm
4,25 mm
15 A
15 A
1000 V
2,8 g
PZK 3021/2/10,00/10,16-KD GN
Art:
11026.1 Copied
10 mm
Green
2
1000 V
3,5 kV
17,9 mm
4,25 mm
15 A
15 A
1000 V
2,8 g
PZK 3010/3/7,50/7,62 LG
Art:
10739.0 Copied
7,5 mm
Light grey
3
750 V
3 kV
24,7 mm
6,05 mm
16 A
16 A
750 V
3,2 g
PZK 3010/3/7,50/7,62 GN
Art:
10739.1 Copied
7,5 mm
Green
3
750 V
3 kV
24,7 mm
6,05 mm
16 A
16 A
750 V
3,2 g
PZK 3011/3/7,50/7,62-KD LG
Art:
10883.0 Copied
7,5 mm
Light grey
3
750 V
3 kV
25,4 mm
6,75 mm
16 A
16 A
750 V
3,6 g
PZK 3011/3/7,50/7,62-KD GN
Art:
10883.1 Copied
7,5 mm
Green
3
750 V
3 kV
25,4 mm
6,75 mm
16 A
16 A
750 V
3,6 g
PZK 3011/3/7,50/7,62-FD LG
Art:
10931.0 Copied
7,5 mm
Light grey
3
750 V
3 kV
25,4 mm
6,75 mm
16 A
16 A
750 V
7,2 g
PZK 3011/3/7,50/7,62-FD GN
Art:
10931.1 Copied
7,5 mm
Green
3
750 V
3 kV
25,4 mm
6,75 mm
16 A
16 A
750 V
7,2 g
PZK 3020/3/10,00/10,16 LG
Art:
10979.0 Copied
10 mm
Light grey
3
1000 V
3,5 kV
27,2 mm
3,55 mm
15 A
15 A
1000 V
3,6 g
PZK 3020/3/10,00/10,16 GN
Art:
10979.1 Copied
10 mm
Green
3
1000 V
3,5 kV
27,2 mm
3,55 mm
15 A
15 A
1000 V
3,6 g
PZK 3021/3/10,00/10,16-KD LG
Art:
11027.0 Copied
10 mm
Light grey
3
1000 V
3,5 kV
27,9 mm
4,25 mm
15 A
15 A
1000 V
1,44 g
PZK 3021/3/10,00/10,16-KD GN
Art:
11027.1 Copied
10 mm
Green
3
1000 V
3,5 kV
27,9 mm
4,25 mm
15 A
15 A
1000 V
1,44 g
PZK 3010/4/7,50/7,62 LG
Art:
10740.0 Copied
7,5 mm
Light grey
4
750 V
3 kV
32,2 mm
6,05 mm
16 A
16 A
750 V
4,2 g
PZK 3010/4/7,50/7,62 GN
Art:
10740.1 Copied
7,5 mm
Green
4
750 V
3 kV
32,2 mm
6,05 mm
16 A
16 A
750 V
4,2 g
PZK 3011/4/7,50/7,62-KD LG
Art:
10884.0 Copied
7,5 mm
Light grey
4
750 V
3 kV
32,9 mm
6,75 mm
16 A
16 A
750 V
4,6 g
PZK 3011/4/7,50/7,62-KD GN
Art:
10884.1 Copied
7,5 mm
Green
4
750 V
3 kV
32,9 mm
6,75 mm
16 A
16 A
750 V
4,6 g
PZK 3011/4/7,50/7,62-FD LG
Art:
10932.0 Copied
7,5 mm
Light grey
4
750 V
3 kV
32,9 mm
6,75 mm
16 A
16 A
750 V
4,8 g
PZK 3011/4/7,50/7,62-FD GN
Art:
10932.1 Copied
7,5 mm
Green
4
750 V
3 kV
32,9 mm
6,75 mm
16 A
16 A
750 V
4,8 g
PZK 3020/4/10,00/10,16 LG
Art:
10980.0 Copied
10 mm
Light grey
4
1000 V
3,5 kV
37,2 mm
3,55 mm
15 A
15 A
1000 V
5 g
PZK 3020/4/10,00/10,16 GN
Art:
10980.1 Copied
10 mm
Green
4
1000 V
3,5 kV
37,2 mm
3,55 mm
15 A
15 A
1000 V
5 g
PZK 3021/4/10,00/10,16-KD LG
Art:
11028.0 Copied
10 mm
Light grey
4
1000 V
3,5 kV
37,9 mm
4,25 mm
15 A
15 A
1000 V
5,4 g
PZK 3021/4/10,00/10,16-KD GN
Art:
11028.1 Copied
10 mm
Green
4
1000 V
3,5 kV
37,9 mm
4,25 mm
15 A
15 A
1000 V
5,4 g
PZK 3010/5/7,50/7,62 LG
Art:
10741.0 Copied
7,5 mm
Light grey
5
750 V
3 kV
39,7 mm
6,05 mm
16 A
16 A
750 V
5,4 g
PZK 3010/5/7,50/7,62 GN
Art:
10741.1 Copied
7,5 mm
Green
5
750 V
3 kV
39,7 mm
6,05 mm
16 A
16 A
750 V
5,4 g
PZK 3011/5/7,50/7,62-KD LG
Art:
10885.0 Copied
7,5 mm
Light grey
5
750 V
3 kV
40,4 mm
6,75 mm
16 A
16 A
750 V
5,8 g
PZK 3011/5/7,50/7,62-KD GN
Art:
10885.1 Copied
7,5 mm
Green
5
750 V
3 kV
40,4 mm
6,75 mm
16 A
16 A
750 V
5,8 g
PZK 3011/5/7,50/7,62-FD LG
Art:
10933.0 Copied
7,5 mm
Light grey
5
750 V
3 kV
40,4 mm
6,75 mm
16 A
16 A
750 V
11,8 g
PZK 3011/5/7,50/7,62-FD GN
Art:
10933.1 Copied
7,5 mm
Green
5
750 V
3 kV
40,4 mm
6,75 mm
16 A
16 A
750 V
11,8 g
PZK 3020/5/10,00/10,16 LG
Art:
10981.0 Copied
10 mm
Light grey
5
1000 V
3,5 kV
47,2 mm
3,55 mm
15 A
15 A
1000 V
6 g
PZK 3020/5/10,00/10,16 GN
Art:
10981.1 Copied
10 mm
Green
5
1000 V
3,5 kV
47,2 mm
3,55 mm
15 A
15 A
1000 V
6 g
PZK 3021/5/10,00/10,16-KD LG
Art:
11029.0 Copied
10 mm
Light grey
5
1000 V
3,5 kV
47,9 mm
4,25 mm
15 A
15 A
1000 V
2,4 g
PZK 3021/5/10,00/10,16-KD GN
Art:
11029.1 Copied
10 mm
Green
5
1000 V
3,5 kV
47,9 mm
4,25 mm
15 A
15 A
1000 V
2,4 g
PZK 3010/6/7,50/7,62 LG
Art:
10742.0 Copied
7,5 mm
Light grey
6
750 V
3 kV
47,2 mm
6,05 mm
16 A
16 A
750 V
6,2 g
PZK 3010/6/7,50/7,62 GN
Art:
10742.1 Copied
7,5 mm
Green
6
750 V
3 kV
47,2 mm
6,05 mm
16 A
16 A
750 V
6,2 g
PZK 3011/6/7,50/7,62-KD LG
Art:
10886.0 Copied
7,5 mm
Light grey
6
750 V
3 kV
47,9 mm
6,75 mm
16 A
16 A
750 V
6,8 g
PZK 3011/6/7,50/7,62-KD GN
Art:
10886.1 Copied
7,5 mm
Green
6
750 V
3 kV
47,9 mm
6,75 mm
16 A
16 A
750 V
6,8 g
PZK 3011/6/7,50/7,62-FD LG
Art:
10934.0 Copied
7,5 mm
Light grey
6
750 V
3 kV
47,9 mm
6,75 mm
16 A
16 A
750 V
14,2 g
PZK 3011/6/7,50/7,62-FD GN
Art:
10934.1 Copied
7,5 mm
Green
6
750 V
3 kV
47,9 mm
6,75 mm
16 A
16 A
750 V
14,2 g
PZK 3020/6/10,00/10,16 LG
Art:
10982.0 Copied
10 mm
Light grey
6
1000 V
3,5 kV
57,2 mm
3,55 mm
15 A
15 A
1000 V
7,2 g
PZK 3020/6/10,00/10,16 GN
Art:
10982.1 Copied
10 mm
Green
6
1000 V
3,5 kV
57,2 mm
3,55 mm
15 A
15 A
1000 V
7,2 g
PZK 3021/6/10,00/10,16-KD LG
Art:
11030.0 Copied
10 mm
Light grey
6
1000 V
3,5 kV
57,9 mm
4,25 mm
15 A
15 A
1000 V
2,88 g
PZK 3021/6/10,00/10,16-KD GN
Art:
11030.1 Copied
10 mm
Green
6
1000 V
3,5 kV
57,9 mm
4,25 mm
15 A
15 A
1000 V
2,88 g
PZK 3010/7/7,50/7,62 LG
Art:
10743.0 Copied
7,5 mm
Light grey
7
750 V
3 kV
54,7 mm
6,05 mm
16 A
16 A
750 V
7,2 g
PZK 3010/7/7,50/7,62 GN
Art:
10743.1 Copied
7,5 mm
Green
7
750 V
3 kV
54,7 mm
6,05 mm
16 A
16 A
750 V
7,2 g
PZK 3011/7/7,50/7,62-KD LG
Art:
10887.0 Copied
7,5 mm
Light grey
7
750 V
3 kV
55,4 mm
6,75 mm
16 A
16 A
750 V
8 g
PZK 3011/7/7,50/7,62-KD GN
Art:
10887.1 Copied
7,5 mm
Green
7
750 V
3 kV
55,4 mm
6,75 mm
16 A
16 A
750 V
8 g
PZK 3011/7/7,50/7,62-FD LG
Art:
10935.0 Copied
7,5 mm
Light grey
7
750 V
3 kV
55,4 mm
6,75 mm
16 A
16 A
750 V
16,6 g
PZK 3011/7/7,50/7,62-FD GN
Art:
10935.1 Copied
7,5 mm
Green
7
750 V
3 kV
55,4 mm
6,75 mm
16 A
16 A
750 V
16,6 g
PZK 3020/7/10,00/10,16 LG
Art:
10983.0 Copied
10 mm
Light grey
7
1000 V
3,5 kV
67,2 mm
3,55 mm
15 A
15 A
1000 V
8,6 g
PZK 3020/7/10,00/10,16 GN
Art:
10983.1 Copied
10 mm
Green
7
1000 V
3,5 kV
67,2 mm
3,55 mm
15 A
15 A
1000 V
8,6 g
PZK 3021/7/10,00/10,16-KD LG
Art:
11031.0 Copied
10 mm
Light grey
7
1000 V
3,5 kV
67,9 mm
4,25 mm
15 A
15 A
1000 V
3,4 g
PZK 3021/7/10,00/10,16-KD GN
Art:
11031.1 Copied
10 mm
Green
7
1000 V
3,5 kV
67,9 mm
4,25 mm
15 A
15 A
1000 V
3,4 g
PZK 3010/8/7,50/7,62 LG
Art:
10744.0 Copied
7,5 mm
Light grey
8
750 V
3 kV
62,2 mm
6,05 mm
16 A
16 A
750 V
8,6 g
PZK 3010/8/7,50/7,62 GN
Art:
10744.1 Copied
7,5 mm
Green
8
750 V
3 kV
62,2 mm
6,05 mm
16 A
16 A
750 V
8,6 g
PZK 3011/8/7,50/7,62-KD LG
Art:
10888.0 Copied
7,5 mm
Light grey
8
750 V
3 kV
62,9 mm
6,75 mm
16 A
16 A
750 V
9,2 g

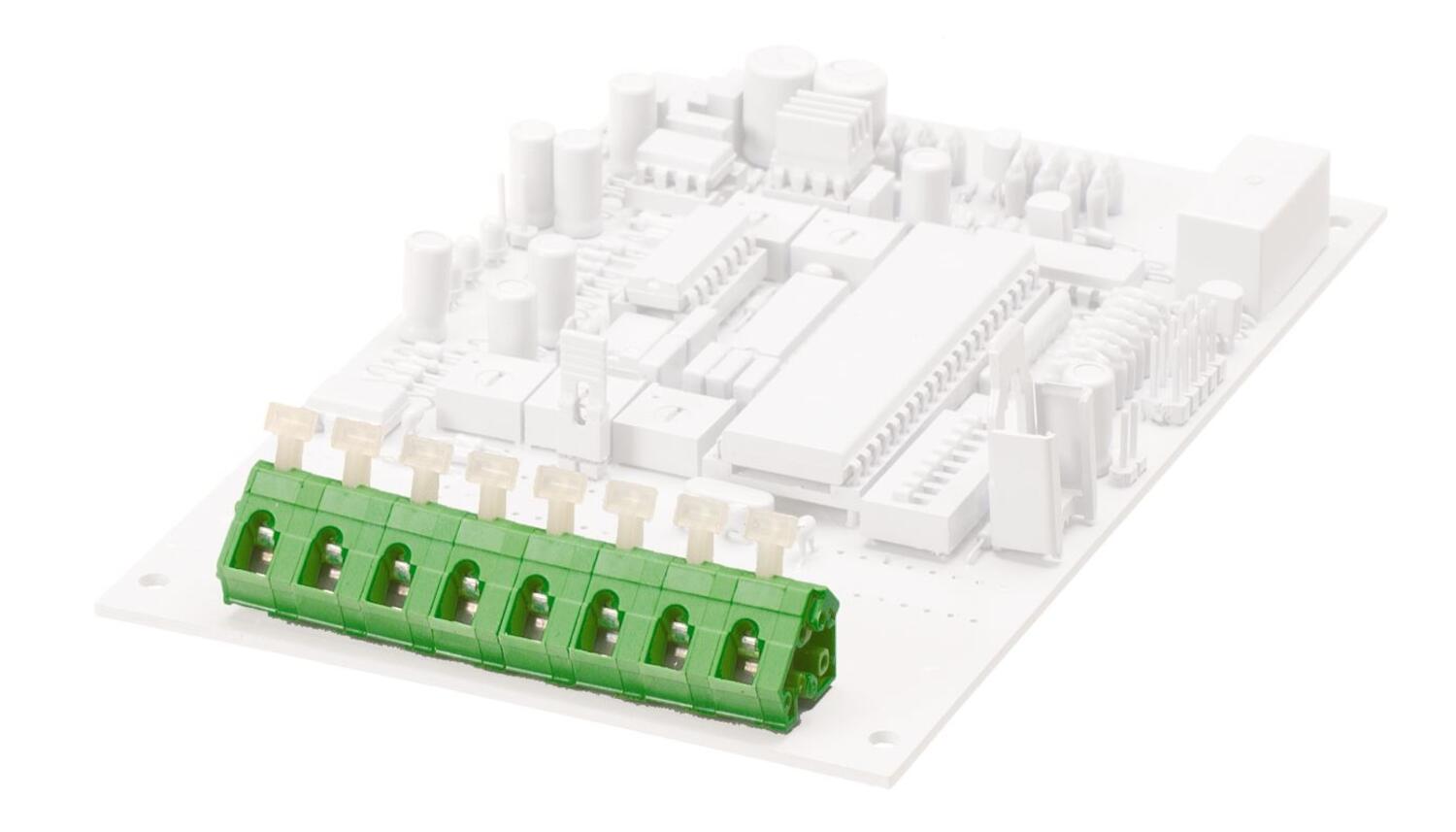

PZK 3011/8/7,50/7,62-KD GN
Art:
10888.1 Copied
7,5 mm
Green
8
750 V
3 kV
62,9 mm
6,75 mm
16 A
16 A
750 V
9,2 g
PZK 3011/8/7,50/7,62-FD LG
Art:
10936.0 Copied
7,5 mm
Light grey
8
750 V
3 kV
62,9 mm
6,75 mm
16 A
16 A
750 V
19 g

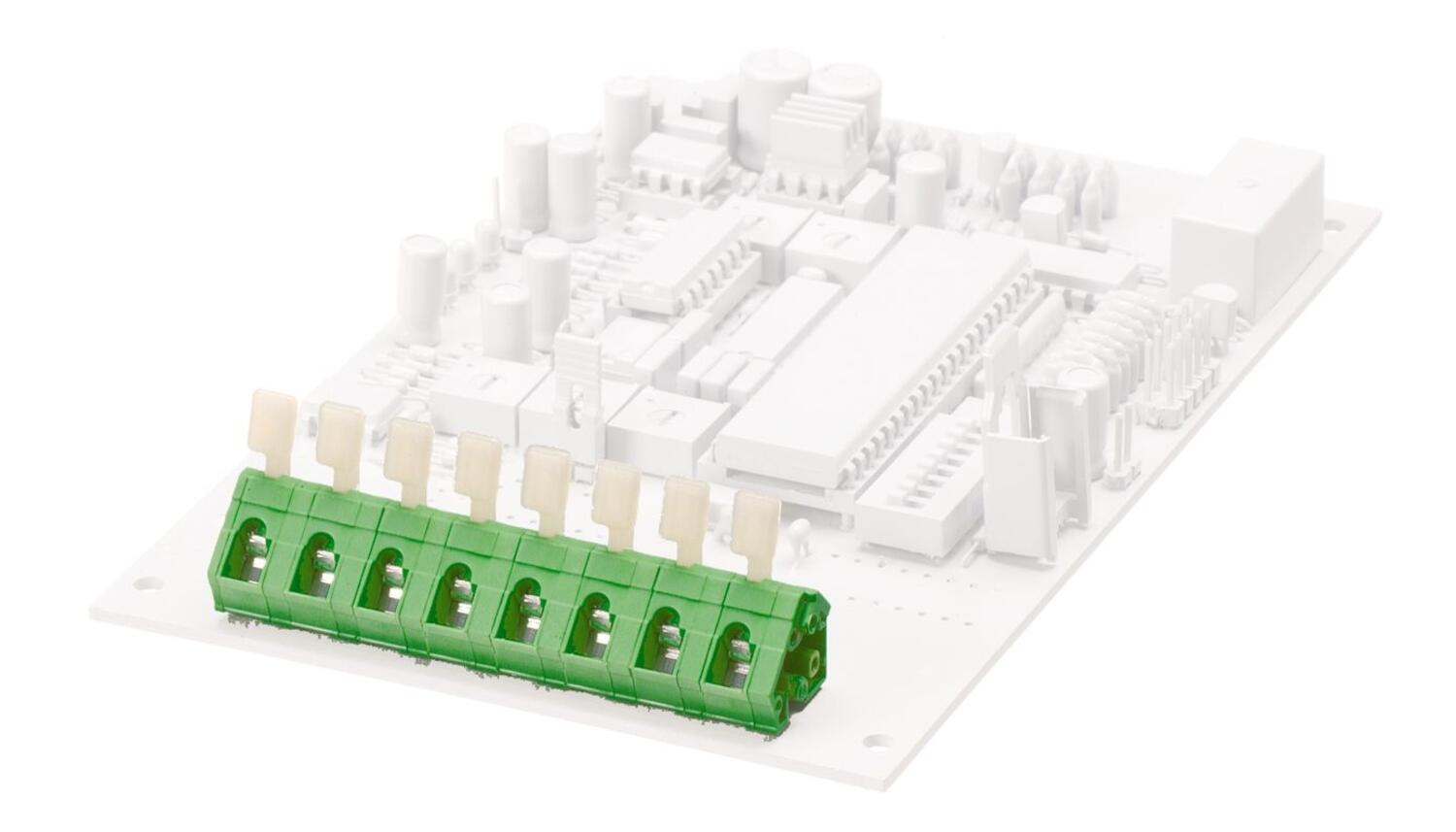

PZK 3011/8/7,50/7,62-FD GN
Art:
10936.1 Copied
7,5 mm
Green
8
750 V
3 kV
62,9 mm
6,75 mm
16 A
16 A
750 V
19 g
PZK 3020/8/10,00/10,16 LG
Art:
10984.0 Copied
10 mm
Light grey
8
1000 V
3,5 kV
77,2 mm
3,55 mm
15 A
15 A
1000 V
9,6 g

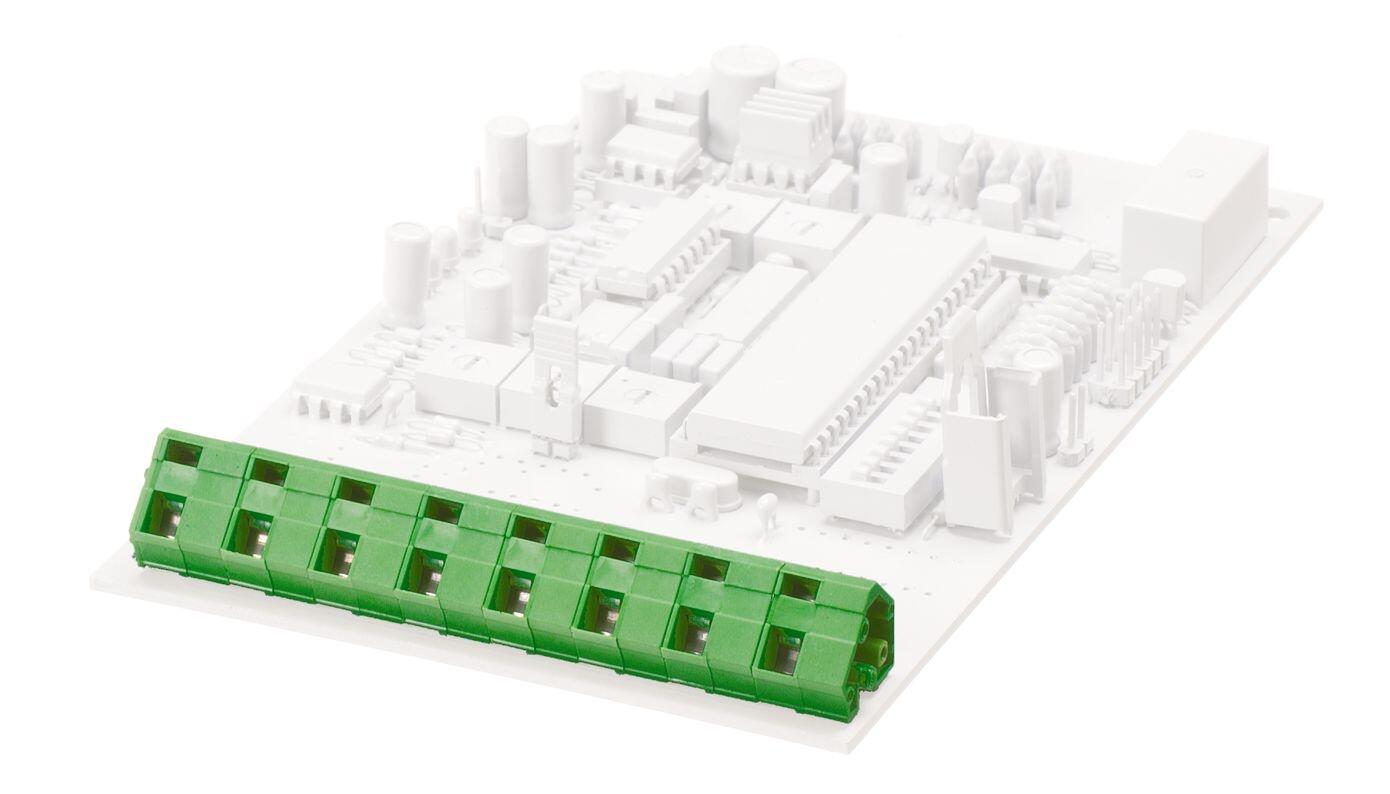

PZK 3020/8/10,00/10,16 GN
Art:
10984.1 Copied
10 mm
Green
8
1000 V
3,5 kV
77,2 mm
3,55 mm
15 A
15 A
1000 V
9,6 g
PZK 3021/8/10,00/10,16-KD LG
Art:
11032.0 Copied
10 mm
Light grey
8
1000 V
3,5 kV
77,9 mm
4,25 mm
15 A
15 A
1000 V
4 g

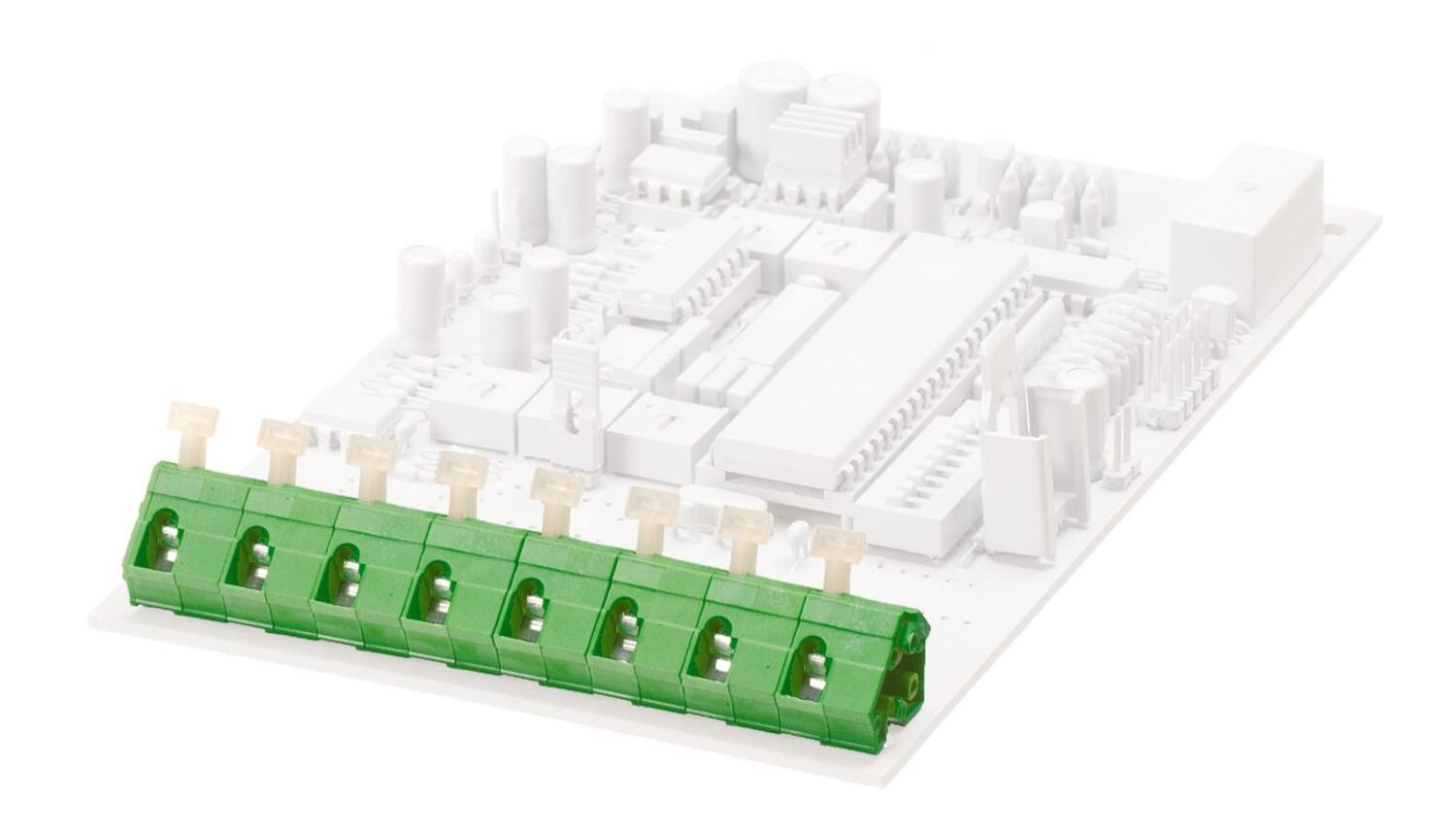

PZK 3021/8/10,00/10,16-KD GN
Art:
11032.1 Copied
10 mm
Green
8
1000 V
3,5 kV
77,9 mm
4,25 mm
15 A
15 A
1000 V
4 g
PZK 3010/9/7,50/7,62 LG
Art:
10745.0 Copied
7,5 mm
Light grey
9
750 V
3 kV
69,7 mm
6,05 mm
16 A
16 A
750 V
9,6 g
PZK 3010/9/7,50/7,62 GN
Art:
10745.1 Copied
7,5 mm
Green
9
750 V
3 kV
69,7 mm
6,05 mm
16 A
16 A
750 V
9,6 g
PZK 3011/9/7,50/7,62-KD LG
Art:
10889.0 Copied
7,5 mm
Light grey
9
750 V
3 kV
70,4 mm
6,75 mm
16 A
16 A
750 V
10,2 g
PZK 3011/9/7,50/7,62-KD GN
Art:
10889.1 Copied
7,5 mm
Green
9
750 V
3 kV
70,4 mm
6,75 mm
16 A
16 A
750 V
10,2 g
PZK 3011/9/7,50/7,62-FD LG
Art:
10937.0 Copied
7,5 mm
Light grey
9
750 V
3 kV
70,4 mm
6,75 mm
16 A
16 A
750 V
21,4 g
PZK 3011/9/7,50/7,62-FD GN
Art:
10937.1 Copied
7,5 mm
Green
9
750 V
3 kV
70,4 mm
6,75 mm
16 A
16 A
750 V
21,4 g
PZK 3020/9/10,00/10,16 LG
Art:
10985.0 Copied
10 mm
Light grey
9
1000 V
3,5 kV
87,2 mm
3,55 mm
15 A
15 A
1000 V
10,8 g
PZK 3020/9/10,00/10,16 GN
Art:
10985.1 Copied
10 mm
Green
9
1000 V
3,5 kV
87,2 mm
3,55 mm
15 A
15 A
1000 V
10,8 g
PZK 3021/9/10,00/10,16-KD LG
Art:
11033.0 Copied
10 mm
Light grey
9
1000 V
3,5 kV
87,9 mm
4,25 mm
15 A
15 A
1000 V
4,4 g
PZK 3021/9/10,00/10,16-KD GN
Art:
11033.1 Copied
10 mm
Green
9
1000 V
3,5 kV
87,9 mm
4,25 mm
15 A
15 A
1000 V
4,4 g
PZK 3010/10/7,50/7,62 LG
Art:
10746.0 Copied
7,5 mm
Light grey
10
750 V
3 kV
77,2 mm
6,05 mm
16 A
16 A
750 V
10,6 g
PZK 3010/10/7,50/7,62 GN
Art:
10746.1 Copied
7,5 mm
Green
10
750 V
3 kV
77,2 mm
6,05 mm
16 A
16 A
750 V
10,6 g
PZK 3011/10/7,50/7,62-KD LG
Art:
10890.0 Copied
7,5 mm
Light grey
10
750 V
3 kV
77,9 mm
6,75 mm
16 A
16 A
750 V
11,4 g
PZK 3011/10/7,50/7,62-KD GN
Art:
10890.1 Copied
7,5 mm
Green
10
750 V
3 kV
77,9 mm
6,75 mm
16 A
16 A
750 V
11,4 g
PZK 3011/10/7,50/7,62-FD LG
Art:
10938.0 Copied
7,5 mm
Light grey
10
750 V
3 kV
77,9 mm
6,75 mm
16 A
16 A
750 V
23,8 g
PZK 3011/10/7,50/7,62-FD GN
Art:
10938.1 Copied
7,5 mm
Green
10
750 V
3 kV
77,9 mm
6,75 mm
16 A
16 A
750 V
23,8 g
PZK 3020/10/10,00/10,16 LG
Art:
10986.0 Copied
10 mm
Light grey
10
1000 V
3,5 kV
97,2 mm
3,55 mm
15 A
15 A
1000 V
12 g
PZK 3020/10/10,00/10,16 GN
Art:
10986.1 Copied
10 mm
Green
10
1000 V
3,5 kV
97,2 mm
3,55 mm
15 A
15 A
1000 V
12 g
PZK 3021/10/10,00/10,16-KD LG
Art:
11034.0 Copied
10 mm
Light grey
10
1000 V
3,5 kV
97,9 mm
4,25 mm
15 A
15 A
1000 V
4,8 g
PZK 3021/10/10,00/10,16-KD GN
Art:
11034.1 Copied
10 mm
Green
10
1000 V
3,5 kV
97,9 mm
4,25 mm
15 A
15 A
1000 V
4,8 g
PZK 3010/11/7,50/7,62 LG
Art:
10747.0 Copied
7,5 mm
Light grey
11
750 V
3 kV
84,7 mm
6,05 mm
16 A
16 A
750 V
11,4 g
PZK 3010/11/7,50/7,62 GN
Art:
10747.1 Copied
7,5 mm
Green
11
750 V
3 kV
84,7 mm
6,05 mm
16 A
16 A
750 V
11,4 g
PZK 3011/11/7,50/7,62-KD LG
Art:
10891.0 Copied
7,5 mm
Light grey
11
750 V
3 kV
85,4 mm
6,75 mm
16 A
16 A
750 V
12,6 g
PZK 3011/11/7,50/7,62-KD GN
Art:
10891.1 Copied
7,5 mm
Green
11
750 V
3 kV
85,4 mm
6,75 mm
16 A
16 A
750 V
12,6 g
PZK 3011/11/7,50/7,62-FD LG
Art:
10939.0 Copied
7,5 mm
Light grey
11
750 V
3 kV
85,4 mm
6,75 mm
16 A
16 A
750 V
26,2 g
PZK 3011/11/7,50/7,62-FD GN
Art:
10939.1 Copied
7,5 mm
Green
11
750 V
3 kV
85,4 mm
6,75 mm
16 A
16 A
750 V
26,2 g
PZK 3020/11/10,00/10,16 LG
Art:
10987.0 Copied
10 mm
Light grey
11
1000 V
3,5 kV
107,2 mm
3,55 mm
15 A
15 A
1000 V
13,2 g
PZK 3020/11/10,00/10,16 GN
Art:
10987.1 Copied
10 mm
Green
11
1000 V
3,5 kV
107,2 mm
3,55 mm
15 A
15 A
1000 V
13,2 g
PZK 3021/11/10,00/10,16-KD LG
Art:
11035.0 Copied
10 mm
Light grey
11
1000 V
3,5 kV
107,9 mm
4,25 mm
15 A
15 A
1000 V
5,3 g
PZK 3021/11/10,00/10,16-KD GN
Art:
11035.1 Copied
10 mm
Green
11
1000 V
3,5 kV
107,9 mm
4,25 mm
15 A
15 A
1000 V
5,3 g
PZK 3010/12/7,50/7,62 LG
Art:
10748.0 Copied
7,5 mm
Light grey
12
750 V
3 kV
92,2 mm
6,05 mm
16 A
16 A
750 V
12,4 g
PZK 3010/12/7,50/7,62 GN
Art:
10748.1 Copied
7,5 mm
Green
12
750 V
3 kV
92,2 mm
6,05 mm
16 A
16 A
750 V
12,4 g
PZK 3011/12/7,50/7,62-KD LG
Art:
10892.0 Copied
7,5 mm
Light grey
12
750 V
3 kV
92,9 mm
6,75 mm
16 A
16 A
750 V
13,8 g
PZK 3011/12/7,50/7,62-KD GN
Art:
10892.1 Copied
7,5 mm
Green
12
750 V
3 kV
92,9 mm
6,75 mm
16 A
16 A
750 V
13,8 g
PZK 3011/12/7,50/7,62-FD LG
Art:
10940.0 Copied
7,5 mm
Light grey
12
750 V
3 kV
92,9 mm
6,75 mm
16 A
16 A
750 V
28,5 g
PZK 3011/12/7,50/7,62-FD GN
Art:
10940.1 Copied
7,5 mm
Green
12
750 V
3 kV
92,9 mm
6,75 mm
16 A
16 A
750 V
28,5 g
PZK 3020/12/10,00/10,16 LG
Art:
10988.0 Copied
10 mm
Light grey
12
1000 V
3,5 kV
117,2 mm
3,55 mm
15 A
15 A
1000 V
14,4 g
PZK 3020/12/10,00/10,16 GN
Art:
10988.1 Copied
10 mm
Green
12
1000 V
3,5 kV
117,2 mm
3,55 mm
15 A
15 A
1000 V
14,4 g
PZK 3021/12/10,00/10,16-KD LG
Art:
11036.0 Copied
10 mm
Light grey
12
1000 V
3,5 kV
117,9 mm
4,25 mm
15 A
15 A
1000 V
5,8 g
PZK 3021/12/10,00/10,16-KD GN
Art:
11036.1 Copied
10 mm
Green
12
1000 V
3,5 kV
117,9 mm
4,25 mm
15 A
15 A
1000 V
5,8 g
PZK 3010/13/7,50/7,62 LG
Art:
10749.0 Copied
7,5 mm
Light grey
13
750 V
3 kV
99,7 mm
6,05 mm
16 A
16 A
750 V
13,8 g
PZK 3010/13/7,50/7,62 GN
Art:
10749.1 Copied
7,5 mm
Green
13
750 V
3 kV
99,7 mm
6,05 mm
16 A
16 A
750 V
13,8 g
PZK 3011/13/7,50/7,62-KD LG
Art:
10893.0 Copied
7,5 mm
Light grey
13
750 V
3 kV
100,4 mm
6,75 mm
16 A
16 A
750 V
14,8 g
PZK 3011/13/7,50/7,62-KD GN
Art:
10893.1 Copied
7,5 mm
Green
13
750 V
3 kV
100,4 mm
6,75 mm
16 A
16 A
750 V
14,8 g
PZK 3011/13/7,50/7,62-FD LG
Art:
10941.0 Copied
7,5 mm
Light grey
13
750 V
3 kV
100,4 mm
6,75 mm
16 A
16 A
750 V
30 g
PZK 3011/13/7,50/7,62-FD GN
Art:
10941.1 Copied
7,5 mm
Green
13
750 V
3 kV
100,4 mm
6,75 mm
16 A
16 A
750 V
30 g
PZK 3020/13/10,00/10,16 LG
Art:
10989.0 Copied
10 mm
Light grey
13
1000 V
3,5 kV
127,2 mm
3,55 mm
15 A
15 A
1000 V
15,6 g
PZK 3020/13/10,00/10,16 GN
Art:
10989.1 Copied
10 mm
Green
13
1000 V
3,5 kV
127,2 mm
3,55 mm
15 A
15 A
1000 V
15,6 g
PZK 3021/13/10,00/10,16-KD LG
Art:
11037.0 Copied
10 mm
Light grey
13
1000 V
3,5 kV
127,9 mm
4,25 mm
15 A
15 A
1000 V
6,3 g
PZK 3021/13/10,00/10,16-KD GN
Art:
11037.1 Copied
10 mm
Green
13
1000 V
3,5 kV
127,9 mm
4,25 mm
15 A
15 A
1000 V
6,3 g
PZK 3010/14/7,50/7,62 LG
Art:
10750.0 Copied
7,5 mm
Light grey
14
750 V
3 kV
107,2 mm
6,05 mm
16 A
16 A
750 V
14,5 g
PZK 3010/14/7,50/7,62 GN
Art:
10750.1 Copied
7,5 mm
Green
14
750 V
3 kV
107,2 mm
6,05 mm
16 A
16 A
750 V
14,5 g
PZK 3011/14/7,50/7,62-KD LG
Art:
10894.0 Copied
7,5 mm
Light grey
14
750 V
3 kV
107,9 mm
6,75 mm
16 A
16 A
750 V
16 g
PZK 3011/14/7,50/7,62-KD GN
Art:
10894.1 Copied
7,5 mm
Green
14
750 V
3 kV
107,9 mm
6,75 mm
16 A
16 A
750 V
16 g
PZK 3011/14/7,50/7,62-FD LG
Art:
10942.0 Copied
7,5 mm
Light grey
14
750 V
3 kV
107,9 mm
6,75 mm
16 A
16 A
750 V
33 g
PZK 3011/14/7,50/7,62-FD GN
Art:
10942.1 Copied
7,5 mm
Green
14
750 V
3 kV
107,9 mm
6,75 mm
16 A
16 A
750 V
33 g
PZK 3020/14/10,00/10,16 LG
Art:
10990.0 Copied
10 mm
Light grey
14
1000 V
3,5 kV
137,2 mm
3,55 mm
15 A
15 A
1000 V
16,8 g
PZK 3020/14/10,00/10,16 GN
Art:
10990.1 Copied
10 mm
Green
14
1000 V
3,5 kV
137,2 mm
3,55 mm
15 A
15 A
1000 V
16,8 g
PZK 3021/14/10,00/10,16-KD LG
Art:
11038.0 Copied
10 mm
Light grey
14
1000 V
3,5 kV
137,9 mm
4,25 mm
15 A
15 A
1000 V
6,8 g
PZK 3021/14/10,00/10,16-KD GN
Art:
11038.1 Copied
10 mm
Green
14
1000 V
3,5 kV
137,9 mm
4,25 mm
15 A
15 A
1000 V
6,8 g
PZK 3010/15/7,50/7,62 LG
Art:
10751.0 Copied
7,5 mm
Light grey
15
750 V
3 kV
114,7 mm
6,05 mm
16 A
16 A
750 V
15,6 g
PZK 3010/15/7,50/7,62 GN
Art:
10751.1 Copied
7,5 mm
Green
15
750 V
3 kV
114,7 mm
6,05 mm
16 A
16 A
750 V
15,6 g
PZK 3011/15/7,50/7,62-KD LG
Art:
10895.0 Copied
7,5 mm
Light grey
15
750 V
3 kV
115,4 mm
6,75 mm
16 A
16 A
750 V
17 g
PZK 3011/15/7,50/7,62-KD GN
Art:
10895.1 Copied
7,5 mm
Green
15
750 V
3 kV
115,4 mm
6,75 mm
16 A
16 A
750 V
17 g
PZK 3011/15/7,50/7,62-FD LG
Art:
10943.0 Copied
7,5 mm
Light grey
15
750 V
3 kV
115,4 mm
6,75 mm
16 A
16 A
750 V
35 g
PZK 3011/15/7,50/7,62-FD GN
Art:
10943.1 Copied
7,5 mm
Green
15
750 V
3 kV
115,4 mm
6,75 mm
16 A
16 A
750 V
35 g
PZK 3020/15/10,00/10,16 LG
Art:
10991.0 Copied
10 mm
Light grey
15
1000 V
3,5 kV
147,2 mm
3,55 mm
15 A
15 A
1000 V
18 g
PZK 3020/15/10,00/10,16 GN
Art:
10991.1 Copied
10 mm
Green
15
1000 V
3,5 kV
147,2 mm
3,55 mm
15 A
15 A
1000 V
18 g
PZK 3021/15/10,00/10,16-KD LG
Art:
11039.0 Copied
10 mm
Light grey
15
1000 V
3,5 kV
147,9 mm
4,25 mm
15 A
15 A
1000 V
7,2 g
PZK 3021/15/10,00/10,16-KD GN
Art:
11039.1 Copied
10 mm
Green
15
1000 V
3,5 kV
147,9 mm
4,25 mm
15 A
15 A
1000 V
7,2 g
PZK 3010/16/7,50/7,62 LG
Art:
10752.0 Copied
7,5 mm
Light grey
16
750 V
3 kV
122,2 mm
6,05 mm
16 A
16 A
750 V
16,6 g
PZK 3010/16/7,50/7,62 GN
Art:
10752.1 Copied
7,5 mm
Green
16
750 V
3 kV
122,2 mm
6,05 mm
16 A
16 A
750 V
16,6 g
PZK 3011/16/7,50/7,62-KD LG
Art:
10896.0 Copied
7,5 mm
Light grey
16
750 V
3 kV
122,9 mm
6,75 mm
16 A
16 A
750 V
18,4 g
PZK 3011/16/7,50/7,62-KD GN
Art:
10896.1 Copied
7,5 mm
Green
16
750 V
3 kV
122,9 mm
6,75 mm
16 A
16 A
750 V
18,4 g
PZK 3011/16/7,50/7,62-FD LG
Art:
10944.0 Copied
7,5 mm
Light grey
16
750 V
3 kV
122,9 mm
6,75 mm
16 A
16 A
750 V
38 g
PZK 3011/16/7,50/7,62-FD GN
Art:
10944.1 Copied
7,5 mm
Green
16
750 V
3 kV
122,9 mm
6,75 mm
16 A
16 A
750 V
38 g
PZK 3020/16/10,00/10,16 LG
Art:
10992.0 Copied
10 mm
Light grey
16
1000 V
3,5 kV
157,2 mm
3,55 mm
15 A
15 A
1000 V
19,2 g
PZK 3020/16/10,00/10,16 GN
Art:
10992.1 Copied
10 mm
Green
16
1000 V
3,5 kV
157,2 mm
3,55 mm
15 A
15 A
1000 V
19,2 g
PZK 3021/16/10,00/10,16-KD LG
Art:
11040.0 Copied
10 mm
Light grey
16
1000 V
3,5 kV
157,9 mm
4,25 mm
15 A
15 A
1000 V
7,7 g
PZK 3021/16/10,00/10,16-KD GN
Art:
11040.1 Copied
10 mm
Green
16
1000 V
3,5 kV
157,9 mm
4,25 mm
15 A
15 A
1000 V
7,7 g
PZK 3010/17/7,50/7,62 LG
Art:
10753.0 Copied
7,5 mm
Light grey
17
750 V
3 kV
129,7 mm
6,05 mm
16 A
16 A
750 V
17,6 g
PZK 3010/17/7,50/7,62 GN
Art:
10753.1 Copied
7,5 mm
Green
17
750 V
3 kV
129,7 mm
6,05 mm
16 A
16 A
750 V
17,6 g
PZK 3011/17/7,50/7,62-KD LG
Art:
10897.0 Copied
7,5 mm
Light grey
17
750 V
3 kV
130,4 mm
6,75 mm
16 A
16 A
750 V
19,4 g
PZK 3011/17/7,50/7,62-KD GN
Art:
10897.1 Copied
7,5 mm
Green
17
750 V
3 kV
130,4 mm
6,75 mm
16 A
16 A
750 V
19,4 g
PZK 3011/17/7,50/7,62-FD LG
Art:
10945.0 Copied
7,5 mm
Light grey
17
750 V
3 kV
130,4 mm
6,75 mm
16 A
16 A
750 V
40 g
PZK 3011/17/7,50/7,62-FD GN
Art:
10945.1 Copied
7,5 mm
Green
17
750 V
3 kV
130,4 mm
6,75 mm
16 A
16 A
750 V
40 g
PZK 3020/17/10,00/10,16 LG
Art:
10993.0 Copied
10 mm
Light grey
17
1000 V
3,5 kV
167,2 mm
3,55 mm
15 A
15 A
1000 V
20,4 g
PZK 3020/17/10,00/10,16 GN
Art:
10993.1 Copied
10 mm
Green
17
1000 V
3,5 kV
167,2 mm
3,55 mm
15 A
15 A
1000 V
20,4 g
PZK 3021/17/10,00/10,16-KD LG
Art:
11041.0 Copied
10 mm
Light grey
17
1000 V
3,5 kV
167,9 mm
4,25 mm
15 A
15 A
1000 V
8,2 g
PZK 3021/17/10,00/10,16-KD GN
Art:
11041.1 Copied
10 mm
Green
17
1000 V
3,5 kV
167,9 mm
4,25 mm
15 A
15 A
1000 V
8,2 g
PZK 3010/18/7,50/7,62 LG
Art:
10754.0 Copied
7,5 mm
Light grey
18
750 V
3 kV
137,2 mm
6,05 mm
16 A
16 A
750 V
18,7 g
PZK 3010/18/7,50/7,62 GN
Art:
10754.1 Copied
7,5 mm
Green
18
750 V
3 kV
137,2 mm
6,05 mm
16 A
16 A
750 V
18,7 g
PZK 3011/18/7,50/7,62-KD LG
Art:
10898.0 Copied
7,5 mm
Light grey
18
750 V
3 kV
137,9 mm
6,75 mm
16 A
16 A
750 V
20,6 g
PZK 3011/18/7,50/7,62-KD GN
Art:
10898.1 Copied
7,5 mm
Green
18
750 V
3 kV
137,9 mm
6,75 mm
16 A
16 A
750 V
20,6 g
PZK 3011/18/7,50/7,62-FD LG
Art:
10946.0 Copied
7,5 mm
Light grey
18
750 V
3 kV
137,9 mm
6,75 mm
16 A
16 A
750 V
42 g
PZK 3011/18/7,50/7,62-FD GN
Art:
10946.1 Copied
7,5 mm
Green
18
750 V
3 kV
137,9 mm
6,75 mm
16 A
16 A
750 V
42 g
PZK 3020/18/10,00/10,16 LG
Art:
10994.0 Copied
10 mm
Light grey
18
1000 V
3,5 kV
177,2 mm
3,55 mm
15 A
15 A
1000 V
21,6 g
PZK 3020/18/10,00/10,16 GN
Art:
10994.1 Copied
10 mm
Green
18
1000 V
3,5 kV
177,2 mm
3,55 mm
15 A
15 A
1000 V
21,6 g
PZK 3021/18/10,00/10,16-KD LG
Art:
11042.0 Copied
10 mm
Light grey
18
1000 V
3,5 kV
177,9 mm
4,25 mm
15 A
15 A
1000 V
8,6 g
PZK 3021/18/10,00/10,16-KD GN
Art:
11042.1 Copied
10 mm
Green
18
1000 V
3,5 kV
177,9 mm
4,25 mm
15 A
15 A
1000 V
8,6 g
PZK 3010/19/7,50/7,62 LG
Art:
10755.0 Copied
7,5 mm
Light grey
19
750 V
3 kV
144,7 mm
6,05 mm
16 A
16 A
750 V
19,7 g
PZK 3010/19/7,50/7,62 GN
Art:
10755.1 Copied
7,5 mm
Green
19
750 V
3 kV
144,7 mm
6,05 mm
16 A
16 A
750 V
19,7 g
PZK 3011/19/7,50/7,62-KD LG
Art:
10899.0 Copied
7,5 mm
Light grey
19
750 V
3 kV
145,4 mm
6,75 mm
16 A
16 A
750 V
21,8 g
PZK 3011/19/7,50/7,62-KD GN
Art:
10899.1 Copied
7,5 mm
Green
19
750 V
3 kV
145,4 mm
6,75 mm
16 A
16 A
750 V
21,8 g
PZK 3011/19/7,50/7,62-FD LG
Art:
10947.0 Copied
7,5 mm
Light grey
19
750 V
3 kV
145,4 mm
6,75 mm
16 A
16 A
750 V
45 g
PZK 3011/19/7,50/7,62-FD GN
Art:
10947.1 Copied
7,5 mm
Green
19
750 V
3 kV
145,4 mm
6,75 mm
16 A
16 A
750 V
45 g
PZK 3020/19/10,00/10,16 LG
Art:
10995.0 Copied
10 mm
Light grey
19
1000 V
3,5 kV
187,2 mm
3,55 mm
15 A
15 A
1000 V
22,8 g
PZK 3020/19/10,00/10,16 GN
Art:
10995.1 Copied
10 mm
Green
19
1000 V
3,5 kV
187,2 mm
3,55 mm
15 A
15 A
1000 V
22,8 g
PZK 3021/19/10,00/10,16-KD LG
Art:
11043.0 Copied
10 mm
Light grey
19
1000 V
3,5 kV
187,9 mm
4,25 mm
15 A
15 A
1000 V
9,2 g
PZK 3021/19/10,00/10,16-KD GN
Art:
11043.1 Copied
10 mm
Green
19
1000 V
3,5 kV
187,9 mm
4,25 mm
15 A
15 A
1000 V
9,2 g
PZK 3010/20/7,50/7,62 LG
Art:
10756.0 Copied
7,5 mm
Light grey
20
750 V
3 kV
152,2 mm
6,05 mm
16 A
16 A
750 V
20,8 g
PZK 3010/20/7,50/7,62 GN
Art:
10756.1 Copied
7,5 mm
Green
20
750 V
3 kV
152,2 mm
6,05 mm
16 A
16 A
750 V
20,8 g
PZK 3011/20/7,50/7,62-KD LG
Art:
10900.0 Copied
7,5 mm
Light grey
20
750 V
3 kV
152,9 mm
6,75 mm
16 A
16 A
750 V
22,9 g
PZK 3011/20/7,50/7,62-KD GN
Art:
10900.1 Copied
7,5 mm
Green
20
750 V
3 kV
152,9 mm
6,75 mm
16 A
16 A
750 V
22,9 g
PZK 3011/20/7,50/7,62-FD LG
Art:
10948.0 Copied
7,5 mm
Light grey
20
750 V
3 kV
152,9 mm
6,75 mm
16 A
16 A
750 V
47 g
PZK 3011/20/7,50/7,62-FD GN
Art:
10948.1 Copied
7,5 mm
Green
20
750 V
3 kV
152,9 mm
6,75 mm
16 A
16 A
750 V
47 g
PZK 3020/20/10,00/10,16 LG
Art:
10996.0 Copied
10 mm
Light grey
20
1000 V
3,5 kV
197,2 mm
3,55 mm
15 A
15 A
1000 V
24 g
PZK 3020/20/10,00/10,16 GN
Art:
10996.1 Copied
10 mm
Green
20
1000 V
3,5 kV
197,2 mm
3,55 mm
15 A
15 A
1000 V
24 g
PZK 3021/20/10,00/10,16-KD LG
Art:
11044.0 Copied
10 mm
Light grey
20
1000 V
3,5 kV
197,9 mm
4,25 mm
15 A
15 A
1000 V
9,6 g
PZK 3021/20/10,00/10,16-KD GN
Art:
11044.1 Copied
10 mm
Green
20
1000 V
3,5 kV
197,9 mm
4,25 mm
15 A
15 A
1000 V
9,6 g
PZK 3010/21/7,50/7,62 LG
Art:
10757.0 Copied
7,5 mm
Light grey
21
750 V
3 kV
159,7 mm
6,05 mm
16 A
16 A
750 V
21,8 g
PZK 3010/21/7,50/7,62 GN
Art:
10757.1 Copied
7,5 mm
Green
21
750 V
3 kV
159,7 mm
6,05 mm
16 A
16 A
750 V
21,8 g
PZK 3011/21/7,50/7,62-KD LG
Art:
10901.0 Copied
7,5 mm
Light grey
21
750 V
3 kV
160,4 mm
6,75 mm
16 A
16 A
750 V
24 g
PZK 3011/21/7,50/7,62-KD GN
Art:
10901.1 Copied
7,5 mm
Green
21
750 V
3 kV
160,4 mm
6,75 mm
16 A
16 A
750 V
24 g
PZK 3011/21/7,50/7,62-FD LG
Art:
10949.0 Copied
7,5 mm
Light grey
21
750 V
3 kV
160,4 mm
6,75 mm
16 A
16 A
750 V
49 g
PZK 3011/21/7,50/7,62-FD GN
Art:
10949.1 Copied
7,5 mm
Green
21
750 V
3 kV
160,4 mm
6,75 mm
16 A
16 A
750 V
49 g
PZK 3020/21/10,00/10,16 LG
Art:
10997.0 Copied
10 mm
Light grey
21
1000 V
3,5 kV
207,2 mm
3,55 mm
15 A
15 A
1000 V
25,2 g
PZK 3020/21/10,00/10,16 GN
Art:
10997.1 Copied
10 mm
Green
21
1000 V
3,5 kV
207,2 mm
3,55 mm
15 A
15 A
1000 V
25,2 g
PZK 3021/21/10,00/10,16-KD LG
Art:
11045.0 Copied
10 mm
Light grey
21
1000 V
3,5 kV
207,9 mm
4,25 mm
15 A
15 A
1000 V
10 g
PZK 3021/21/10,00/10,16-KD GN
Art:
11045.1 Copied
10 mm
Green
21
1000 V
3,5 kV
207,9 mm
4,25 mm
15 A
15 A
1000 V
10 g
PZK 3010/22/7,50/7,62 LG
Art:
10758.0 Copied
7,5 mm
Light grey
22
750 V
3 kV
167,2 mm
6,05 mm
16 A
16 A
750 V
22,8 g
PZK 3010/22/7,50/7,62 GN
Art:
10758.1 Copied
7,5 mm
Green
22
750 V
3 kV
167,2 mm
6,05 mm
16 A
16 A
750 V
22,8 g
PZK 3011/22/7,50/7,62-KD LG
Art:
10902.0 Copied
7,5 mm
Light grey
22
750 V
3 kV
167,9 mm
6,75 mm
16 A
16 A
750 V
25 g
PZK 3011/22/7,50/7,62-KD GN
Art:
10902.1 Copied
7,5 mm
Green
22
750 V
3 kV
167,9 mm
6,75 mm
16 A
16 A
750 V
25 g
PZK 3011/22/7,50/7,62-FD LG
Art:
10950.0 Copied
7,5 mm
Light grey
22
750 V
3 kV
167,9 mm
6,75 mm
16 A
16 A
750 V
52 g
PZK 3011/22/7,50/7,62-FD GN
Art:
10950.1 Copied
7,5 mm
Green
22
750 V
3 kV
167,9 mm
6,75 mm
16 A
16 A
750 V
52 g
PZK 3020/22/10,00/10,16 LG
Art:
10998.0 Copied
10 mm
Light grey
22
1000 V
3,5 kV
217,2 mm
3,55 mm
15 A
15 A
1000 V
26,4 g
PZK 3020/22/10,00/10,16 GN
Art:
10998.1 Copied
10 mm
Green
22
1000 V
3,5 kV
217,2 mm
3,55 mm
15 A
15 A
1000 V
26,4 g
PZK 3021/22/10,00/10,16-KD LG
Art:
11046.0 Copied
10 mm
Light grey
22
1000 V
3,5 kV
217,9 mm
4,25 mm
15 A
15 A
1000 V
10,5 g
PZK 3021/22/10,00/10,16-KD GN
Art:
11046.1 Copied
10 mm
Green
22
1000 V
3,5 kV
217,9 mm
4,25 mm
15 A
15 A
1000 V
10,5 g
PZK 3010/23/7,50/7,62 LG
Art:
10759.0 Copied
7,5 mm
Light grey
23
750 V
3 kV
174,7 mm
6,05 mm
16 A
16 A
750 V
23,9 g
PZK 3010/23/7,50/7,62 GN
Art:
10759.1 Copied
7,5 mm
Green
23
750 V
3 kV
174,7 mm
6,05 mm
16 A
16 A
750 V
23,9 g
PZK 3011/23/7,50/7,62-KD LG
Art:
10903.0 Copied
7,5 mm
Light grey
23
750 V
3 kV
175,4 mm
6,75 mm
16 A
16 A
750 V
26,2 g
PZK 3011/23/7,50/7,62-KD GN
Art:
10903.1 Copied
7,5 mm
Green
23
750 V
3 kV
175,4 mm
6,75 mm
16 A
16 A
750 V
26,2 g
PZK 3011/23/7,50/7,62-FD LG
Art:
10951.0 Copied
7,5 mm
Light grey
23
750 V
3 kV
175,4 mm
6,75 mm
16 A
16 A
750 V
54 g
PZK 3011/23/7,50/7,62-FD GN
Art:
10951.1 Copied
7,5 mm
Green
23
750 V
3 kV
175,4 mm
6,75 mm
16 A
16 A
750 V
54 g
PZK 3020/23/10,00/10,16 LG
Art:
10999.0 Copied
10 mm
Light grey
23
1000 V
3,5 kV
227,2 mm
3,55 mm
15 A
15 A
1000 V
27,6 g
PZK 3020/23/10,00/10,16 GN
Art:
10999.1 Copied
10 mm
Green
23
1000 V
3,5 kV
227,2 mm
3,55 mm
15 A
15 A
1000 V
27,6 g
PZK 3021/23/10,00/10,16-KD LG
Art:
11047.0 Copied
10 mm
Light grey
23
1000 V
3,5 kV
227,9 mm
4,25 mm
15 A
15 A
1000 V
11 g
PZK 3021/23/10,00/10,16-KD GN
Art:
11047.1 Copied
10 mm
Green
23
1000 V
3,5 kV
227,9 mm
4,25 mm
15 A
15 A
1000 V
11 g
PZK 3010/24/7,50/7,62 LG
Art:
10760.0 Copied
7,5 mm
Light grey
24
750 V
3 kV
182,2 mm
6,05 mm
16 A
16 A
750 V
24,9 g
PZK 3010/24/7,50/7,62 GN
Art:
10760.1 Copied
7,5 mm
Green
24
750 V
3 kV
182,2 mm
6,05 mm
16 A
16 A
750 V
24,9 g
PZK 3011/24/7,50/7,62-KD LG
Art:
10904.0 Copied
7,5 mm
Light grey
24
750 V
3 kV
182,9 mm
6,75 mm
16 A
16 A
750 V
27,4 g
PZK 3011/24/7,50/7,62-KD GN
Art:
10904.1 Copied
7,5 mm
Green
24
750 V
3 kV
182,9 mm
6,75 mm
16 A
16 A
750 V
27,4 g
PZK 3011/24/7,50/7,62-FD LG
Art:
10952.0 Copied
7,5 mm
Light grey
24
750 V
3 kV
182,9 mm
6,75 mm
16 A
16 A
750 V
57 g
PZK 3011/24/7,50/7,62-FD GN
Art:
10952.1 Copied
7,5 mm
Green
24
750 V
3 kV
182,9 mm
6,75 mm
16 A
16 A
750 V
57 g
PZK 3020/24/10,00/10,16 LG
Art:
11000.0 Copied
10 mm
Light grey
24
1000 V
3,5 kV
237,2 mm
3,55 mm
15 A
15 A
1000 V
28,8 g
PZK 3020/24/10,00/10,16 GN
Art:
11000.1 Copied
10 mm
Green
24
1000 V
3,5 kV
237,2 mm
3,55 mm
15 A
15 A
1000 V
28,8 g
PZK 3021/24/10,00/10,16-KD LG
Art:
11048.0 Copied
10 mm
Light grey
24
1000 V
3,5 kV
237,9 mm
4,25 mm
15 A
15 A
1000 V
11,5 g
PZK 3021/24/10,00/10,16-KD GN
Art:
11048.1 Copied
10 mm
Green
24
1000 V
3,5 kV
237,9 mm
4,25 mm
15 A
15 A
1000 V
11,5 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
