Filter fans are used to provide "cooling" by forced air-circulation in enclosures and cabinets containing electrical/electronic and other components. The interior temperature of an enclosure can be reduced by drawing cooler, filtered outside air into the enclosure and expelling hot inside air. The resulting airflow prevents formation of localised hot pockets and protects electronic components from overheating.
Â
Â
The Filter Fan Plus series uses a new air-flap technology on the air outlet side, thereby reaching an unparalleled high degree of airflow. A unique ratchet mechanism is used for easy installation. It provides safe and secure mounting while guaranteeing a tight seal.
Â

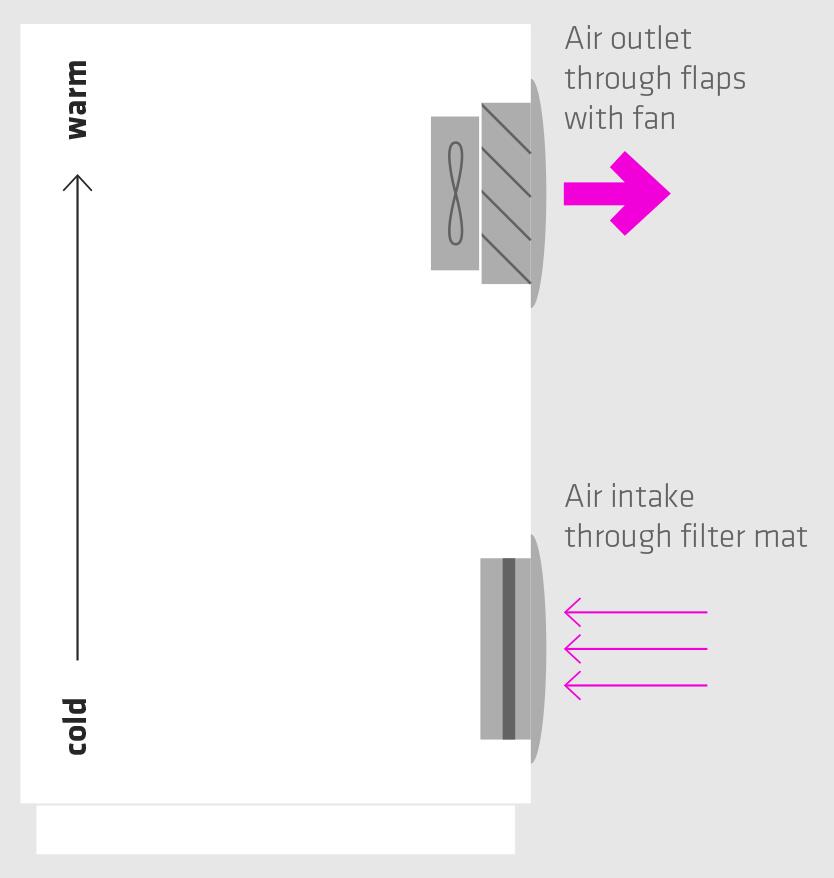

Depending on the requirements there are two optional systems available – the FPI or the FPO system (FPI = "in", FPO = "out").
Â
The FPO system consists of an intake filter and exhaust filter fan with air flaps. The Filter Fan Plus series has been designed for indoor use. For added outdoor applications a protective hood is available.
Â
General Data |
|
|---|---|
| Air capacity | 24 m³/h |
| Air volume free blowing | 24 m³/h |
| Air volume free blowing with G3 filter | 15 m³/h |
| Number of fans | 1 |
| Sound level | 38 dB |
Dimensions |
|
| Width | 120 mm |
| Height | 120 mm |
| Depth | 94 mm |
| Behind panel depth | 72 mm |
| Hole size | 92x92 mm |
| Weight | 0,6 kg |
Materials |
|
| Colour | Grey RAL 7035 |
| Material plastic housing | Plastic |
| Flammability class | UL94-V0 |
*Invisible Heading* |
|
|---|---|
| Materials fan | Steel |
| Material of rotor | Aluminium |
Rated Operating Conditions |
|
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
| Frequency | 50/60 Hz |
| Power consumption | 12 W |
| Life span | 50000 h |
| Storage temperature | -40°C ... +70°C |
| Operational temperature | -40°C ... +70°C |
| Operating humidity | < 90% RH |
| Humidity storage | <90% RH |
Safety and Approvals |
|
| IP class | IP54 |
| Approvals | CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE |
Filter fans are used to provide "cooling" by forced air-circulation in enclosures and cabinets containing electrical/electronic and other components. The interior temperature of an enclosure can be reduced by drawing cooler, filtered outside air into the enclosure and expelling hot inside air. The resulting airflow prevents formation of localised hot pockets and protects electronic components from overheating.
Â
Â
The Filter Fan Plus series uses a new air-flap technology on the air outlet side, thereby reaching an unparalleled high degree of airflow. A unique ratchet mechanism is used for easy installation. It provides safe and secure mounting while guaranteeing a tight seal.
Â
Depending on the requirements there are two optional systems available – the FPI or the FPO system (FPI = "in", FPO = "out").
Â
The FPO system consists of an intake filter and exhaust filter fan with air flaps. The Filter Fan Plus series has been designed for indoor use. For added outdoor applications a protective hood is available.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Air capacity | Air volume free blowing | Air volume free blowing with G3 filter | Number of fans | Sound level | Width | Height | Depth | Behind panel depth | Hole size | Weight | Materials fan | Material of rotor | Filter grade | Voltage max | Voltage min | Frequency | Power consumption | Life span | Operational temperature | Operating humidity | Humidity storage | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

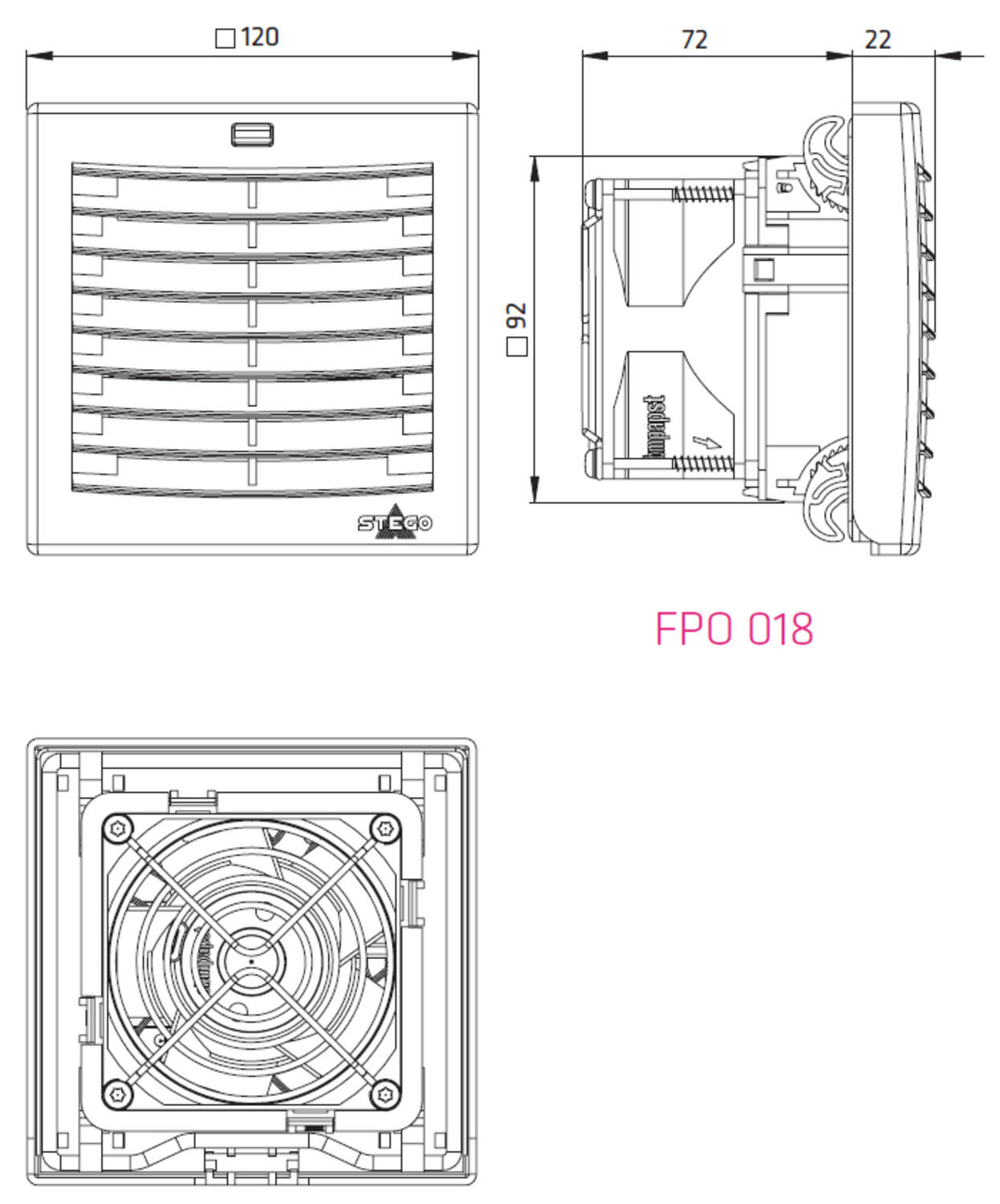

FPO 018 Fan, 92 x 92 mm, 24m³/h, 230V ac, Air-flap
Art:
01880.0-00
Copied
|
24 m³/h
|
24 m³/h
|
15 m³/h
|
1
|
38 dB
|
120 mm
|
120 mm
|
94 mm
|
72 mm
|
92x92 mm
|
0,6 kg
|
Steel
|
Aluminium
|
|
230 V ac
|
230 V ac
|
50/60 Hz
|
12 W
|
50000 h
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 92 x 92 mm, 32m³/h, 110-120V ac, Air-flap
Art:
01880.9-00
Copied
|
32 m³/h
|
32 m³/h
|
19 m³/h
|
1
|
41 dB
|
120 mm
|
120 mm
|
94 mm
|
72 mm
|
92x92 mm
|
0,6 kg
|
Steel
|
Aluminium
|
|
115 V ac
|
115 V ac
|
50/60 Hz
|
12 W
|
50000 h
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 92 x 92 mm, 33m³/h, 48V dc, Air-flap
Art:
01880.1-00
Copied
|
33 m³/h
|
33 m³/h
|
18 m³/h
|
1
|
49 dB
|
120 mm
|
120 mm
|
88 mm
|
66 mm
|
92x92 mm
|
0,3 kg
|
Steel
|
Aluminium
|
|
48 V dc
|
24 V dc
|
DC
|
3 W
|
70000 h
|
-20°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 92 x 92 mm, 31m³/h, 24V dc, Air-flap
Art:
01880.2-00
Copied
|
31 m³/h
|
31 m³/h
|
17 m³/h
|
1
|
48 dB
|
120 mm
|
120 mm
|
88 mm
|
66 mm
|
92x92 mm
|
0,3 kg
|
Steel
|
Aluminium
|
|
24 V dc
|
24 V dc
|
DC
|
3 W
|
70000 h
|
-20°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
FPO 118 92 x 92 mm, Intake filter G3
Art:
11880.0-30
Copied
|
32 m³/h
|
|
|
|
|
120 mm
|
120 mm
|
44 mm
|
22 mm
|
92x92 mm
|
0,2 kg
|
|
|
84 %
|
|
|
|
|
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
FPO 018 Fan, 124 x 124 mm, 117m³/h, 110-120V ac, Air-flap
Art:
01881.9-00
Copied
|
117 m³/h
|
117 m³/h
|
58 m³/h
|
1
|
52 dB
|
152 mm
|
152 mm
|
104 mm
|
79 mm
|
124x124 mm
|
0,9 kg
|
Aluminium
|
Steel
|
84 %
|
115 V ac
|
115 V ac
|
50/60 Hz
|
18 W
|
37000 h
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 124 x 124 mm, 97m³/h, 230V ac, Air-flap
Art:
01881.0-00
Copied
|
97 m³/h
|
97 m³/h
|
47 m³/h
|
1
|
49 dB
|
152 mm
|
152 mm
|
104 mm
|
79 mm
|
124x124 mm
|
0,9 kg
|
Aluminium
|
Steel
|
84 %
|
230 V ac
|
230 V ac
|
50/60 Hz
|
19 W
|
37000 h
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 124 x 124 mm, 125m³/h, 48V dc, Air-flap
Art:
01881.1-00
Copied
|
125 m³/h
|
125 m³/h
|
63 m³/h
|
1
|
50 dB
|
152 mm
|
152 mm
|
104 mm
|
79 mm
|
124x124 mm
|
0,5 kg
|
Aluminium
|
Steel
|
84 %
|
48 V dc
|
48 V dc
|
DC
|
4,2 W
|
65000 h
|
-20°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 124 x 124 mm, 118m³/h, 24V dc, Air-flap
Art:
01881.2-00
Copied
|
118 m³/h
|
118 m³/h
|
63 m³/h
|
1
|
56 dB
|
152 mm
|
152 mm
|
104 mm
|
79 mm
|
124x124 mm
|
0,5 kg
|
Aluminium
|
Steel
|
84 %
|
24 V dc
|
24 V dc
|
DC
|
4,1 W
|
65000 h
|
-20°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
FPO 118 124 x 124 mm, Intake filter G3
Art:
11881.0-30
Copied
|
117 m³/h
|
|
|
|
|
152 mm
|
152 mm
|
47 mm
|
22 mm
|
124x124 mm
|
0,2 kg
|
|
|
84 %
|
|
|
|
|
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
FPO 018 Fan, 176 x 176 mm, 263m³/h, 230V ac, Air-flap
Art:
01882.0-00
Copied
|
263 m³/h
|
263 m³/h
|
137 m³/h
|
1
|
56 dB
|
215 mm
|
215 mm
|
142 mm
|
117 mm
|
176x176 mm
|
1,6 kg
|
Aluminium
|
Steel
|
|
230 V ac
|
230 V ac
|
50/60 Hz
|
45 W
|
65000 h
|
-25°C ... +50°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 176 x 176 mm, 313m³/h, 110-120V ac, Air-flap
Art:
01882.9-00
Copied
|
313 m³/h
|
313 m³/h
|
166 m³/h
|
1
|
60 dB
|
215 mm
|
215 mm
|
142 mm
|
117 mm
|
176x176 mm
|
1,6 kg
|
Aluminium
|
Steel
|
|
115 V ac
|
115 V ac
|
50/60 Hz
|
38 W
|
65000 h
|
-25°C ... +50°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 176 x 176 mm, 277m³/h, 48V dc, Air-flap
Art:
01882.1-00
Copied
|
277 m³/h
|
277 m³/h
|
146 m³/h
|
1
|
63 dB
|
215 mm
|
215 mm
|
142 mm
|
117 mm
|
176x176 mm
|
1,5 kg
|
Aluminium
|
Steel
|
|
48 V dc
|
48 V DC
|
DC
|
12 W
|
80000 h
|
-25°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
|
FPO 018 Fan, 176 x 176 mm, 269m³/h, 24V dc, Air-flap
Art:
01882.2-00
Copied
|
269 m³/h
|
269 m³/h
|
141 m³/h
|
1
|
63 dB
|
215 mm
|
215 mm
|
142 mm
|
117 mm
|
176x176 mm
|
1,5 kg
|
Aluminium
|
Steel
|
|
24 V ac
|
24 V ac
|
DC
|
12 W
|
80000 h
|
-25°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
FPO 118 176 x 176 mm, Intake filter G3
Art:
11882.0-30
Copied
|
313 m³/h
|
|
|
|
|
215 mm
|
215 mm
|
50 mm
|
25 mm
|
176x176 mm
|
0,4 kg
|
|
|
84 %
|
|
|
|
|
|
-40°C ... +70°C
|
< 90% RH
|
<90% RH
|
| ||
FPO 018 Fan, 223 x 223 mm, 536m³/h, 230V ac, Air-flap
Art:
01883.0-00
Copied
|
536 m³/h
|
536 m³/h
|
281 m³/h
|
1
|
64 dB
|
257 mm
|
257 mm
|
173 mm
|
147 mm
|
223x223 mm
|
2,4 kg
|
Aluminium
|
Steel
|
|
230 V ac
|
230 V ac
|
50/60 Hz
|
64 W
|
56000 h
|
-25°C ... +65°C
|
< 75% RH
|
<75% RH
|
| ||
|
FPO 018 Fan, 223 x 223 mm, 581m³/h, 110-120V ac, Air-flap
Art:
01883.9-00
Copied
|
581 m³/h
|
581 m³/h
|
310 m³/h
|
1
|
68 dB
|
257 mm
|
257 mm
|
173 mm
|
147 mm
|
223x223 mm
|
2,4 kg
|
Aluminium
|
Steel
|
|
115 V ac
|
115 V ac
|
50/60 Hz
|
81 W
|
56000 h
|
-25°C ... +65°C
|
< 75% RH
|
<75% RH
|
| ||
FPO 118 223 x 223 mm, Intake filter G3
Art:
11883.0-30
Copied
|
581 m³/h
|
|
|
|
|
257 mm
|
257 mm
|
51 mm
|
25 mm
|
223x223 mm
|
0,5 kg
|
|
|
84 %
|
|
|
|
|
|
-25°C ... +65°C
|
< 75% RH
|
<75% RH
|
| ||
FPO 018 Fan, 291 x 291 mm, c, 230V ac, Air-flap
Art:
01884.0-00
Copied
|
727 m³/h
|
727 m³/h
|
413 m³/h
|
1
|
63 dB
|
322 mm
|
322 mm
|
189 mm
|
160 mm
|
291x291 mm
|
3,2 kg
|
Aluminium
|
Steel
|
84 %
|
230 V ac
|
230 V ac
|
50/60 Hz
|
95 W
|
76000 h
|
-25°C ... +55°C
|
< 75% RH
|
<75% RH
|
| ||
|
FPO 018 Fan, 291 x 291 mm, 703m³/h, 110-120V ac, Air-flap
Art:
01884.9-00
Copied
|
703 m³/h
|
703 m³/h
|
391 m³/h
|
1
|
62 dB
|
322 mm
|
322 mm
|
189 mm
|
160 mm
|
291x291 mm
|
3,2 kg
|
Aluminium
|
Steel
|
84 %
|
115 V ac
|
115 V ac
|
50/60 Hz
|
90 W
|
76000 h
|
-25°C ... +35°C
|
< 75% RH
|
<75% RH
|
| ||
FPO 118 291 x 291 mm, Intake filter G3
Art:
11884.0-30
Copied
|
727 m³/h
|
|
|
|
|
322 mm
|
322 mm
|
54 mm
|
25 mm
|
291x291 mm
|
0,8 kg
|
|
|
84 %
|
|
|
|
|
|
-25°C ... +65°C
|
< 75% RH
|
<75% RH
|
|
