FLEXA

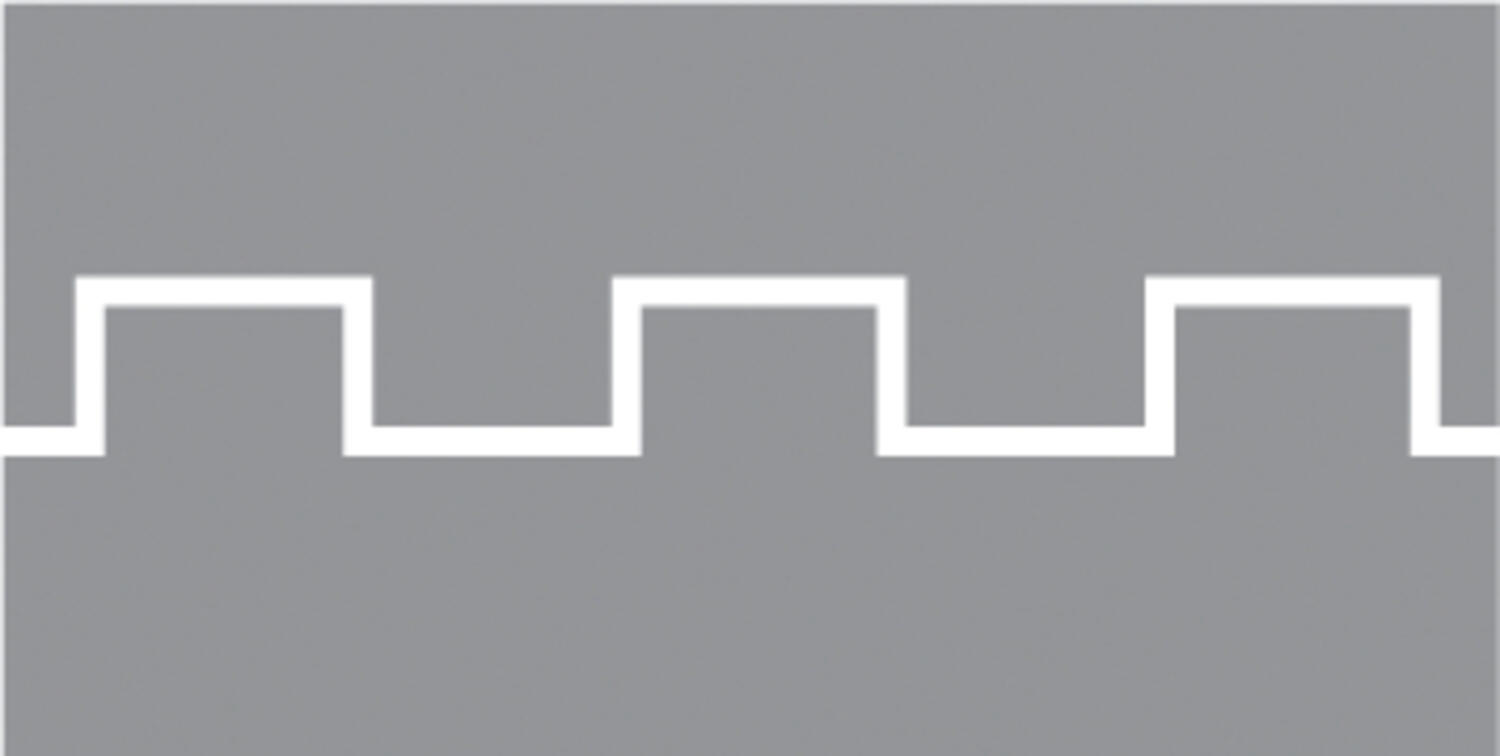

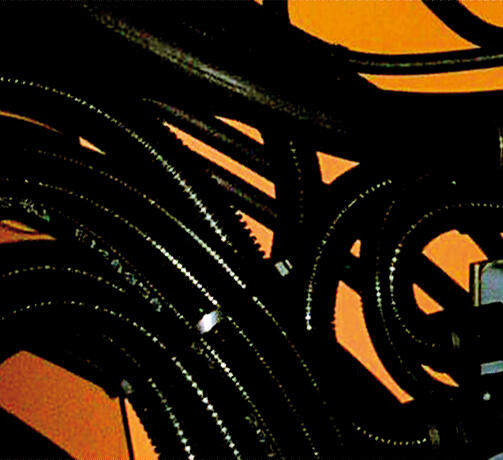

ROHRflex PU is a protective conduit spesifically suitable for highly flexible applications. Applicable also in very cold temperatures. The conduit is both internally and externally corrugated.
Â
Can be used for example in machine building, resistant against oil and fuel.
Â
| Bending radius ±10% dynamic | 40 |
|---|---|
| Bending radius -10% static | 15 |
| Colour | Black |
| Fire rating | UL94-HB |
| Hose dimension AD | 13 |
| Inner dimensions | 8,8 mm |
| Material | Polyurethane |
| Outer dimensions | 13 mm |
|---|---|
| Pack size | 50 m |
| Temperature operational max | 120 °C |
| Temperature operational min | -40 °C |
| Weight / m | 0,035 |
ROHRflex PU is a protective conduit spesifically suitable for highly flexible applications. Applicable also in very cold temperatures. The conduit is both internally and externally corrugated.
Â
Can be used for example in machine building, resistant against oil and fuel.
Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Bending radius ±10% dynamic | Bending radius -10% static | Hose dimension AD | Inner dimensions | Outer dimensions | Pack size | Weight / m | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
ROHRflex PU AD13 black 8,8x13 mm
Art:
0289.902.010
Copied
|
40
|
15
|
13
|
8,8 mm
|
13 mm
|
50 m
|
0,035
|
| ||
|
ROHRflex PU AD15,8 black 11,4x15,8 mm
Art:
0289.902.012
Copied
|
55
|
22
|
15,8
|
11,4 mm
|
15,8 mm
|
50 m
|
0,046
|
| ||
|
ROHRflex PU AD21,2 black 15,2x21,2 mm
Art:
0289.932.016
Copied
|
75
|
35
|
21,2
|
15,2 mm
|
21,2 mm
|
50 m
|
0,056
|
| ||
|
ROHRflex PU AD28,5 black 22x28,5 mm
Art:
0289.932.023
Copied
|
100
|
45
|
28,5
|
22 mm
|
28,5 mm
|
50 m
|
0,14
|
| ||
|
ROHRflex PU AD34,5 black 27,5x34,5 mm
Art:
0289.932.029
Copied
|
120
|
50
|
34,5
|
27,5 mm
|
34,5 mm
|
50 m
|
0,172
|
| ||
|
ROHRflex PU AD42,5 black 35,5x42,5 mm
Art:
0289.932.036
Copied
|
150
|
80
|
42,5
|
35,5 mm
|
42,5 mm
|
25 m
|
0,2
|
| ||
|
ROHRflex PU AD54,5 black 47x54,5 mm
Art:
0289.932.048
Copied
|
190
|
100
|
54,5
|
47 mm
|
54,5 mm
|
25 m
|
0,225
|
|
