KOWA
Kowa's new JCM-V series is made for use in high vibration and high shock environments. With a design based on Kowa's standard 2/3" JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.
| 5156_Pixel size min (µm) | 4.5 |
|---|---|
| Aperture range max (f) | 1.4 |
| Aperture range min | 16 |
| Distortion | -0.6 |
| Filter | 27 |
| Focal length | 8 mm |
| Focus distance min | 100 mm |
|---|---|
| Lens barrel | C-mount |
| Resolution max | 2 MP |
| Sensor size max | 2/3" |
Kowa's new JCM-V series is made for use in high vibration and high shock environments. With a design based on Kowa's standard 2/3" JCM lenses, this new ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | 5156_Pixel size min (µm) | Aperture range max (f) | Aperture range min | Distortion | Filter | Focal length | Focus distance min | Lens barrel | Resolution max | Sensor size max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2/3", FL: 5mm, C-Mount, 4.5µm
Art:
LM5JCM-V
Copied
|
|
|
|
|
|
|
|
|
|
|
|
||
|

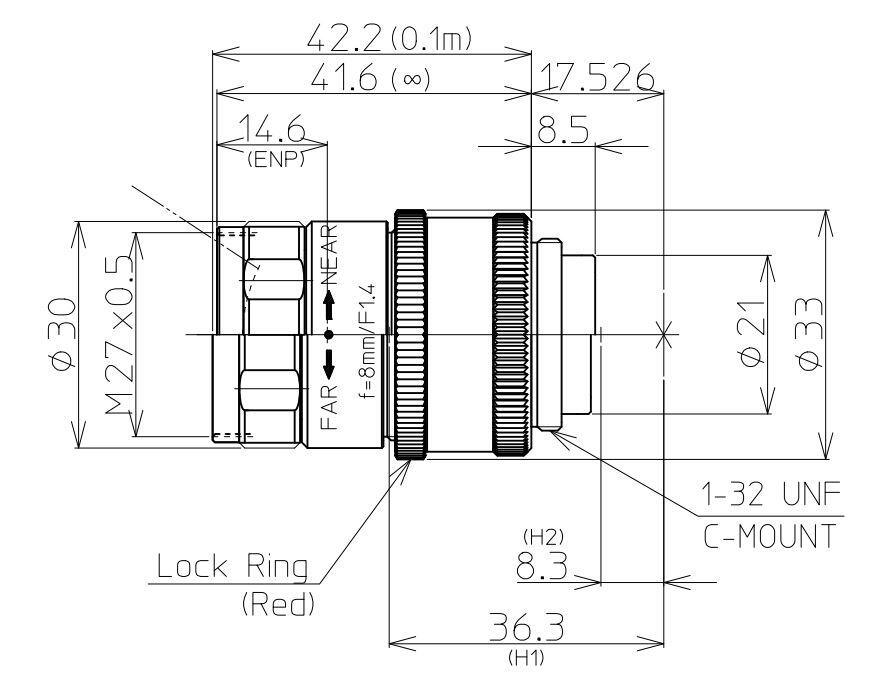

Rugged Version of JC1MS, all glued, 8mm, F1.4, C-mount
Art:
LM8JCM-V
Copied
|
4.5
|
1.4
|
16
|
-0.6
|
27
|
8 mm
|
100 mm
|
C-mount
|
2 MP
|
2/3"
|
|
||

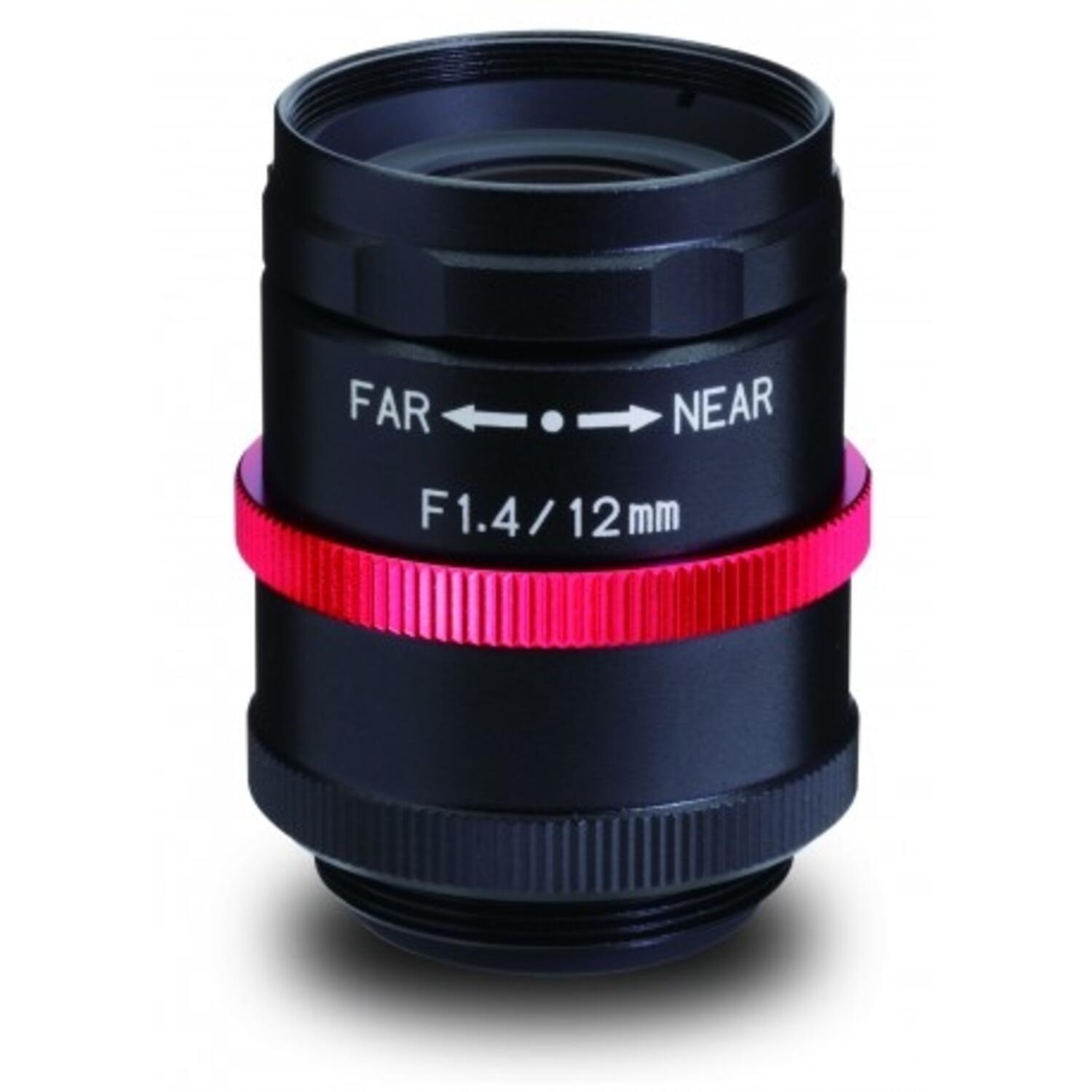

2/3", FL: 12mm, C-Mount, 4.5µm
Art:
LM12JCM-V
Copied
|
4.5
|
1.4
|
16
|
-0.07
|
27
|
12 mm
|
150 mm
|
C-mount
|
2 MP
|
2/3"
|
|
||

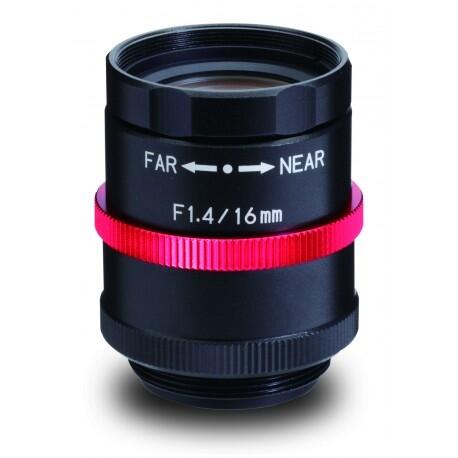

Rugged Version of JC1MS, all glued, 16mm, F1.4, C-mount
Art:
LM16JCM-V
Copied
|
4.5
|
1.4
|
16
|
-0.05
|
27
|
16 mm
|
200 mm
|
C-mount
|
2 MP
|
2/3"
|
|
||

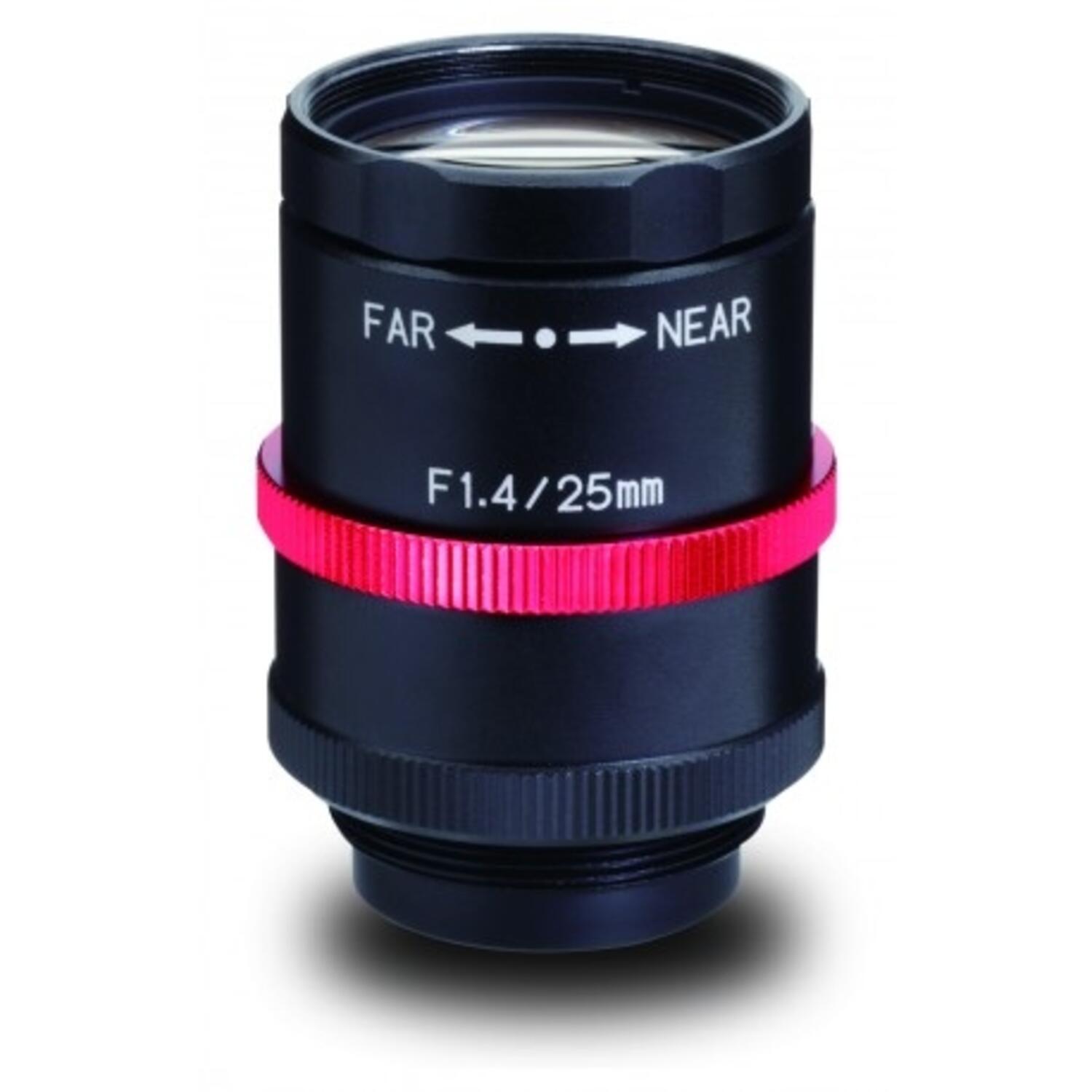

2/3", FL: 25mm, C-Mount, 4.5µm
Art:
LM25JCM-V
Copied
|
4.5
|
1.4
|
16
|
-0.04
|
27
|
25 mm
|
200 mm
|
C-mount
|
2 MP
|
2/3"
|
|
||

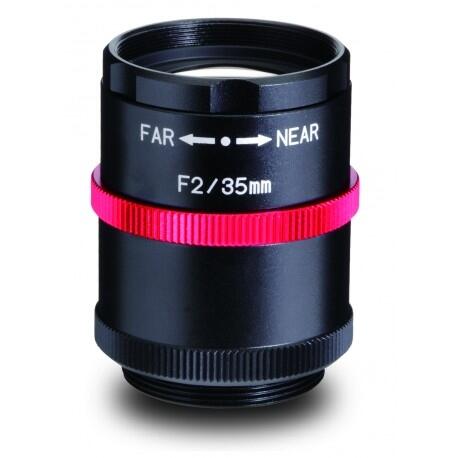

2/3", FL: 35mm, C-Mount, 4.5µm
Art:
LM35JCM-V
Copied
|
4.5
|
2
|
16
|
-0.2
|
27
|
35 mm
|
200 mm
|
C-mount
|
2 MP
|
2/3"
|
|
||

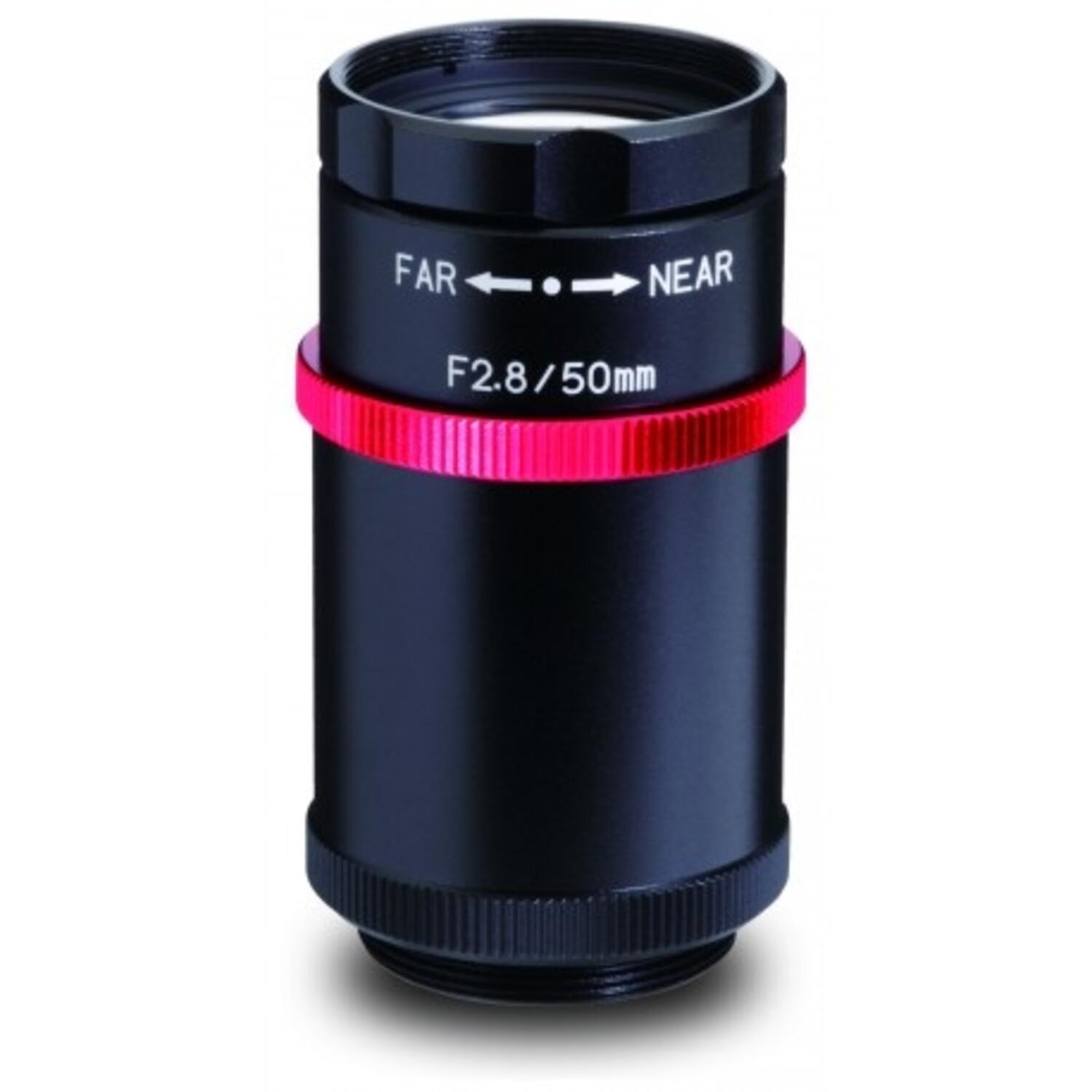

2/3", FL: 50mm, C-Mount, 4.5µm
Art:
LM50JCM-V
Copied
|
4.5
|
2.8
|
16
|
-0.03
|
27
|
50 mm
|
200 mm
|
C-mount
|
2 MP
|
2/3"
|
|
Select a variant in the list
