ORLACO

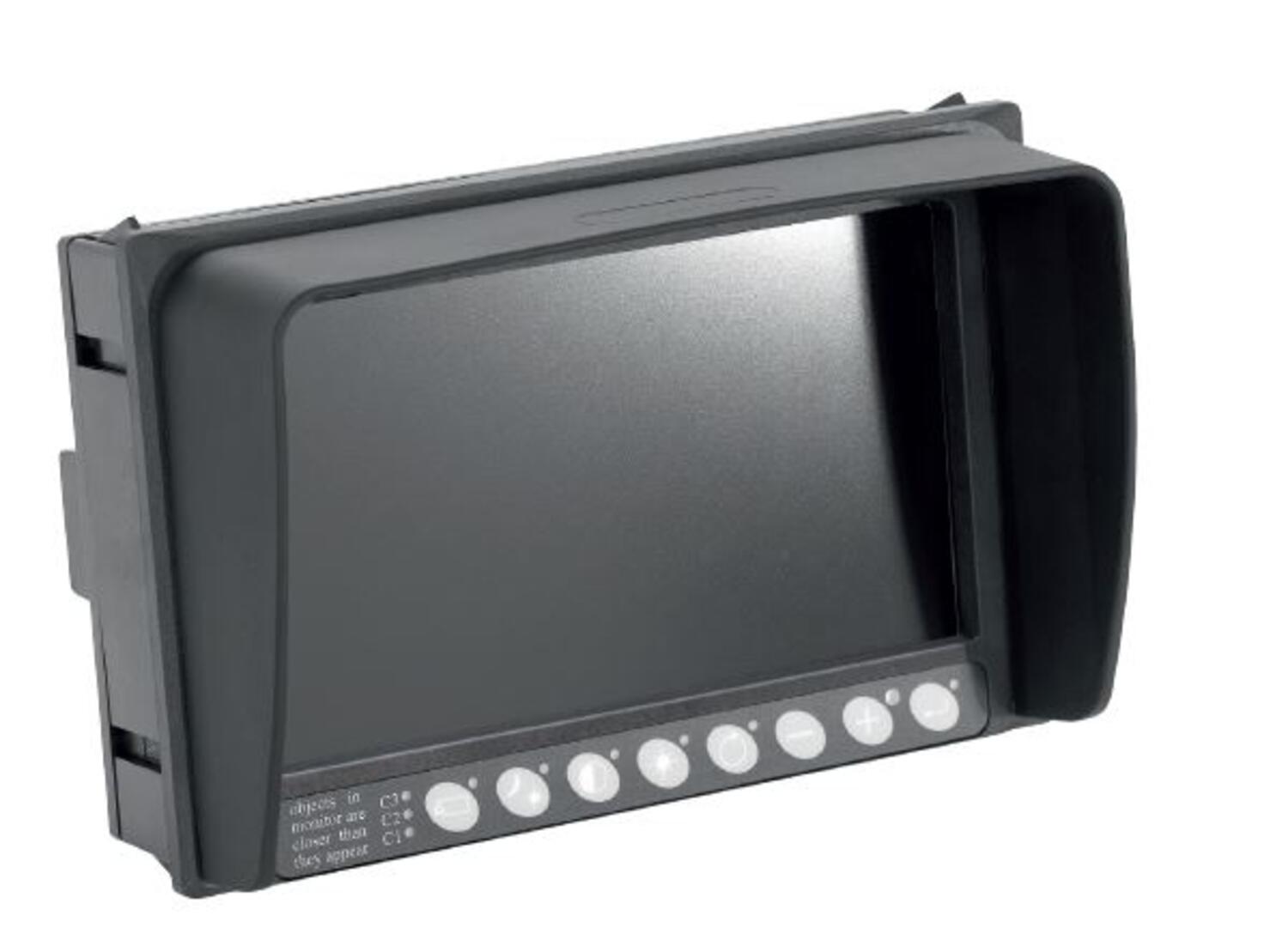

Orlaco's 7 "monitors are available as stand alone solution and for installation in Double DIN slots.
The stand alone model is IP67-rated and can handle the toughest environments. The monitors also have a wide power supply range, which means that you do not need any DC / DC to mount in most vehicles.
The monitors have automatic light adjustment.
| Cable length | 4000 mm |
|---|---|
| Display size | 7 |
| IP class | IP54 |
| Supply voltage dc max | 60 V DC |
| Supply voltage dc min | 12 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
| Type | Analogue |
| Vibration resistance | 50g |
Orlaco's 7 "monitors are available as stand alone solution and for installation in Double DIN slots.
The stand alone model is IP67-rated and can handle the toughest environments. The monitors also have a wide power supply range, which means that you do not need any DC / DC to mount in most vehicles.
The monitors have automatic light adjustment.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Attachment | Cable diameter | Cable length | Contacts | IP class | Supply voltage dc max | Supply voltage dc min | Video cable | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
Replaced by ORL0208681 - Display 7" RLED Z4
Art:
ORL0208652
Copied
|
|
|
4000 mm
|
|
IP54
|
60 V DC
|
12 V DC
|
|
|
||
|
Display 7" RLED Z2 Y-split
Art:
ORL0208662
Copied
|
|
|
2000 mm
|
|
IP67
|
60 V DC
|
12 V DC
|
|
|
||
|
Monitor 7" RLED RC 4 CS
Art:
ORL0208902
Copied
|
190mm clamp bracket
|
6 mm
|
4000 mm
|
4-pole
|
IP67
|
60 V DC
|
12 V DC
|
4000 mm
|
|
||
|
Monitor 7” RLED R2 4Cam SP (input voltage 18...30 V/DC +/- 10%)
Art:
ORL0223220
Copied
|
132 mm
|
6 mm
|
2000 mm
|
2 x 4-pole
|
IP67
|
30 V DC
|
18 V DC
|
2000 mm
|
|
||
|
Monitor 7” RLED CAN SRD R6
Art:
ORL0208871
Copied
|
132 mm
|
6 mm
|
6000 mm
|
7-pole
|
IP67
|
30 V DC
|
18 V DC
|
6000 mm
|
|
||
|
RLED 7 inch Serial R 6B (with 6m cab, 132mm bkt and 8-pins)
Art:
ORL0208622
Copied
|
132 mm
|
6 mm
|
6000 mm
|
8-pole power input
|
IP67
|
30 V DC
|
18 V DC
|
6m 7-pole
|
|
||
Monitor 7" LED, double DIN
Art:
ORL0208203
Copied
|
DIN
|
6 mm
|
2000 mm
|
4-pole
|
IP54
|
60 V DC
|
12 V DC
|
2000 mm
|
|
||
|
LEDD 7 inch 18...32V 2 (with 2m cables)
Art:
ORL0221000
Copied
|
DIN
|
6 mm
|
2000 mm
|
4-pole
|
IP54
|
30 V DC
|
18 V DC
|
2000 mm
|
|
||
|
Monitor 7" LED, double DIN
Art:
ORL0208232
Copied
|
DIN
|
6 mm
|
6000 mm
|
7-pole
|
IP54
|
30 V DC
|
18 V DC
|
6000 mm
|
|
||
|
Monitor 7" LED
Art:
ORL0208361
Copied
|
|
|
4000 mm
|
|
IP54
|
60 V DC
|
12 V DC
|
|
|
Select a variant in the list
