Selected variant
Technical data

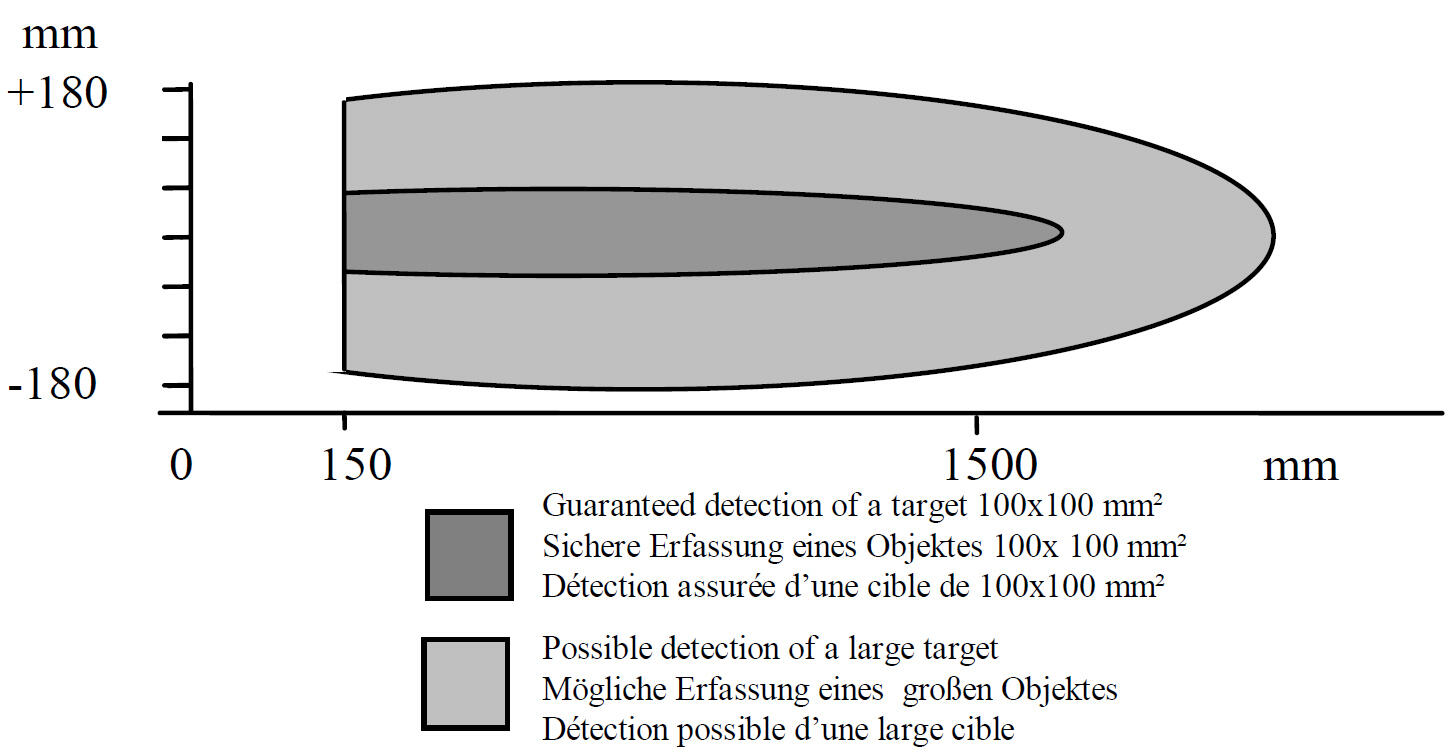

| Distance max | 1500 mm |
|---|---|
| Distance min | 150 mm |

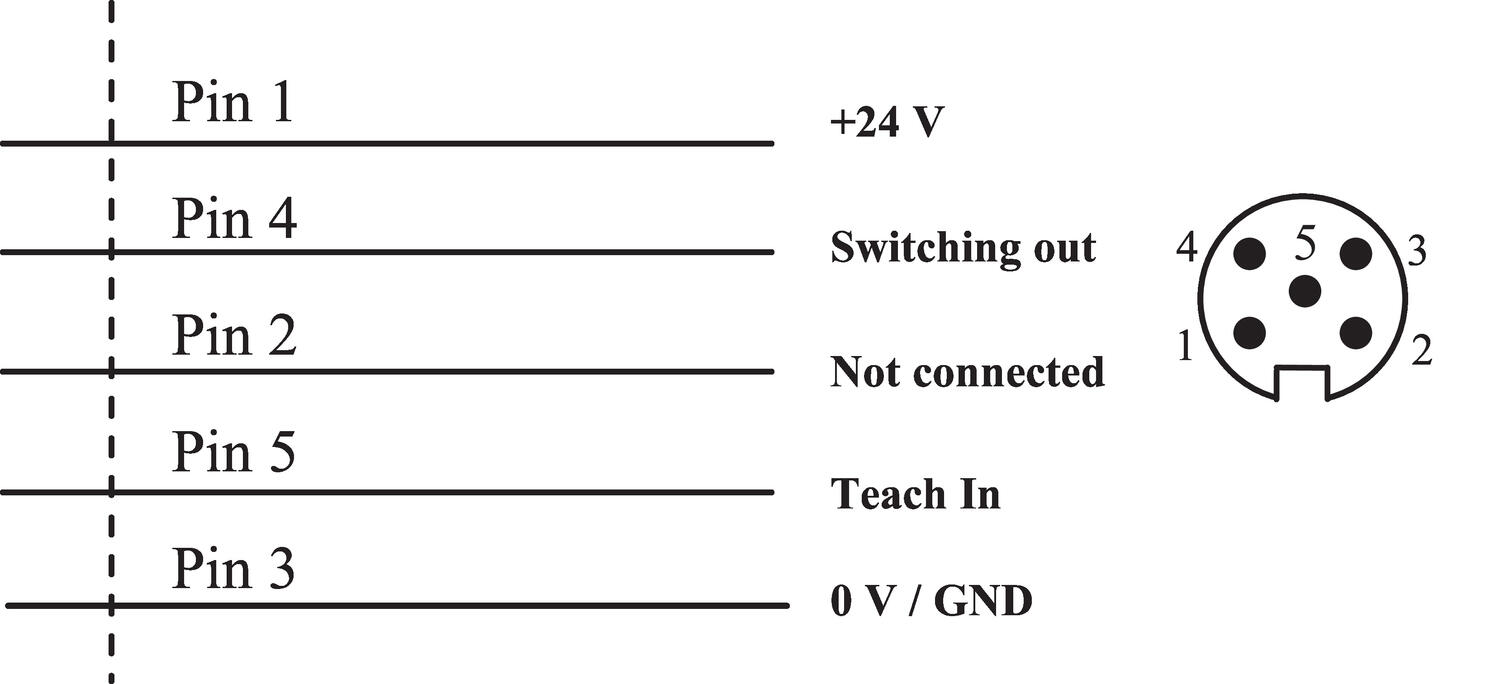

| Electrical connection | M12 5-pole connector |

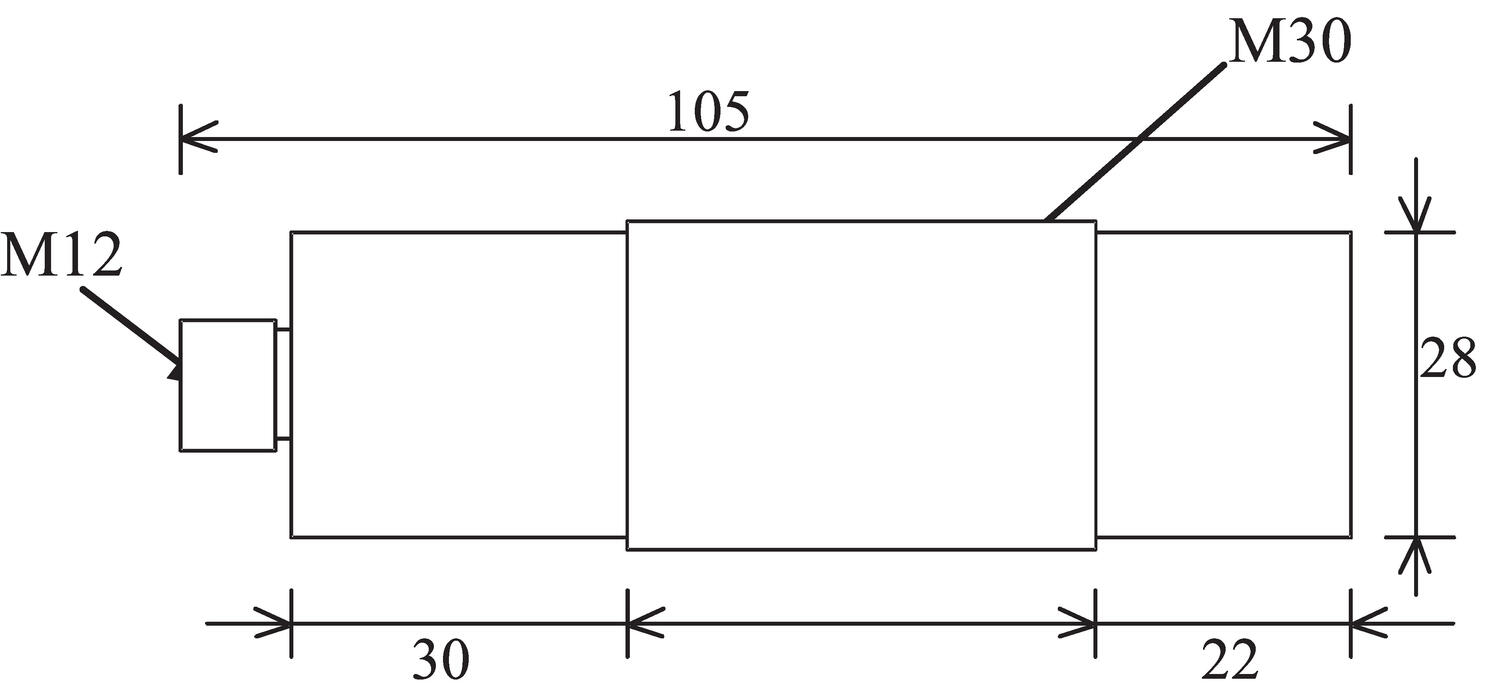

| Housing | Ø30 |
| IP class | IP68, IP69K |

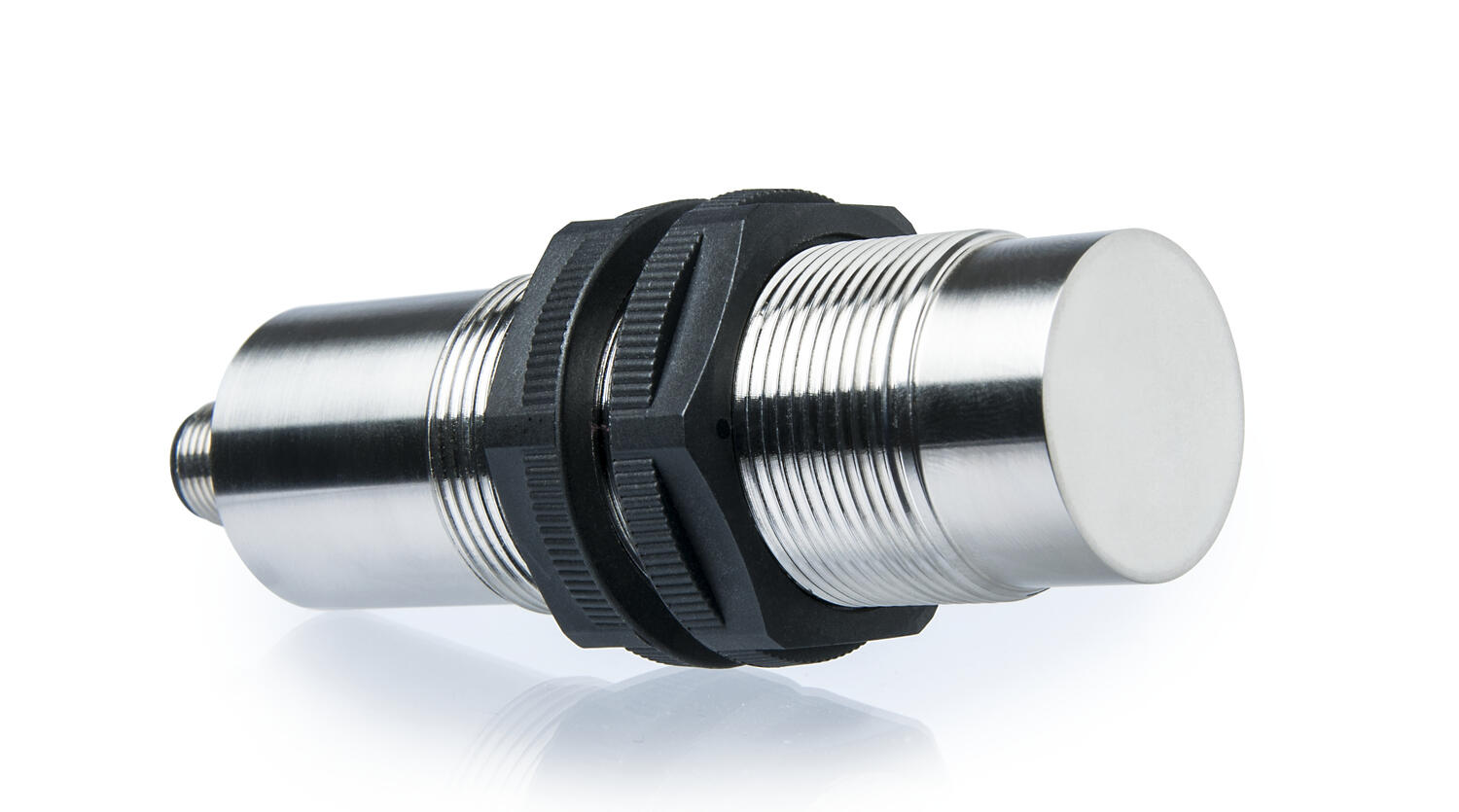

| Material of body | Stainless steel |
| Output | 4-20mA |
| Resolution | 1 mm |
|---|---|
| Supply voltage dc max | 28.8 V DC |
| Supply voltage dc min | 19.2 V DC |
| Temperature operational max | 70 °C |
| Temperature operational min | -15 °C |
