Selected variant
Technical data
| Distance max | 400 mm |
|---|---|
| Distance min | 30 mm |

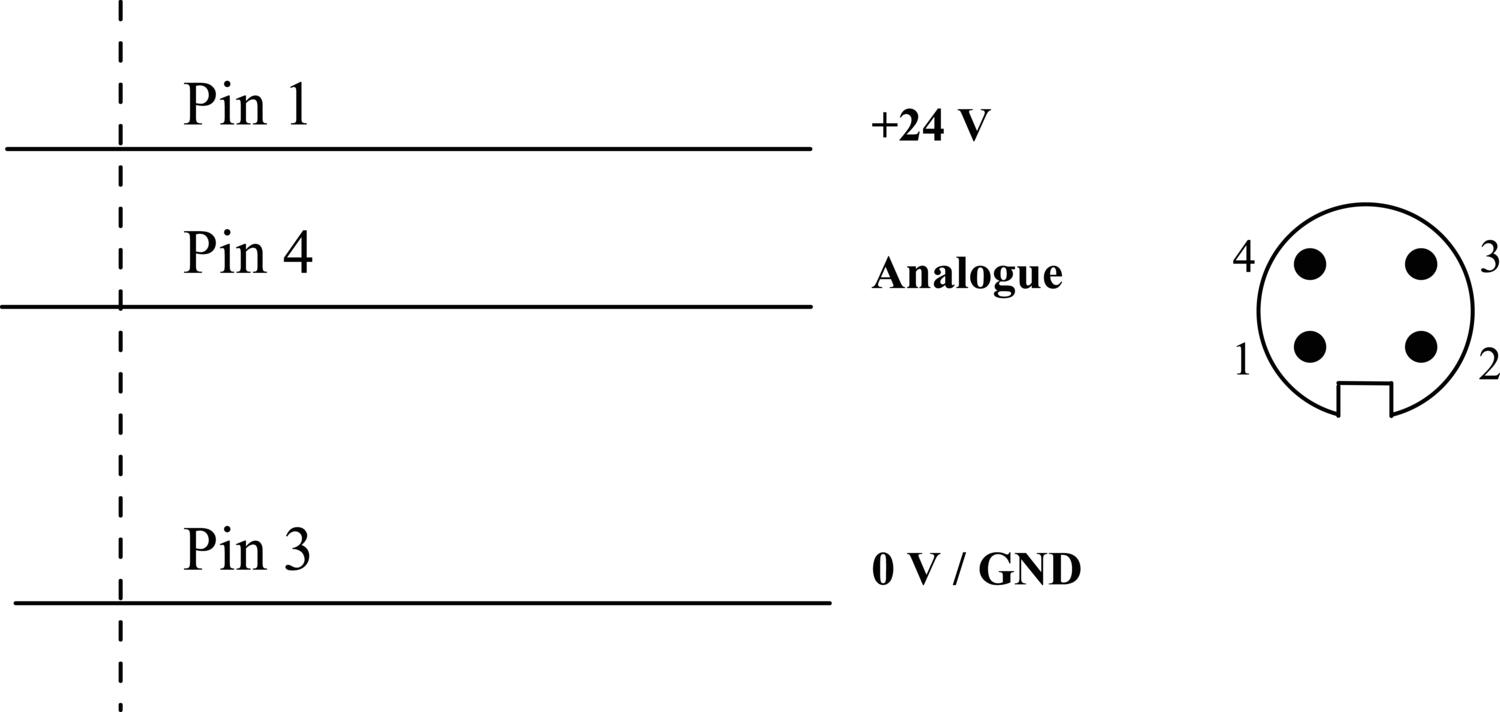

| Electrical connection | M12 4-pin connector |
| Housing | M18 |
| IP class | IP67 |
| Material of body | PBT |
| Operating frequency | 15 Hz |
| Output | PNP |
| Output current max | 0.5 A |
|---|---|
| Resolution | 1 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 12 V DC |
| Temperature operational max | 70 °C |
| Temperature operational min | -20 °C |
