| Distance max | 400 mm |
|---|---|
| Distance min | 30 mm |
| Electrical connection | Embedded 2m cable |
| Housing | M18 |
| IP class | IP67 |
| LED indication | Yes |
| Material of body | PBT |
| Output | 4 - 20mA |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 15 V DC |
| Temperature operational max | 70 °C |
| Temperature operational min | -20 °C |
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Distance max | Distance min | Housing | Output | Price | ||
|---|---|---|---|---|---|---|---|

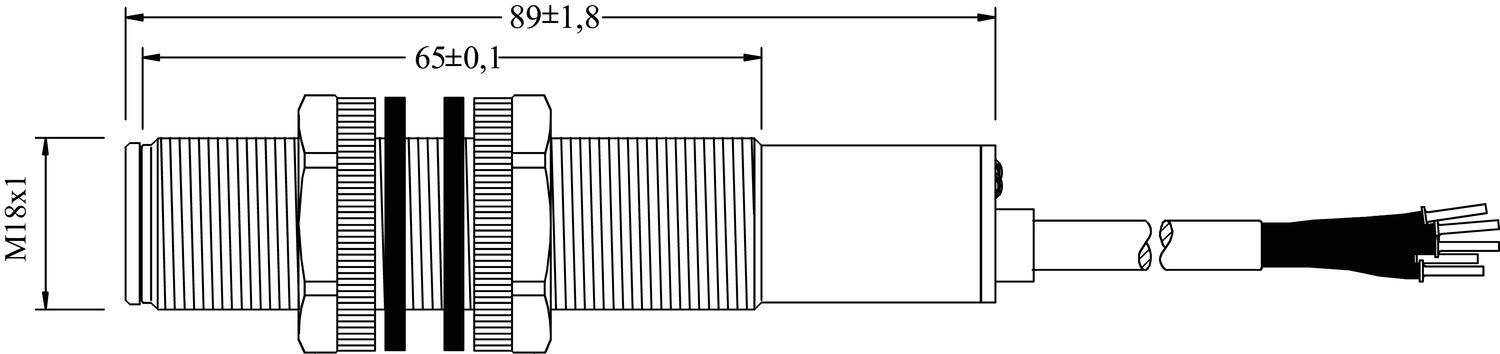

Ultrasonic sensor, M18, 400mm, 4-20mA, cable
Art:
P43-40-M18-PBTI2M
Copied
|
400 mm
|
30 mm
|
M18
|
4 - 20mA
|
|
||
|
Ultrasonic sensor, M18, 500mm, 4-20mA, cable
Art:
P43-50-M18-PBTI2M
Copied
|
500 mm
|
60 mm
|
M18
|
4 - 20mA
|
|
||
|
Ultrasonic sensor, M18, 800mm, 4-20mA, cable
Art:
P43-80-M18-PBTI2M
Copied
|
800 mm
|
100 mm
|
M18
|
4 - 20mA
|
|
||
|
Ultrasonic sensor, M18, 1,6 m, 4-20mA, cable
Art:
P43-160-M18-PBTI2M
Copied
|
1600 mm
|
80 mm
|
M18
|
4 - 20mA
|
|
||
|
Ultrasonic sensor, M18, 2m, 4-20mA, cable
Art:
P43-200-M18-PBTI2M
Copied
|
2000 mm
|
200 mm
|
M18
|
4 - 20mA
|
|
||
|

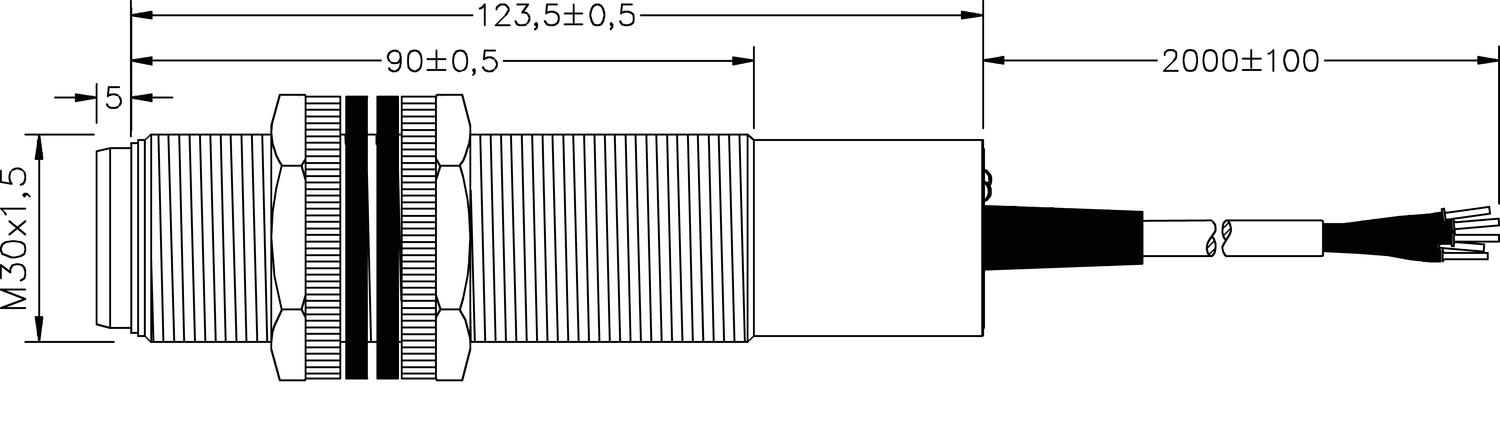

Ultrasonic sensor, M30, 3,5m, 4-20mA, cable
Art:
P43-350-M30-PBTI2M
Copied
|
3500 mm
|
300 mm
|
M30
|
4 - 20mA
|
|
||
|
Ultrasonic sensor, M18, 400mm, 0-10V, cable
Art:
P43-40-M18-PBTU2M
Copied
|
400 mm
|
30 mm
|
M18
|
0-10V
|
|
||
|
Ultrasonic sensor, M18, 500mm, 0-10V, cable
Art:
P43-50-M18-PBTU2M
Copied
|
500 mm
|
60 mm
|
M18
|
0-10V
|
|
||
|
Ultrasonic sensor, M18, 800mm, 0-10V, cable
Art:
P43-80-M18-PBTU2M
Copied
|
800 mm
|
100 mm
|
M18
|
0-10V
|
|
||
|
Ultrasonic sensor, M18, 1,6m, 0-10V, cable
Art:
P43-160-M18-PBTU2M
Copied
|
1600 mm
|
80 mm
|
M18
|
0-10V
|
|
||
|
Ultrasonic sensor, M18, 2m, 0-10V, cable
Art:
P43-200-M18-PBTU2M
Copied
|
2000 mm
|
200 mm
|
M18
|
0-10V
|
|
||
|
Ultrasonic sensor, M30, 3,5m, 0-10V, cable
Art:
P43-350-M30-PBTU2M
Copied
|
3500 mm
|
300 mm
|
M30
|
0-10V
|
|
Select a variant in the list
