Kübler Radar Sensors

The Kübler radar sensors use the latest FMCW radar technology for precise measurements in the µm range at a high measurement rate of up to 500 Hz. This fast measurement rate enables real-time monitoring and control, which increases efficiency and reaction speed in dynamic environments.
  • Insensitive to dust, wind, rain, fog, temperature fluctuations and ambient light.
  • Maximum focusing for precise measurement.
  • Contactless measurement and wide measuring range for flexible use.

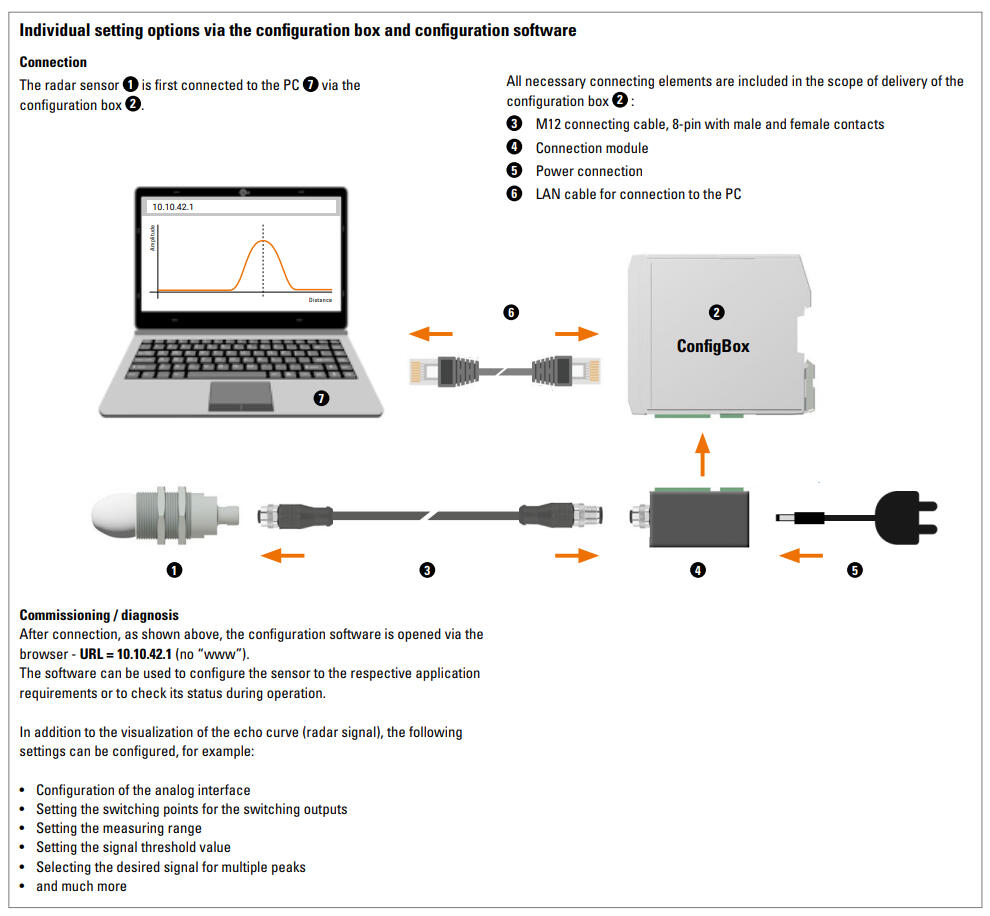

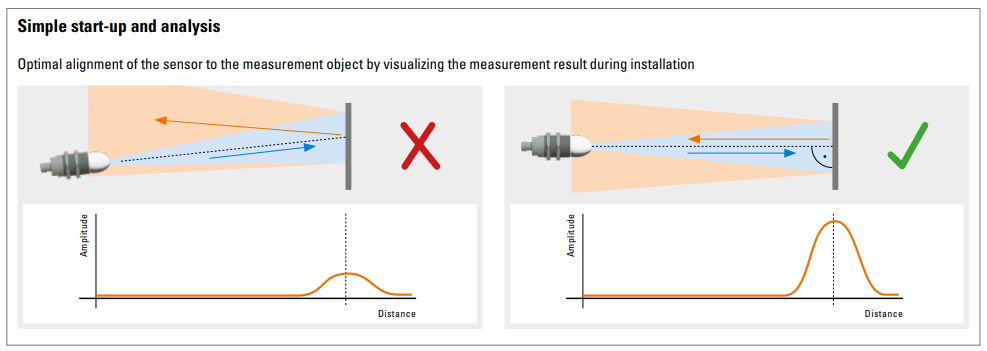

  • Simple commissioning thanks to graphical user interface.

Selected variant

Available in several variants

Selected variant

Technical data

Analogue outputs 4 - 20 mA
Distance max 20 m
Distance Min 0.15 m

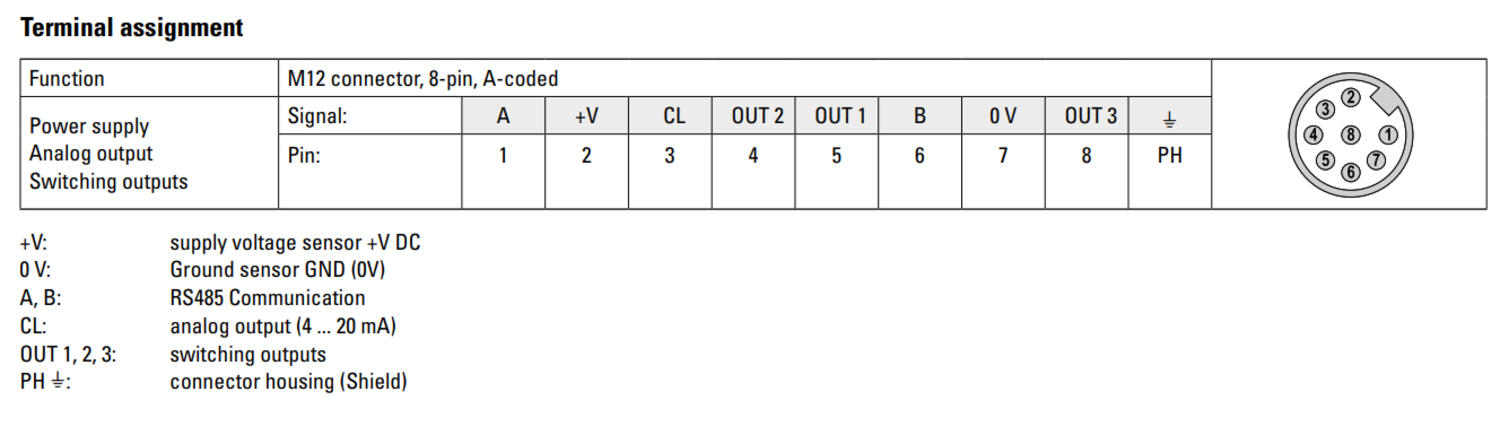

Electrical connection M12 8-pin connector
IP class IP67, IP69K
LED indication No
Material of sensor housing Stainless steel 1.4404
Resolution 100
Supply voltage dc max 40 V DC
Supply voltage dc min 10 V DC

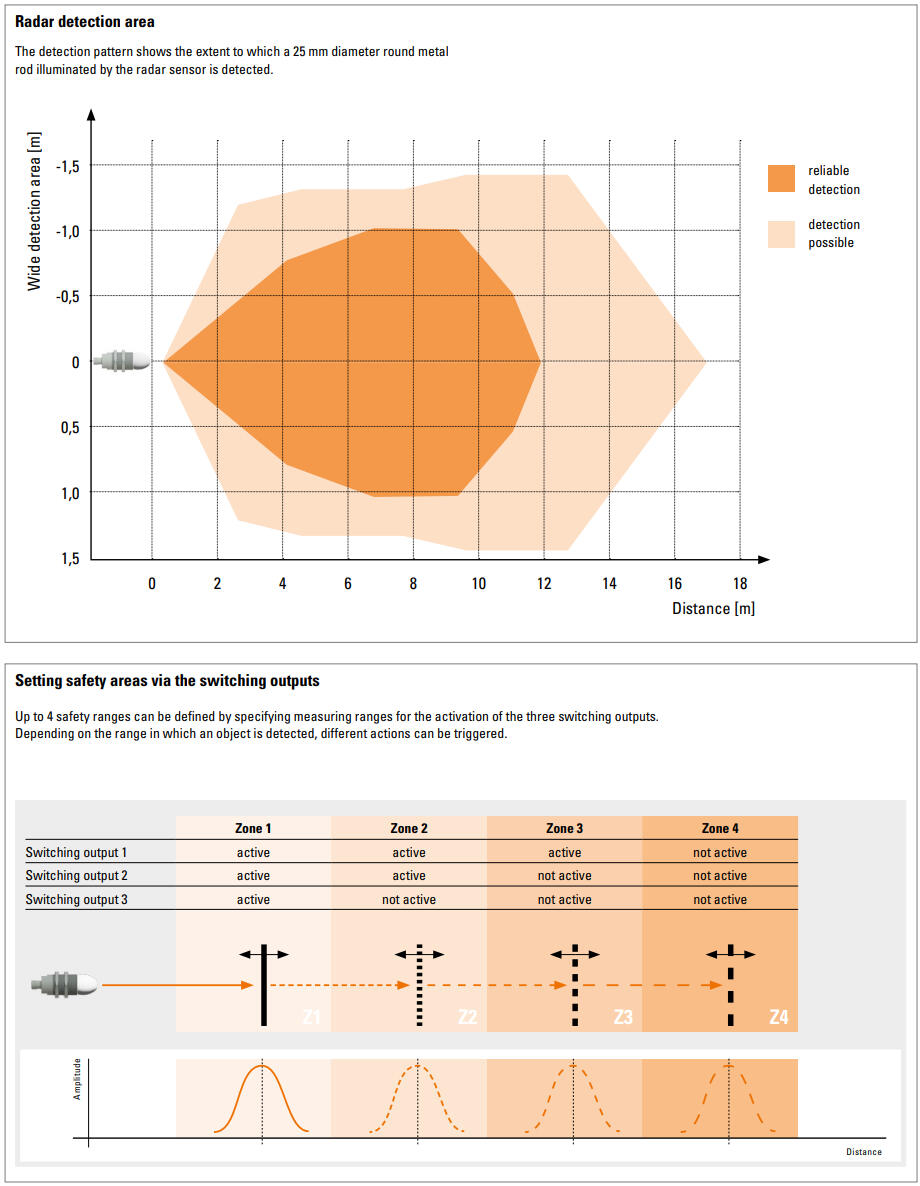

Switching Outputs 3xPNP/NPN
Temperature operational max 70 °C
Temperature operational min -40 °C

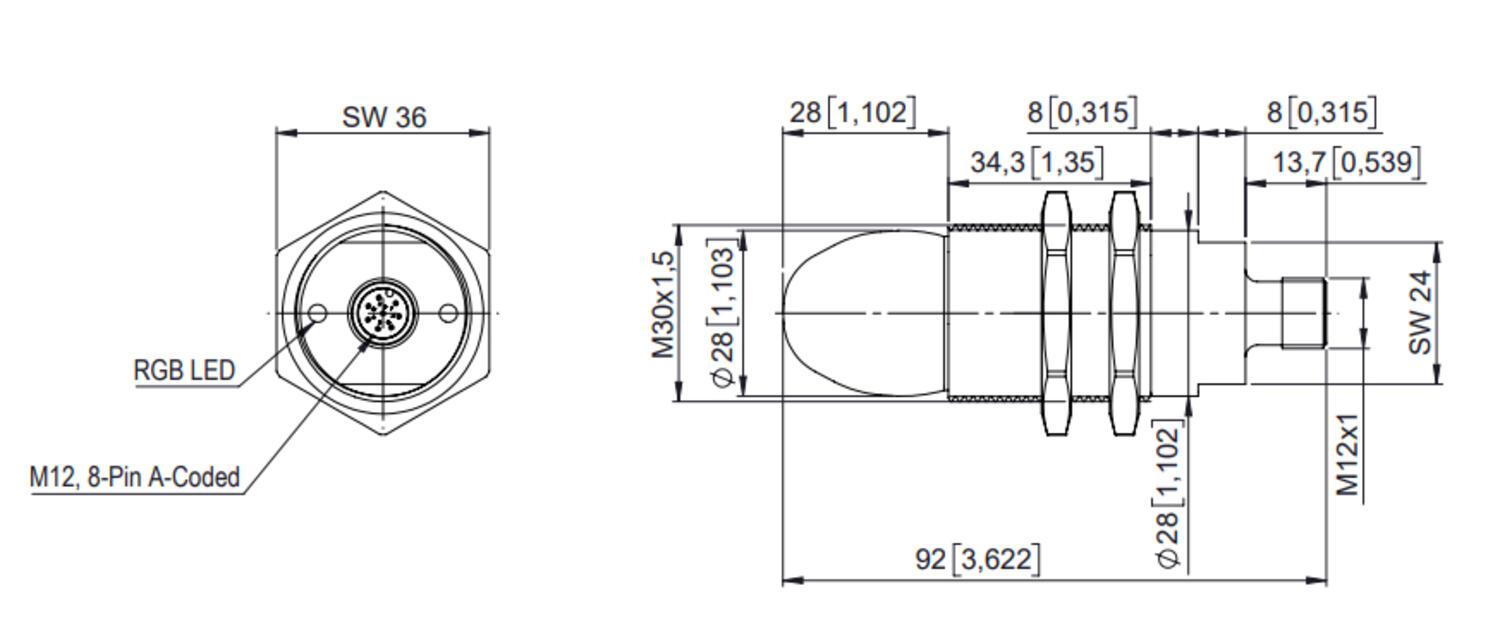

Measurements and connections

Product description

The Kübler radar sensors use the latest FMCW radar technology for precise measurements in the µm range at a high measurement rate of up to 500 Hz. This fast measurement rate enables real-time monitoring and control, which increases efficiency and reaction speed in dynamic environments.

The measuring range of up to 40 m and the small blind zone of just 0.1 m offer maximum flexibility for applications in the steel industry, logistics, mobile automation and agricultural technology. The narrow aperture angle of just +/-1.5° guarantees focused measurements that deliver maximum accuracy even in demanding environments - ideal for complex applications such as condition monitoring and condition monitoring of machines or bridges.

Accessories

Related

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

hokuyu
Product news

The Smallest Safety Laser Scanner on the market by Hokuyo

Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

ATEX hazardous environments and OEM ATEX products
Blog Learning hub

ATEX - Learn about explosion safety in hazardous environments

ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.

Parts Distance max Distance Min Supply voltage dc max Supply voltage dc min Price
20 m
0.15 m
40 V DC
10 V DC
30 m
0.3 m
40 V DC
10 V DC
20 m
0.15 m
30 V DC
12 V DC
40 m
0.3 m
30 V DC
12 V DC

Selected variant

Select a variant in the list
