TAKEX
Takex - NE2 standard photosensor
The NE2 series has been produced to permit as may different applications as possible to be used during automation. Having the same housing size for the various models in the series makes it easy to find the right solution without having to change attachments on the machine. You can choose from a rotatable M12 contact or embedded cable. Two separate outputs in the same photoelectric sensor – one with PNP and one with NPN. Several accessories such as brackets, protective casings and shielding masks facilitate installation.
- Embedded cable or rotatable M12 contact

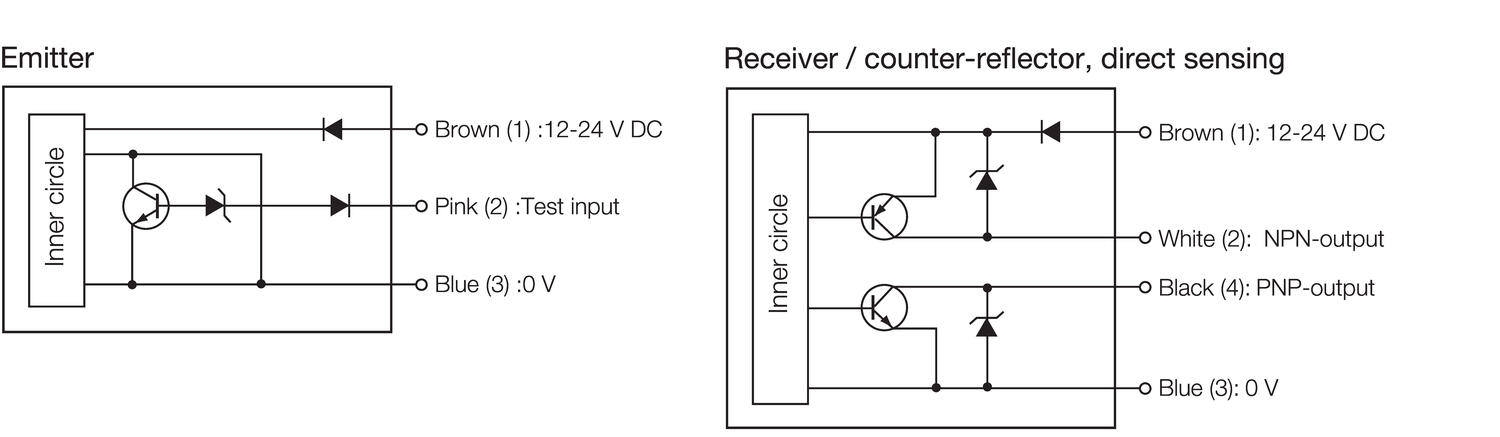

- 2 outputs, both PNP and NPN
- Long distances
- IP67
Selected variant
Technical data
| Approvals | CE |
|---|---|
| Distance min | 0 mm |
| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP class | IP67 |
| Light type | Red LED |
| Light/dark switching | Yes |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Transmitter / receiver |
|---|---|
| Power consumption max | 0.022 A |
| Reaction time | 0.5 ms |

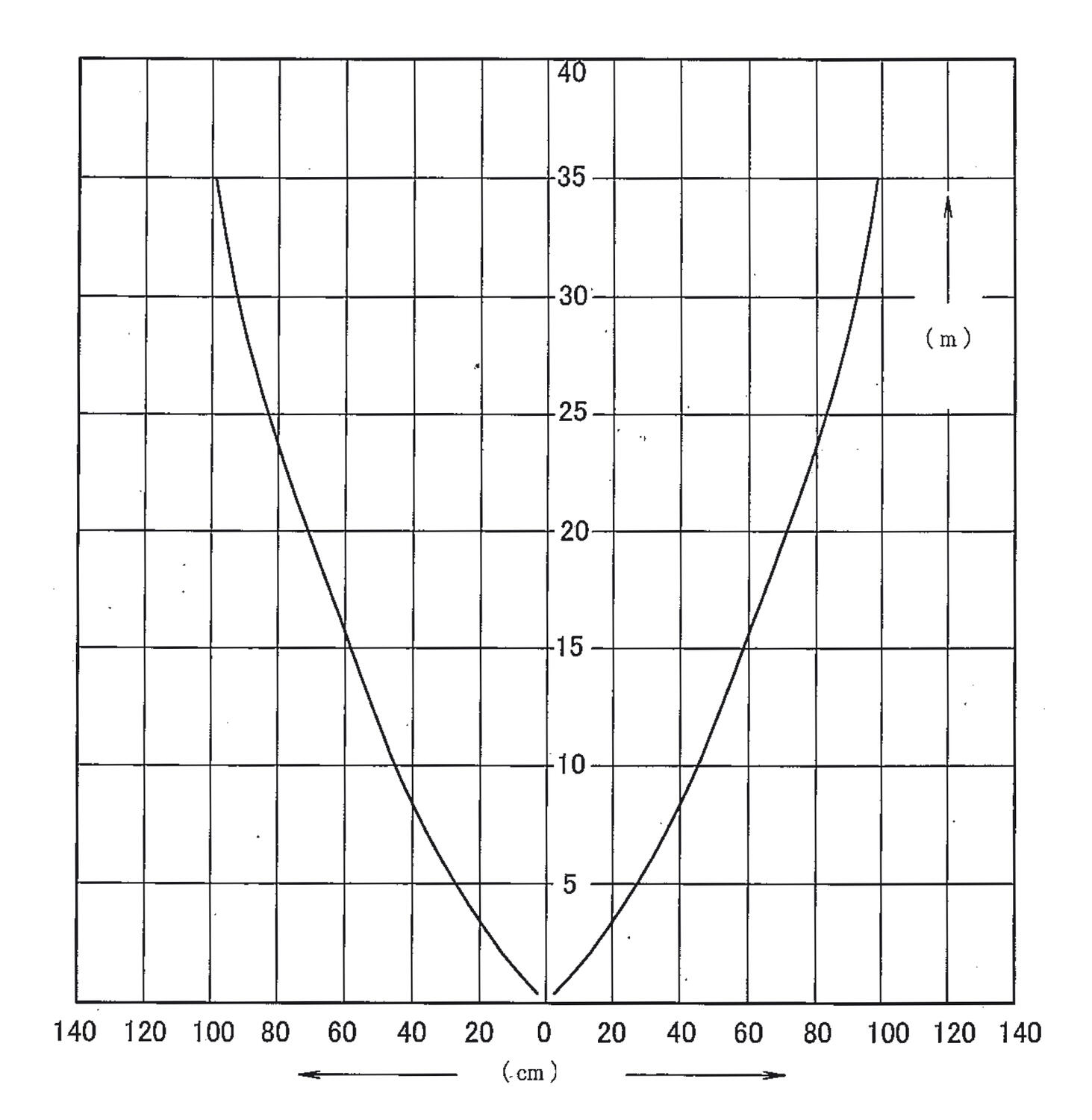

| Sensing distance | 30000 mm |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |
Product description
The NE2 series has been produced to permit as may different applications as possible to be used during automation. Having the same housing size for the various models in the series makes it easy to find the right solution without having to change attachments on the machine. You can choose from a rotatable M12 contact or embedded cable. Two separate outputs in the same photoelectric sensor – one with PNP and one with NPN. Several accessories such as brackets, protective casings and shielding masks facilitate installation.
