TAKEX

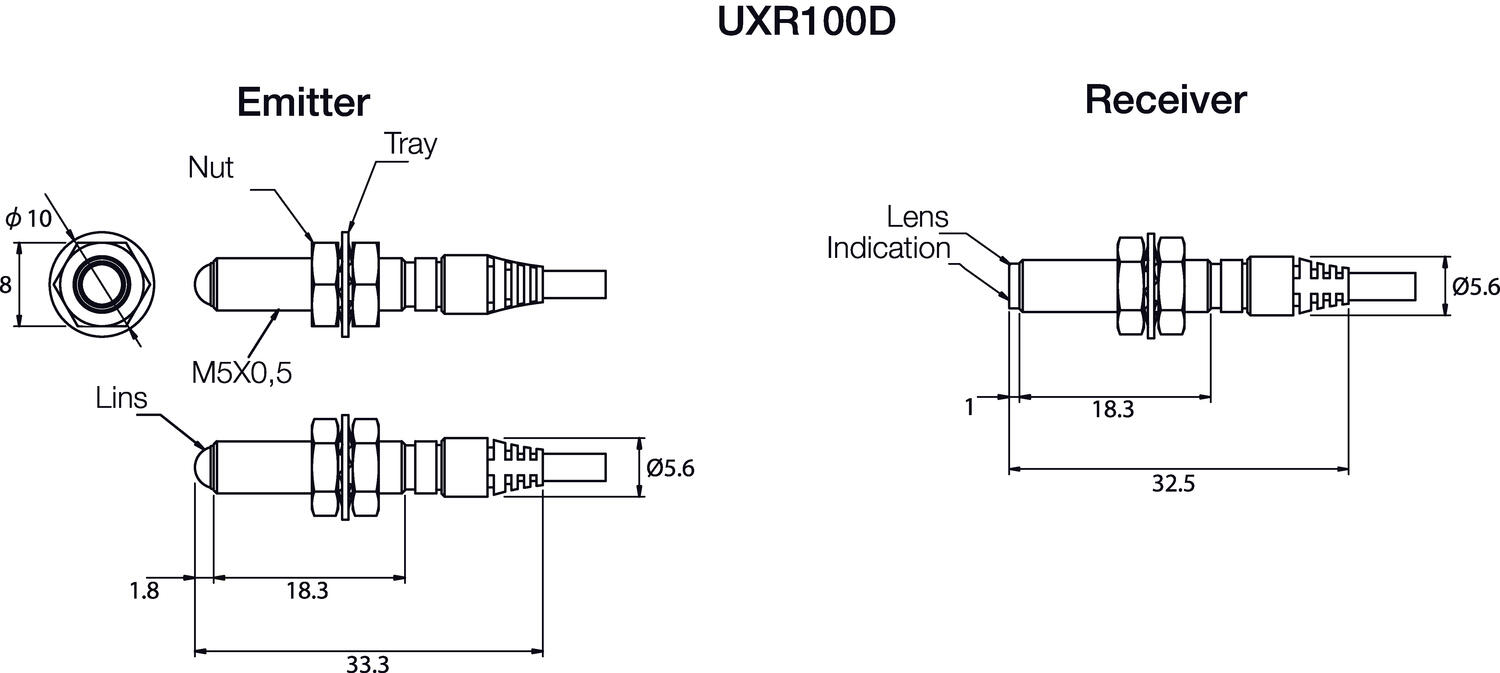

Takex - M5, M6 Photoelectric sensors with built-in amplifier
The UX series of photoelectric sensors come with a built-in amplifier. In terms of size, they are similar to fibre but no separate amplifiers are required. The stainless steel housings and polysulphone lenses are chemical-resistant and so these photoelectric sensors are ideal for use anywhere where cleanliness is required, such as when working with food or medicines, where the photoelectric sensors will come into contact with detergents.
- Stainless housing and chemical-resistant lenses
- Side-facing through-beam in M5 housing
- Built-in amplifier
- IP67
Selected variant
Technical data
| Approvals | CE |
|---|---|
| Distance min | 0 mm |
| Electrical connection | Embedded 2m cable |
| Function | dark on |
| IP class | IP67 |
| Lens material | Polysulfone |
| Light type | Red LED |
| Light/dark switching | Yes |
| Material of body | Stainless steel |
| Output | PNP |
| Output current max | 0.08 A |
|---|---|
| Photocell technology | Transmitter / receiver |
| Power consumption max | 0.015 A |
| Reaction time | 0.5 ms |
| Sensing distance | 1000 mm |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |
Product description
The UX series of photoelectric sensors come with a built-in amplifier. In terms of size, they are similar to fibre but no separate amplifiers are required. The stainless steel housings and polysulphone lenses are chemical-resistant and so these photoelectric sensors are ideal for use anywhere where cleanliness is required, such as when working with food or medicines, where the photoelectric sensors will come into contact with detergents.
