| Approvals | CE |
|---|---|
| Distance max | 10000 mm |
| Distance min | 0 mm |

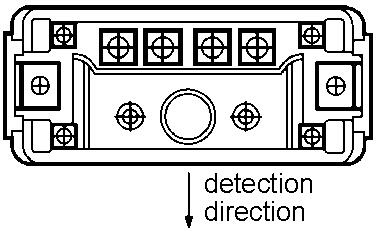

| Electrical connection | Terminal |
| Function | Dark on / Light on |
| IP class | IP66 |
| Light type | Red LED |
| Light/dark switching | Yes |

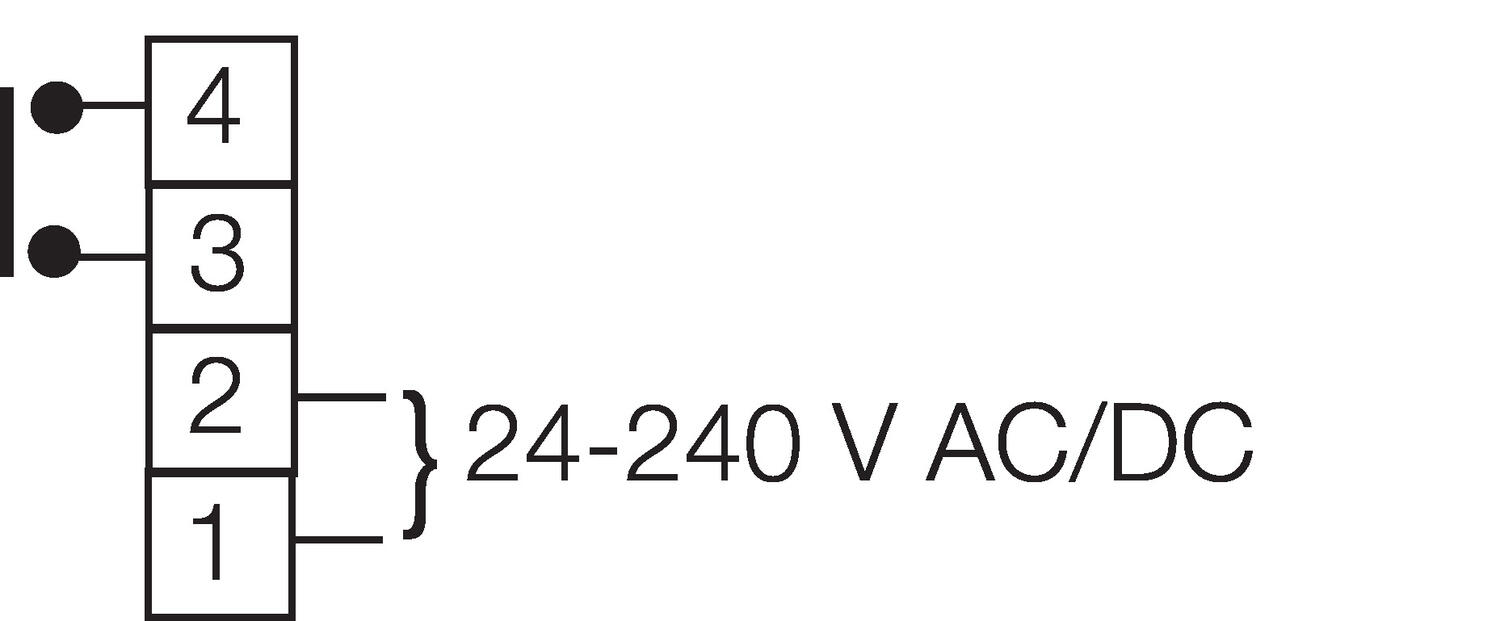

| Output | Relay |
|---|---|
| Photocell technology | Transmitter / receiver |
| Reaction time | 5 ms |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage ac/dc max | 240 V |
| Voltage ac/dc min | 24 V |
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Distance max | Distance min | Lens material | Light type | Material of body | Photocell technology | Price | ||
|---|---|---|---|---|---|---|---|---|---|
PHOTOSENSOR J SERIES T/BEAM RE
Art:
JT10R
Copied
|
10000 mm
|
0 mm
|
|
Red LED
|
|
Transmitter / receiver
|
| ||
|
Photosensor through beam 10m time relay
Art:
JT10RF
Copied
|
10000 mm
|
0 mm
|
|
Red LED
|
Polyacrylate
|
Transmitter / receiver
|
| ||
|
PHOTOSENSOR J SERIES RETRO REL
Art:
JRM3R
Copied
|
3000 mm
|
30 mm
|
|
Red LED
|
Polyacrylate
|
Polorised retro reflective
|
| ||
|
PHOTOSENSOR J SERIES RETRO+TIM
Art:
JRM3RF
Copied
|
3000 mm
|
30 mm
|
Polyacrylate
|
Red LED
|
|
Polorised retro reflective
|
| ||
|
PHOTOSENSOR J SERIES DIFFUSE R
Art:
JR07
Copied
|
500 mm
|
|
|
IR LED
|
|
Diffuse proximity
|
| ||
|
PHOTOSENSOR JSERIES DIFF+TIMER
Art:
JR07F
Copied
|
500 mm
|
|
Polyacrylate
|
IR LED
|
|
Diffuse proximity
|
|
Select a variant in the list
