DATASENSING - Small - Subminiature sensors
The subminiature SMall series is a photoelectric sensor line offering through beam, polarised retro reflective and accurate fixed focus proximity models able to guarantee very precise detection. With red LED emission to simplify installation procedures, suitable for applications with reduced spaces.
Â
Features & benefits:
·High detection repeatability
·Suitable for the main industrial applications
·Miniature housing
Â
Applications:
·Automatic machines
·Packaging lines
·Transportation lines
·Automatic warehouses
Â
- Subminiature housing
- Visible LED emission
- 2m embedded cable
- IP67 mechanical protection
Selected variant
Technical data
| Approvals | CE, UL |
|---|---|
| Cable length | 2000 mm |

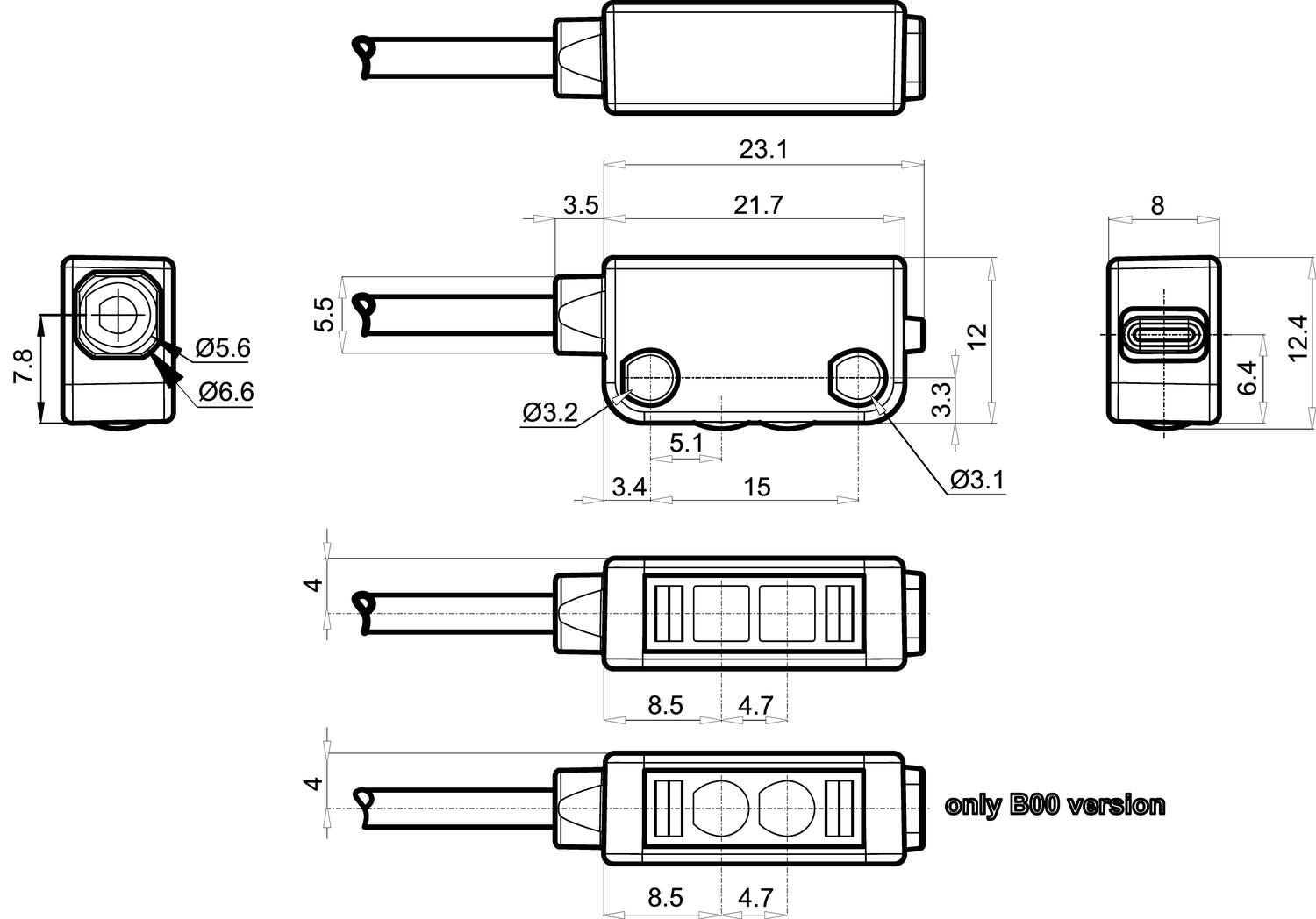

| Dimension (mm) | 8 x 23 x 12 |

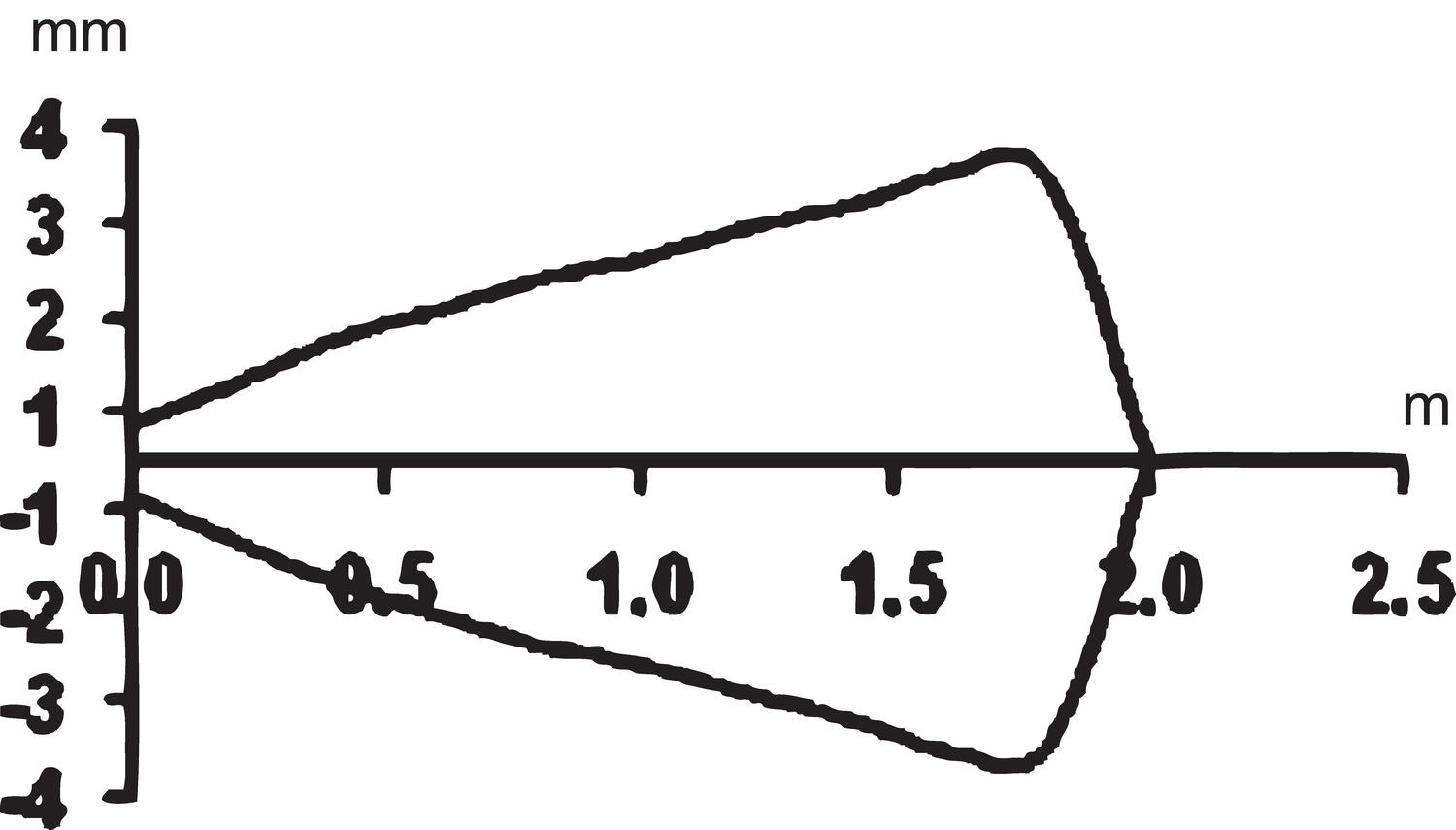

| Distance max | 2000 mm |
| Distance min | 0 mm |

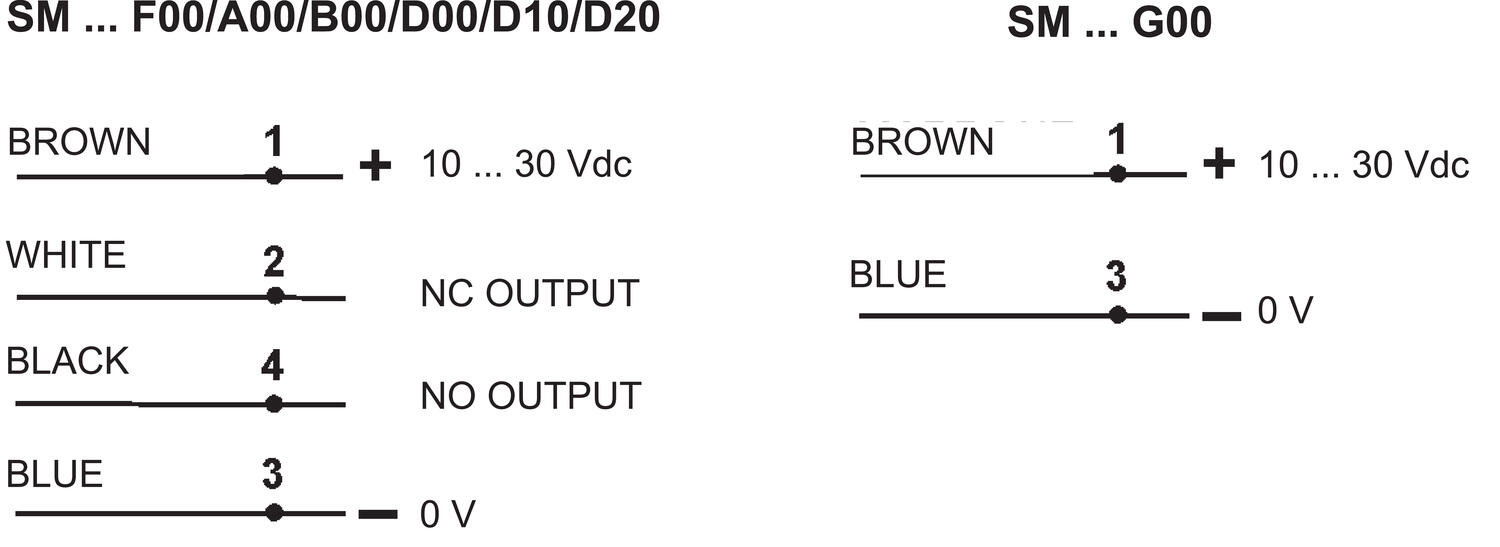

| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP class | IP67 |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | Red LED |
| Material of body | PC |
| Output current max | 0.05 A |
|---|---|
| Photocell technology | Through beam emitter |
| Power consumption max | 0.02 A |
| Reaction time | 1.3 ms |
| Storage temperature max | 75 °C |
| Storage temperature min | -30 °C |
| Supply voltage | 10-30 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | -20 °C |
| Type of light | LED |
| Weight | 22 g |
Product description
The subminiature SMall series is a photoelectric sensor line offering through beam, polarised retro reflective and accurate fixed focus proximity models able to guarantee very precise detection. With red LED emission to simplify installation procedures, suitable for applications with reduced spaces.
Â
Features & benefits:
·High detection repeatability
·Suitable for the main industrial applications
·Miniature housing
Â
Applications:
·Automatic machines
·Packaging lines
·Transportation lines
·Automatic warehouses
Â
