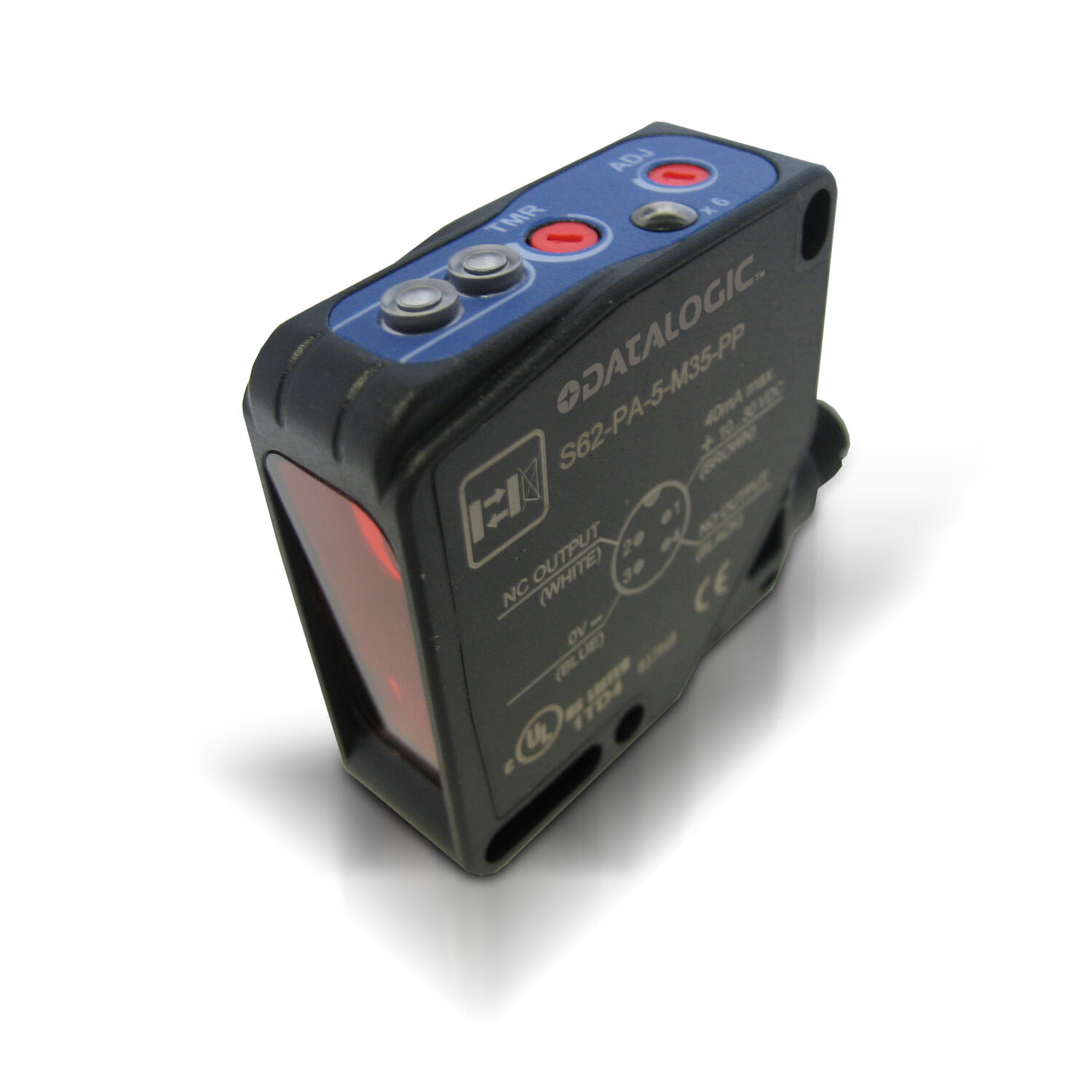

DATASENSING - S62 - Compact photoelectric sensor

S62 photoelectric sensor line offers compact dimensions and competitive prices for all basic and advanced models. All universal optic functions are available in the standard 50 x 50 x 18 mm compact plastic housing with IP67 mechanical protection.

Laser emission models for high resolution detection are also available in polarised retro reflective, diffuse proximity and background suppression.

The sensor allows a great versatility of installations with Vac/dc multivoltage power supply and SPDT relay output, as well as 10-30 Vdc versions with PNP/NPN configurable output.

The S62 series is the first choice when looking for a photoelectric sensor, with the best price and performance ratio in a compact standard case.

Features & Benefits:

·High-resolution sensors with LED or LASER emission

·High installation flexibility

·Sensitivity/distance adjustment trimmer

·Embedded cable or M12 rotatable connector

·PNP, NPN, PNP/NPN or SPDT Relay output

Applications:

·Automatic machines

·Packaging lines

·Transportation lines

·Automatic warehouses

High precision with LED or Laser emission
Standard 50 x 50 dimensions
Embedded cable or M12 rotatable connector
PNP, NPN, PNP/NPN or SPDT Relay output

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Approvals	CE, UL
Cable length	2000 mm
Dimension (mm)	18 x 50 x 50
Distance max	25000 mm
Distance min	0 mm
Electrical connection	Embedded 2m cable
Function	Dark on / Light on
IP class	IP67
LED indicator	Yes
Lens material	PMMA, Polycarbonate
Light type	Red LED
Material of body	ABS plastic

Output current max	0.1 A
Photocell technology	Through beam emitter
Power consumption max	0.03 A
Reaction time	1 ms
Storage temperature max	70 °C
Storage temperature min	-20 °C
Supply voltage	10-30 V DC
Temperature operational max	55 °C
Temperature operational min	-10 °C
Weight	90 g

Downloads

S62 Drawings (iges & step).zip

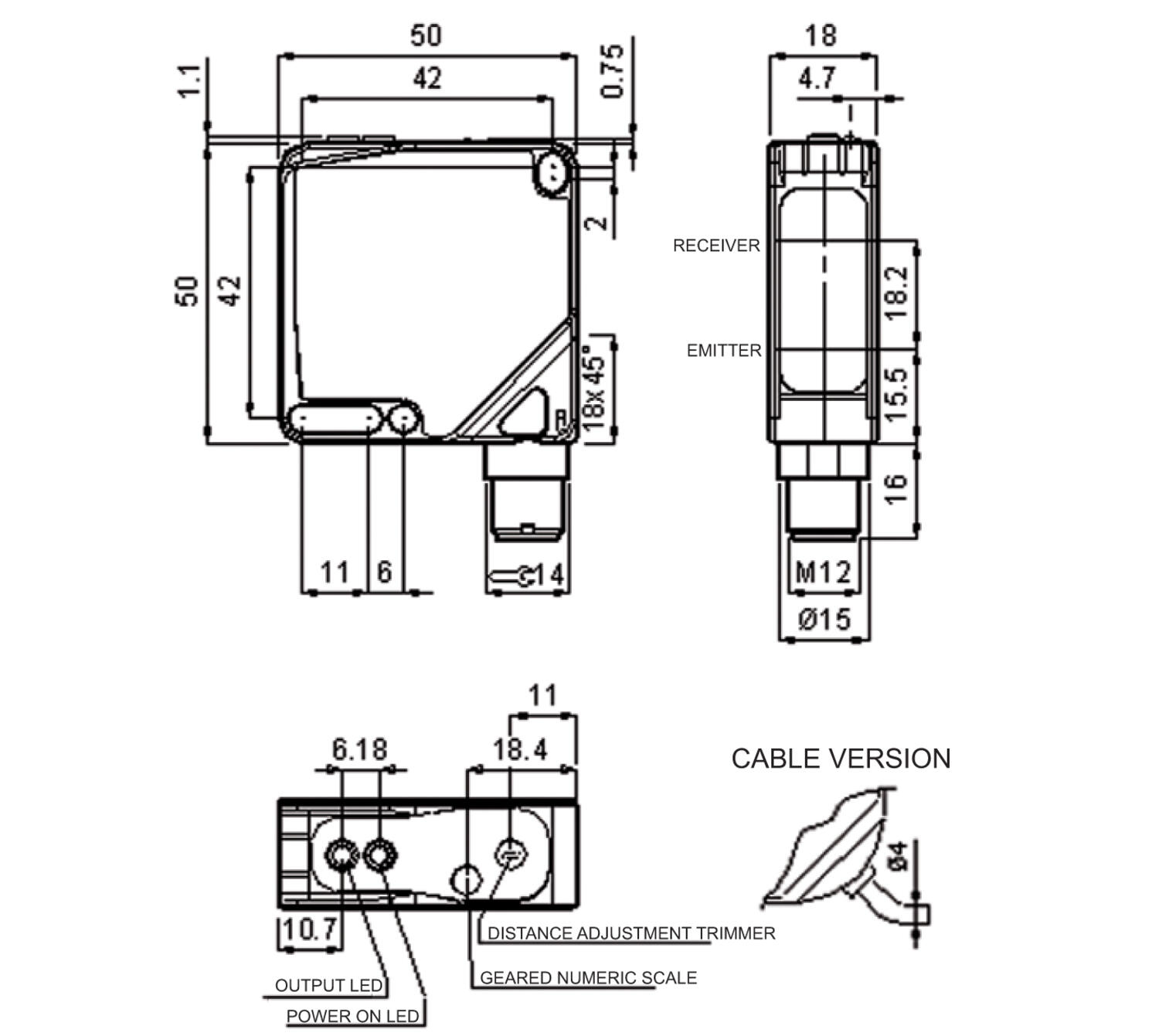

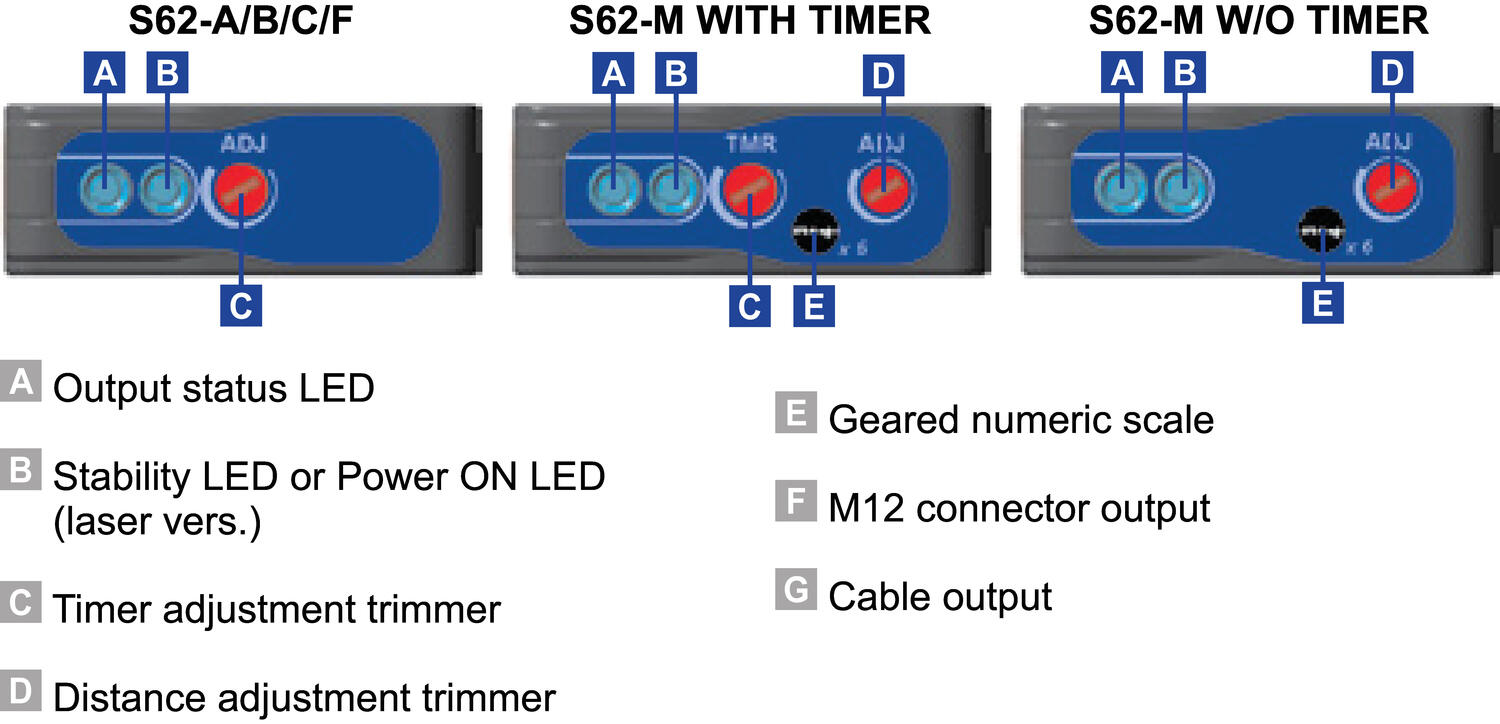

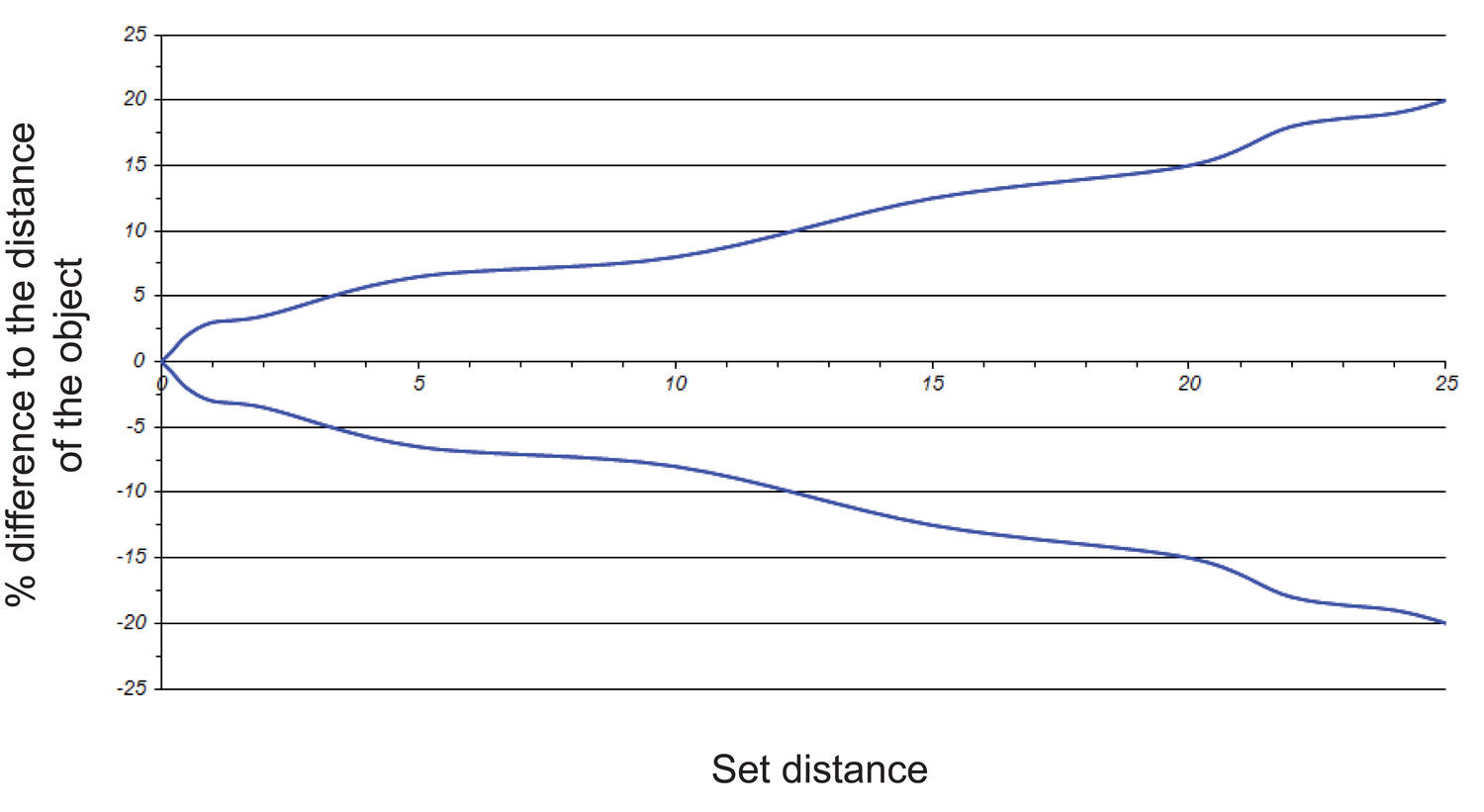

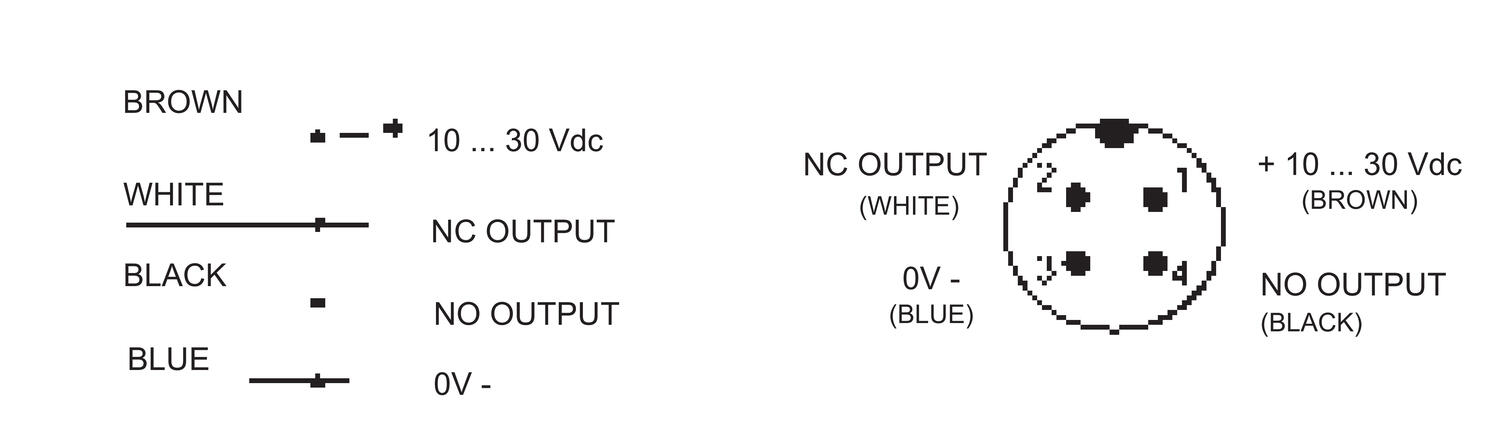

Measurements and connections

Product description

Laser emission models for high resolution detection are also available in polarised retro reflective, diffuse proximity and background suppression.

The sensor allows a great versatility of installations with Vac/dc multivoltage power supply and SPDT relay output, as well as 10-30 Vdc versions with PNP/NPN configurable output.

The S62 series is the first choice when looking for a photoelectric sensor, with the best price and performance ratio in a compact standard case.

Features & Benefits:

·High-resolution sensors with LED or LASER emission

·High installation flexibility

·Sensitivity/distance adjustment trimmer

·Embedded cable or M12 rotatable connector

·PNP, NPN, PNP/NPN or SPDT Relay output

Applications:

·Automatic machines

·Packaging lines

·Transportation lines

·Automatic warehouses

Accessories

Related products

Parts	Cable length	Distance max	Distance min	Electrical connection	Light type	Output	Photocell technology	Power consumption	Power consumption max	Reaction time	Supply voltage	Weight
956211370 Through Beam Emitter M12 Connector Art: S62-PA-5-G00-XG Copied		25000 mm	0 mm	M12 4-pin connector	Red LED		Through beam emitter		0.03 A	1 ms	10-30 V DC	40 g
956211300 Through Beam Emitter 2m Cable Art: S62-PA-2-G00-XG Copied	2000 mm	25000 mm	0 mm	Embedded 2m cable	Red LED		Through beam emitter		0.03 A	1 ms	10-30 V DC	90 g
956211230 Through Beam Emitter Relay out 2m Cable Art: S62-PA-1-G00-XX Copied	2000 mm	25000 mm	0 mm	Embedded 2m cable	Red LED		Through beam emitter		0.03 A	25 ms	24-240 V AC/24-60 V DC	90 g
956211490 Through Beam Receiver PNP M12 Connector Art: S62-PA-5-F01-PP Copied		25000 mm	0 mm	M12 4-pin connector	Red LED	PNP	Through beam receiver		0.03 A	1 ms	10-30 V DC	40 g
956211410 Through Beam Receiver PNP 2m Cable Art: S62-PA-2-F01-PP Copied	2000 mm	25000 mm	0 mm	Embedded 2m cable	Red LED	PNP	Through beam receiver		0.03 A	1 ms	10-30 V DC	90 g
956211530 Through Beam Receiver NPN M12 Connector Art: S62-PA-5-F01-NN Copied		25000 mm	0 mm	M12 4-pin connector	Red LED	NPN	Through beam receiver		0.03 A	1 ms	10-30 V DC	40 g
956211450 Through Beam Receiver NPN 2m Cable Art: S62-PA-2-F01-NN Copied	2000 mm	25000 mm	0 mm	Embedded 2m cable	Red LED	NPN	Through beam receiver		0.03 A	1 ms	10-30 V DC	90 g
956211360 Through Beam Receiver PNP/NPN M12 Connector Art: S62-PA-5-F01-PN Copied		25000 mm	0 mm	M12 4-pin connector	Red LED	PNP, NPN	Through beam emitter		0.03 A	1 ms	10-30 V DC	40 g
956211290 Through Beam Receiver PNP/NPN 2m Cable Art: S62-PA-2-F01-PN Copied	2000 mm	25000 mm	0 mm	Embedded 2m cable	Red LED	PNP, NPN	Through beam receiver		0.03 A	1 ms	10-30 V DC	90 g
956211220 Through Beam Receiver Relay out 2m Cable Art: S62-PA-1-F01-RX Copied	2000 mm	25000 mm	0 mm	Embedded 2m cable	Red LED	Relay	Through beam receiver	Max 3 VA		25 ms	24-240 V AC/24-60 V DC	90 g
956211310 Retro Reflective PNP/NPN M12 Connector Art: S62-PA-5-A01-PN Copied		13000 mm	100 mm	M12 4-pin connector	Red LED	PNP, NPN	Retro reflective		0.03 A	0.5 ms	10-30 V DC	40 g
956211240 Retro Reflective PNP/NPN 2m Cable Art: S62-PA-2-A01-PN Copied	2000 mm	13000 mm	100 mm	Embedded 2m cable	Red LED	PNP, NPN	Retro reflective		0.03 A	0.5 ms	10-30 V DC	90 g
956211180 Retro Reflective Relay out 2m Cable Art: S62-PA-1-A01-RX Copied	2000 mm	13000 mm	100 mm	Embedded 2m cable	Red LED	Relay	Retro reflective			25 ms	24-240 V AC/24-60 V DC	90 g
956211000 Polarised Retro Reflective PNP M12 Connector Art: S62-PA-5-B01-PP Copied		8000 mm	100 mm	M12 4-pin connector	Red LED	PNP	Polorised retro reflective		0.03 A	0.5 ms	10-30 V DC	40 g
956211010 Polarised Retro Reflective PNP 2m Cable Art: S62-PA-2-B01-PP Copied	2000 mm	8000 mm	100 mm	Embedded 2m cable	Red LED	PNP	Polorised retro reflective		0.03 A	0.5 ms	10-30 V DC	90 g
956211020 Polarised Retro Reflective NPN M12 Connector Art: S62-PA-5-B01-NN Copied		8000 mm	100 mm	M12 4-pin connector	Red LED	NPN	Polorised retro reflective		0.03 A	0.5 ms	10-30 V DC	40 g
956211320 Polarised Retro Reflective PNP/NPN M12 Connector Art: S62-PA-5-B01-PN Copied		8000 mm	100 mm	M12 4-pin connector	Red LED	PNP, NPN	Polorised retro reflective		0.03 A	0.5 ms	10-30 V DC	40 g
956211250 Polarised Retro Reflective PNP/NPN 2m Cable Art: S62-PA-2-B01-PN Copied	2000 mm	8000 mm	100 mm	Embedded 2m cable	Red LED	PNP, NPN	Polorised retro reflective		0.03 A	0.5 ms	10-30 V DC	90 g
956211190 Polarised Retro Reflective Relay out 2m Cable Art: S62-PA-1-B01-RX Copied	2000 mm	8000 mm	100 mm	Embedded 2m cable	Red LED	Relay	Polorised retro reflective	Max 3 VA		25 ms	24-240 V AC/24-60 V DC	90 g
956211110 Polarised Retro Reflective Laser PNP M12 Connector Art: S62-PL-5-B01-PP Copied		20000 mm	300 mm	M12 4-pin connector	Red laser	PNP	Polorised retro reflective		0.04 A	0.2 ms	10-30 V DC	40 g
956211100 Polarised Retro Reflective Laser NPN M12 Connector Art: S62-PL-5-B01-NN Copied		20000 mm	300 mm	M12 4-pin connector	Red laser	NPN	Polorised retro reflective		0.04 A	0.2 ms	10-30 V DC	40 g
956211480 Diffuse Proximity Laser PNP M12 Connector Art: S62-PL-5-C01-PP Copied		900 mm	0 mm	M12 4-pin connector	Red laser	PNP	Diffuse proximity		0.04 A	0.5 ms	10-30 V DC	40 g
956211460 Diffuse Proximity PNP M12 Connector Art: S62-PA-5-C01-PP Copied		900 mm	0 mm	M12 4-pin connector	Red LED	PNP	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	40 g
956211380 Diffuse Proximity Short PNP 2m Cable Art: S62-PA-2-C01-PP Copied	2000 mm	900 mm	0 mm	Embedded 2m cable	Red LED	PNP	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	90 g
956211520 Diffuse Proximity Short Laser NPN M12 Connector Art: S62-PL-5-C01-NN Copied		900 mm	0 mm	M12 4-pin connector	Red laser	NPN	Diffuse proximity		0.04 A	0.5 ms	10-30 V DC	40 g
956211500 Diffuse Proximity Short NPN M12 Connector Art: S62-PA-5-C01-NN Copied		900 mm	0 mm	M12 4-pin connector	Red LED	NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	40 g
956211400 Diffuse Proximity Short Laser PNP 2m Cable Art: S62-PL-2-C01-PP Copied	2000 mm	900 mm	0 mm	Embedded 2m cable	Red laser	PNP	Diffuse proximity		0.04 A	0.5 ms	10-30 V DC	90 g
956211440 Diffuse Proximity Short Laser NPN 2m Cable Art: S62-PL-2-C01-NN Copied	2000 mm	900 mm	0 mm	Embedded 2m cable	Red laser	NPN	Diffuse proximity		0.04 A	0.5 ms	10-30 V DC	90 g
956211420 Diffuse Proximity Short NPN 2m Cable Art: S62-PA-2-C01-NN Copied	2000 mm	900 mm	0 mm	Embedded 2m cable	Red LED	NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	90 g
956211330 Diffuse Proximity PNP/NPN M12 Connector Art: S62-PA-5-C01-PN Copied		900 mm	0 mm	M12 4-pin connector	Red LED	PNP, NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	40 g
956211260 Diffuse Proximity PNP/NPN 2m Cable Art: S62-PA-2-C01-PN Copied	2000 mm	900 mm	0 mm	Embedded 2m cable	Red LED	PNP, NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	90 g
956211200 Diffuse Proximity Relay out 2m Cable Art: S62-PA-1-C01-RX Copied	2000 mm	900 mm	0 mm	Embedded 2m cable	Red LED	Relay	Diffuse proximity	Max 3 VA		25 ms	24-240 V AC/24-60 V DC	90 g
956211470 Diffuse Proximity PNP M12 Connector Art: S62-PA-5-C11-PP Copied		2000 mm	0 mm	M12 4-pin connector	Red LED	PNP	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	40 g
956211390 Diffuse Proximity Long PNP 2m Cable Art: S62-PA-2-C11-PP Copied	2000 mm	2000 mm	0 mm	Embedded 2m cable	Red LED	PNP	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	90 g
956211510 Diffuse Proximity Long NPN M12 Connector Art: S62-PA-5-C11-NN Copied		2000 mm	0 mm	M12 4-pin connector	Red LED	NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	40 g
956211430 Diffuse Proximity NPN 2m Cable Art: S62-PA-2-C11-NN Copied	2000 mm	2000 mm	0 mm	Embedded 2m cable	Red LED	NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	90 g
956211340 Diffuse Proximity PNP/NPN M12 Connector Art: S62-PA-5-C11-PN Copied		2000 mm	0 mm	M12 4-pin connector	Red LED	PNP, NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	40 g
956211270 Diffuse Proximity PNP 2m Cable Art: S62-PA-2-C11-PN Copied	2000 mm	2000 mm	0 mm	Embedded 2m cable	Red LED	PNP, NPN	Diffuse proximity		0.03 A	0.5 ms	10-30 V DC	90 g
956211210 Diffuse Proximity Relay out 2m Cable Art: S62-PA-1-C11-RX Copied	2000 mm	2000 mm	0 mm	Embedded 2m cable	Red LED	Relay	Diffuse proximity	Max 3 VA		25 ms	24-240 V AC/24-60 V DC	90 g
956211130 BGS Laser 30-300mm PNP M12 Connector Art: S62-PL-5-M01-PP Copied		150 mm	30 mm	M12 4-pin connector	Red laser	PNP	Background suppression		0.04 A	0.14 ms	10-30 V DC	40 g
956211120 BGS Laser 30-300mm NPN M12 Connector Art: S62-PL-5-M01-NN Copied		150 mm	30 mm	M12 4-pin connector	Red laser	NPN	Background suppression		0.04 A	0.14 ms	10-30 V DC	40 g
956201831 BGS 30-300mm PNP M12 Connector Art: S62-PA-5-M01-PP Copied		300 mm	30 mm	M12 4-pin connector	Red LED	PNP	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201821 BGS 30-300mm PNP M12 Connector Art: S62-PA-5-M05-PP Copied		300 mm	30 mm	M12 4-pin connector	Red LED	PNP	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201841 Background Suppression 30-300mm PNP 2m Cable Art: S62-PA-2-M01-PP Copied	2000 mm	300 mm	30 mm	Embedded 2m cable	Red LED	PNP	Background suppression		0.03 A	0.5 ms	10-30 V DC	90 g
956201811 Background Suppression 30-300mm NPN M12 Connector Art: S62-PA-5-M01-NN Copied		300 mm	30 mm	M12 4-pin connector	Red LED	NPN	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201801 BGS 30-300mm NPN M12 Connector w/ Timer Art: S62-PA-5-M05-NN Copied		300 mm	30 mm	M12 4-pin connector	Red LED	NPN	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956211350 BGS 30-300mm PNP/NPN M12 Connector Art: S62-PA-5-M01-PN Copied		300 mm	30 mm	M12 4-pin connector	Red LED	PNP, NPN	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956211280 BGS 30-300mm PNP/NPN 2m Cable Art: S62-PA-2-M01-PN Copied	2000 mm	300 mm	30 mm	Embedded 2m cable	Red LED	PNP, NPN	Background suppression		0.03 A	0.5 ms	10-30 V DC	90 g
956211150 BGS Laser 60-600mm PNP M12 Connector Art: S62-PL-5-M11-PP Copied		350 mm	50 mm	M12 4-pin connector	Red laser	PNP	Background suppression		0.04 A	0.2 ms	10-30 V DC	40 g
956211140 BGS Laser 60-600mm NPN M12 Connector Art: S62-PL-5-M11-NN Copied		350 mm	50 mm	M12 4-pin connector	Red laser	NPN	Background suppression		0.04 A	0.2 ms	10-30 V DC	40 g
956201881 BGS 60-600mm PNP M12 Connector Art: S62-PA-5-M11-PP Copied		600 mm	60 mm	M12 4-pin connector	Red LED	PNP	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201871 BGS 60-600mm PNP M12 Connector w/timer Art: S62-PA-5-M15-PP Copied		600 mm	60 mm	M12 4-pin connector	Red LED	PNP	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201891 Background Suppression 60-600mm PNP 2m Cable Art: S62-PA-2-M11-PP Copied	2000 mm	600 mm	60 mm	Embedded 2m cable	Red LED	PNP	Background suppression		0.03 A	0.5 ms	10-30 V DC	90 g
956201861 Background Suppression 60-600mm NPN M12 Connector Art: S62-PA-5-M11-NN Copied		600 mm	60 mm	M12 4-pin connector	Red LED	NPN	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201851 BGS 60-600mm NPN M12 Connector w/ Timer Art: S62-PA-5-M15-NN Copied		600 mm	60 mm	M12 4-pin connector	Red LED	NPN	Background suppression		0.03 A	0.5 ms	10-30 V DC	40 g
956201900 BGS 60-1200mm PNP M12 Connector Art: S62-PA-5-M21-PP Copied		1200 mm	60 mm	M12 4-pin connector	IR LED	PNP	Background suppression		0.03 A	1 ms	10-30 V DC	40 g
956201920 BGS 60-1200mm PNP M12 Connector w/ Timer Art: S62-PA-5-M25-PP Copied		1200 mm	60 mm	M12 4-pin connector	IR LED	PNP	Background suppression		0.03 A	1 ms	10-30 V DC	40 g
956201940 BGS 60-1200mm PNP 2m Cable Art: S62-PA-2-M21-PP Copied	2000 mm	1200 mm	60 mm	Embedded 2m cable	IR LED	PNP	Background suppression		0.03 A	1 ms	10-30 V DC	90 g
956201910 BGS 60-1200mm NPN M12 Connector Art: S62-PA-5-M21-NN Copied		1200 mm	60 mm	M12 4-pin connector	IR LED	NPN	Background suppression		0.03 A	1 ms	10-30 V DC	40 g
956201930 BGS 60-1200mm NPN M12 Connector w/ Timer Art: S62-PA-5-M25-NN Copied		1200 mm	60 mm	M12 4-pin connector	IR LED	NPN	Background suppression		0.03 A	1 ms	10-30 V DC	40 g
956211070 BGS 200-2000mm PNP M12 Connector Art: S62-PA-5-M31-PP Copied		2000 mm	200 mm	M12 4-pin connector	IR LED	PNP	Background suppression		0.03 A	1.5 ms	10-30 V DC	40 g
956211090 BGS 200-2000mm PNP M12 Connector w/ Timer Art: S62-PA-5-M35-PP Copied		2000 mm	200 mm	M12 4-pin connector	IR LED	PNP	Background suppression		0.03 A	1.5 ms	10-30 V DC	40 g
956211050 Background Suppression 200-2000mm PNP 2m Cable Art: S62-PA-2-M31-PP Copied	2000 mm	2000 mm	200 mm	Embedded 2m cable	IR LED	PNP	Background suppression		0.03 A	1.5 ms	10-30 V DC	90 g
956211060 BGS 200-2000mm NPN M12 Connector Art: S62-PA-5-M31-NN Copied		2000 mm	200 mm	M12 4-pin connector	IR LED	NPN	Background suppression		0.03 A	1.5 ms	10-30 V DC	40 g
956211080 BGS 200-2000mm NPN M12 Connector w/ Timer Art: S62-PA-5-M35-NN Copied		2000 mm	200 mm	M12 4-pin connector	IR LED	NPN	Background suppression		0.03 A	1.5 ms	10-30 V DC	40 g
