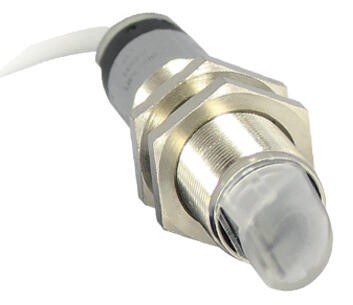

DATASENSING - S5N-MR - 90° METAL M18 PHOTOELECTRIC SENSOR
The S5N metal series of photoelectric sensors offers a wide range of optic functions including, retro reflective, diffuse proximity, background suppression and through beam. They are available with both radial or axial optics and with 2m embedded cable or M12 connection in a nickel plated brass housing. This sensor offers excellent solutions for all industrial applications.
Features & benefits:
·Wide range suitable for all the industrial applications
·Cable or M12 connection
·Flat sides for further mounting options
Applications:
·Automatic machines
·Packaging lines
·Transportation lines
·Automatic warehouses
- M18 barrel housing
- Embedded cable or M12 connector
- IP67 Nickel plated brass housing
- PNP or NPN output
Selected variant
Technical data
| Approvals | CE, UL |
|---|---|
| Distance max | 25000 mm |
| Distance min | 0 mm |
| Electrical connection | M12 4-pin connector |
| Function | Dark on / Light on |
| IP class | IP67 |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | IR LED |
| Material of body | Nickel plated brass |
| Output current max | 0.1 A |
| Photocell technology | Through beam emitter |
| Power consumption max | 0.035 A |
|---|---|
| Reaction time | 2 ms |
| Sensitivity setting | No |
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 10-30 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Type of light | LED |
| Weight | 60 g |
Product description
The S5N metal series of photoelectric sensors offers a wide range of optic functions including, retro reflective, diffuse proximity, background suppression and through beam. They are available with both radial or axial optics and with 2m embedded cable or M12 connection in a nickel plated brass housing. This sensor offers excellent solutions for all industrial applications.
Features & benefits:
·Wide range suitable for all the industrial applications
·Cable or M12 connection
·Flat sides for further mounting options
Applications:
·Automatic machines
·Packaging lines
·Transportation lines
·Automatic warehouses
