TAKEX
Â
The F85RN is a leading dual display fibre optic amplifier from Takex. It can simply be taught four separate teaching modes through the use of one set button. And with two large clear 4-digit, 7-segment LED displays and three raised buttons with positive click feedback, it makes mode setting even easier.
Â

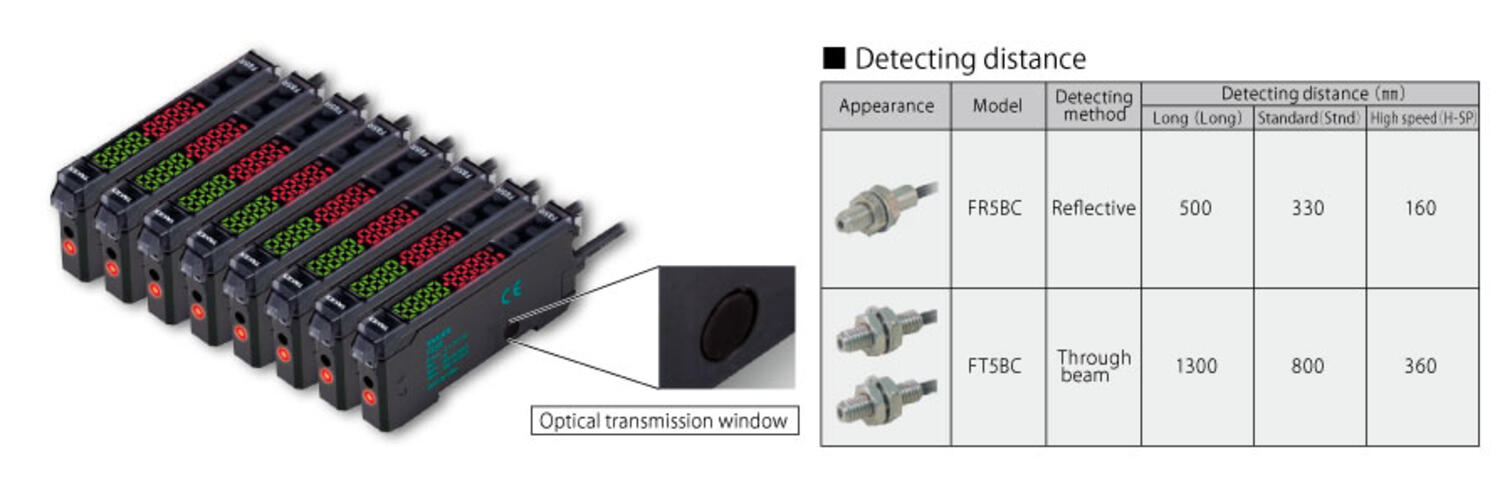

The F85RN is also equipped with an optical transmission type, mutual interference prevention function to suppress the interference between up to eight units.
Â
The sensor comes with a QR code on the side of the amplifier to access a quick reference guide on your smartphone or tablet. This is useful when checking the manual or changing the settings while installing on site.
Â
Â
| Electrical connection | Embedded 2m cable |
|---|---|
| Function | Dark on / Light on |
| IP class | IP40 |
| Light type | Red LED |
| Light/dark switching | No |
| Materials casing | Polycarbonate |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |
Â
The F85RN is a leading dual display fibre optic amplifier from Takex. It can simply be taught four separate teaching modes through the use of one set button. And with two large clear 4-digit, 7-segment LED displays and three raised buttons with positive click feedback, it makes mode setting even easier.
Â
The F85RN is also equipped with an optical transmission type, mutual interference prevention function to suppress the interference between up to eight units.
Â
The sensor comes with a QR code on the side of the amplifier to access a quick reference guide on your smartphone or tablet. This is useful when checking the manual or changing the settings while installing on site.
Â
Â
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Electrical connection | Price | ||
|---|---|---|---|---|
Dual display fibre optic amplifier PNP/NPN 2m cable
Art:
F85RN
Copied
|
Embedded 2m cable
|
|
||
|
Dual display fibre optic amplifier PNP/NPN M8 connector
Art:
F85RNP-J
Copied
|
M8 4-pole connector
|
|
Select a variant in the list
