Takex - F71 fibre amplifier with potentiometer setting

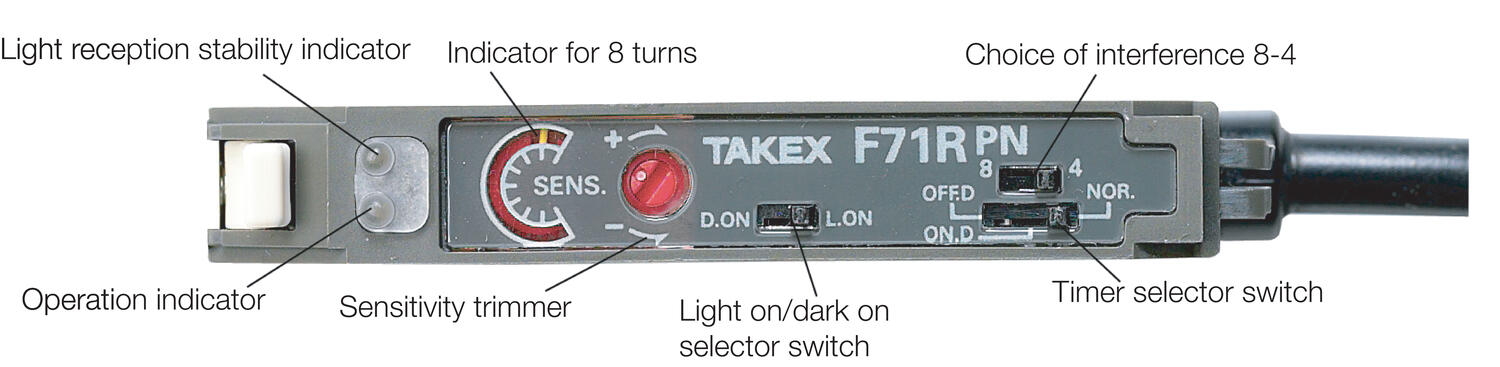

A space-saving amplifier with a simple 8-turn potentiometer and scale for setting. Onboard optical interference protection for up to 8 units (not applicable to F71RH). The interference protection means that the amplifiers do not react to one another's light, which is a problem when there are several adjacent detection points. F71RH has a fast reaction time, which is useful when - for example - you want to detect a colour marking on a fast rail or detect numbers of revolutions at high speeds. LED indication for output signal and for stable input signal. Light/dark on, time function and alarm output.
- Interference protection for up to 8 amplifiers, not F71RH
- Fast reaction time F71RH 30 µs
- Potentiometer setting (8 revolutions)
- Small construction dimensions (9 mm)
Selected variant
Technical data
| Approvals | CE |
|---|---|
| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP class | IP40 |
| Light type | Red LED |
| Light/dark switching | Yes |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Fiber amblified |
|---|---|
| Power consumption max | 0.04 A |
| Reaction time | 0.25 ms |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |

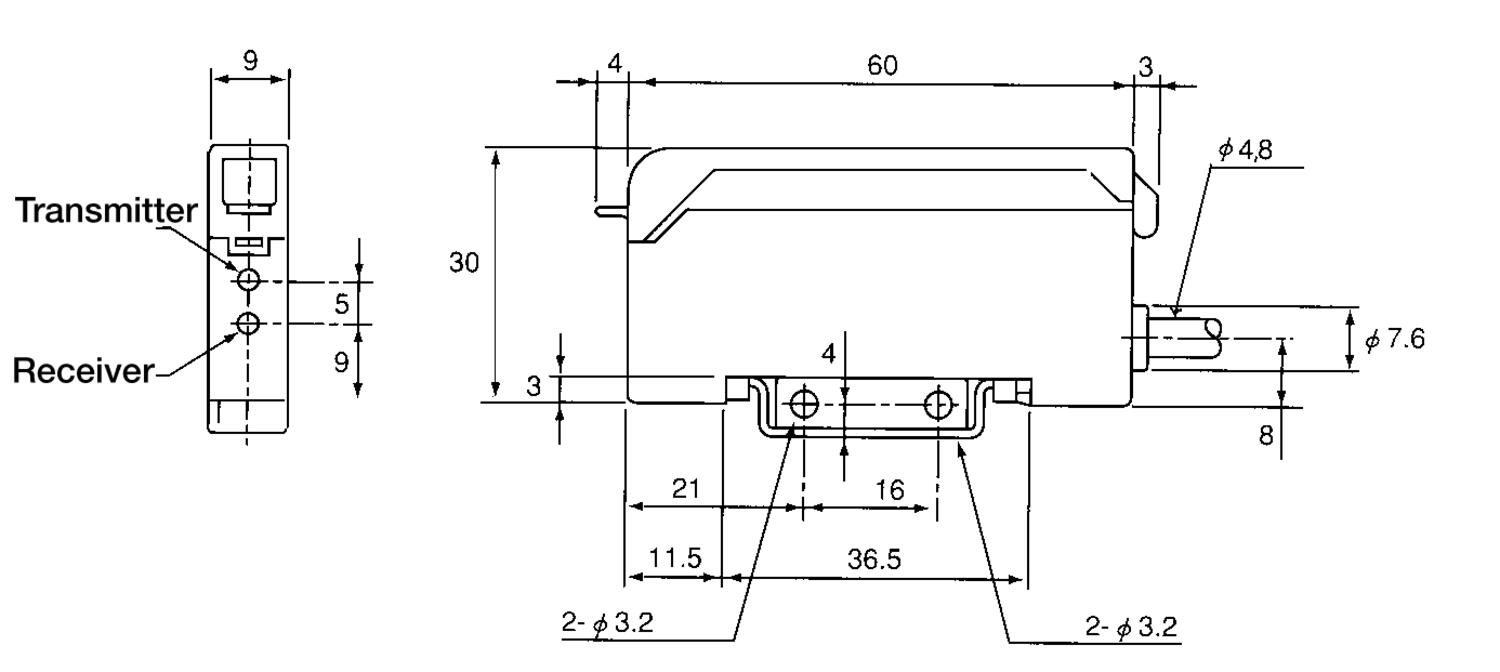

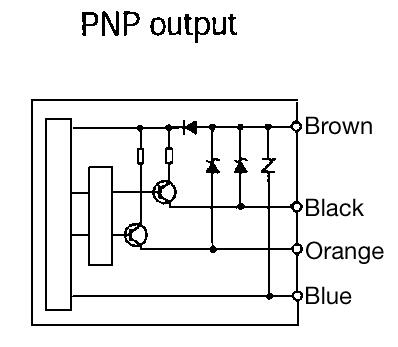

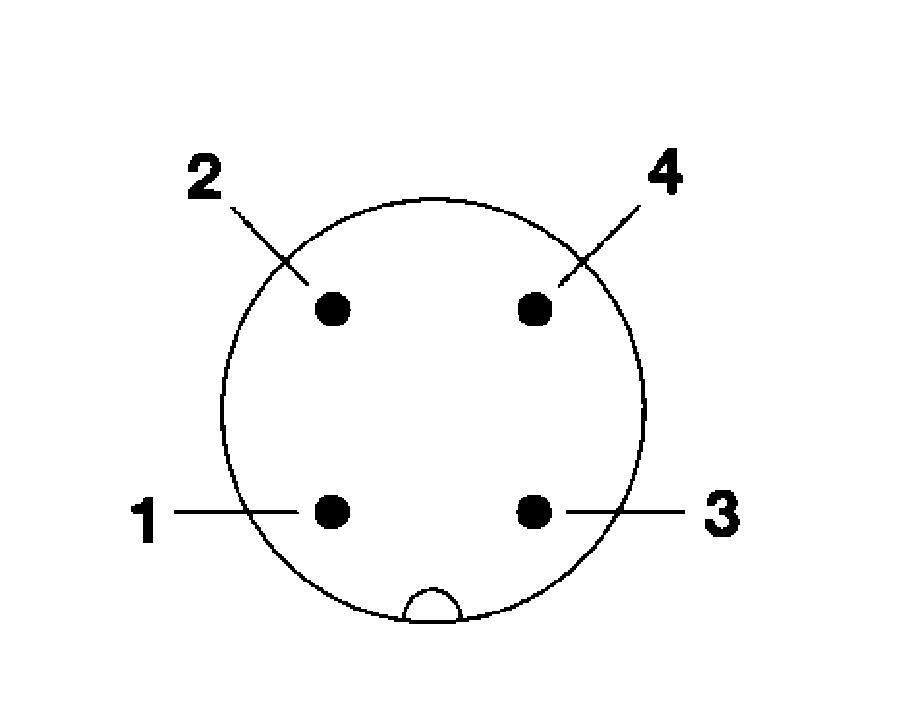

Measurements and connections
Technical illustrations

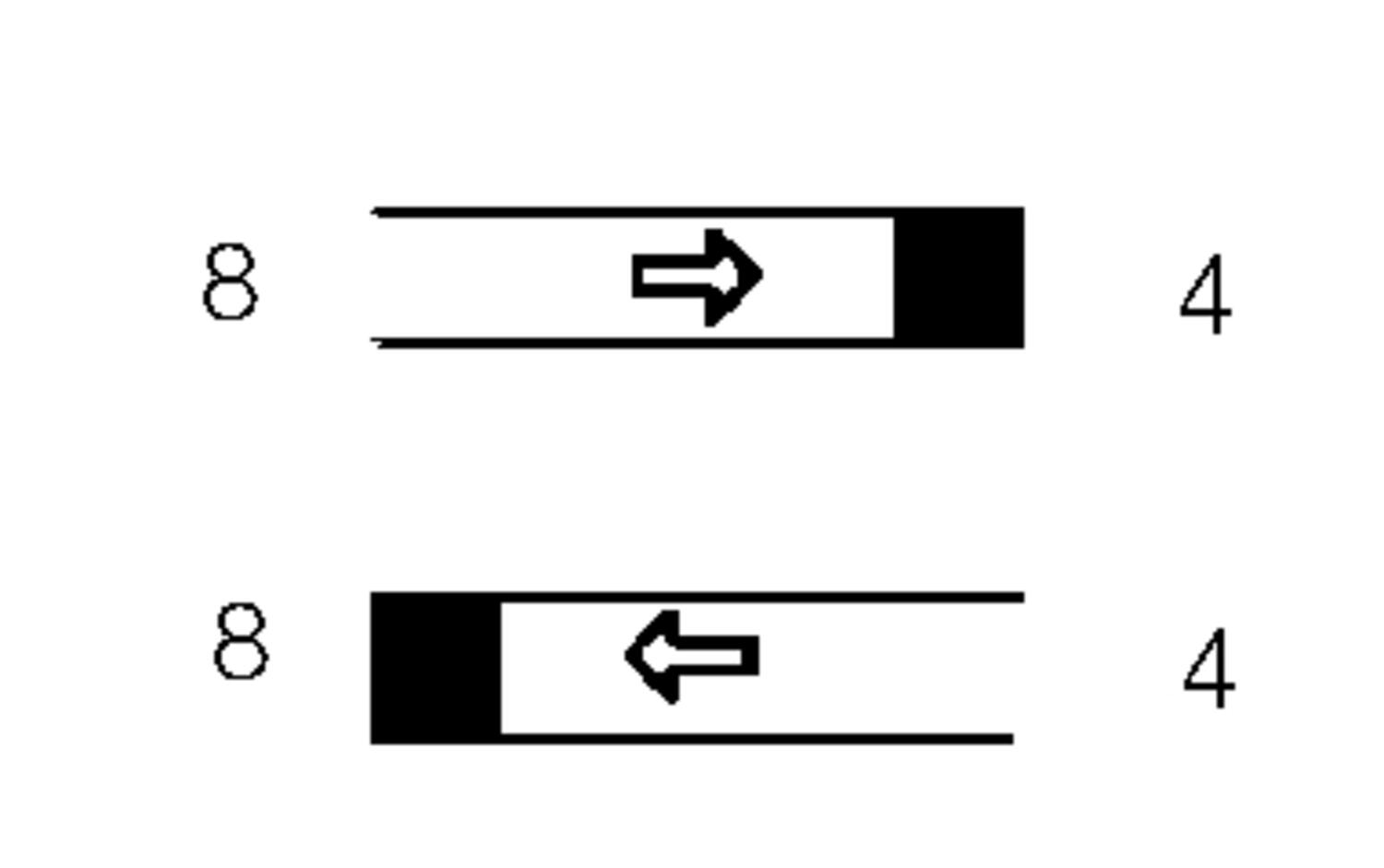

Interference protection on 4 units. (Reaction time 250 µs.)
Interference protection on 8 units. (Reaction time 500 µs.)
This amplifier range has onboard interference protection via optical transfer. There are windows on the side of the amplifier for the optical transfer. Place the units on a DIN rail with the windows facing one another in order to ensure its function
Product description
A space-saving amplifier with a simple 8-turn potentiometer and scale for setting. Onboard optical interference protection for up to 8 units (not applicable to F71RH). The interference protection means that the amplifiers do not react to one another's light, which is a problem when there are several adjacent detection points. F71RH has a fast reaction time, which is useful when - for example - you want to detect a colour marking on a fast rail or detect numbers of revolutions at high speeds. LED indication for output signal and for stable input signal. Light/dark on, time function and alarm output.
