DATASENSING
Â

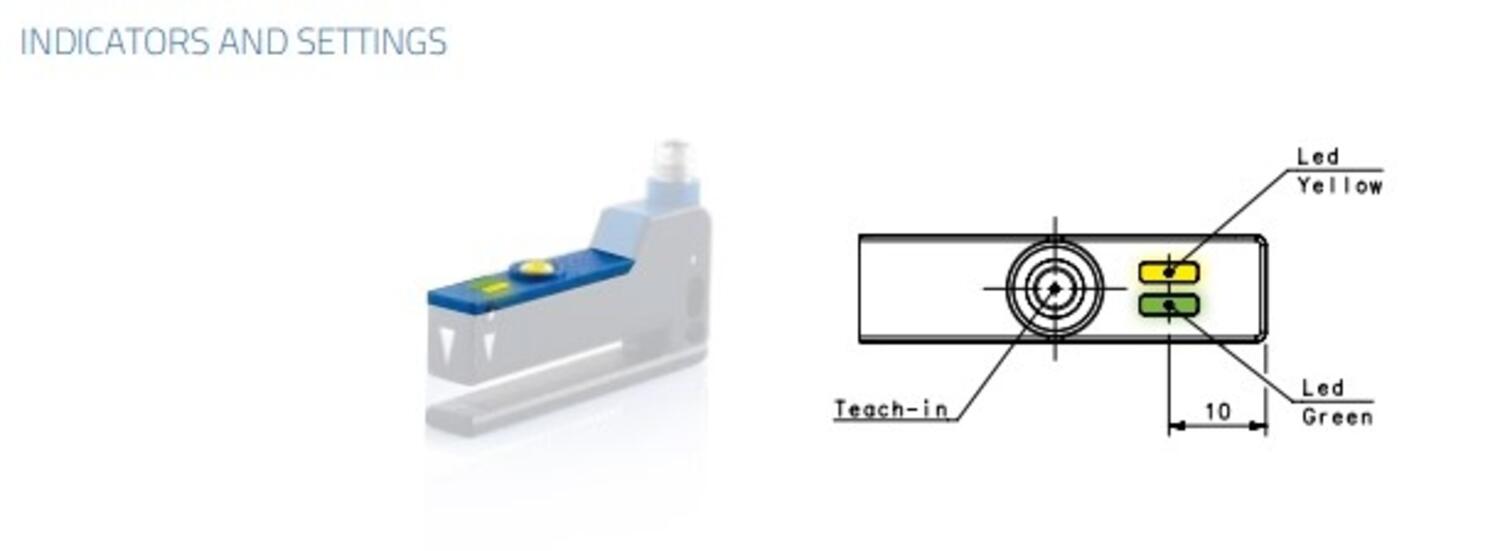

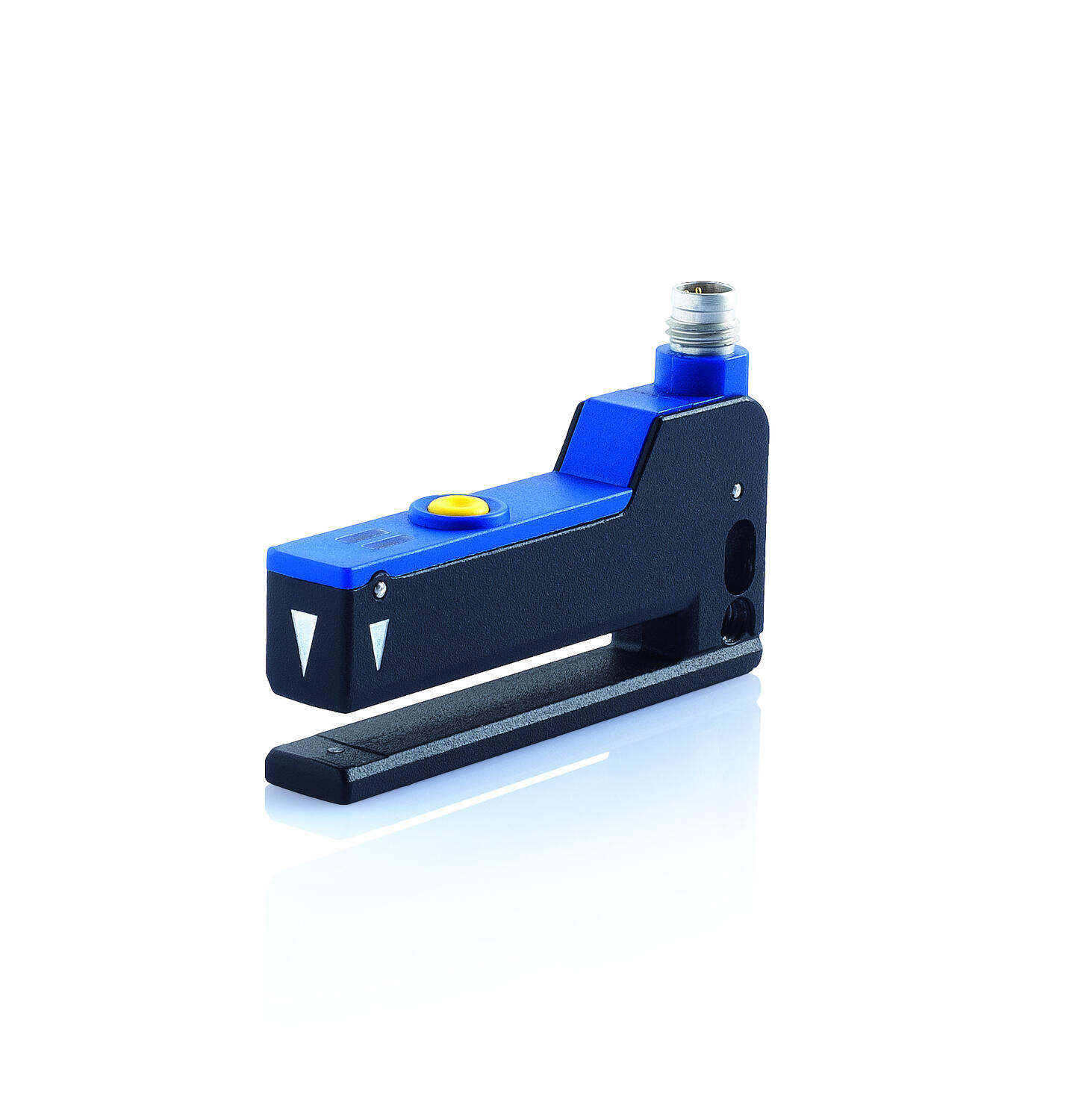

The SR23 series, with 50 x 5mm slot size, are designed for the detection of normal labels, as well as thick booklet and multi-layer ones, used increasingly in the food and pharmaceutical industries. The series distinguishes itself through its fast 40µs response time and its switching frequency reaching 12kHz, and offers an easy static or dynamic procedure setting, via SET push-button or remote input.
Â

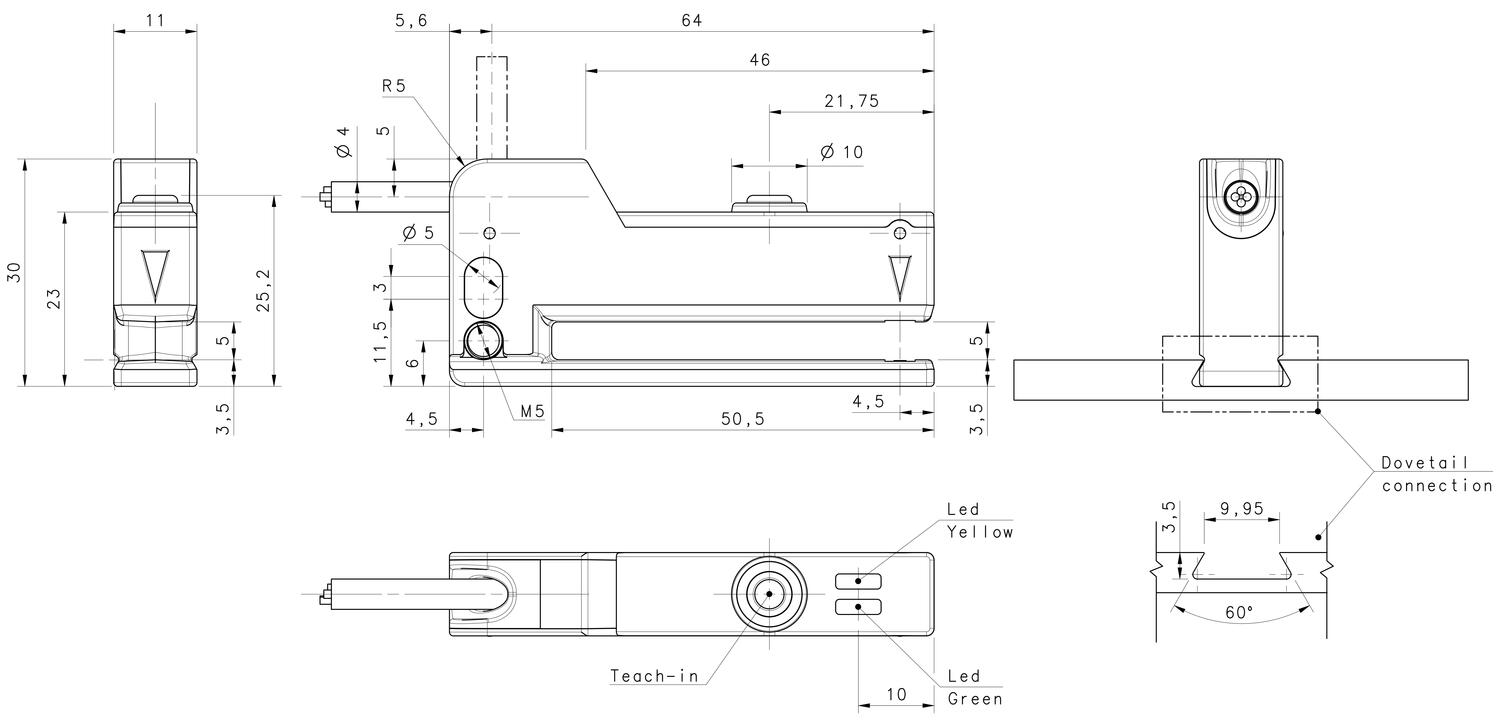

The emission is infrared LED with a narrow light beam, allowing resolutions up to 0,5mm. All models are characterised by a compact metallic housing and by a M5 threaded hole, a Ø5x8 slotted hole, and a dovetail guide. 2m embedded cable or M8 4-pole connector versions are available, and with NPN or PNP outputs.
Â
FEATURES & BENEFITS
Â
• 50 x 5mm slot size: normal labels, booklet and multi-layer labels
• Teach-in or dynamics setting
• 12 kHz switching frequency for high detection repeatability
• Compact housing suitable for application with reduced spaces
• 0.5mm minimum size label/gap for high detection reliability for a precise reading
Â
APPLICATIONS
Â
• Processing and Packaging machinery
• Automatic labellers
• Print and apply systems
Â
Â
| Approvals | CE, UL |
|---|---|
| Dimension (mm) | 30 x 63 x 10 |

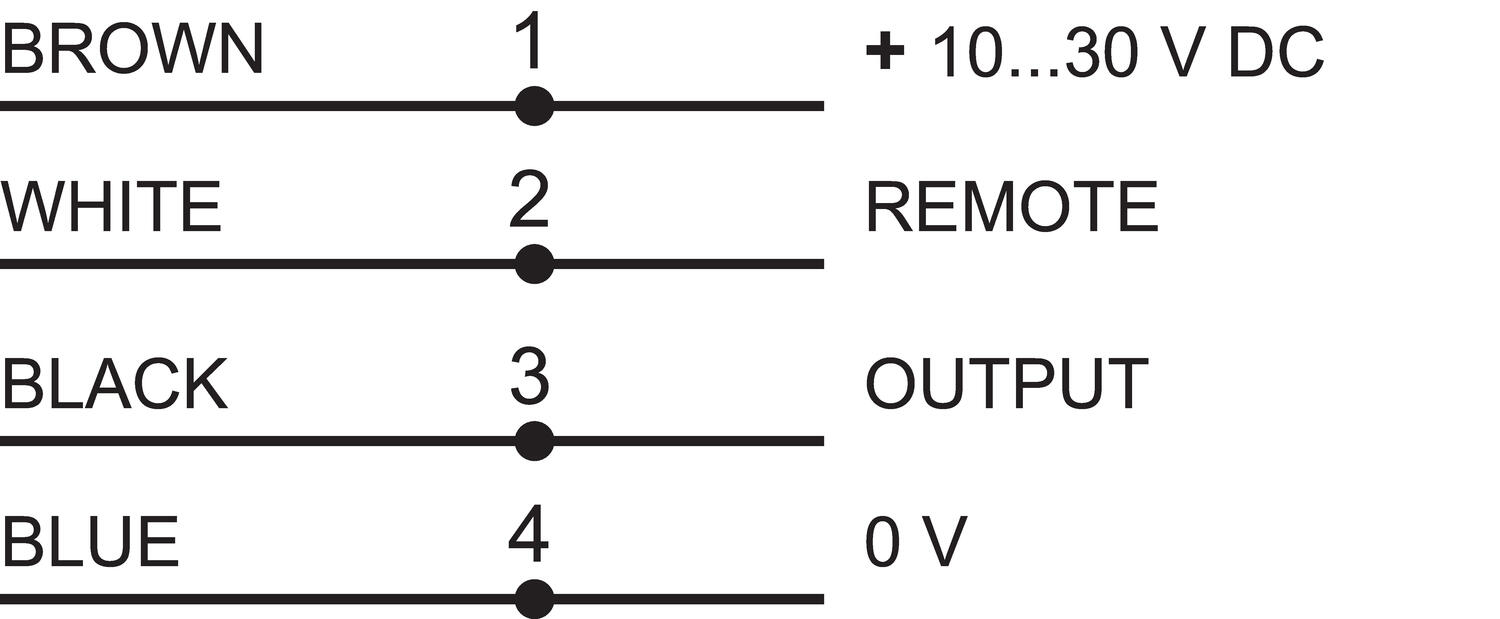

| Electrical connection | Embedded 2m cable |
| Fork depth | 50 mm |
| Fork gap | 5 mm |
| Frequency | 12000 Hz |
| IP class | IP65 |
| LED indicator | Yes |
| Lens material | PC |
| Light type | IR LED |
| Material of body | Aluminium, PBT |
| Multi label reading | Yes |
|---|---|
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Label fork |
| Power consumption max | 0.03 A |
| Reaction time | 0.04 ms |
| Supply voltage | 10-30 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | -20 °C |
| Weight | 85 g |
Â
The SR23 series, with 50 x 5mm slot size, are designed for the detection of normal labels, as well as thick booklet and multi-layer ones, used increasingly in the food and pharmaceutical industries. The series distinguishes itself through its fast 40µs response time and its switching frequency reaching 12kHz, and offers an easy static or dynamic procedure setting, via SET push-button or remote input.
Â
The emission is infrared LED with a narrow light beam, allowing resolutions up to 0,5mm. All models are characterised by a compact metallic housing and by a M5 threaded hole, a Ø5x8 slotted hole, and a dovetail guide. 2m embedded cable or M8 4-pole connector versions are available, and with NPN or PNP outputs.
Â
FEATURES & BENEFITS
Â
• 50 x 5mm slot size: normal labels, booklet and multi-layer labels
• Teach-in or dynamics setting
• 12 kHz switching frequency for high detection repeatability
• Compact housing suitable for application with reduced spaces
• 0.5mm minimum size label/gap for high detection reliability for a precise reading
Â
APPLICATIONS
Â
• Processing and Packaging machinery
• Automatic labellers
• Print and apply systems
Â
Â
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Electrical connection | Output | Weight | Price | ||
|---|---|---|---|---|---|---|
953161000 Label Sensor Infra Red PNP 5mm Slot
Art:
SR23-2-IR-PH
Copied
|
Embedded 2m cable
|
PNP
|
85 g
|
|
||
|
953161020 Label Sensor Infra Red NPN 5mm Slot
Art:
SR23-2-IR-NH
Copied
|
Embedded 2m cable
|
NPN
|
85 g
|
|
||
953161010 Label Sensor Infra Red PNP 5mm Slot
Art:
SR23-5-IR-PH
Copied
|
M8 4-pole connector
|
PNP
|
46 g
|
|
||
|
953161030 Label Sensor Infra Red NPN 5mm Slot
Art:
SR23-5-IR-NH
Copied
|
M8 4-pole connector
|
NPN
|
46 g
|
|
