DATASENSING - S85 - Distance sensor



The S85 series is Datalogic’s innovative line of LASER distance sensors based on Time of Flight technology. It can perform high-precision and long distance measurement without the use of a prismatic reflector, as well as background and foreground suppression functions.



The Class 2 highly-focused laser and the innovative integrated software make the S85 series ideal for applications that require extremely precise measurement, offering 7mm of accuracy for distances up to 20m, with 1mm of resolution and 1mm of repeatability.



The basic model (S85-MH-5-Y03-...) measures distances up to 10m and can be simply set through user-friendly push-buttons. The basic model features an M12 5-pole standard connector with analogue and digital outputs that provide distance and the object detection.

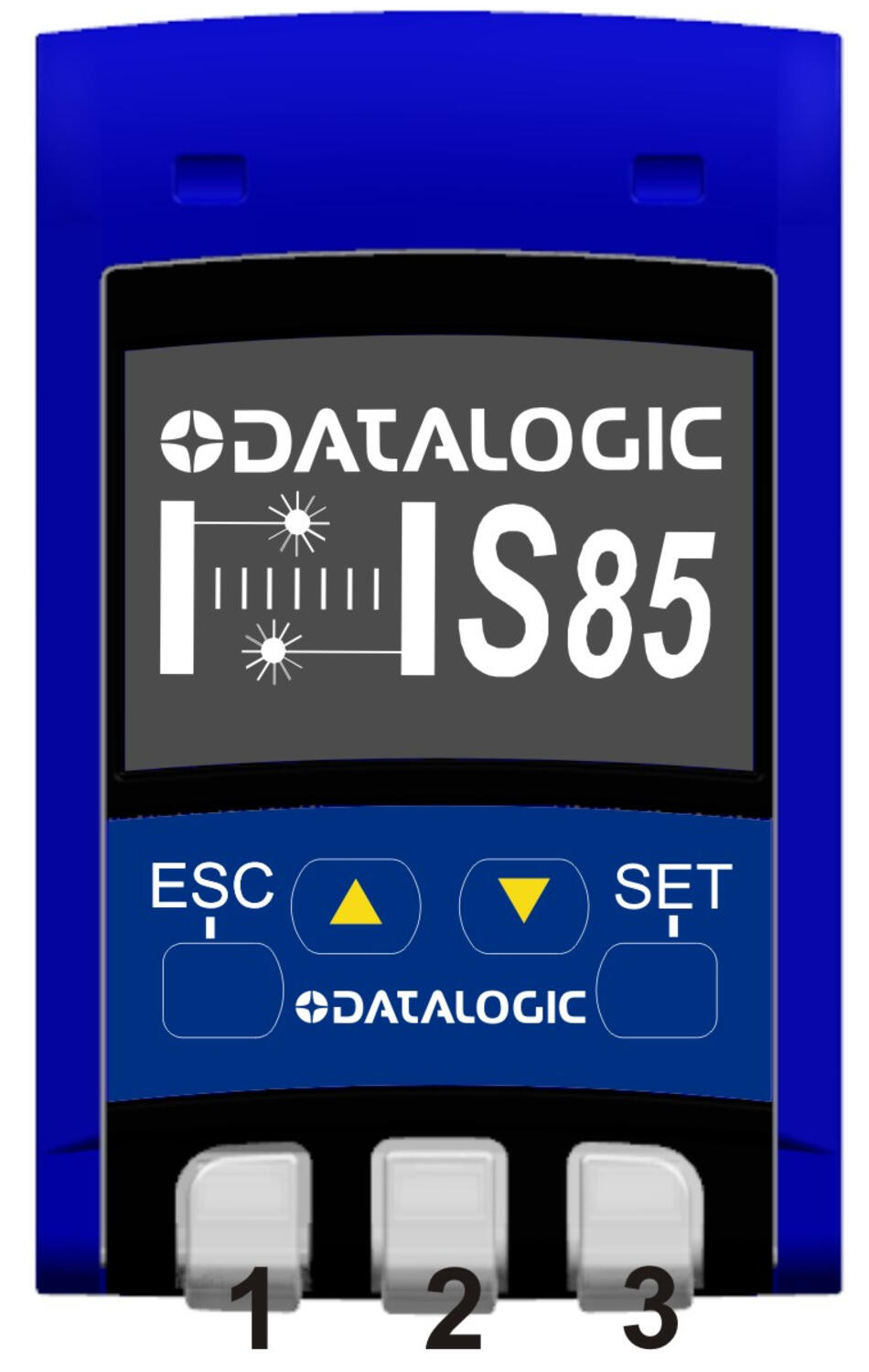

The advanced model (S85-MH-5-Y13-...) measures distances up to 20m and is easily programmable through a keyboard and display. In addition to the analogue and digital outputs, the S85 advanced model is equipped with an RS485 serial interface.

This series is designed in a sturdy metal housing, and can be easily mounted on industrial vehicles and machinery with its dedicated mounting bracket.



FEATURES & BENEFITS



• Time of Flight technology

• Class 2, visible red LASER for an easy alignment with the target

• Distance measurement ranging from 10m or 20m in the advanced model

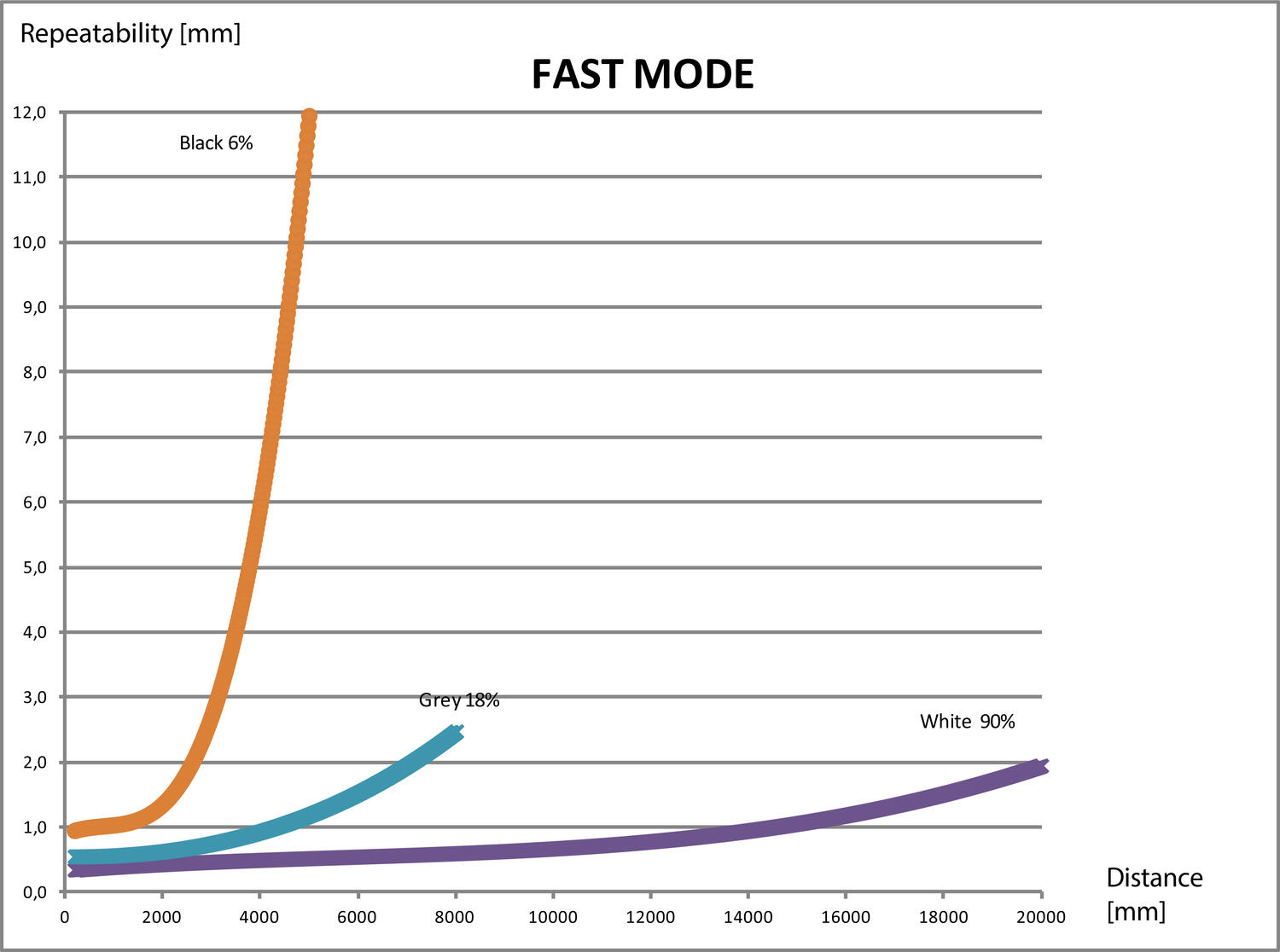

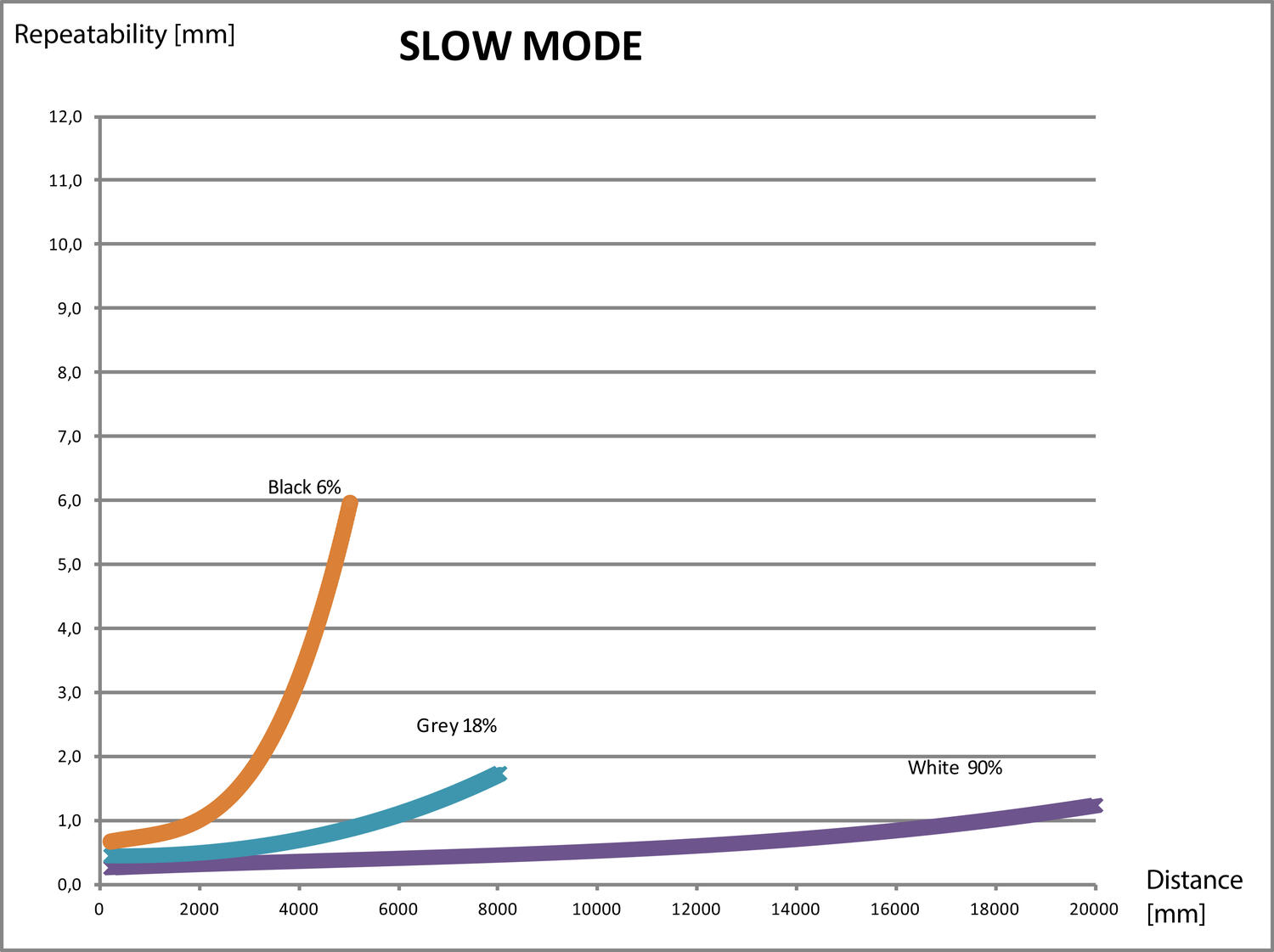

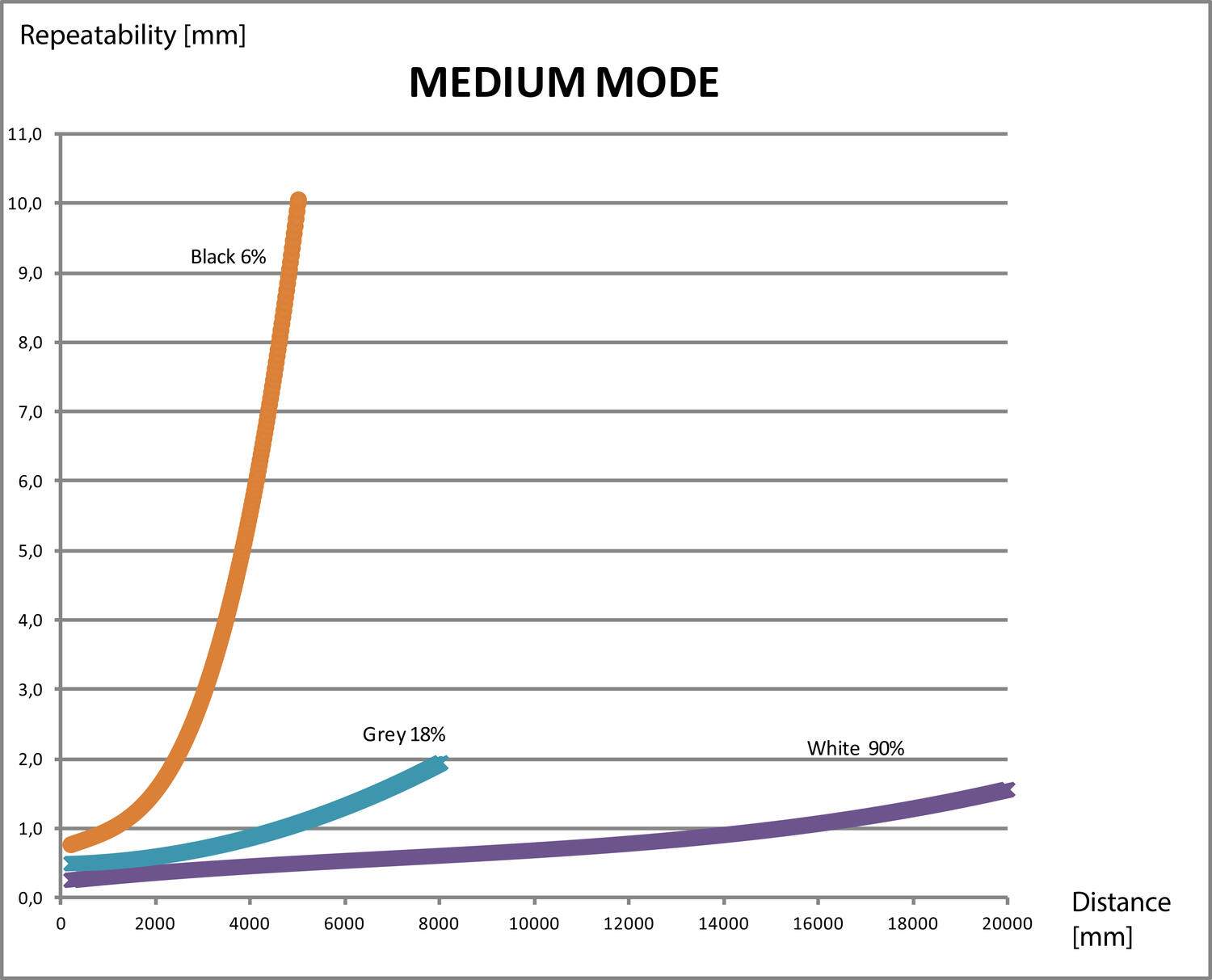

• 1mm resolution, 7mm accuracy, 1mm repeatability

• 4-20 mA or 0-10 V scalable analogue output and 2 digital outputs

• RS485 serial interface in the advanced model

• Standard M12 connector

• IP67 industrial metal housing



APPLICATIONS



• Automated warehousing

• Processing and Packaging machinery

• Industrial vehicles

• Automotive





Read more
  • Measuring range up to 20m
  • Analog output 4-20 mA or 0-10 V
  • 2 digital outputs
  • RS485 on advanced models
  • IP67 industrial metal housing

Selected variant

Available in several variants

Selected variant

Technical data

Approvals CE, UL

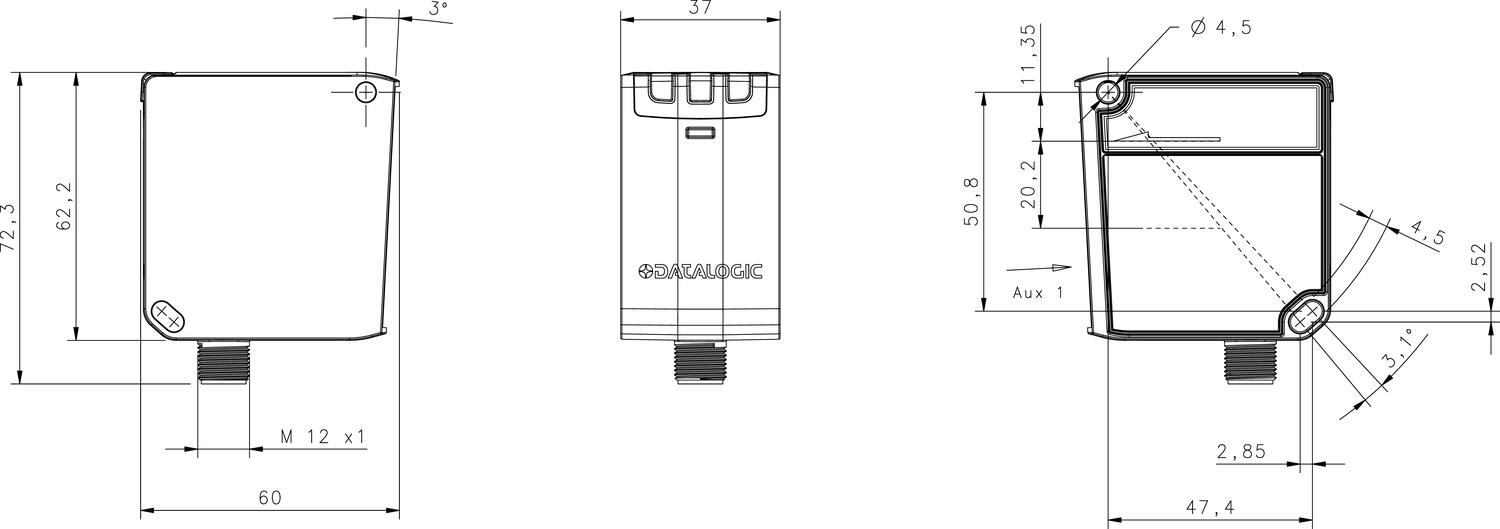

Dimension (mm) 60 x 72 x 37
Distance max 20000 mm
Distance min 200 mm

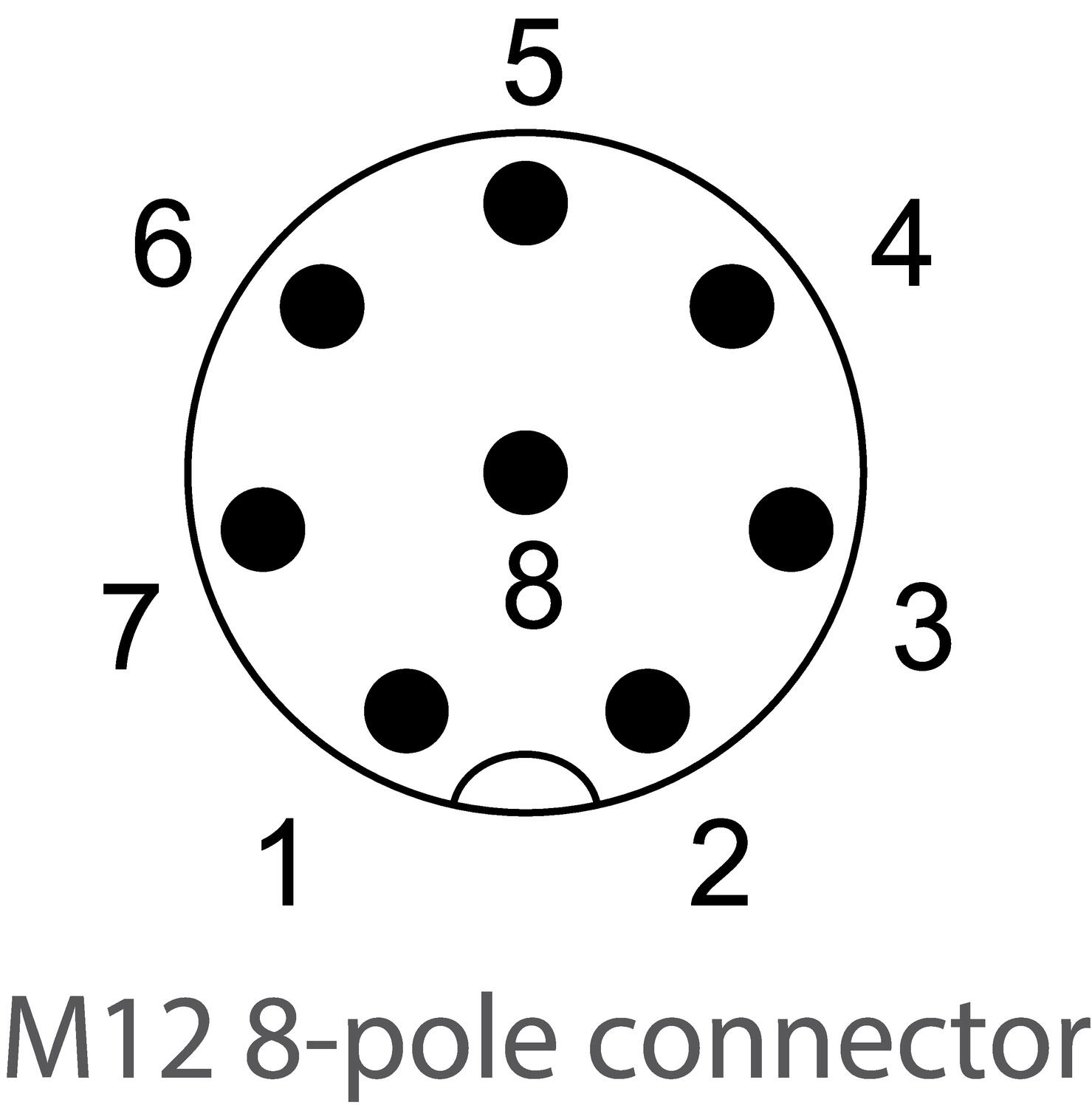

Electrical connection M12 8-pin connector
Function Dark on / Light on
IP class IP67
LED indicator Yes
Lens material PMMA
Light type Red laser
Material of body Zinc Alloy
Output NPN, PNP, Push/Pull
Output current max 0,1 A
Photocell technology Distance measuring laser
Reaction time 15 ms
Storage temperature max 70 °C
Storage temperature min -25 °C
Supply voltage 24 V DC
Temperature operational max 50 °C
Temperature operational min -15 °C
Weight 250 g

Product description



The S85 series is Datalogic’s innovative line of LASER distance sensors based on Time of Flight technology. It can perform high-precision and long distance measurement without the use of a prismatic reflector, as well as background and foreground suppression functions.



The Class 2 highly-focused laser and the innovative integrated software make the S85 series ideal for applications that require extremely precise measurement, offering 7mm of accuracy for distances up to 20m, with 1mm of resolution and 1mm of repeatability.



The basic model (S85-MH-5-Y03-...) measures distances up to 10m and can be simply set through user-friendly push-buttons. The basic model features an M12 5-pole standard connector with analogue and digital outputs that provide distance and the object detection.



The advanced model (S85-MH-5-Y13-...) measures distances up to 20m and is easily programmable through a keyboard and display. In addition to the analogue and digital outputs, the S85 advanced model is equipped with an RS485 serial interface.

This series is designed in a sturdy metal housing, and can be easily mounted on industrial vehicles and machinery with its dedicated mounting bracket.



FEATURES & BENEFITS



• Time of Flight technology

• Class 2, visible red LASER for an easy alignment with the target

• Distance measurement ranging from 10m or 20m in the advanced model

• 1mm resolution, 7mm accuracy, 1mm repeatability

• 4-20 mA or 0-10 V scalable analogue output and 2 digital outputs

• RS485 serial interface in the advanced model

• Standard M12 connector

• IP67 industrial metal housing



APPLICATIONS



• Automated warehousing

• Processing and Packaging machinery

• Industrial vehicles

• Automotive





Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

hokuyu
Product news

The Smallest Safety Laser Scanner on the market by Hokuyo

Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

ATEX hazardous environments and OEM ATEX products
Blog

ATEX - Learn about explosion safety in hazardous environments

ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.

Sensor and safety engineer tony maton OEM automatic
Company news Product news

Our Newest Sensor and Safety Engineer

We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety

Parts Distance max Electrical connection Output Reaction time Price
20000 mm
M12 8-pin connector
NPN, PNP, Push/Pull
15 ms
10000 mm
M12 5-pole connector
0-10V, NPN, PNP, Push/Pull
30 ms
20000 mm
M12 8-pin connector
0-10V, 4-20 mA, NPN, PNP, Push/Pull
15 ms
10000 mm
M12 5-pole connector
4-20 mA, NPN, PNP, Push/Pull
30 ms
