DATASENSING
The DS3 Curtains are used to detect, measure and check the position of objects, including transparent and small objects.
| Approvals | CE, cULus |
|---|---|
| Detection height | 150 mm |

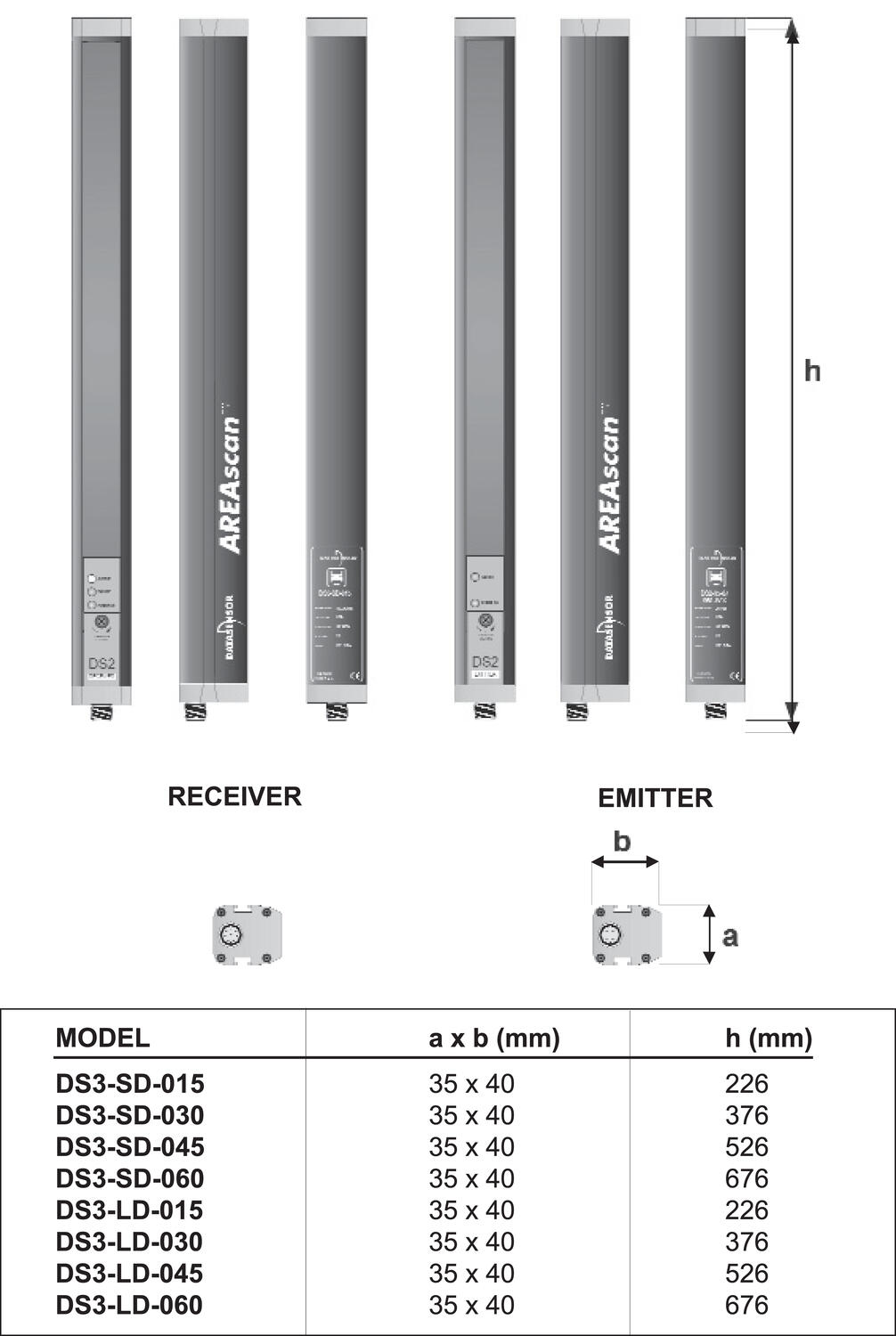

| Dimension (mm) | 35 x 40 x 226 |
| Distance max | 600 mm |
| Distance min | 200 mm |

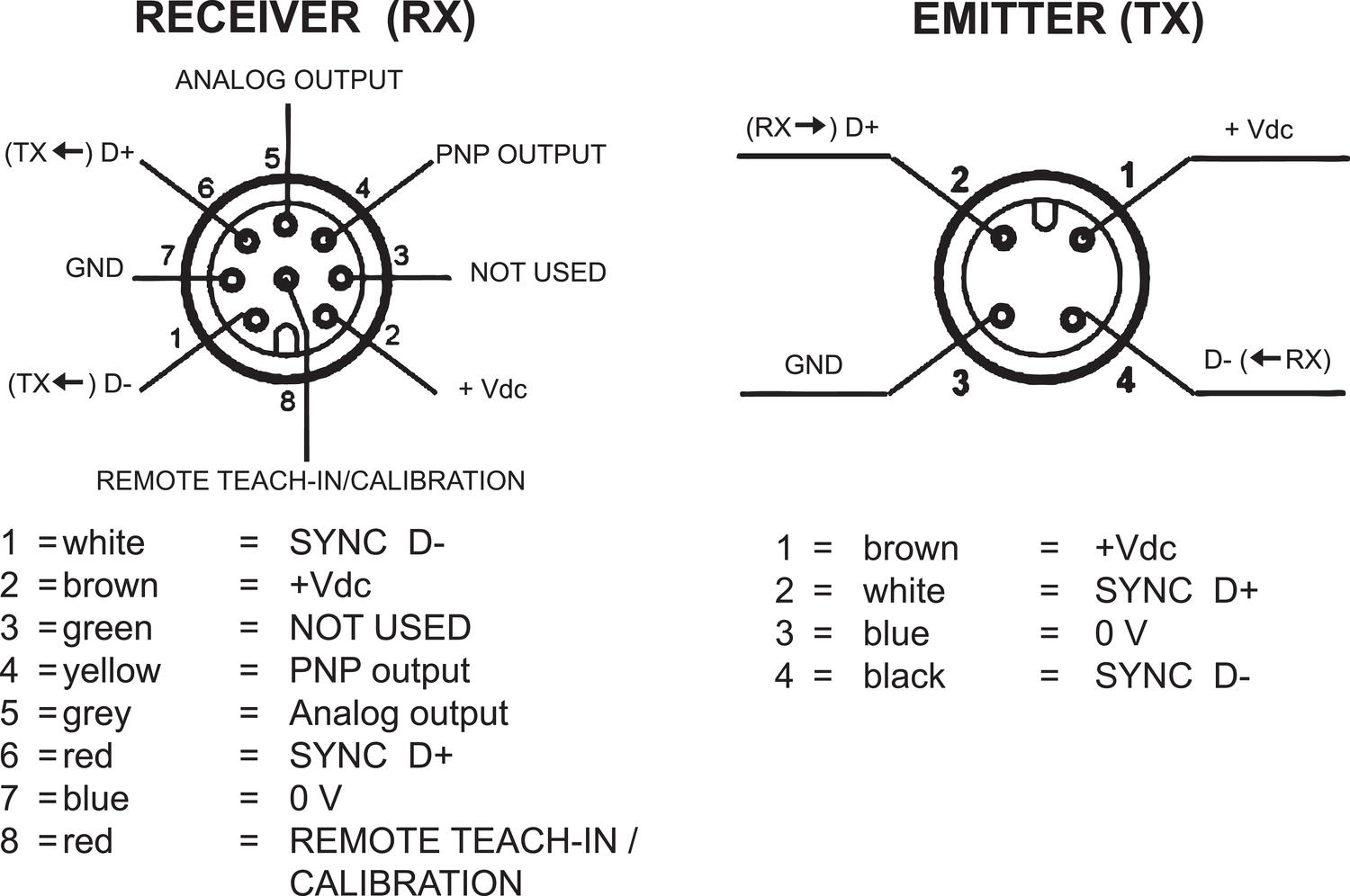

| Electrical connection | M12 8-pin connector, M12 4-pin connector |
| IP class | IP65 |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | IR LED |
| Material of body | Aluminium |
| Output | 0-10V, PNP |
| Output current max | 0,1 A |
|---|---|
| Photocell technology | Curtain photocell |
| Power consumption max | 0,1 A |
| Reaction time | 3 ms |
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 24 V DC |
| Temperature operational max | 55 °C |
| Temperature operational min | -10 °C |
| Weight | 310 g |
The DS3 Curtains are used to detect, measure and check the position of objects, including transparent and small objects.
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
We’re thrilled to welcome Tony Maton, our new Sales Engineer at OEM Automatic! Tony brings a wealth of knowledge and expertise in industrial automation and machine safety
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Detection height | Dimension (mm) | Distance max | Distance min | Reaction time | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|
957600100 Light Grid Array 150mm Analogue/1 PNP 0.6m
Art:
DS3-SD-015
Copied
|
150 mm
|
35 x 40 x 226
|
600 mm
|
200 mm
|
3 ms
|
310 g
|
| ||
|
957600110 Light Grid Array 300mm Analogue/1 PNP 0.6m
Art:
DS3-SD-030
Copied
|
300 mm
|
35 x 40 x 376
|
600 mm
|
200 mm
|
6 ms
|
530 g
|
| ||
|
957600150 Light Grid Array 450mm Analogue/1 PNP 0.6m
Art:
DS3-SD-045
Copied
|
450 mm
|
35 x 40 x 526
|
600 mm
|
200 mm
|
9 ms
|
700 g
|
| ||
|
957600170 Light Grid Array 600mm Analogue/1 PNP 0.6m
Art:
DS3-SD-060
Copied
|
600 mm
|
35 x 40 x 676
|
600 mm
|
200 mm
|
12 ms
|
980 g
|
| ||
|
957600120 Light Grid Array 150mm Analogue/1 PNP 1.5m Range
Art:
DS3-LD-015
Copied
|
150 mm
|
35 x 40 x 226
|
1500 mm
|
600 mm
|
3 ms
|
310 g
|
| ||
|
957600140 Light Grid Array 300mm Analogue/1 PNP 1.5m Range
Art:
DS3-LD-030
Copied
|
300 mm
|
35 x 40 x 376
|
1500 mm
|
600 mm
|
6 ms
|
530 g
|
| ||
|
957600160 Light Grid Array 450mm Analogue/1 PNP 1.5m Range
Art:
DS3-LD-045
Copied
|
450 mm
|
35 x 40 x 526
|
1500 mm
|
600 mm
|
9 ms
|
700 g
|
| ||
|
957600180 Light Grid Array 600mm Analogue/1 PNP 1.5m Range
Art:
DS3-LD-060
Copied
|
600 mm
|
35 x 40 x 676
|
1500 mm
|
600 mm
|
12 ms
|
980 g
|
|
Select a variant in the list
