DATASENSING - DS2 - Area light curtain sensors with both digital and analogue output
The DS2 Curtains are suitable for automatic materials handling. The curtains have both a PNP output and an analogue 0-10V output. Models are available with RS485 port or Ethernet. Settings can be made using Dipswitches on the curtains or via software on a PC.
- Measurement heights from 150 to 2500 mm
- Resolution down to 12 mm
- Distance up to 10 m between the transmitter / receiver
- Programmed via DIP-switch or PC
Selected variant
Technical data
| Absolute measurement accuracy | 6 mm |
|---|---|
| Approvals | CE, cULus |
| Detection height | 147 mm |

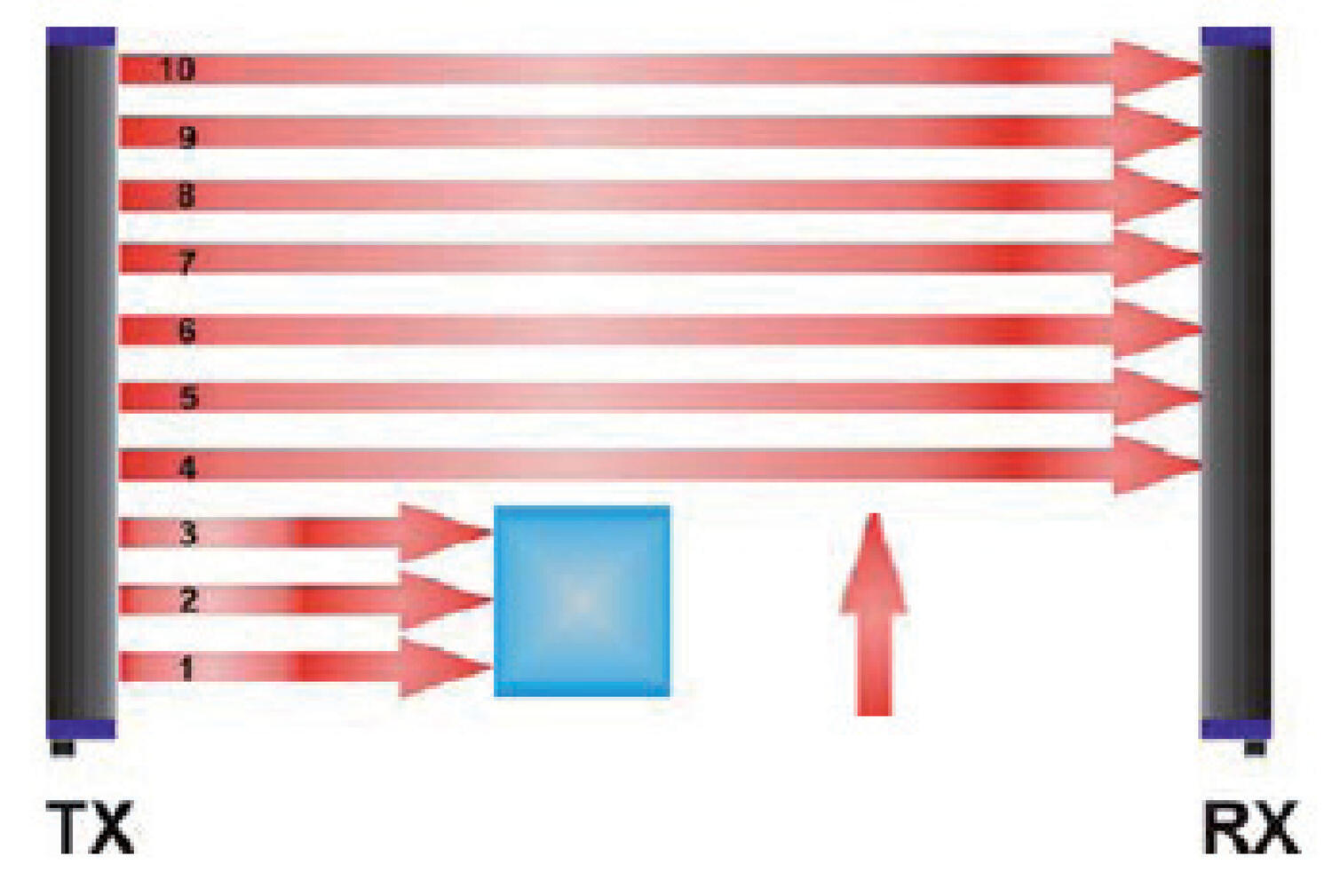

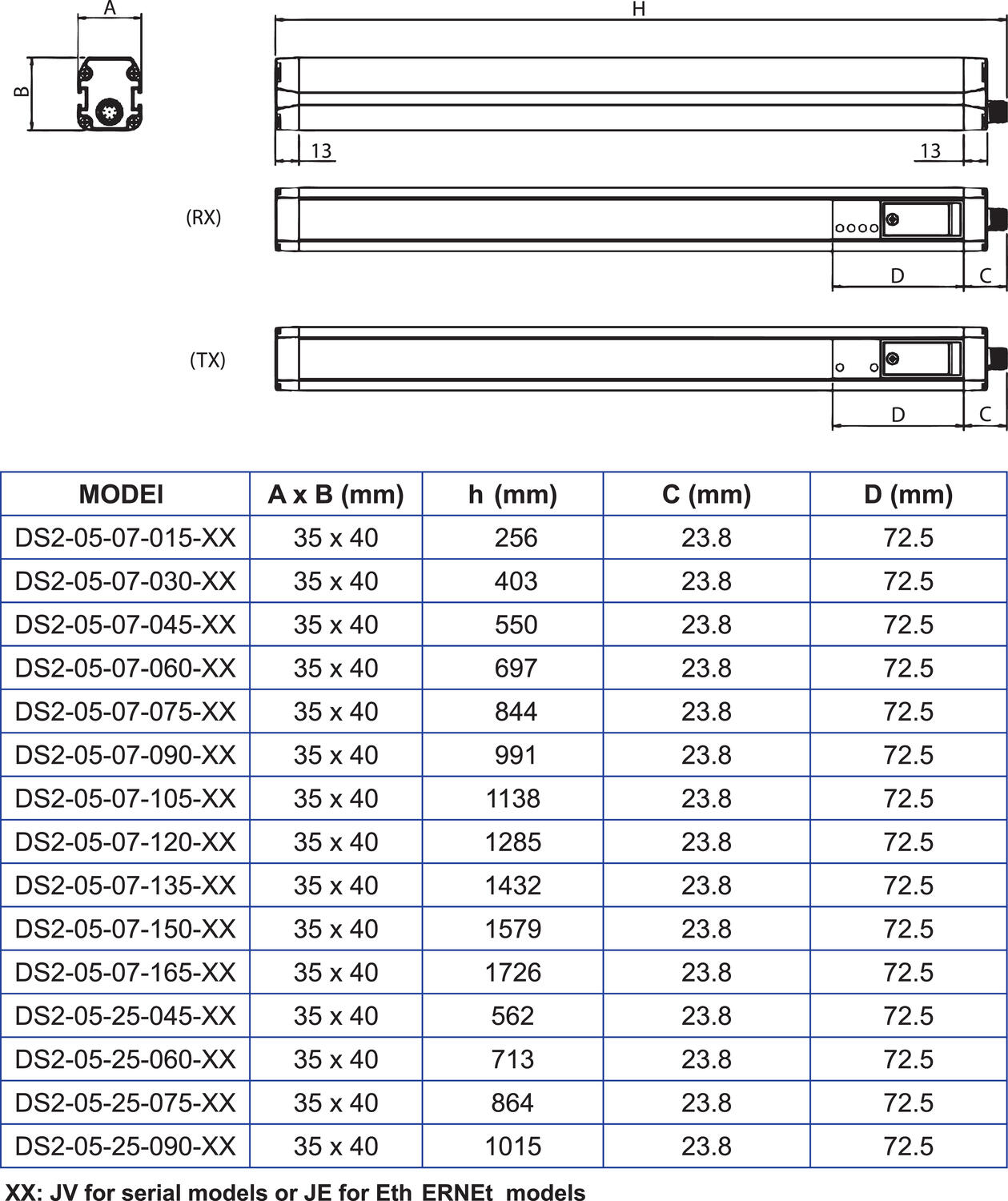

| Dimension (mm) | 35 x 40 x 256 |
| Distance max | 5000 mm |
| Distance min | 300 mm |

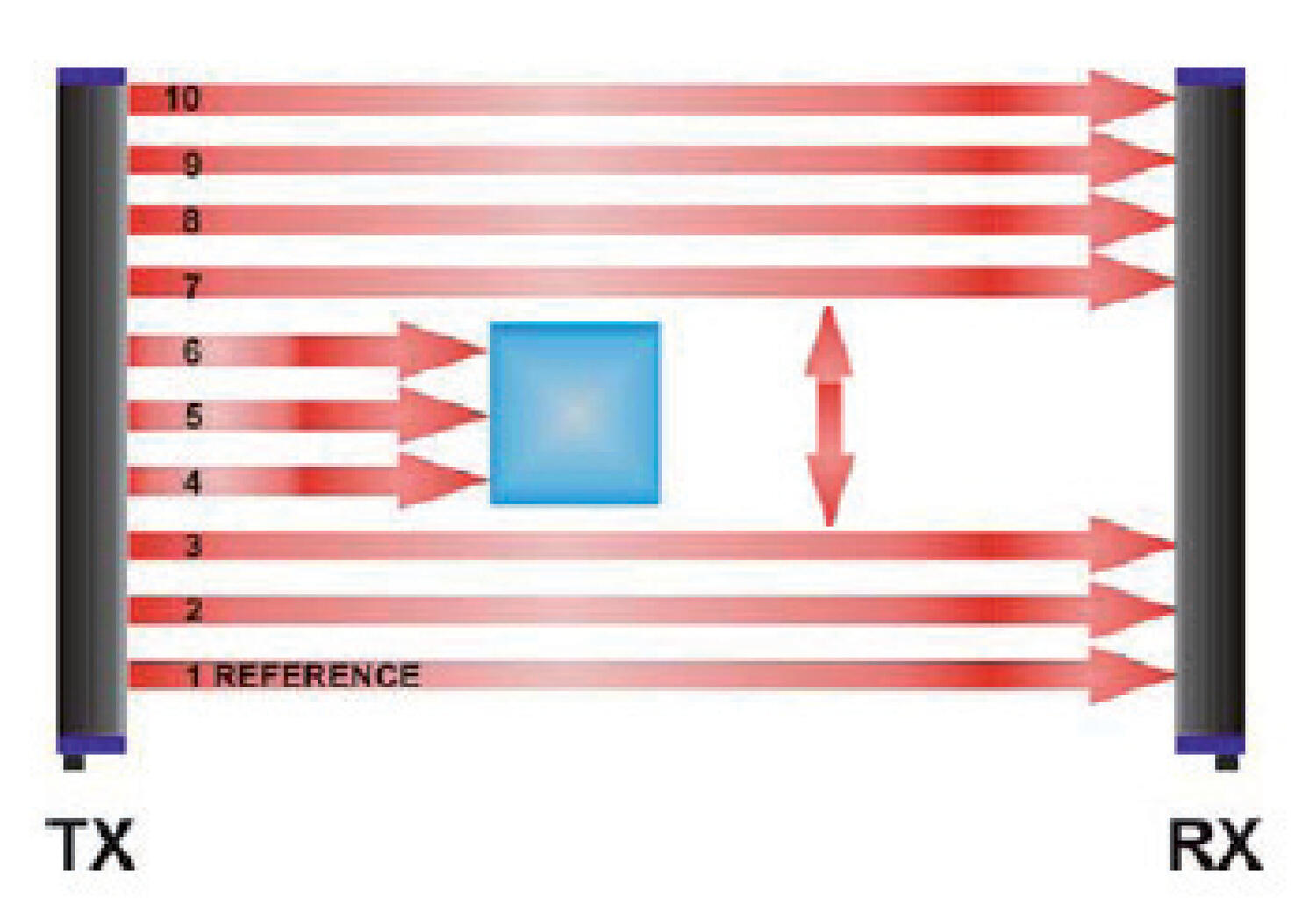

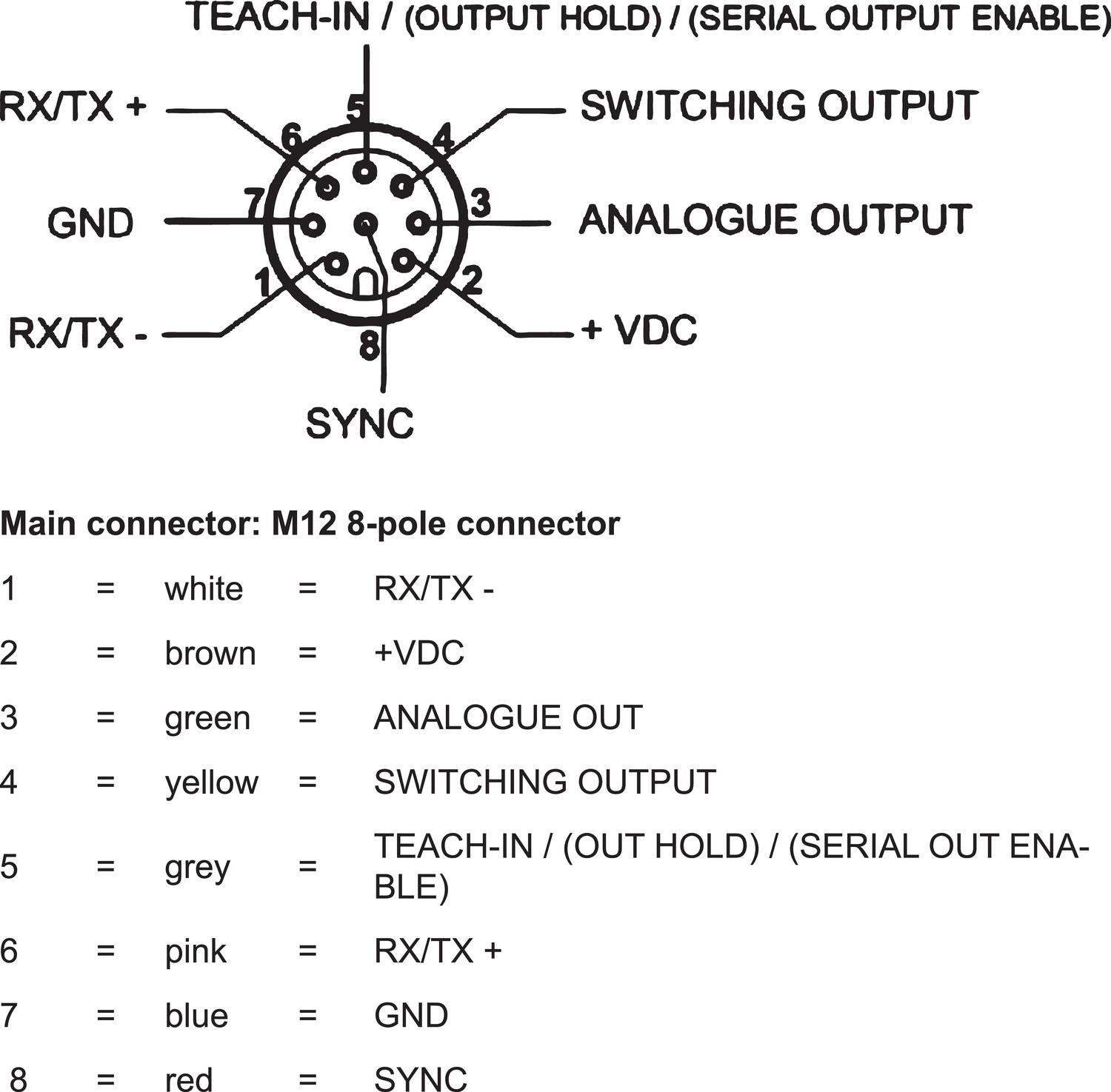

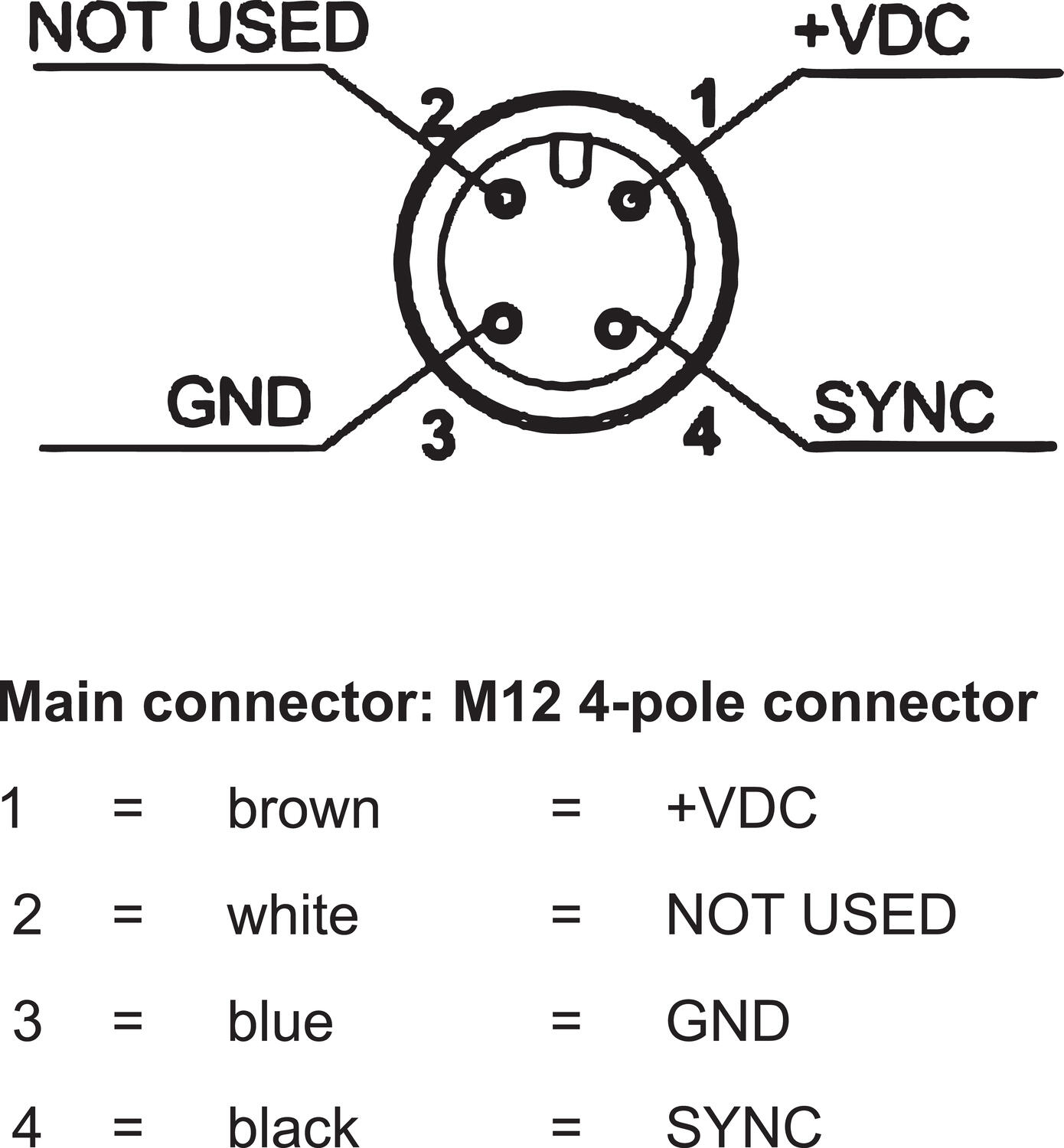

| Electrical connection | M12 8-pin connector, M12 4-pin connector |
| IP class | IP65 |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | IR LED |
| Material of body | Aluminium |
| Output | 0-10V, PNP |
|---|---|
| Output current max | 0.1 A |
| Photocell technology | Curtain photocell |
| Power consumption max | 0.25 A |
| Reaction time | 5 ms |
| Relative measurement accuracy | ± 6 mm |
| Storage temperature max | 70 °C |
| Storage temperature min | -25 °C |
| Supply voltage | 24 V DC |
| Temperature operational max | 50 °C |
| Temperature operational min | 0 °C |
Product description
The DS2 Curtains are suitable for automatic materials handling. The curtains have both a PNP output and an analogue 0-10V output. Models are available with RS485 port or Ethernet. Settings can be made using Dipswitches on the curtains or via software on a PC.
