Molex - I / O Central UltraLock ™ / M12

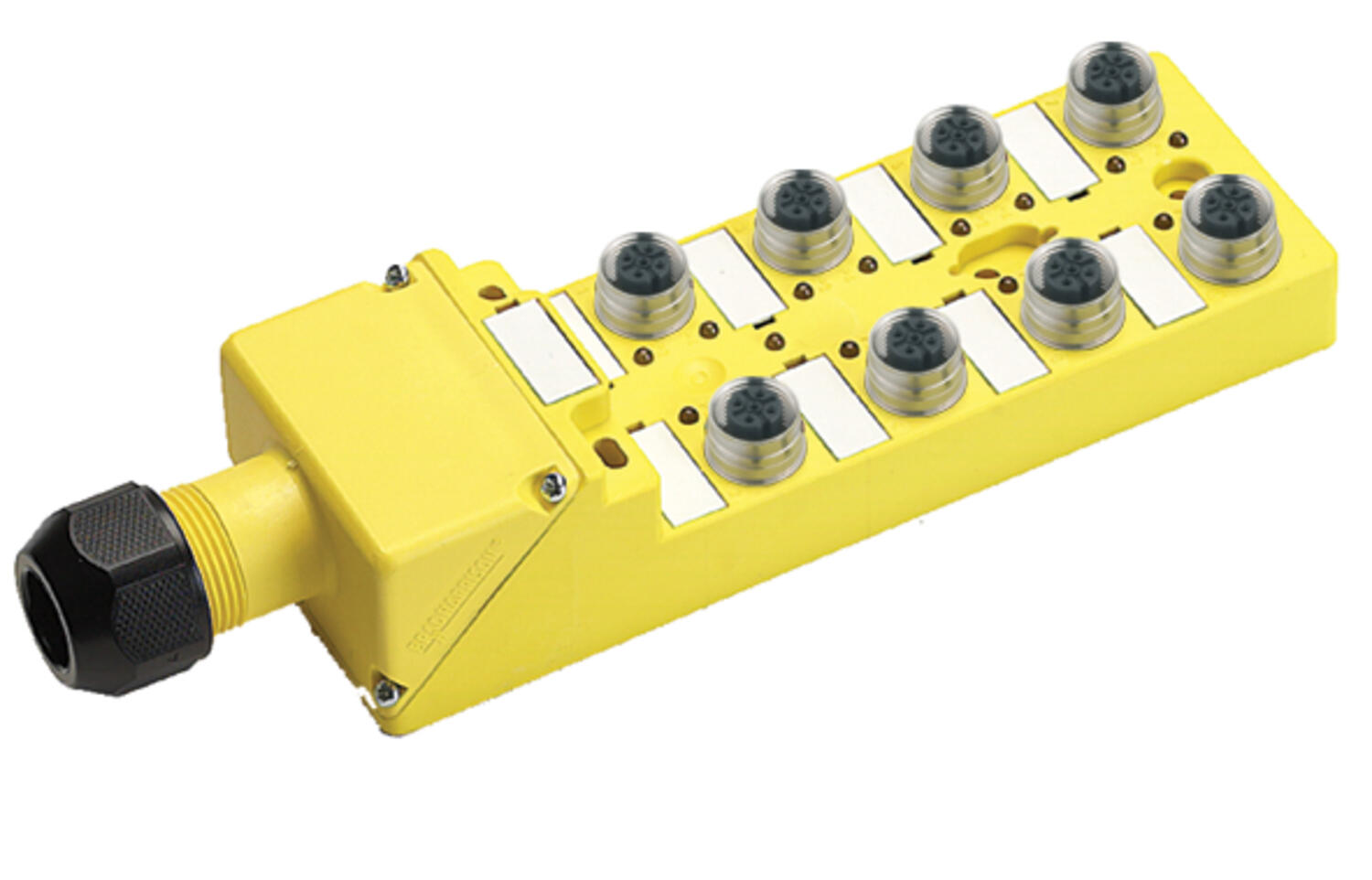

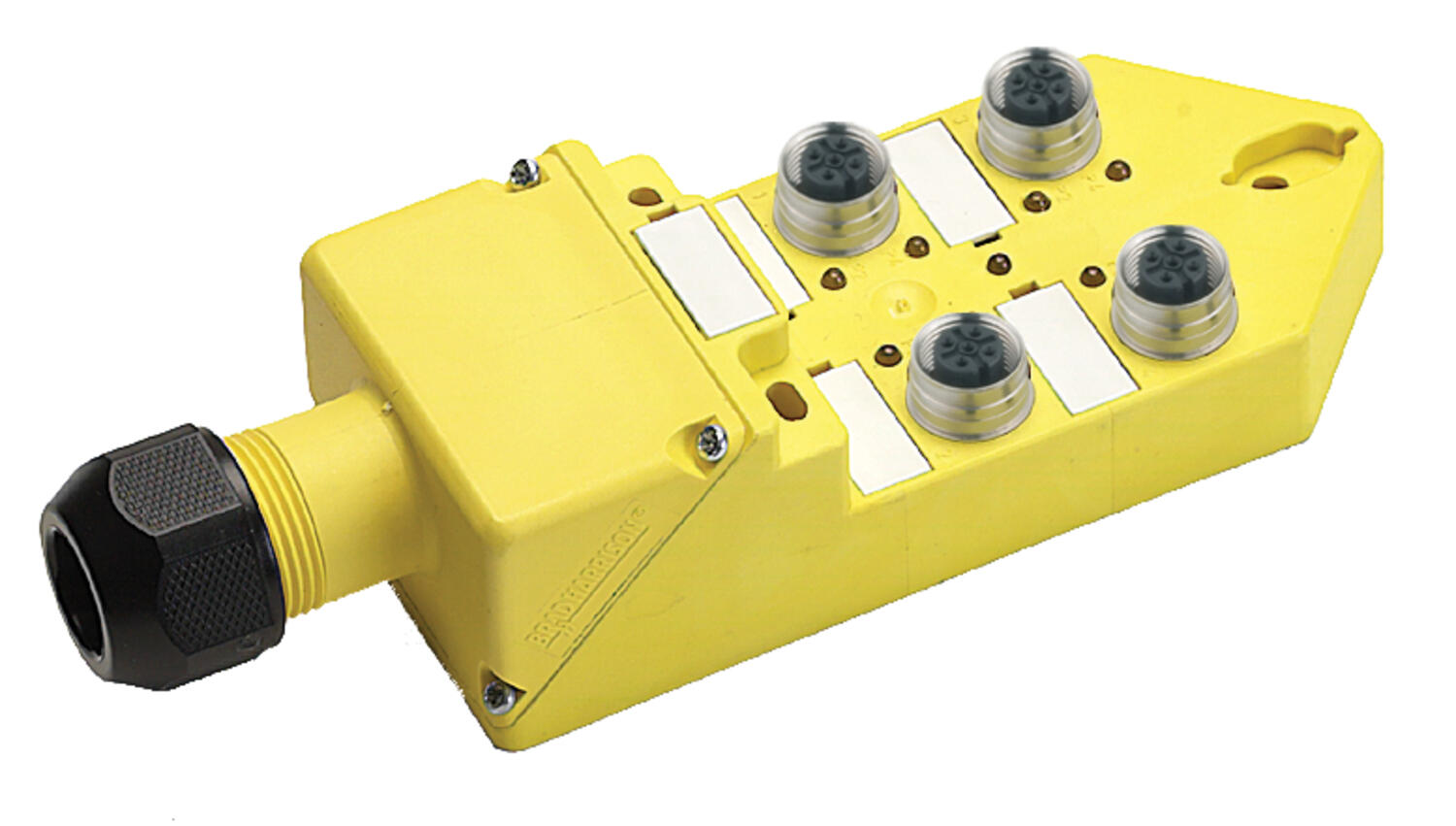

The Brad Harrison splitter box facilitates connection and control of inductive sensors, photoelectric sensors, solenoid valves, pressure switches, limit switches, etc. LED indication and large, clear rating plates permit fast function control and reduce troubleshooting time in the event of stoppages.

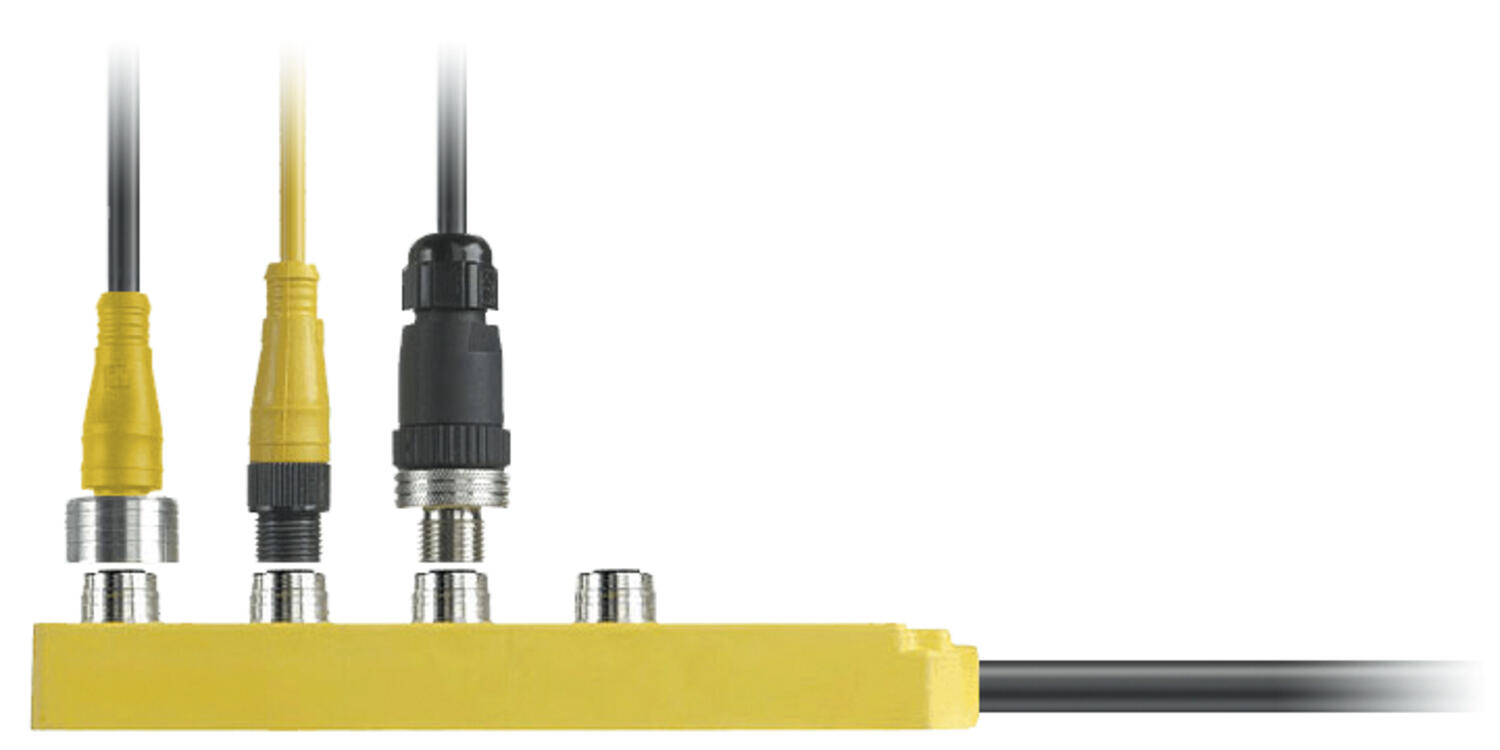

- Quick, easy, secure connection

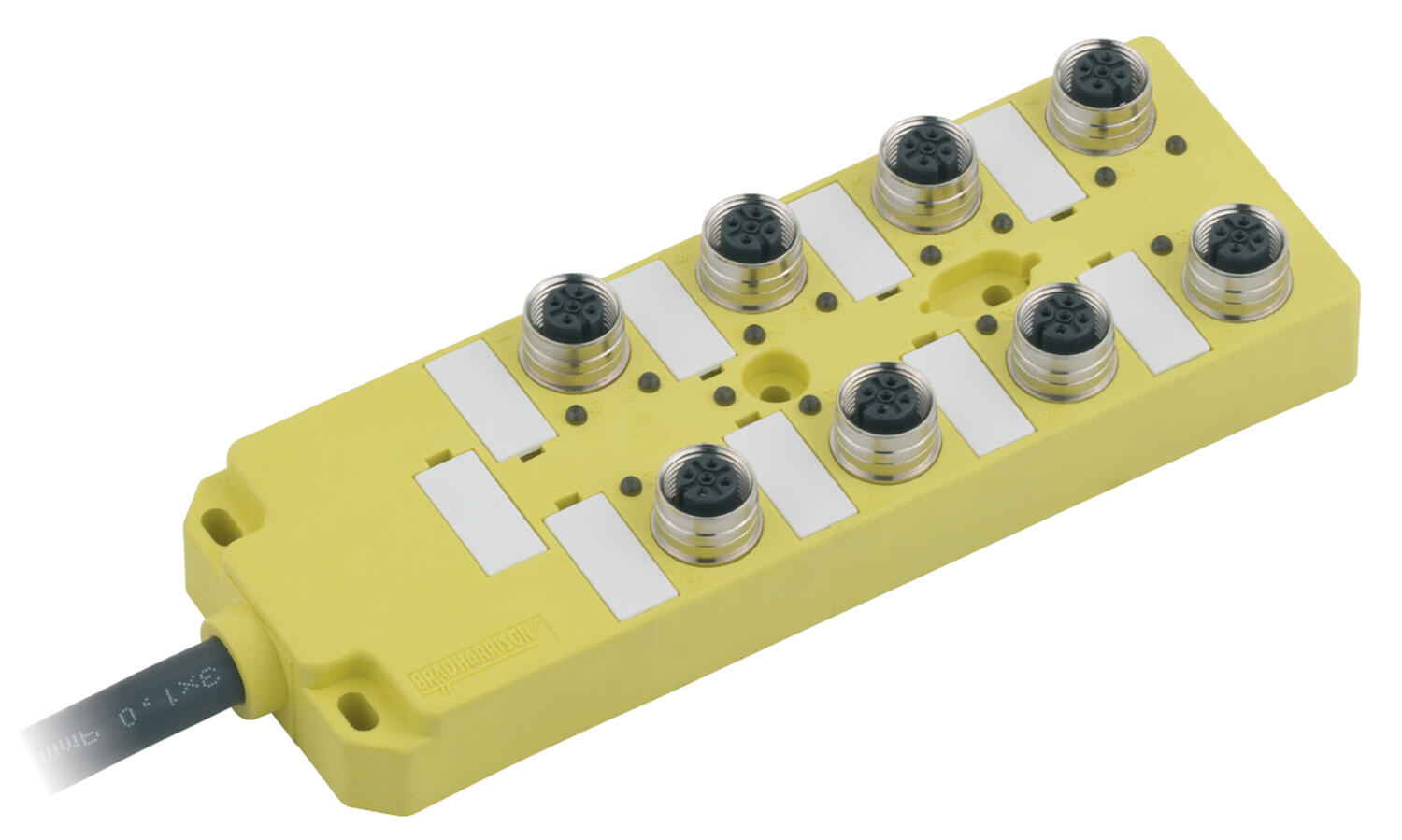

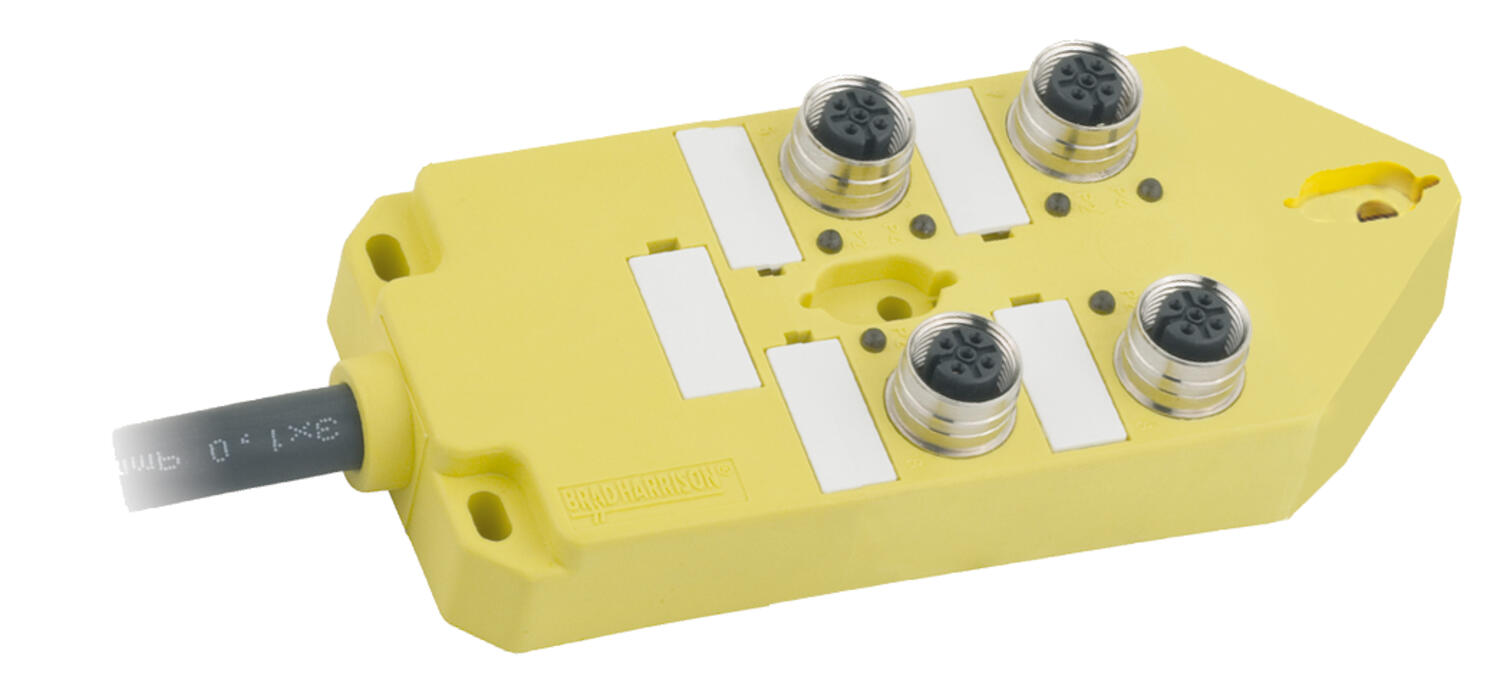

- 4.6 or 8 ports
- Up to 5 M cycles in cable chain
- Enclosure class IP67, IP68, IP69K
Selected variant
Technical data
| Cable length | 10 m |
|---|---|
| Coding | A |
| Colour cable | Black |
| Drag Chain Tested | No |
| Housing Colour | Yellow |
| LED indicator | Yes |
| Material of connection | Metal |
| Number of ports | 4 |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -25 °C |
Product description
The Brad Harrison splitter box facilitates connection and control of inductive sensors, photoelectric sensors, solenoid valves, pressure switches, limit switches, etc. LED indication and large, clear rating plates permit fast function control and reduce troubleshooting time in the event of stoppages.
