TAKEX
Takex IP66 Photoelectric background suppression sensor
- Detects different objects at the “same” distance
- Terminal connection
- Operates in dusty and dirty environments
- IP66
Selected variant
Technical data
| Approvals | CE |
|---|---|
| Distance max | 1000 mm |
| Distance min | 200 mm |
| Electrical connection | Terminal |
| Function | Dark on / Light on |
| IP class | IP66 |
| Light type | IR LED |
| Light/dark switching | Yes |
| Material of body | Polycarbonate |

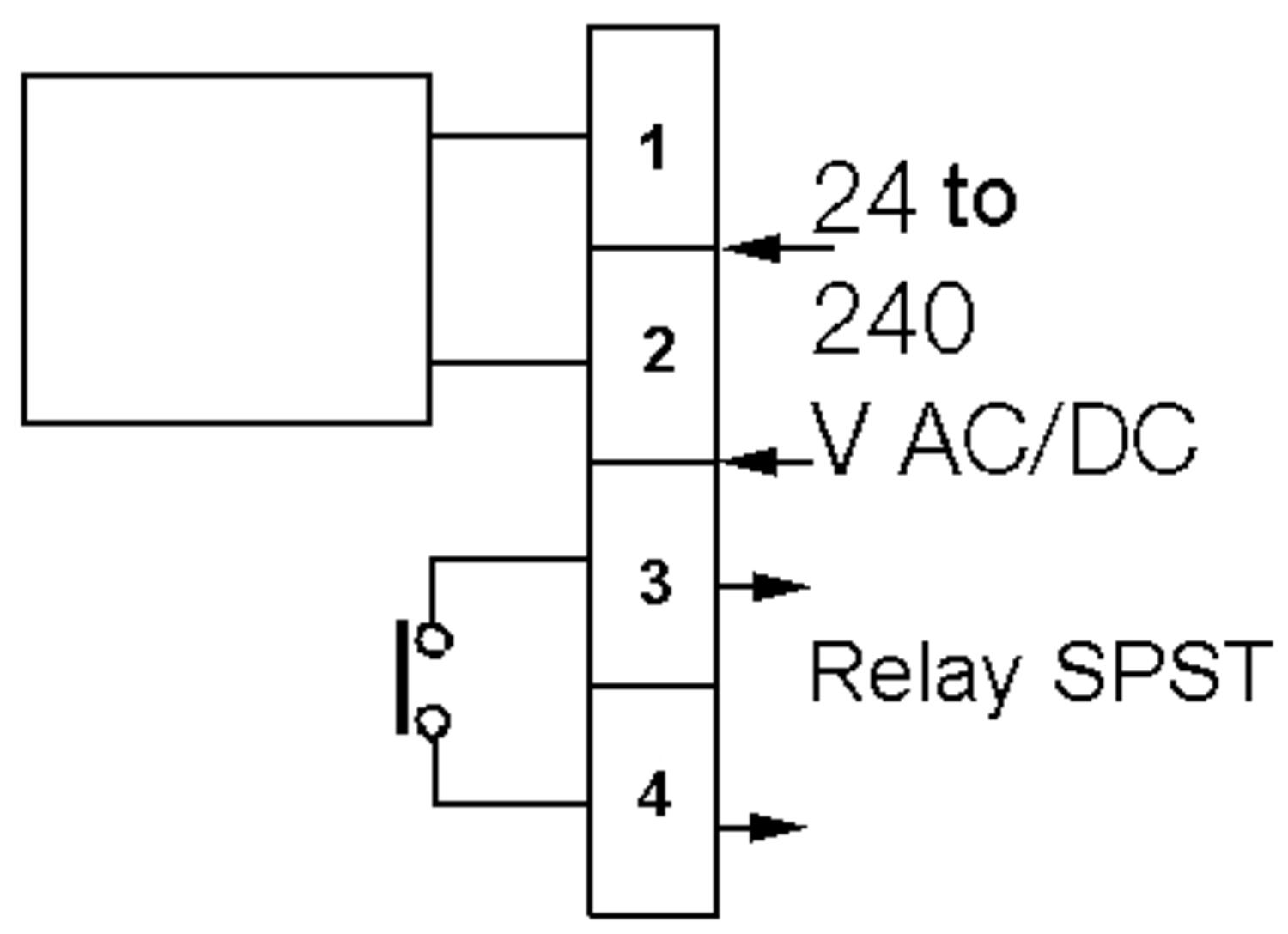

| Output | Relay |
|---|---|
| Photocell technology | Background suppression |
| Reaction time | 20 ms |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage ac/dc max | 240 V |
| Voltage ac/dc min | 24 V |
