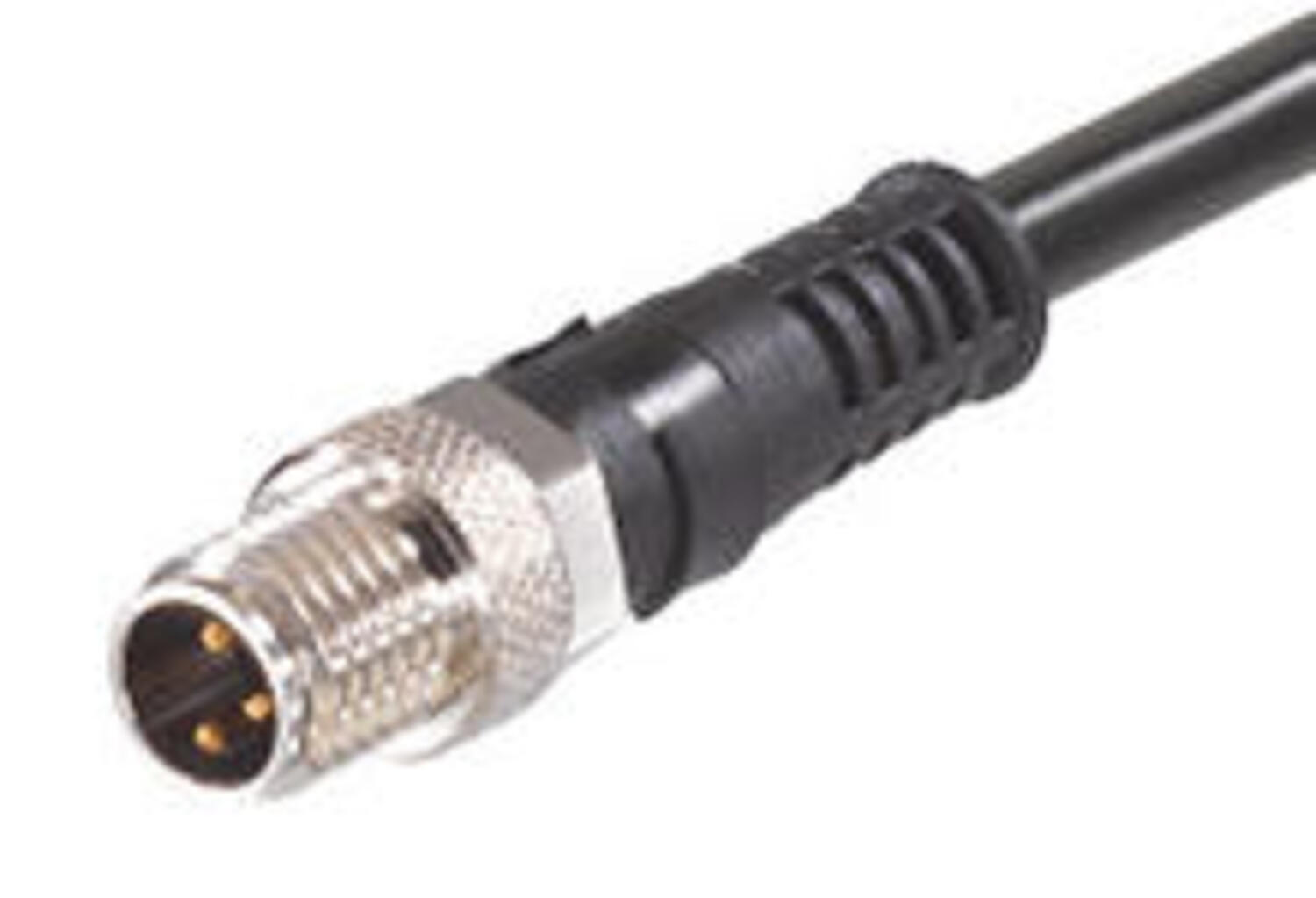

Molex - M8 male connector cables 403006B41M020

Approvals	CSA 22.2, UL
Cable diameter	4,5
Cable length	2 m
Colour cable	Black
Connection	M8
Contact embodiment	Straight male
Current max	3 A
Drag Chain Tested	Yes
Halogen-free	No
Housing Colour	Black
IP class	IP67
LED indicator	No

Approvals

CSA 22.2, UL

Cable diameter

4,5

Cable length

2 m

Colour cable

Black

Connection

Contact embodiment

Straight male

Current max

3 A

Drag Chain Tested

Yes

Halogen-free

Housing Colour

Black

IP class

IP67

LED indicator

Manufacturer part no.	1200868632
Material cable	TPU (WSOR)
Material contacts	Gold plated
Number of poles	3
Rated wire cross section	0.25 mm²
Shielded	No
Spatter resistant	Yes
Temperature range fixed use from	-40 °C
Temperature range flexible use from	-25 °C
Temperature range flexible use to	80 °C
Voltage ac/dc max	60 V

Manufacturer part no.

1200868632

Material cable

TPU (WSOR)

Material contacts

Gold plated

Number of poles

Rated wire cross section

0.25 mm²

Shielded

Spatter resistant

Yes

Temperature range fixed use from

-40 °C

Temperature range flexible use from

-25 °C

Temperature range flexible use to

80 °C

Voltage ac/dc max

60 V

Parts	Approvals	Cable diameter	Cable length	Coding	Contact embodiment	Drag Chain Tested	Halogen-free	Housing Colour	Manufacturer part no.	Material cable	Material contacts	Number of poles	Spatter resistant	Temperature range fixed use from	Temperature range flexible use from	Voltage ac/dc max	Voltage max
M8 cordset str. male 3-pole 2m TPU Art: 403006B41M020 Copied	CSA 22.2, UL	4,5	2 m		Straight male	Yes	No	Black	1200868632	TPU (WSOR)	Gold plated	3	Yes	-40 °C	-25 °C	60 V
Cordset M8-M-90-3p-5m Art: 403007P02M050 Copied		4,7 +0,30/-0,10 mm	5 m		Angled male	No				PUR/PVC	TPU (WSOR)	3		-30 °C	-5 °C		60 V
M8 cordset str. male 3-pole 5m WSOR Art: 403006B41M050 Copied	CSA 22.2, UL	4,5	5 m		Straight male	Yes	No	Black	1200868633	TPU (WSOR)	Gold plated	3	Yes	-40 °C	-25 °C	60 V
M8 cordset str. male 4-pole 2m TPU Art: 404006B41M020 Copied	CSA 22.2, UL	4,5	2 m		Straight male	Yes	No	Black	1200868636	TPU (WSOR)	Gold plated	4	Yes	-40 °C	-25 °C	60 V
M8 cordset str. male 4-pole 5m WSOR Art: 404006B41M050 Copied	CSA 22.2, UL	4,5	5 m		Straight male	Yes	No	Black	1200868637	TPU (WSOR)	Gold plated	4	Yes	-40 °C	-25 °C	60 V
Cordset M8-M-ST-4p-2m Art: 404006P02M020 Copied		5,0 +0,30/-0,10 mm	2 m		Straight male	No				PUR/PVC	TPU (WSOR)	4		-30 °C	-5 °C		30 V
NC-4P-MM-ST-5M-PUR-0.25 Art: 404006P02M050 Copied		5,0 +0,30/-0,10 mm	5 m		Straight male	No				PUR/PVC	TPU (WSOR)	4		-30 °C	-5 °C		30 V
Cordset M8-M-ST-4p-10m Art: 404006P02M100 Copied		5,0 +0,30/-0,10 mm	10 m	A	Straight male	No				PUR/PVC	TPU (WSOR)	4		-30 °C	-5 °C		30 V
Cordset M8 3 Poles, Male 2M PUR Art: 403006P02M020 Copied		4,7 +0,30/-0,10 mm	2 m		Straight male	No				PUR/PVC	TPU (WSOR)	3		-30 °C	-5 °C		60 V
Cordset M8-M-ST-3p-5m Art: 403006P02M050 Copied		4,7 +0,30/-0,10 mm	5 m		Straight male	No				PUR/PVC	TPU (WSOR)	3		-30 °C	-5 °C		60 V
Cordset M8-M-ST-3p-10m Art: 403006P02M100 Copied		4,7 +0,30/-0,10 mm	10 m		Straight male	No				PUR/PVC	TPU (WSOR)	3		-30 °C	-5 °C		60 V

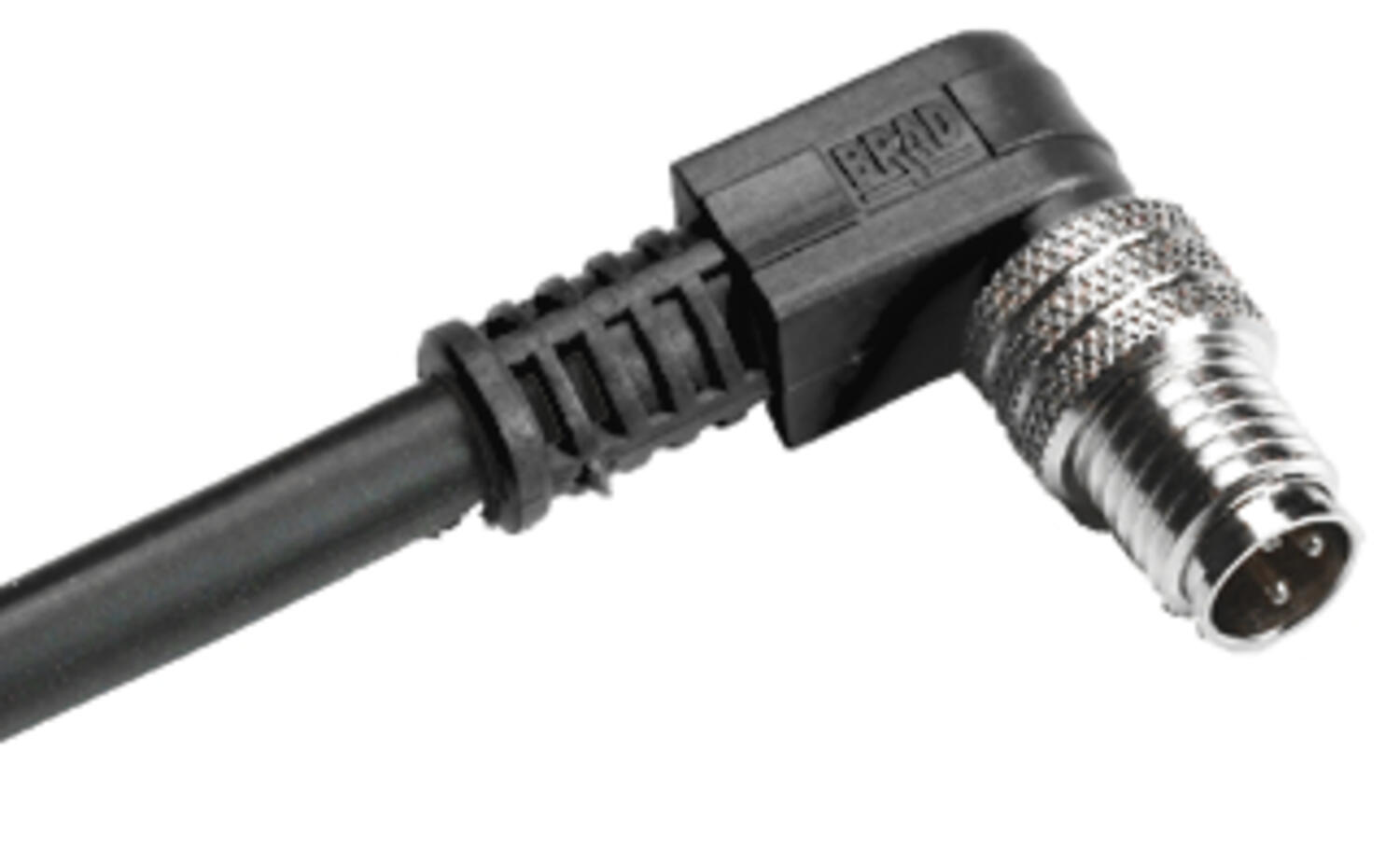

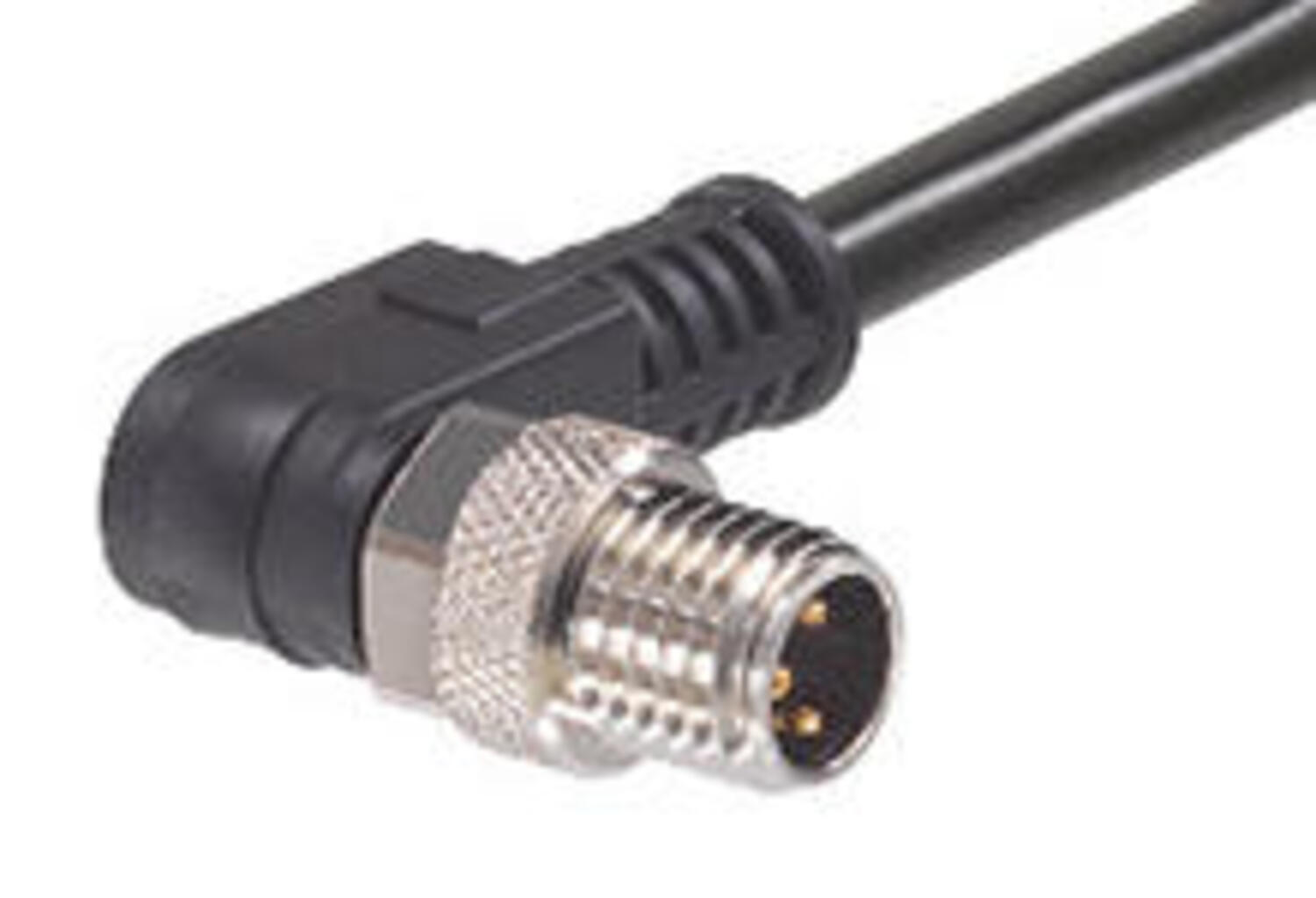

M8 cordset 90º male 3-pole 2m WSOR Art: 403007B41M020 Copied	CSA 22.2, UL	4,5	2 m		Angled male	Yes	No	Black		TPU (WSOR)	Gold plated	3	Yes	-40 °C	-25 °C	60 V
M8 cordset 90º male 3-pole 5m WSOR Art: 403007B41M050 Copied	CSA 22.2, UL	4,5	5 m		Angled male	Yes	No	Black	120086-8644	TPU (WSOR)	Gold plated	3	Yes	-40 °C	-25 °C	60 V
M8 cordset 90º male 3-pole 10m WSOR Art: 403007B41M100 Copied	CSA 22.2, UL	4,5	10 m		Angled male	Yes	No	Black	120086-8644	TPU (WSOR)	Gold plated	3	Yes	-40 °C	-25 °C	60 V
M8 cordset 90º male 4-pole 2m PUR Art: 404007B41M020 Copied	CSA 22.2, UL	4,5	2 m		Angled male	Yes	No	Black		TPU (WSOR)	Gold plated	4	Yes	-40 °C	-25 °C	60 V
Cordset M8-M-90-4p-2m Art: 404007P02M020 Copied		5,0 +0,30/-0,10 mm	2 m		Angled male	No				PUR/PVC	TPU (WSOR)	4		-30 °C	-5 °C		30 V
Cordset M8-M-90-4p-5m Art: 404007P02M050 Copied		5,0 +0,30/-0,10 mm	5 m		Angled male	No				PUR/PVC	TPU (WSOR)	4		-30 °C	-5 °C		30 V
Cordset M8-M-90-3p-2m Art: 403007P02M020 Copied		4,7 +0,30/-0,10 mm	2 m		Angled male	No				PUR/PVC	TPU (WSOR)	3		-30 °C	-5 °C		60 V
