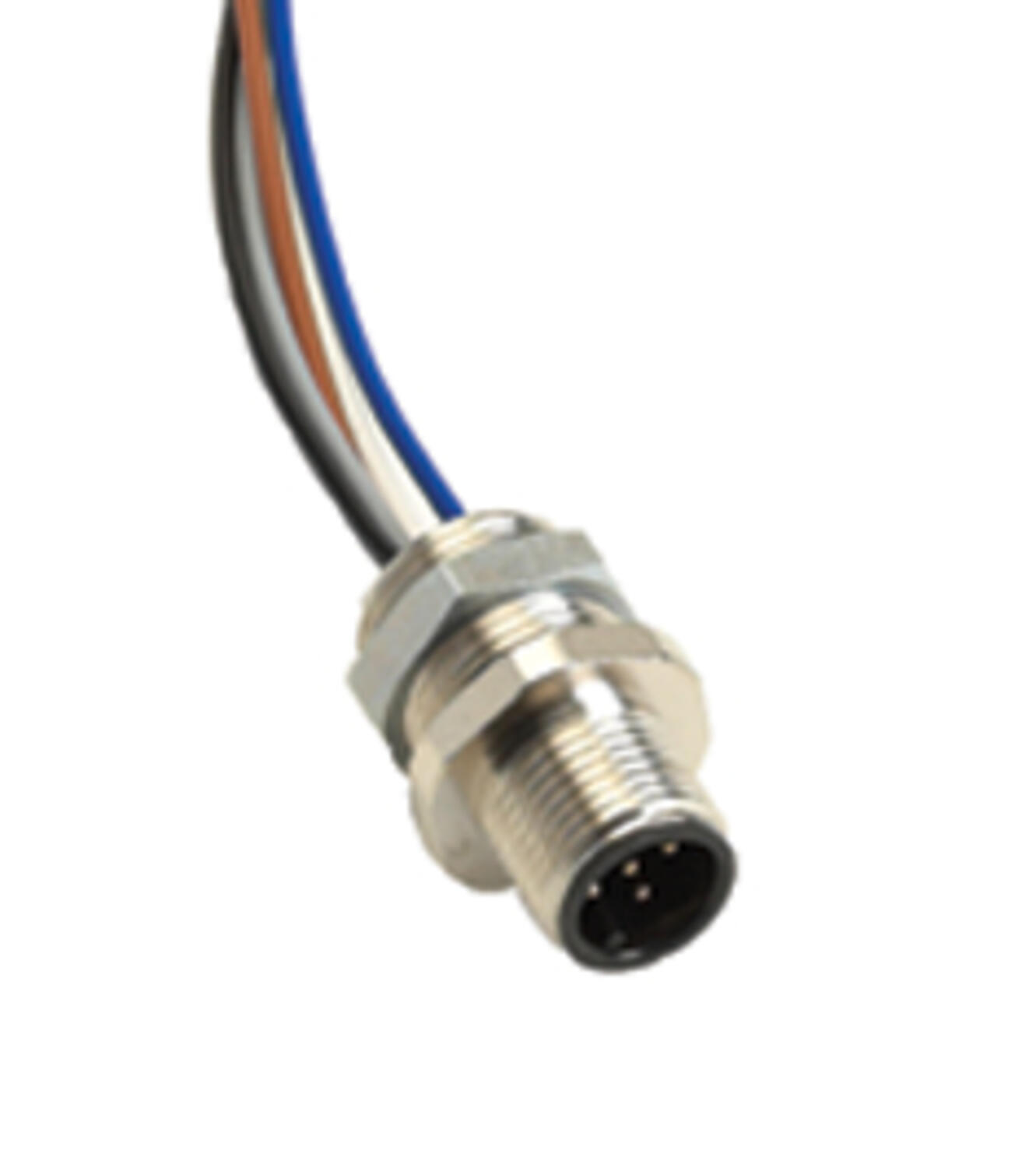

Selected variant
Technical data
| Coding | A |
|---|---|
| Connection | M12 |
| Contact embodiment | Male |
| Current max | 4 A |
| IP class | IP67 |
| Manufacturer part no. | 1200110017 |
| Material of body | Brass |
| Mounting | Front flange |
| Number of poles | 4 |
| Panel mounting | M14 |
|---|---|
| Rated wire cross section | 0.34 mm² |
| Temperature operational max | 80 °C |
| Temperature operational min | -20 °C |
| Wire length | 300 mm |
| Voltage ac max | 250 V |
| Voltage dc max | 250 V |
