| Distance max | 400 mm |
|---|---|
| Distance min | 30 mm |
| Electrical connection | M12 5-pole connector |
| Housing | M18 |
| IP class | IP67 |
| LED indication | Yes |
| Material of body | PBT |
| Operating frequency | 15 Hz |
| Output | 2x PNP |
|---|---|
| Output current max | 0.5 A |
| Resolution | 0,125 mm |
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 12 V DC |
| Temperature operational max | 70 °C |
| Temperature operational min | -20 °C |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Distance max | Distance min | Electrical connection | Housing | IP class | Material of body | Operating frequency | Output | Output current max | Resolution | Supply voltage dc min | Temperature operational min | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ultrasonic sensor, M18, 400mm, 2xPNP, connector
Art:
P43-40-M18-PBT2PC
Copied
|
400 mm
|
30 mm
|
M12 5-pole connector
|
M18
|
IP67
|
PBT
|
15 Hz
|
2x PNP
|
0.5 A
|
0,125 mm
|
12 V DC
|
-20 °C
|
| ||
|
Ultrasonic sensor, M18, 500mm, 2xPNP, connector
Art:
P43-50-M18-PBT2PC
Copied
|
500 mm
|
60 mm
|
M12 5-pole connector
|
M18
|
IP67
|
PBT
|
15 Hz
|
2x PNP
|
0.5 A
|
0,25 mm
|
12 V DC
|
-20 °C
|
| ||
|
Ultrasonic sensor, M18, 800mm, 2xPNP, connector
Art:
P43-80-M18-PBT2PC
Copied
|
800 mm
|
100 mm
|
M12 5-pole connector
|
M18
|
IP67
|
PBT
|
15 Hz
|
2x PNP
|
0.5 A
|
1 mm
|
12 V DC
|
-20 °C
|
| ||
|
Ultrasonic sensor, M18, 1,6 m, 2xPNP, connector
Art:
P43-160-M18-PBT2PC
Copied
|
1600 mm
|
80 mm
|
M12 5-pole connector
|
M18
|
IP67
|
PBT
|
15 Hz
|
2x PNP
|
0.5 A
|
1 mm
|
12 V DC
|
-20 °C
|
| ||
|
Ultrasonic sensor, M18, 2 m, 2xPNP, connector
Art:
P43-200-M18-PBT2PC
Copied
|
2000 mm
|
200 mm
|
M12 5-pole connector
|
M18
|
IP67
|
PBT
|
15 Hz
|
2x PNP
|
0.5 A
|
1 mm
|
12 V DC
|
-20 °C
|
| ||
|
Ultrasonic sensor, M30, 3,5m, 2xPNP, connector
Art:
P43-350-M30-PBT2PC
Copied
|
3500 mm
|
300 mm
|
M12 5-pole connector
|
M30
|
IP67
|
PBT
|
15 Hz
|
2x PNP
|
0.5 A
|
1 mm
|
12 V DC
|
-20 °C
|
| ||

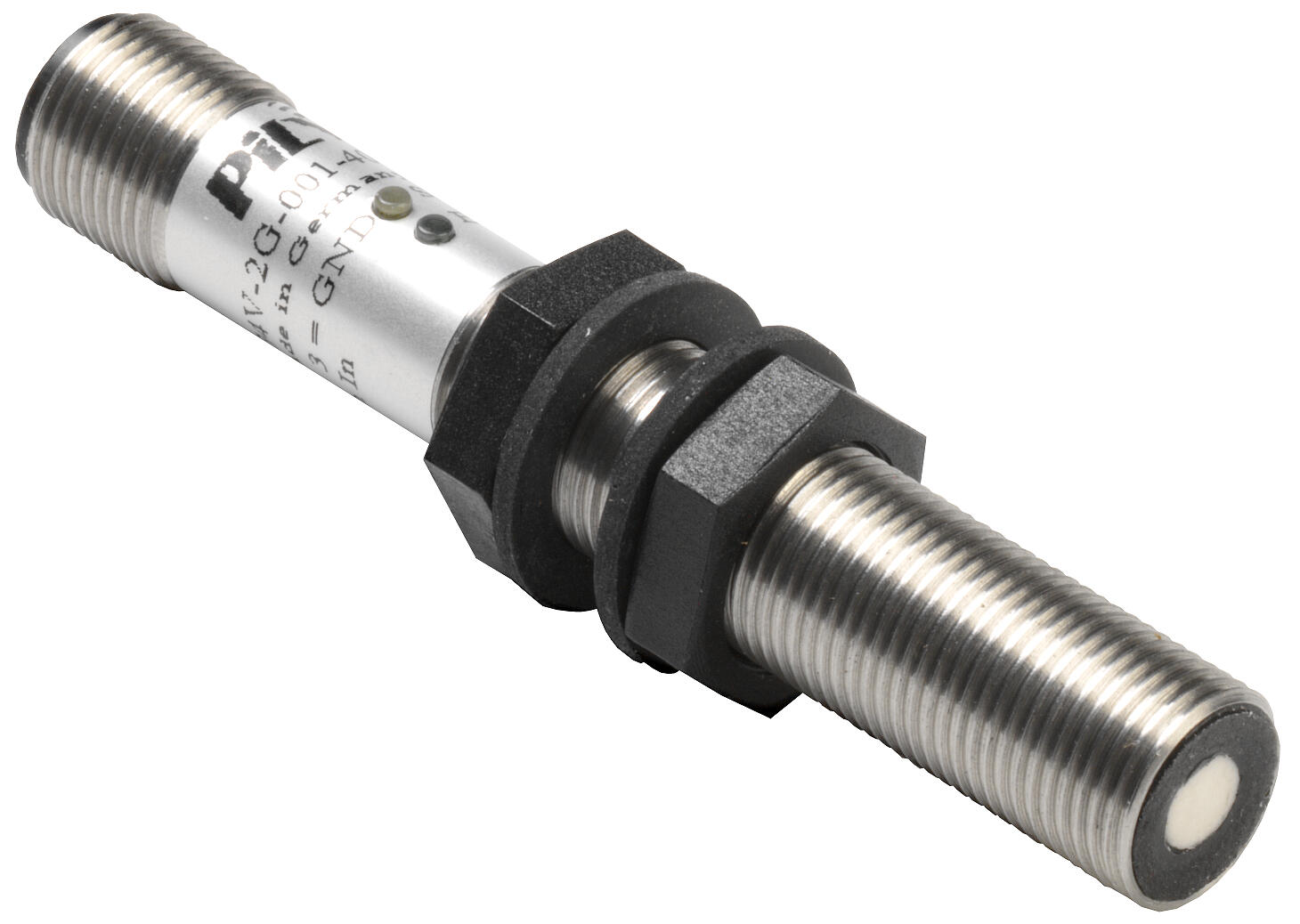

Ultrasonic sensor, M12, 250mm, PNP, connector
Art:
P43-25-M12-STPCM12
Copied
|
200 mm
|
25 mm
|
M12 4-pin connector
|
M12
|
IP65
|
Stainless steel
|
25 Hz
|
1x PNP
|
|
0,25 mm
|
10 V DC
|
-20 °C
|
| ||
Ultrasonic sensor, 40x26x12mm, 250mm, PNP, connector
Art:
P43-25-R40-PBTPCM8
Copied
|
250 mm
|
24 mm
|
M8 4-pole connector
|
40x26x12mm
|
IP67
|
PBT
|
25 Hz
|
1x PNP
|
0.5 A
|
0,25 mm
|
10 V DC
|
-20 °C
|
| ||
Ultrasonic sensor, 6m, 2xPNP, connector
Art:
P43-600-Q50-PBT2PC
Copied
|
6000 mm
|
600 mm
|
M12 5-pole connector
|
Cylindrical plastic housing
|
IP65
|
PBT
|
1 Hz
|
2x PNP
|
0.5 A
|
1 mm
|
12 V DC
|
-15 °C
|
|
Select a variant in the list
