TAKEX
A very compact, background suppression photoelectric sensor with a long detection distance. Precise and simple sensitivity setting with a 5-turn potentiometer with scale. DLS100R works with red visible light. A clear red light point can be seen at a distance of up to 1 m. For uses, the red visible light is very useful for adjustment and operation. A good choice for difficult direct detecting, e.g. the colour, surface or shape of objects varies. Behind the object is a “background” which must not be detected. This operates satisfactorily in dusty and dirty environments.
| Approvals | CE |
|---|---|
| Distance max | 1000 mm |
| Distance min | 100 mm |
| Electrical connection | Embedded 2m cable |
| Function | Dark on / Light on |
| IP class | IP67 |
| Light type | Red LED |
| Light/dark switching | Yes |

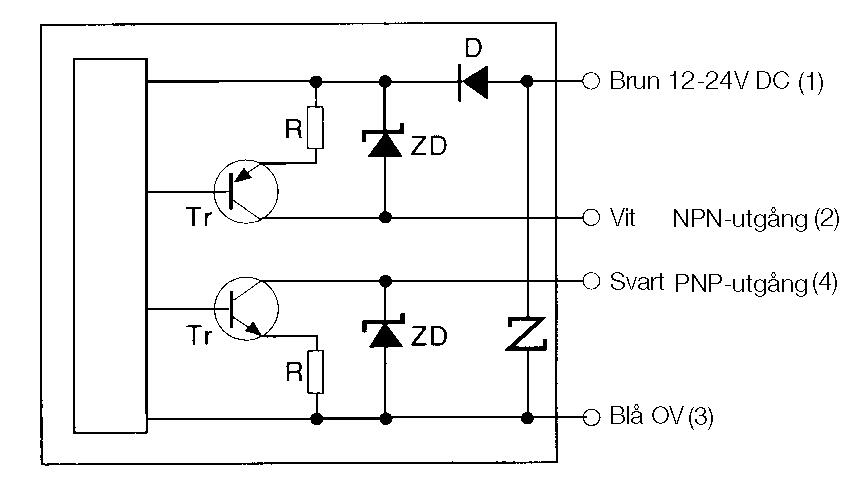

| Output | NPN, PNP |
| Output current max | 0.1 A |
|---|---|
| Photocell technology | Background suppression |
| Power consumption max | 0.03 A |
| Reaction time | 2 ms |
| Temperature operational max | 55 °C |
| Temperature operational min | -25 °C |
| Voltage dc max | 24 V |
| Voltage dc min | 12 V |
A very compact, background suppression photoelectric sensor with a long detection distance. Precise and simple sensitivity setting with a 5-turn potentiometer with scale. DLS100R works with red visible light. A clear red light point can be seen at a distance of up to 1 m. For uses, the red visible light is very useful for adjustment and operation. A good choice for difficult direct detecting, e.g. the colour, surface or shape of objects varies. Behind the object is a “background” which must not be detected. This operates satisfactorily in dusty and dirty environments.
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Distance max | Light type | Price | ||
|---|---|---|---|---|---|
Photosensor diff. BGS 0,1-1m PNP/NPN
Art:
DLS100RE
Copied
|
1000 mm
|
Red LED
|
|
||
|
PHOTOSENSOR .2-2M RANGENPN/PNP
Art:
DLS202E
Copied
|
2000 mm
|
IR LED
|
|
Select a variant in the list
