DATASENSING

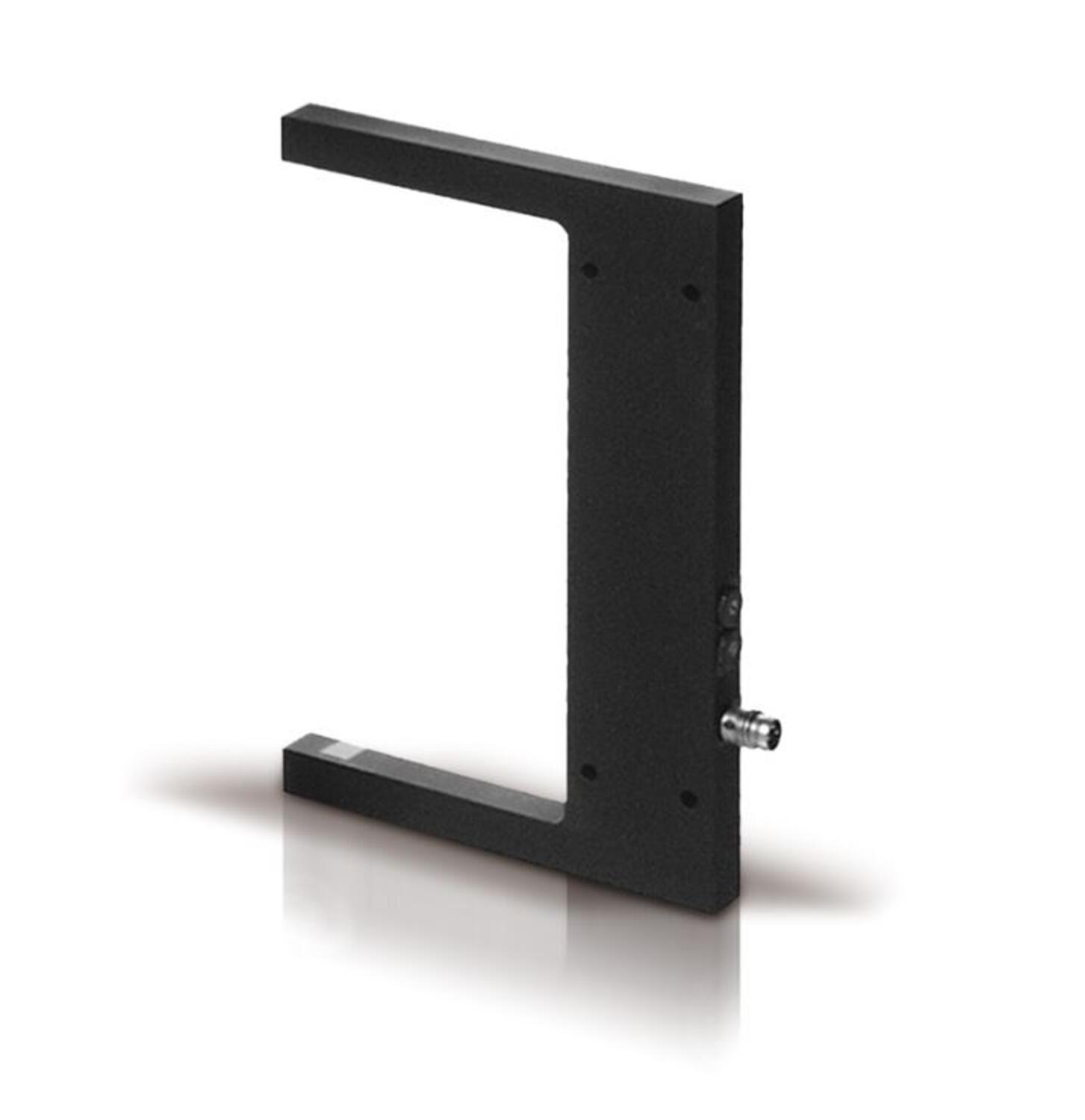

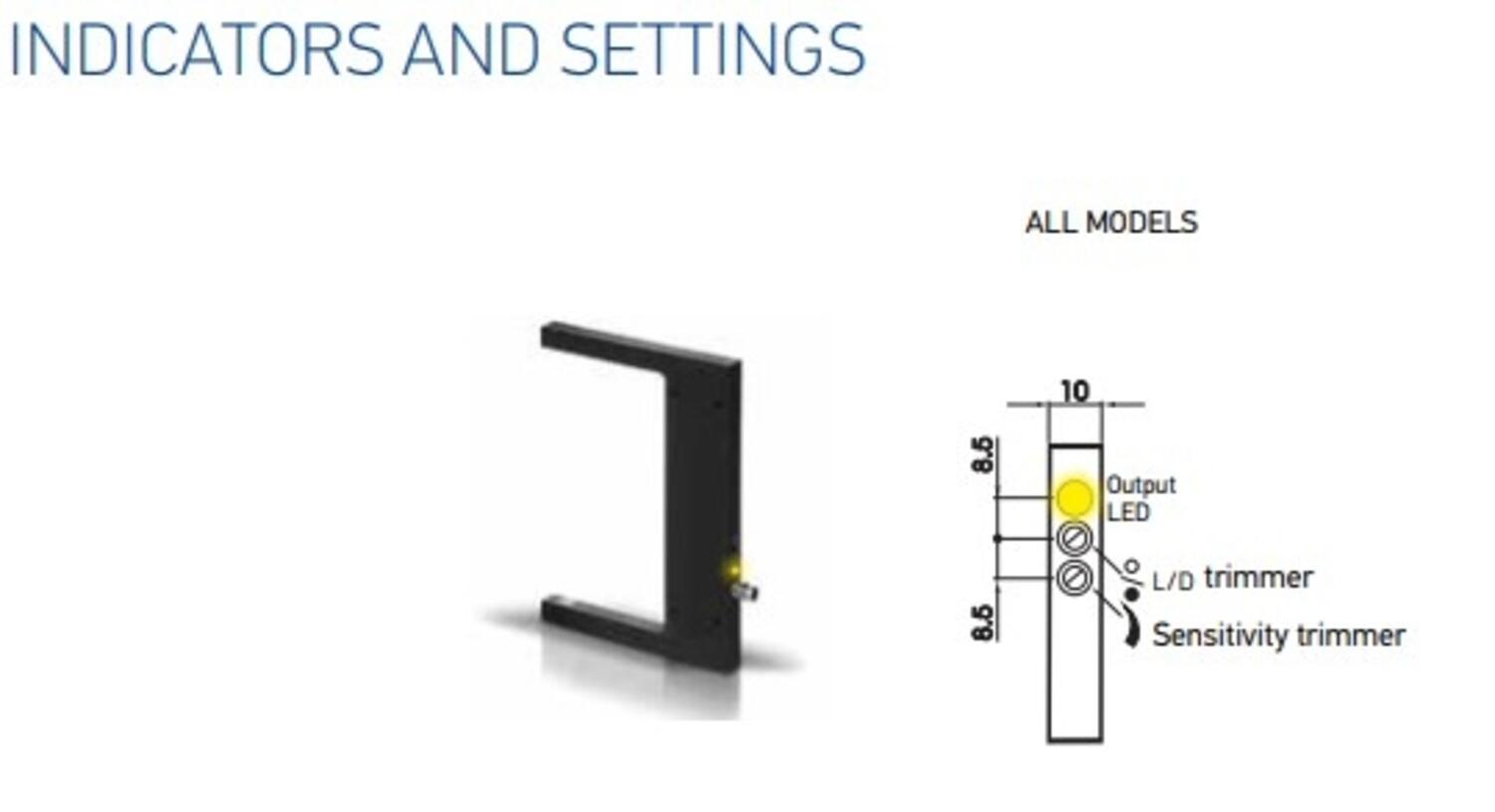

SRF series offers versions with 30, 50, 80 and 120mm fork for object detection, LED or Laser light emission, sensitivity trimmer, PNP or NPN output, Light/Dark mode selection.
| Approvals | CE, UL |
|---|---|

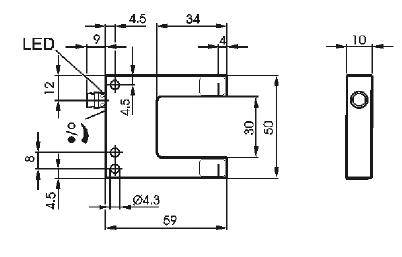

| Dimension (mm) | 10 x 50 x 59 |

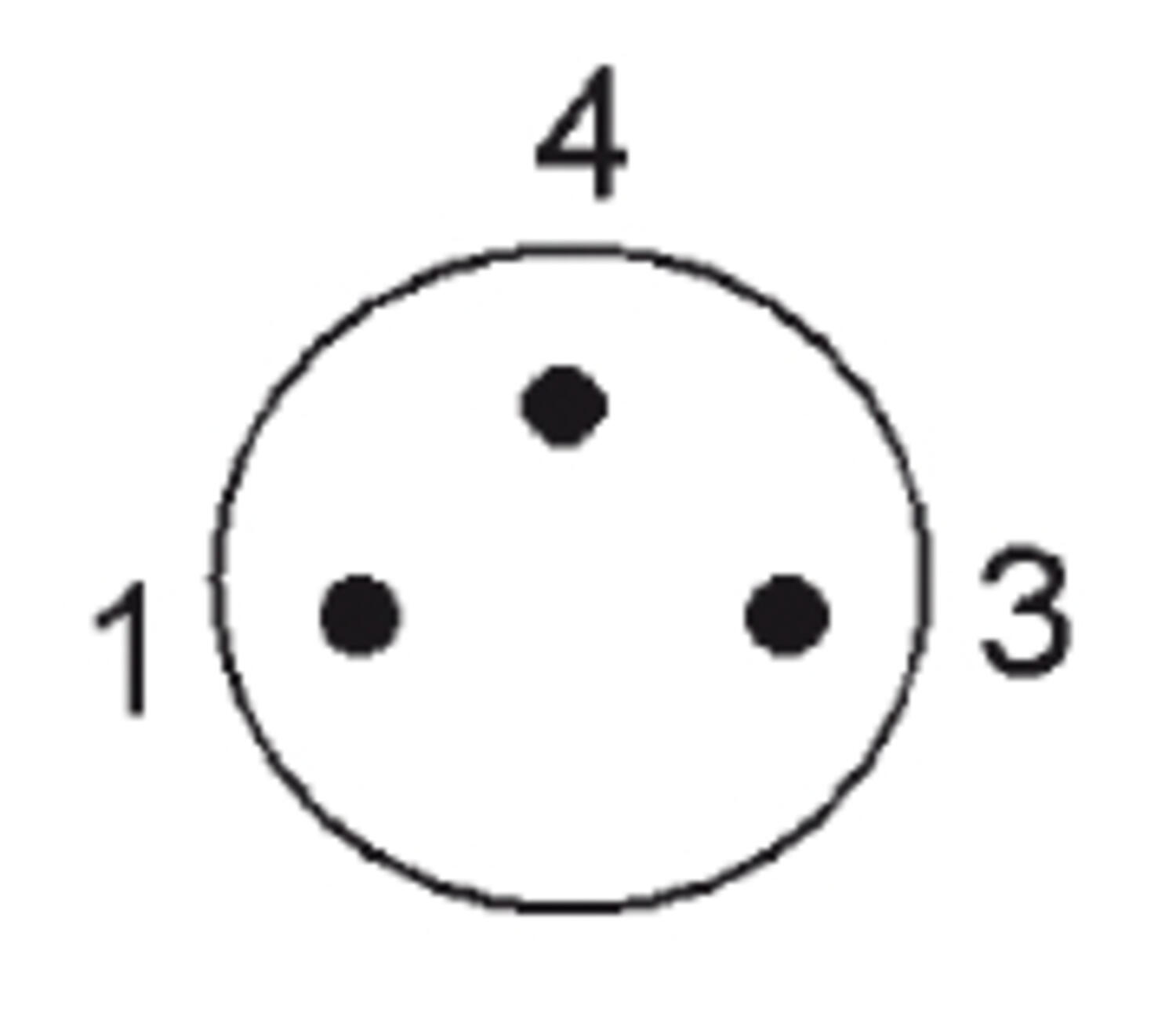

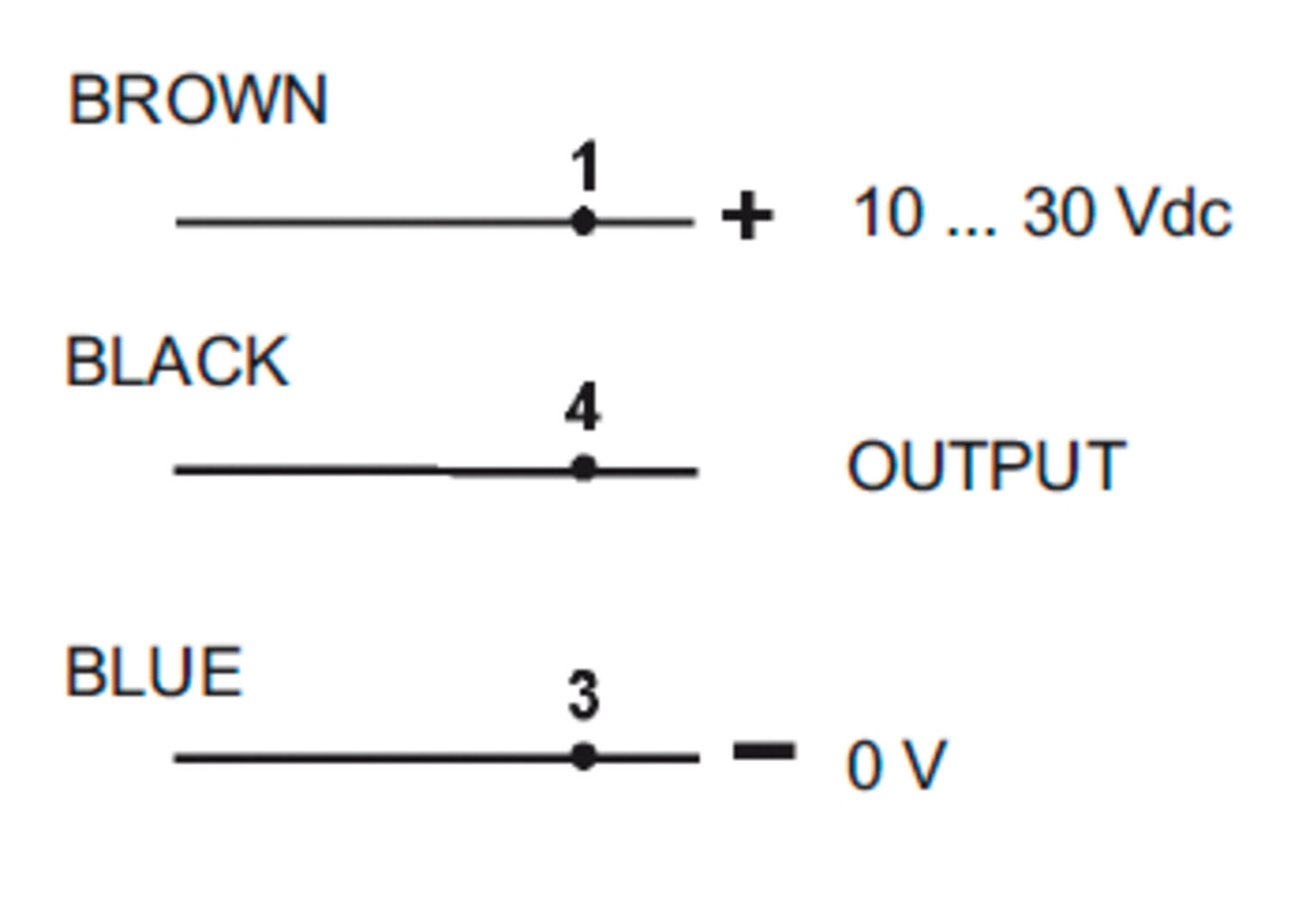

| Electrical connection | M8 3-pole connector |
| Fork depth | 34 mm |
| Fork gap | 30 mm |
| Frequency | 1500 Hz |
| Function | Dark on / Light on |
| IP class | IP65 |
| LED indicator | Yes |
| Lens material | Glass |
| Light type | Red LED |
| Material of body | Aluminium |
| Minimum detectable item | 0.3 mm |
| Output | PNP |
|---|---|
| Output current max | 0.2 A |
| Photocell technology | Fork |
| Power consumption max | 0.035 A |
| Reaction time | 0.333 ms |
| Storage temperature max | 70 °C |
| Storage temperature min | -20 °C |
| Supply voltage | 10-30 V DC |
| Temperature operational max | 60 °C |
| Temperature operational min | -10 °C |
| Type of light | LED |
| Weight | 36 g |
SRF series offers versions with 30, 50, 80 and 120mm fork for object detection, LED or Laser light emission, sensitivity trimmer, PNP or NPN output, Light/Dark mode selection.
We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.
Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.
Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Dimension (mm) | Fork depth | Fork gap | Frequency | Light type | Minimum detectable item | Output | Power consumption max | Reaction time | Type of light | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fork Sensor, 30mm, PNP, M8 connector
Art:
SRF-30-5-P
Copied
|
10 x 50 x 59
|
34 mm
|
30 mm
|
1500 Hz
|
Red LED
|
0.3 mm
|
PNP
|
0.035 A
|
0.333 ms
|
LED
|
36 g
|
|
||
|
Fork Sensor, 30mm, NPN, M8 connector
Art:
SRF-30-5-N
Copied
|
10 x 50 x 59
|
34 mm
|
30 mm
|
1500 Hz
|
Red LED
|
0.3 mm
|
NPN
|
0.035 A
|
0.333 ms
|
LED
|
36 g
|
|
||
|
Fork Sensor, 50mm, PNP, M8 connector
Art:
SRF-50-5-P
Copied
|
10 x 70 x 79
|
54 mm
|
50 mm
|
1500 Hz
|
Red LED
|
0.5 mm
|
PNP
|
0.035 A
|
0.333 ms
|
LED
|
54 g
|
|
||
|
Fork Sensor, 50mm, NPN, M8 connector
Art:
SRF-50-5-N
Copied
|
10 x 70 x 79
|
54 mm
|
50 mm
|
1500 Hz
|
Red LED
|
0.5 mm
|
NPN
|
0.035 A
|
0.333 ms
|
LED
|
54 g
|
|
||
|
Fork Sensor, 80mm, PNP, M8 connector
Art:
SRF-80-5-P
Copied
|
10 x 100 x 79
|
54 mm
|
80 mm
|
1500 Hz
|
Red LED
|
0.5 mm
|
PNP
|
0.035 A
|
0.333 ms
|
LED
|
77 g
|
|
||
|
Fork Sensor, 80mm, NPN, M8-connector
Art:
SRF-80-5-N
Copied
|
10 x 100 x 79
|
54 mm
|
80 mm
|
1500 Hz
|
Red LED
|
0.5 mm
|
NPN
|
0.035 A
|
0.333 ms
|
LED
|
77 g
|
|
||
|
Fork Sensor, 120mm, PNP, M8 connector
Art:
SRF-120-5-P
Copied
|
10 x 140 x 84
|
54 mm
|
120 mm
|
1500 Hz
|
Red LED
|
0.8 mm
|
PNP
|
0.035 A
|
0.333 ms
|
LED
|
118 g
|
|
||
|
Fork Sensor, 120mm, NPN, M8 connector
Art:
SRF-120-5-N
Copied
|
10 x 140 x 84
|
54 mm
|
120 mm
|
1500 Hz
|
Red LED
|
0.8 mm
|
NPN
|
0.035 A
|
0.333 ms
|
LED
|
118 g
|
|
||
|
Fork sensor, laser,30mm,M8 PNP
Art:
SRF-L-30-5-P
Copied
|
10 x 50 x 59
|
34 mm
|
30 mm
|
5000 Hz
|
Red laser
|
0.05 mm
|
PNP
|
0.02 A
|
0.1 ms
|
Laser
|
66 g
|
|
||
|
Fork sensor, laser,50mm,M8 PNP
Art:
SRF-L-50-5-P
Copied
|
10 x 70 x 79
|
54 mm
|
50 mm
|
5000 Hz
|
Red laser
|
0.08 mm
|
PNP
|
0.02 A
|
0.1 ms
|
Laser
|
110 g
|
|
||
|
Fork sensor, laser,80mm,M8 PNP
Art:
SRF-L-80-5-P
Copied
|
10 x 100 x 79
|
54 mm
|
80 mm
|
5000 Hz
|
Red laser
|
0.1 mm
|
PNP
|
0.02 A
|
0.1 ms
|
Laser
|
135 g
|
|
||
|
Fork sensor, laser,120mm,M8 PNP
Art:
SRF-L-120-5-P
Copied
|
10 x 140 x 84
|
54 mm
|
120 mm
|
5000 Hz
|
Red laser
|
0.15 mm
|
PNP
|
0.02 A
|
0.1 ms
|
Laser
|
210 g
|
|
