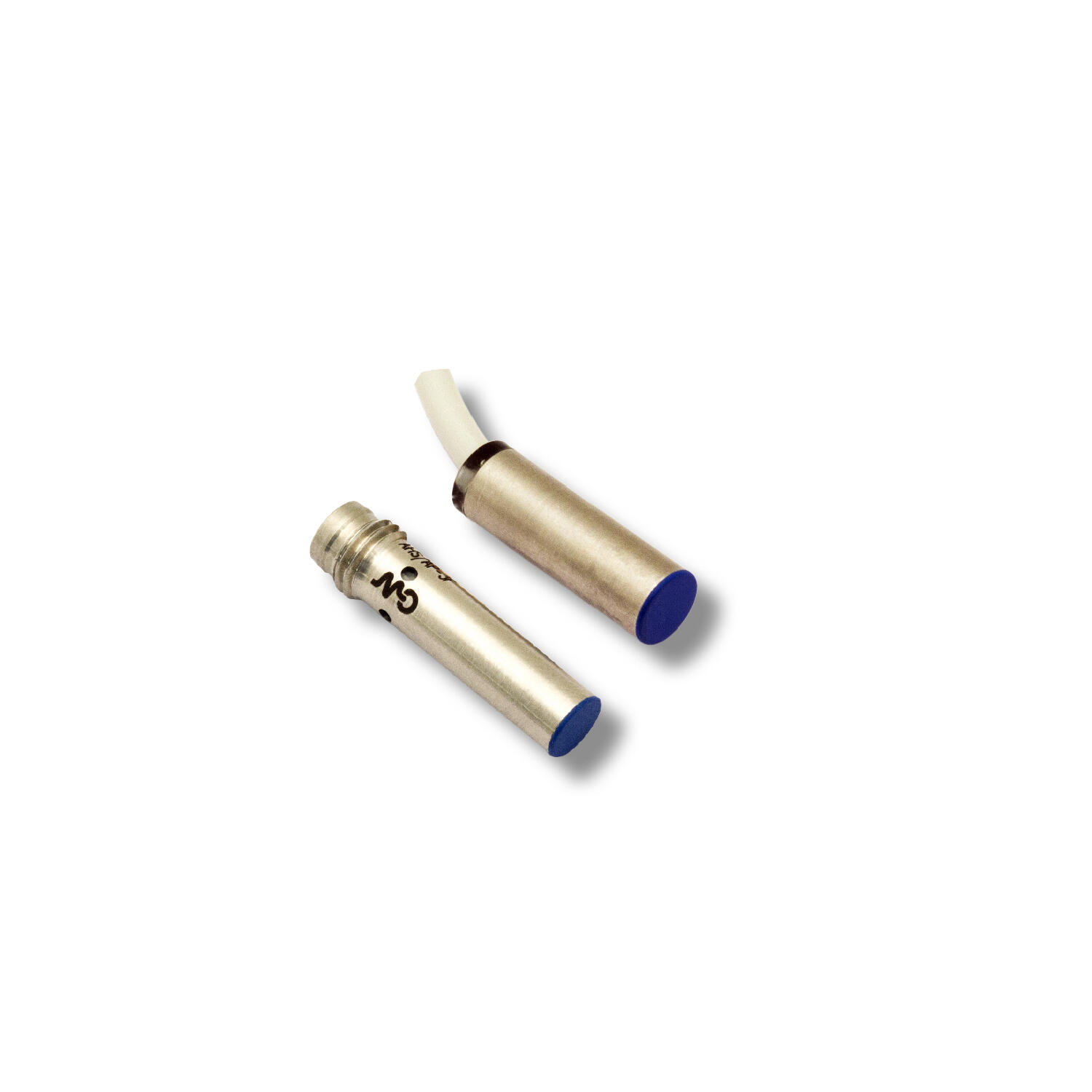

AH Series M6.5 Inductive Sensors

Micro Detectors AH Inductive Sensor

The Micro Detectors' brand was acquired by Datasensing. The AH series of inductive sensors feature a sensing range of 1.5-4mm and 2m cable or M8/M12 connection.


Inductive sensors are used for position indication, impulse or motion detector for metallic objects. The sensor has no moving parts and is therefore suitable for applications with high contact frequency. Due to the compact and easy-mounted design of the sensor as well as the contact-free function, the sensor is normally not subjected to mechanical wear.

Read more
  • 1.5 - 4mm sensing range
  • Flush or Non-flush
  • PNP or NPN
  • IP67
  • 2m cable or M8/M12 connector

Selected variant

Available in several variants
DATASENSING_LOGO.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Electrical connection Embedded 2m cable
IP class IP67
LED indicator Yes
Material of body Stainless steel 303
Mounting Flush
Operating frequency 5000 Hz
Output NPN NC
Output current max 200 mA
Sensing distance 2 mm
Sensor type Inductive
Size Ø6,5
Supply voltage 10-30 V DC
Temperature operational max 70 °C
Temperature operational min -25 °C

Product description

The Micro Detectors' brand was acquired by Datasensing. The AH series of inductive sensors feature a sensing range of 1.5-4mm and 2m cable or M8/M12 connection.


Inductive sensors are used for position indication, impulse or motion detector for metallic objects. The sensor has no moving parts and is therefore suitable for applications with high contact frequency. Due to the compact and easy-mounted design of the sensor as well as the contact-free function, the sensor is normally not subjected to mechanical wear.

Accessories

Related

OEM Automatic has acquired motion29
Company news

OEM Automatic has acquired Motion29

We are pleased to announce that OEM Automatic Ltd has acquired Motion29 Ltd. Bringing together the expertise, products, and services of both organisations under both the OEM and Motion29 brands, strengthening our overall offering.

What is fault masking & how to prevent it with IDEM Z-series products
Learning hub

What is fault masking? & how to prevent it

Discover how fault masking is compromising the safety of your workplace and find out how OEM Automatic can help you to prevent it completely. Creating a safe and secure work environment.

Learn more about radar systems - discover inxpects certified safety radar system
Learning hub

Discover safety radar sensors

Learn more about Inxpect radar systems. The worlds first SIL 2/PL d certified, radar-based safety system for use around hazardous machinery.

Datalogic d24 area sensors
Product news

Detection and measurement area sensors

Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.

Learning hub

Setting up light curtains & Barriers

OEM Automatics Safety Experts guide you through the process of setting up your light curtains & barriers, to protect your people and equipment.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Parts Electrical connection Mounting Output Sensing distance Price
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NC/NPN cable
Art:
AH1/CN-3A Copied
Embedded 2m cable
Flush
NPN NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NC/NPN plug
Art:
AH1/CN-3F Copied
M8 3-pole connector
Flush
NPN NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NC/PNP cable
Art:
AH1/CP-3A Copied
Embedded 2m cable
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NC/PNP M8
Art:
AH1/CP-3FAN Copied
M8 3-pole connector
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NC/PNP plug
Art:
AH1/CP-3F Copied
M8 3-pole connector
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/NPN cable
Art:
AH1/AN-3A Copied
Embedded 2m cable
Flush
NPN NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/NPN cable
Art:
AH1/AN-4A Copied
Embedded 2m cable
Non-flush
NPN NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/NPN plug
Art:
AH1/AN-3F Copied
M8 3-pole connector
Flush
NPN NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/PNP cable
Art:
AH1/AP-3A Copied
Embedded 2m cable
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/PNP cable
Art:
AH1/AP-3APE Copied
Embedded 2m cable
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/PNP M8
Art:
AH1/AP-3FAN Copied
M8 3-pole connector
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD shielded NO/PNP plug
Art:
AH1/AP-3F Copied
M8 3-pole connector
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NC/PNP
Art:
AH6/CP-3F Copied
M8 3-pole connector
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NO/NPN
Art:
AH6/AN-3F Copied
M8 3-pole connector
Flush
NPN NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NO/NPN
Art:
AH6/AN-3A Copied
Embedded 2m cable
Flush
NPN NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NO/PNP
Art:
AH6/AP-3F Copied
M8 3-pole connector
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NO/PNP
Art:
AH6/AP-2AAN Copied
Embedded 2m cable
Non-flush
PNP NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NO/PNP
Art:
AH6/AP-3A Copied
Embedded 2m cable
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short shielded NO/PNP
Art:
AH6/AP-3AAN Copied
Embedded 2m cable
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short unshield NC/PNP
Art:
AH6/CP-4A Copied
Embedded 2m cable
Non-flush
PNP NC
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short unshield NC/PNP
Art:
AH6/CP-4F Copied
M8 3-pole connector
Non-flush
PNP NC
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short unshield NO/NPN
Art:
AH6/AN-4A Copied
Embedded 2m cable
Non-flush
NPN NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short unshield NO/NPN
Art:
AH6/AN-4F Copied
M8 3-pole connector
Non-flush
NPN NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short unshield NO/PNP
Art:
AH6/AP-4A Copied
Embedded 2m cable
Non-flush
PNP NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD short unshield NO/PNP
Art:
AH6/AP-4F Copied
M8 3-pole connector
Non-flush
PNP NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NC/NPN cab
Art:
AH1/CN-4A Copied
Embedded 2m cable
Non-flush
NPN NC
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NC/NPN plug
Art:
AH1/CN-4F Copied
M8 3-pole connector
Non-flush
NPN NC
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NC/PNP cab
Art:
AH1/CP-4A Copied
Embedded 2m cable
Non-flush
PNP NC
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NC/PNP plug
Art:
AH1/CP-4F Copied
M8 3-pole connector
Non-flush
PNP NC
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NO/NPN plug M8
Art:
AH1/AN-4F Copied
M8 3-pole connector
Non-flush
NPN NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NO/PNP cab
Art:
AH1/AP-4A Copied
Embedded 2m cable
Non-flush
PNP NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NO/PNP plug
Art:
AH1/AP-4F Copied
M8 3-pole connector
Non-flush
PNP NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm LD unshielded NO/PNP plug
Art:
AH1/AP-4H Copied
M12 4-pin connector
Non-flush
PNP NO
4 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NC/NPN plug M12
Art:
AH1/CN-1H Copied
M12 4-pin connector
Flush
NPN NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NC/NPN cable 2m
Art:
AH1/CN-1A Copied
Embedded 2m cable
Flush
NPN NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NC/NPN plug M8
Art:
AH1/CN-1F Copied
M8 3-pole connector
Flush
NPN NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NC/PNP plug M12
Art:
AH1/CP-1H Copied
M12 4-pin connector
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NC/PNP cable 2m
Art:
AH1/CP-1A Copied
Embedded 2m cable
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NC/PNP plug M8
Art:
AH1/CP-1F Copied
M8 3-pole connector
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/NPN plug M12
Art:
AH1/AN-1H Copied
M12 4-pin connector
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/NPN cable 2m
Art:
AH1/AN-1A Copied
Embedded 2m cable
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/NPN plug M8
Art:
AH1/AN-1F Copied
M8 3-pole connector
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/PNP plug M12
Art:
AH1/AP-1H Copied
M12 4-pin connector
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/PNP plug M12
Art:
AH1/AP-3H Copied
M12 4-pin connector
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/PNP cable 2m
Art:
AH1/AP-1A Copied
Embedded 2m cable
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm shielded NO/PNP plug M8
Art:
AH1/AP-1F Copied
M8 3-pole connector
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NC/PNP
Art:
AH6/CP-1A Copied
Embedded 2m cable
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NC/PNP
Art:
AH6/CP-3A Copied
Embedded 2m cable
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NC/PNP
Art:
AH6/CP-1A86 Copied
Casting cable 5 m
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NO/NPN
Art:
AH6/AN-1A Copied
Embedded 2m cable
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NO/NPN
Art:
AH6/AN-1F Copied
M8 3-pole connector
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NO/PNP
Art:
AH6/AP-1A Copied
Embedded 2m cable
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NO/PNP
Art:
AH6/AP-1A86 Copied
Casting cable 5 m
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short shielded NO/PNP M8
Art:
AH6/AP-1F Copied
M8 3-pole connector
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short unshielded NO/NPN
Art:
AH6/AN-2A Copied
Embedded 2m cable
Non-flush
NPN NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short unshielded NO/NPN
Art:
AH6/AN-2F Copied
M8 3-pole connector
Non-flush
NPN NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short unshielded NO/PNP
Art:
AH6/AP-2F Copied
M8 3-pole connector
Non-flush
PNP NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm short unshielded NO/PNP
Art:
AH6/AP-2A Copied
Embedded 2m cable
Non-flush
PNP NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NC/NPN plug
Art:
AH1/CN-2H Copied
M12 4-pin connector
Non-flush
NPN NC
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NC/NPN cable
Art:
AH1/CN-2A Copied
Embedded 2m cable
Non-flush
NPN NC
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NC/NPN plug M8
Art:
AH1/CN-2F Copied
M8 3-pole connector
Non-flush
NPN NC
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NC/PNP plug
Art:
AH1/CP-2H Copied
M12 4-pin connector
Non-flush
PNP NC
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NC/PNP cable
Art:
AH1/CP-2A Copied
Embedded 2m cable
Non-flush
PNP NC
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NC/PNP plug M8
Art:
AH1/CP-2F Copied
M8 3-pole connector
Non-flush
PNP NC
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NO/NPN plug
Art:
AH1/AN-2H Copied
M12 4-pin connector
Non-flush
NPN NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NO/NPN cable
Art:
AH1/AN-2A Copied
Embedded 2m cable
Non-flush
NPN NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NO/NPN plug M8
Art:
AH1/AN-2F Copied
M8 3-pole connector
Non-flush
NPN NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NO/PNP cable
Art:
AH1/AP-2A Copied
Embedded 2m cable
Non-flush
PNP NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NO/PNP plug
Art:
AH1/AP-2H Copied
M12 4-pin connector
Non-flush
PNP NO
2.5 mm
MD AH Series.jpg
IND.SEN D6,5mm unshielded NO/PNP plug M8
Art:
AH1/AP-2F Copied
M8 3-pole connector
Non-flush
PNP NO
2.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NC/NPN cable 2m
Art:
AHS/CN-1A Copied
Embedded 2m cable
Flush
NPN NC
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NC/NPN plug M8
Art:
AHS/CN-1F Copied
M8 3-pole connector
Flush
NPN NC
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NC/PNP cable 2m
Art:
AHS/CP-1A Copied
Embedded 2m cable
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NC/PNP plug M8
Art:
AHS/CP-1F Copied
M8 3-pole connector
Flush
PNP NC
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NO/NPN cable 2m
Art:
AHS/AN-1A Copied
Embedded 2m cable
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NO/NPN plug M8
Art:
AHS/AN-1F Copied
M8 3-pole connector
Flush
NPN NO
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NO/PNP cable 2m
Art:
AHS/AP-1A Copied
Embedded 2m cable
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 1,5mm NO/PNP plug M8
Art:
AHS/AP-1F Copied
M8 3-pole connector
Flush
PNP NO
1.5 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NC/NPN cable 2m
Art:
AHS/CN-3A Copied
Embedded 2m cable
Flush
NPN NC
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NC/NPN plug M8
Art:
AHS/CN-3F Copied
M8 3-pole connector
Flush
NPN NC
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NC/PNP cable 2m
Art:
AHS/CP-3A Copied
Embedded 2m cable
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NC/PNP plug M8
Art:
AHS/CP-3F Copied
M8 3-pole connector
Flush
PNP NC
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NO/NPN cable 2m
Art:
AHS/AN-3A Copied
Embedded 2m cable
Flush
NPN NO
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NO/NPN plug M8
Art:
AHS/AN-3F Copied
M8 3-pole connector
Flush
NPN NO
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NO/PNP cable 2m
Art:
AHS/AP-3A Copied
Embedded 2m cable
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NO/PNP plug M8
Art:
AHS/AP-3F Copied
M8 3-pole connector
Flush
PNP NO
2 mm
MD AH Series.jpg
IND.SEN Ø6,5 Sn 2mm NO/PNP PUR cable 2m
Art:
AHS/AP-3A8F Copied
Embedded 2m cable
Flush
PNP NO
2 mm

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
