CONTA-CLIP
PK 120

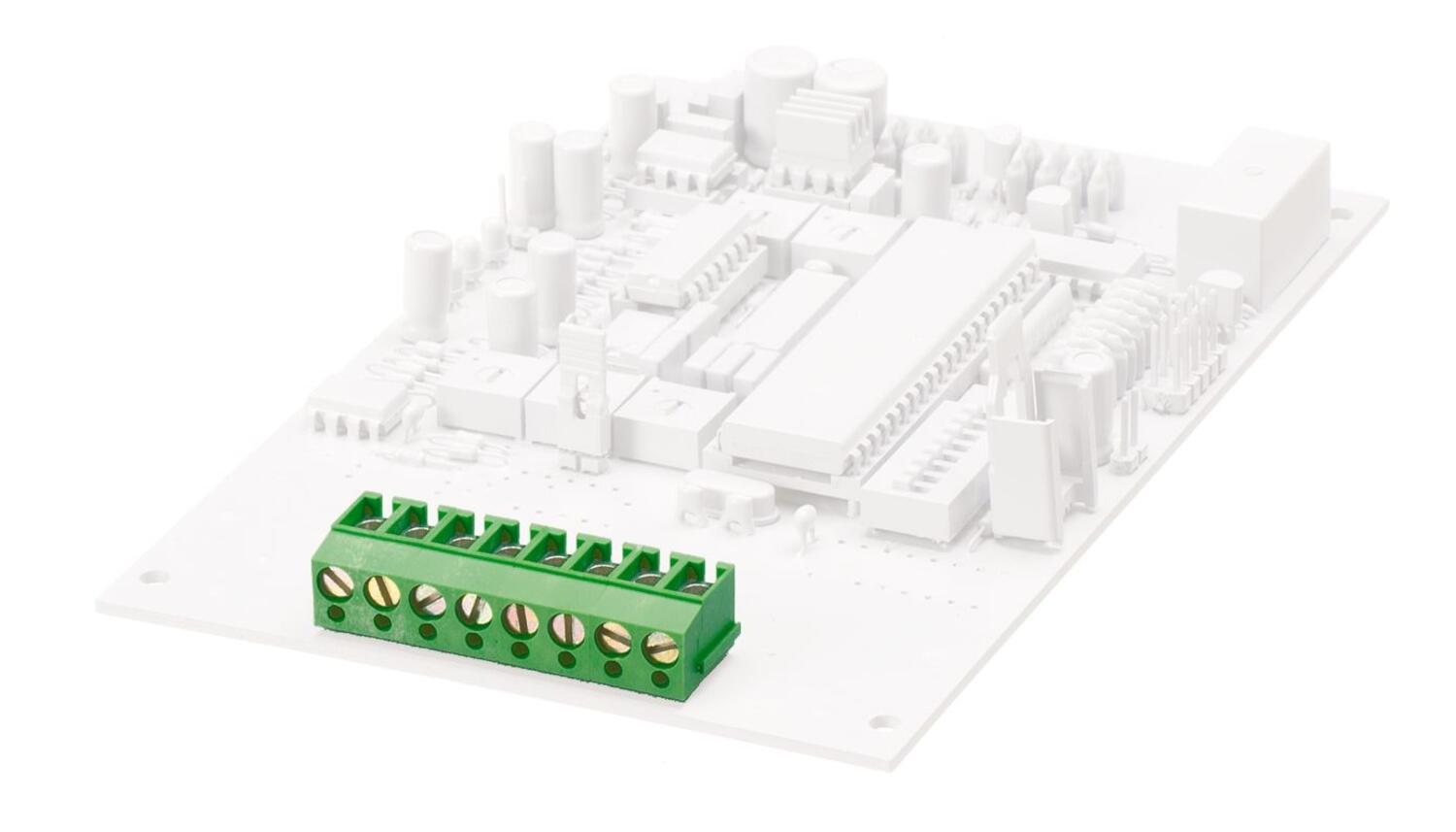

The PK 120 series from Conta-Clip is a line of vertical, solder-type PCB terminal blocks designed for secure and efficient wire-to-board connections in demanding industrial environments. With a 5.08 mm pitch, wire-protection screw connections, and vertical wire entry, the PK 120 ensures reliable contact while optimising space on the circuit board. The terminals support conductors up to 2.5 mm², carry currents of up to 24 A at 250 V, and feature solder pins (1 mm in diameter, 3.8 mm length) for stable mounting. Engineered for durability, the blocks offer high insulation resistance, withstand impulse voltages up to 2 kV, and maintain performance across a wide temperature range from –40 °C to +105 °C, all while meeting the UL 94 V-0 flammability standard.
These properties make the PK 120 particularly suitable for industrial automation, control systems, and energy distribution modules where reliable, vibration-resistant connections are essential. Their robust screw clamp design ensures safe conductor fastening without damage, simplifying installation and maintenance in the field. With a compact footprint and resilience against harsh conditions, the PK 120 terminal blocks are widely applied in control panels, building automation, and transport systems, offering engineers a dependable and space-efficient solution for long-term, safety-critical PCB interconnections.
- 5.08 mm pitch
- Suits conductors up to 2.5 mm²
- Impulse voltages up to 2 kV
- UL 94 V-0 flammability standard
Selected variant
Technical data
General Data |
|
|---|---|
| Type | PCB terminal |
| Pitch | 5.08 mm |
| Colour | Green |
| Number of poles | 2 |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated current | 24 A |
| Rated voltage | 250 V |
| Rated cross section | 2.5 mm² |
| Rated impulse voltage | 2 kV |
| Overvoltage category | III |
| Contamination degree | 3 |

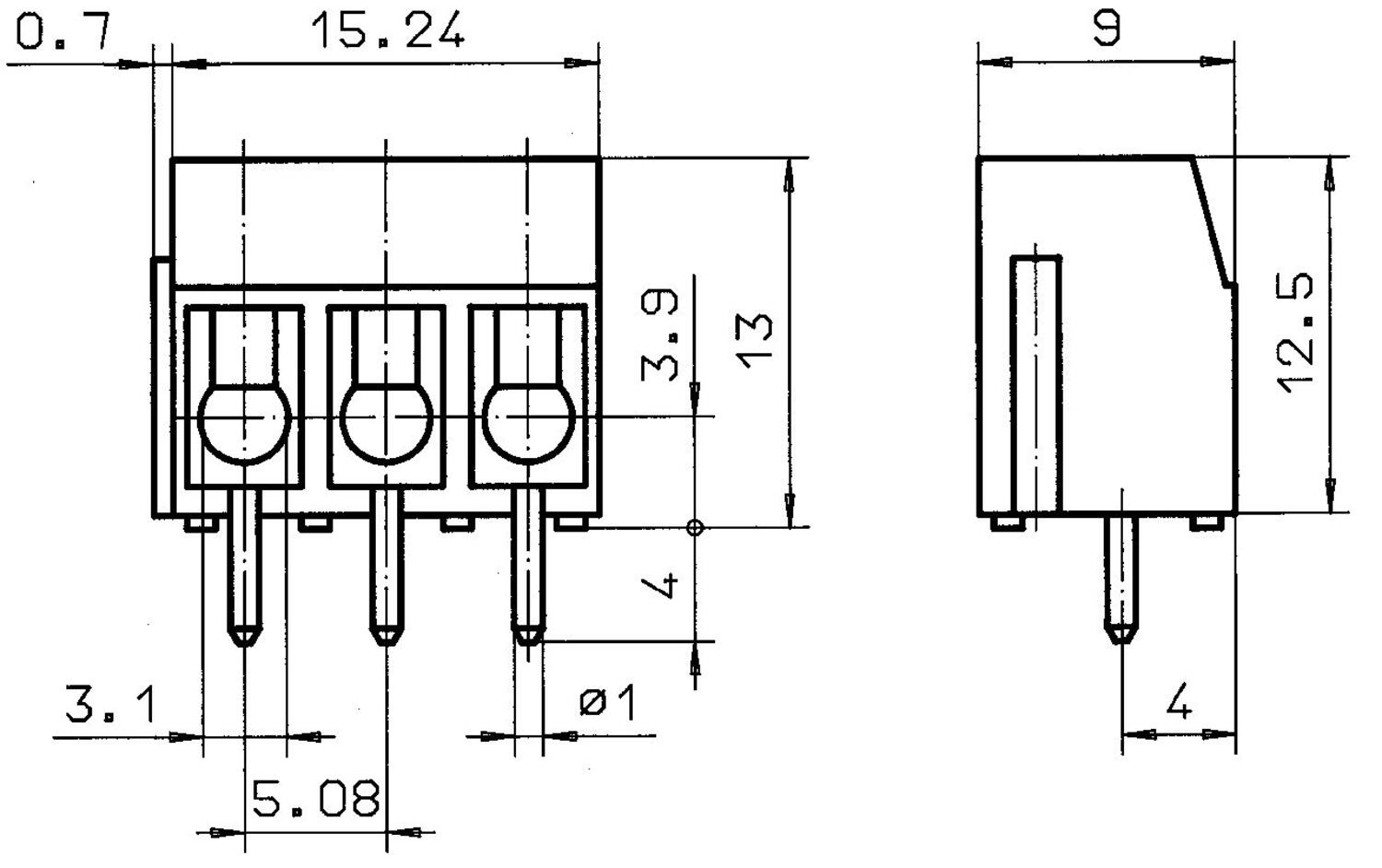

Dimensions |
|
| Length | 13 mm |
| Width | 10.86 mm |
| Height | 9 mm |
| Width left | 3.24 mm |
| Width right | 2.54 mm |
| Drillhole diameter | 1.3 mm |
| Diameter of the connection pin | 1 mm |
| Length of pin | 4 mm |
Connection Data |
|
| Connector type/principle | Wire protection |
| Number of levels | 1 Â |
| Angle of PCB/wire connection | 0°/180° (horizontal) |
| Type of attachment to PCB | Connecting contact |
| Electrical connection type to PCB | Solder |
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 2.5 mm² |
| Cross section stranded wire from | 0.2 mm² |
| Cross section stranded with ferrule to | 2.5 mm² |
| Cross section stranded wire to | 2.5 mm² |
| Cross section stranded with ferrule from | 0.2 mm² |
| Rated wire cross section to (AWG) | 12 |
| Rated wire cross section from (AWG) | 22 |
| Stripping length | 7 mm |
*Invisible Heading* |
|
|---|---|
| Screw size | M 3 |
| Torque | 0.5 |
Materials |
|
| Housing material | Polyamide 6.6 |
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Screw material | Steel |
| Clamp material | Brass |
| Wire protection | Stainless steel |
Approvals |
|
| UL test standard | UL 1059 |
| Rated voltage UL | 300 V |
| Rated current UL | 20 A |
| cUL test standard | CSA 22.2 No.158 |
| Rated voltage cUL | 300 V |
| Rated current cUL | 20 A |
| VDE test standard | DIN EN 60998 |
| Rated voltage VDE | 250 V |
| Rated current VDE | 24 A |
| Recommended wave solder duration max | 4 s |
| Recommended wave solder duration min | 3 s |
| Recommended wave soldering temperature | 265 °C |
| Tariff code | 85369010 |
| Pack size | 50 Â |
| Weight | 2.3 g |
| Connection cycles acc. to standard | 5 |
| Country of origin | QU |
| Current creepage resistance | CTI 600 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^13 Ω x cm |
Product description
The PK 120 series from Conta-Clip is a line of vertical, solder-type PCB terminal blocks designed for secure and efficient wire-to-board connections in demanding industrial environments. With a 5.08 mm pitch, wire-protection screw connections, and vertical wire entry, the PK 120 ensures reliable contact while optimising space on the circuit board. The terminals support conductors up to 2.5 mm², carry currents of up to 24 A at 250 V, and feature solder pins (1 mm in diameter, 3.8 mm length) for stable mounting. Engineered for durability, the blocks offer high insulation resistance, withstand impulse voltages up to 2 kV, and maintain performance across a wide temperature range from –40 °C to +105 °C, all while meeting the UL 94 V-0 flammability standard.
These properties make the PK 120 particularly suitable for industrial automation, control systems, and energy distribution modules where reliable, vibration-resistant connections are essential. Their robust screw clamp design ensures safe conductor fastening without damage, simplifying installation and maintenance in the field. With a compact footprint and resilience against harsh conditions, the PK 120 terminal blocks are widely applied in control panels, building automation, and transport systems, offering engineers a dependable and space-efficient solution for long-term, safety-critical PCB interconnections.
