CONTA-CLIP

PBK 4191, 4291

The PBK 4191 and PBK 4291 terminal blocks feature CONTA‑CLIP’s push‑in (spring‑pressure) connection principle, facilitating fast and secure tool‑free insertion of solid or ferruled conductors. They are available in 3.50 mm pitch (PBK 4291) and 2.54 mm pitch (PBK 4191) variants, offering pole counts up to 20. The push-in design supports conductor cross-sections typically from 0.2 mm² to 0.75 mm², with rated currents up to 9 A and voltages up to 130 V, classified for use in overvoltage category III and contamination class 3 environments. The PCB pins are typically around 0.7 mm in diameter, requiring roughly 1.2–1.3 mm drill holes, and provide sufficient solderable protrusion of approximately 3–4 mm. The housings are made of flame-retardant polyamide (UL 94 V‑0), boasting high insulation resistance, CTI rating of 600, glow‑wire compliance (GWFI 850 °C / GWIT 775 °C), and compatibility with standard wave‑solder reflow processes.

The PBK 4191 and 4291 series are ideal for compact PCB-mounted applications where space is at a premium and wiring needs to be fast, reliable, and service-accessible. They are commonly used in control electronics, I/O connector boards, test or measurement devices, and small automation modules, connecting multiple low-current wires in minimal footprint. The push-in system accelerates assembly and reduces installation errors, while the high spring contact force maintains mechanical stability in environments with vibration or thermal cycling. Their small pitch layouts enable high-density wiring solutions on PCB designs, making them especially suitable for manufacturing equipment, embedded control circuits, and compact industrial instruments where reliability and compactness are key.

Read more
  • Push-in Connection
  • 9A to 130V
  • Up to 20 Poles

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Type PCB terminal
Pitch 3.5 mm
Colour Light grey
Number of poles 2
Approvals VDE

Ratings
Rated current 3 A
Rated voltage 130 V
Rated cross section 1 mm²
Rated impulse voltage 2 kV
Overvoltage category III
Contamination degree 3

Dimensions
Length 12 mm
Width 8.5 mm
Height 13 mm
Width left 3.25 mm
Width right 1.75 mm
Drillhole diameter 1 mm
Diameter of the connection pin 0.4 mm
Length of pin 3.6 mm

Connection Data
Connector type/principle Push-in
Number of levels 1
Angle of PCB/wire connection 45°/135° (diagonally upwards)
Type of attachment to PCB Solder
Electrical connection type to PCB Connecting contact
Cross section single wire from 0.08 mm²
Cross section single wire to 1.5 mm²
Cross section stranded wire from 0.14 mm²
Cross section stranded with ferrule to 0.5 mm²
Cross section stranded wire to 1 mm²
Cross section stranded with ferrule from 0.14 mm²
Rated wire cross section to (AWG) 16

*Invisible Heading*
Rated wire cross section from (AWG) 22
Stripping length 9 mm

Materials
Housing material Polyamide 6.6
Flammability class UL94-V0
Operating temperature from -30 °C
Operating temperature to 105 °C
Contact flag Copper alloy

Approvals
UL test standard UL 1059
Rated voltage UL 300 V
Rated current UL 6 A
cUL test standard CSA 22.2 No.158
Rated voltage cUL 300 V
Rated current cUL 6 A
VDE test standard DIN EN 60998
Rated voltage VDE 130 V
Rated current VDE 3 A
Recommended wave solder duration max 4 s
Recommended wave solder duration min 3 s
Recommended wave soldering temperature 265 °C
Tariff code 85369010
Pack size 50
Weight 1.1 g
Connection cycles acc. to standard 10
Country of origin QU
Current creepage resistance CTI 600
Glow wire flammability index (GWFI) GWFI 850
Glow wire ignition temperature (GWIT) GWIT 775
GWFI after-glow time 30 s
GWIT exposure time 5 s
Insulation resistance 1*10^13 Ω x cm

Downloads

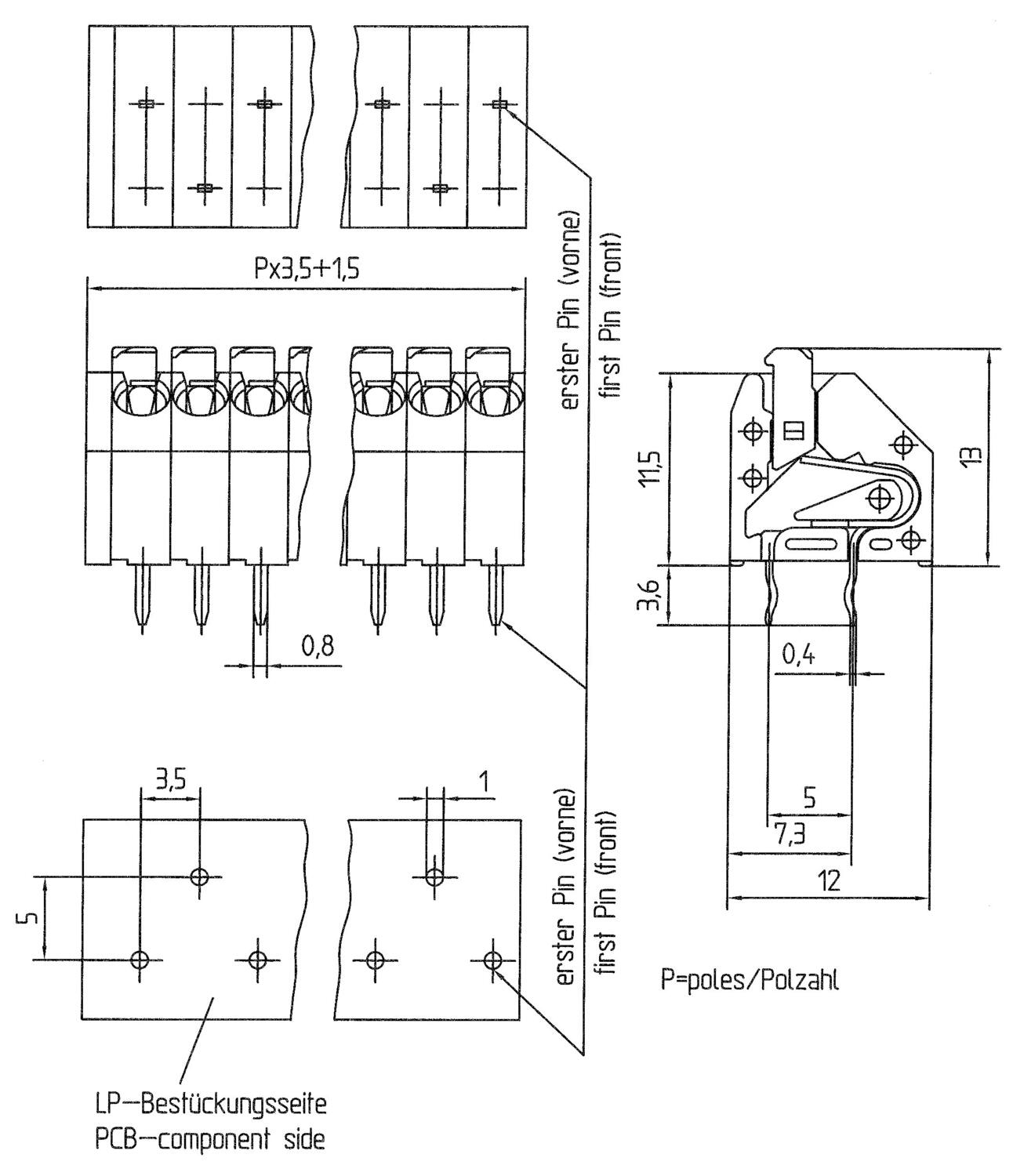

Measurements and connections

Technical illustrations

Product description

The PBK 4191 and PBK 4291 terminal blocks feature CONTA‑CLIP’s push‑in (spring‑pressure) connection principle, facilitating fast and secure tool‑free insertion of solid or ferruled conductors. They are available in 3.50 mm pitch (PBK 4291) and 2.54 mm pitch (PBK 4191) variants, offering pole counts up to 20. The push-in design supports conductor cross-sections typically from 0.2 mm² to 0.75 mm², with rated currents up to 9 A and voltages up to 130 V, classified for use in overvoltage category III and contamination class 3 environments. The PCB pins are typically around 0.7 mm in diameter, requiring roughly 1.2–1.3 mm drill holes, and provide sufficient solderable protrusion of approximately 3–4 mm. The housings are made of flame-retardant polyamide (UL 94 V‑0), boasting high insulation resistance, CTI rating of 600, glow‑wire compliance (GWFI 850 °C / GWIT 775 °C), and compatibility with standard wave‑solder reflow processes.

The PBK 4191 and 4291 series are ideal for compact PCB-mounted applications where space is at a premium and wiring needs to be fast, reliable, and service-accessible. They are commonly used in control electronics, I/O connector boards, test or measurement devices, and small automation modules, connecting multiple low-current wires in minimal footprint. The push-in system accelerates assembly and reduces installation errors, while the high spring contact force maintains mechanical stability in environments with vibration or thermal cycling. Their small pitch layouts enable high-density wiring solutions on PCB designs, making them especially suitable for manufacturing equipment, embedded control circuits, and compact industrial instruments where reliability and compactness are key.

Accessories

Related

Advantages of Cable Coils - OEM Automatic & RCT
Learning hub

Advantages of Cable Coils

Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Parts Pitch Number of poles Approvals Rated current Rated voltage Rated cross section Rated impulse voltage Width Height Width left Width right Drillhole diameter Length of pin Cross section single wire from Cross section single wire to Cross section stranded with ferrule to Cross section stranded wire to Rated wire cross section to (AWG) Rated wire cross section from (AWG) Contact flag Contact pin Rated voltage UL Rated current UL Rated voltage cUL Rated current cUL Rated voltage VDE Rated current VDE Weight Price
PBK 4291/2/3,50-KD LG
Art:
13286.0 Copied
3.5 mm
2
VDE
3 A
130 V
1 mm²
2 kV
8.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
1.1 g
PBK 4291/2/3,50-KDVP LG
Art:
13310.0 Copied
3.5 mm
2
VDE
3 A
130 V
1 mm²
2 kV
8.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
1.15 g
PBK 4191/2/2,50-KD LG
Art:
14552.0 Copied
2.5 mm
2
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
6.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
0.89 g
PBK 4191/2/2,50-KDVP LG
Art:
14572.0 Copied
2.5 mm
2
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
6.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
0.91 g
PBK 4291/3/3,50-KD LG
Art:
13287.0 Copied
3.5 mm
3
VDE
3 A
130 V
1 mm²
2 kV
12 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
1.5 g
PBK 4291/3/3,50-KDVP LG
Art:
13311.0 Copied
3.5 mm
3
VDE
3 A
130 V
1 mm²
2 kV
12 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
1.73 g
PBK 4191/3/2,50-KD LG
Art:
14553.0 Copied
2.5 mm
3
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
9 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
1.23 g
PBK 4191/3/2,50-KDVP LG
Art:
14573.0 Copied
2.5 mm
3
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
9 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
1.24 g
PBK 4291/4/3,50-KD LG
Art:
13288.0 Copied
3.5 mm
4
VDE
3 A
130 V
1 mm²
2 kV
15.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
2.2 g
PBK 4191/4/2,50-KD LG
Art:
14554.0 Copied
2.5 mm
4
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
11.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
1.58 g
PBK 4191/4/2,50-KDVP LG
Art:
14574.0 Copied
2.5 mm
4
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
11.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
1.63 g
PBK 4291/5/3,50-KD LG
Art:
13289.0 Copied
3.5 mm
5
VDE
3 A
130 V
1 mm²
2 kV
19 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
2.75 g
PBK 4191/5/2,50-KD LG
Art:
14555.0 Copied
2.5 mm
5
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
14 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
1.93 g
PBK 4191/5/2,50-KDVP LG
Art:
14575.0 Copied
2.5 mm
5
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
14 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
1.96 g
PBK 4291/6/3,50-KD LG
Art:
13290.0 Copied
3.5 mm
6
VDE
3 A
130 V
1 mm²
2 kV
22.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
3.3 g
PBK 4291/6/3,50-KDVP LG
Art:
13314.0 Copied
3.5 mm
6
VDE
3 A
130 V
1 mm²
2 kV
22.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
3.48 g
PBK 4191/6/2,50-KD LG
Art:
14556.0 Copied
2.5 mm
6
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
16.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
2.28 g
PBK 4191/6/2,50-KDVP LG
Art:
14576.0 Copied
2.5 mm
6
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
16.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
2.35 g
PBK 4291/7/3,50-KD LG
Art:
13291.0 Copied
3.5 mm
7
VDE
3 A
130 V
1 mm²
2 kV
26 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
3.85 g
PBK 4291/7/3,50-KDVP LG
Art:
13315.0 Copied
3.5 mm
7
VDE
3 A
130 V
1 mm²
2 kV
26 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
4.06 g
PBK 4191/7/2,50-KD LG
Art:
14557.0 Copied
2.5 mm
7
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
19 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
2.63 g
PBK 4191/7/2,50-KDVP LG
Art:
14577.0 Copied
2.5 mm
7
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
19 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
2.68 g
PBK 4291/8/3,50-KD LG
Art:
13292.0 Copied
3.5 mm
8
VDE
3 A
130 V
1 mm²
2 kV
29.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
4.4 g

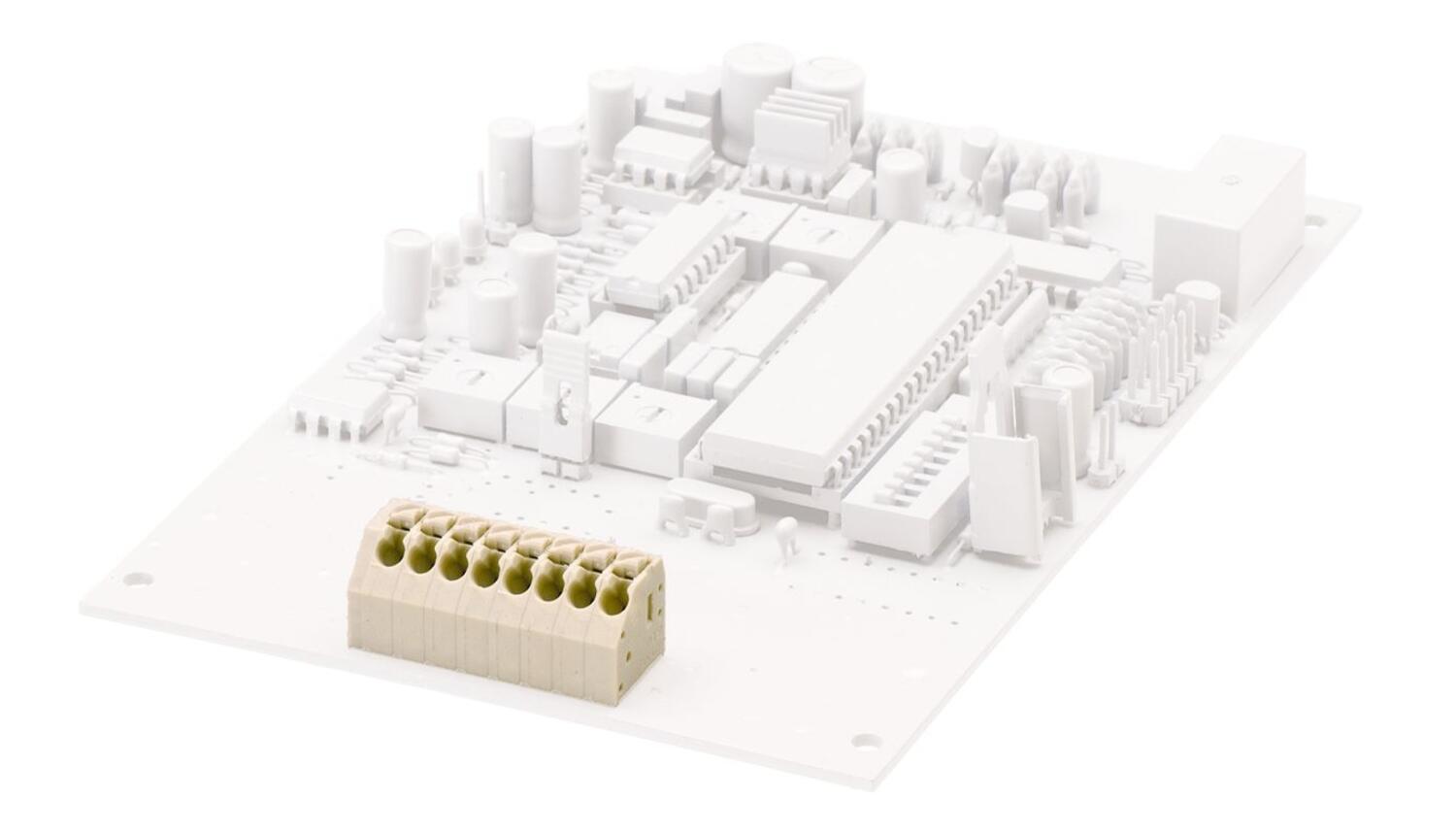

PBK 4291/8/3,50-KDVP LG
Art:
13316.0 Copied
3.5 mm
8
VDE
3 A
130 V
1 mm²
2 kV
29.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
4.64 g

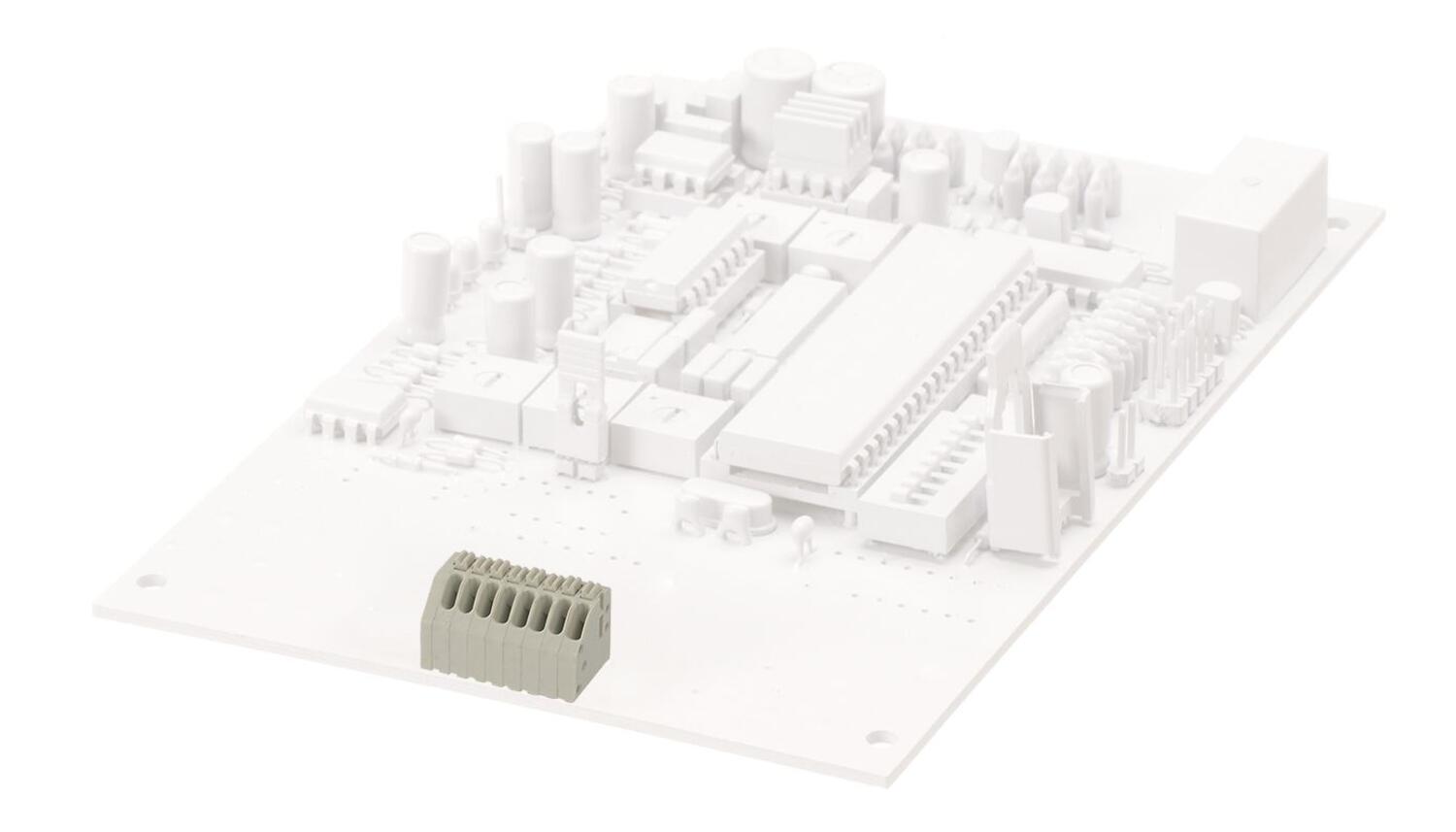

PBK 4191/8/2,50-KD LG
Art:
14558.0 Copied
2.5 mm
8
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
21.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
2.91 g
PBK 4191/8/2,50-KDVP LG
Art:
14578.0 Copied
2.5 mm
8
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
21.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
3.01 g
PBK 4291/9/3,50-KD LG
Art:
13293.0 Copied
3.5 mm
9
VDE
3 A
130 V
1 mm²
2 kV
33 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
4.95 g
PBK 4291/9/3,50-KDVP LG
Art:
13317.0 Copied
3.5 mm
9
VDE
3 A
130 V
1 mm²
2 kV
33 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
5.22 g
PBK 4191/9/2,50-KD LG
Art:
14559.0 Copied
2.5 mm
9
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
24 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
3.26 g
PBK 4191/9/2,50-KDVP LG
Art:
14579.0 Copied
2.5 mm
9
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
24 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
3.34 g
PBK 4291/10/3,50-KD LG
Art:
13294.0 Copied
3.5 mm
10
VDE
3 A
130 V
1 mm²
2 kV
36.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
5.5 g
PBK 4291/10/3,50-KDVP LG
Art:
13318.0 Copied
3.5 mm
10
VDE
3 A
130 V
1 mm²
2 kV
36.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
5.8 g
PBK 4191/10/2,50-KD LG
Art:
14560.0 Copied
2.5 mm
10
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
26.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
3.61 g
PBK 4191/10/2,50-KDVP LG
Art:
14580.0 Copied
2.5 mm
10
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
26.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
3.75 g
PBK 4291/11/3,50-KD LG
Art:
13295.0 Copied
3.5 mm
11
VDE
3 A
130 V
1 mm²
2 kV
40 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
6.05 g
PBK 4291/11/3,50-KDVP LG
Art:
13319.0 Copied
3.5 mm
11
VDE
3 A
130 V
1 mm²
2 kV
40 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
6.38 g
PBK 4191/11/2,50-KD LG
Art:
14561.0 Copied
2.5 mm
11
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
29 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
3.96 g
PBK 4191/11/2,50-KDVP LG
Art:
14581.0 Copied
2.5 mm
11
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
29 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
4.08 g
PBK 4291/12/3,50-KD LG
Art:
13296.0 Copied
3.5 mm
12
VDE
3 A
130 V
1 mm²
2 kV
43.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
6.6 g
PBK 4291/12/3,50-KDVP LG
Art:
13320.0 Copied
3.5 mm
12
VDE
3 A
130 V
1 mm²
2 kV
43.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
6.96 g
PBK 4191/12/2,50-KD LG
Art:
14562.0 Copied
2.5 mm
12
UL, cUL, VDE
2 A
130 V
0.75 mm²
1.25 kV
31.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
150 V
2 A
150 V
2 A
130 V
2 A
4.3 g
PBK 4191/12/2,50-KDVP LG
Art:
14582.0 Copied
2.5 mm
12
UL, cUL, VDE
2 A
250 V
0.75 mm²
2 kV
31.5 mm
12.9 mm
2.8 mm
1.2 mm
1.2 mm
3.7 mm
0.14 mm²
0.75 mm²
0.34 mm²
0.75 mm²
20
26
Bronze
300 V
2 A
300 V
2 A
250 V
2 A
4.41 g
PBK 4291/13/3,50-KD LG
Art:
13297.0 Copied
3.5 mm
13
VDE
3 A
130 V
1 mm²
2 kV
47 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
7.15 g
PBK 4291/13/3,50-KDVP LG
Art:
13321.0 Copied
3.5 mm
13
VDE
3 A
130 V
1 mm²
2 kV
47 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
7.54 g
PBK 4291/14/3,50-KD LG
Art:
13298.0 Copied
3.5 mm
14
VDE
3 A
130 V
1 mm²
2 kV
50.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
7.7 g
PBK 4291/14/3,50-KDVP LG
Art:
13322.0 Copied
3.5 mm
14
VDE
3 A
130 V
1 mm²
2 kV
50.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
8.12 g
PBK 4291/15/3,50-KD LG
Art:
13299.0 Copied
3.5 mm
15
VDE
3 A
130 V
1 mm²
2 kV
54 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
8.25 g
PBK 4291/15/3,50-KDVP LG
Art:
13323.0 Copied
3.5 mm
15
VDE
3 A
130 V
1 mm²
2 kV
54 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
8.7 g
PBK 4291/16/3,50-KD LG
Art:
13300.0 Copied
3.5 mm
16
VDE
3 A
130 V
1 mm²
2 kV
57.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
8.8 g
PBK 4291/16/3,50-KDVP LG
Art:
13324.0 Copied
3.5 mm
16
VDE
3 A
130 V
1 mm²
2 kV
57.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
9.28 g
PBK 4291/17/3,50-KD LG
Art:
13301.0 Copied
3.5 mm
17
VDE
3 A
130 V
1 mm²
2 kV
61 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
9.35 g
PBK 4291/17/3,50-KDVP LG
Art:
13325.0 Copied
3.5 mm
17
VDE
3 A
130 V
1 mm²
2 kV
61 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
9.86 g
PBK 4291/18/3,50-KD LG
Art:
13302.0 Copied
3.5 mm
18
VDE
3 A
130 V
1 mm²
2 kV
64.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
9.9 g
PBK 4291/18/3,50-KDVP LG
Art:
13326.0 Copied
3.5 mm
18
VDE
3 A
130 V
1 mm²
2 kV
64.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
10.44 g
PBK 4291/19/3,50-KD LG
Art:
13303.0 Copied
3.5 mm
19
VDE
3 A
130 V
1 mm²
2 kV
68 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
10.45 g
PBK 4291/19/3,50-KDVP LG
Art:
13327.0 Copied
3.5 mm
19
VDE
3 A
130 V
1 mm²
2 kV
68 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
11.02 g
PBK 4291/20/3,50-KD LG
Art:
13304.0 Copied
3.5 mm
20
VDE
3 A
130 V
1 mm²
2 kV
71.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
11 g
PBK 4291/20/3,50-KDVP LG
Art:
13328.0 Copied
3.5 mm
20
VDE
3 A
130 V
1 mm²
2 kV
71.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
11.6 g
PBK 4291/21/3,50-KD LG
Art:
13305.0 Copied
3.5 mm
21
VDE
3 A
130 V
1 mm²
2 kV
75 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
11.55 g
PBK 4291/21/3,50-KDVP LG
Art:
13329.0 Copied
3.5 mm
21
VDE
3 A
130 V
1 mm²
2 kV
75 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
12.18 g
PBK 4291/22/3,50-KD LG
Art:
13306.0 Copied
3.5 mm
22
VDE
3 A
130 V
1 mm²
2 kV
78.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
12.1 g
PBK 4291/22/3,50-KDVP LG
Art:
13330.0 Copied
3.5 mm
22
VDE
3 A
130 V
1 mm²
2 kV
78.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
12.76 g
PBK 4291/23/3,50-KD LG
Art:
13307.0 Copied
3.5 mm
23
VDE
3 A
130 V
1 mm²
2 kV
82 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
12.65 g
PBK 4291/23/3,50-KDVP LG
Art:
13331.0 Copied
3.5 mm
23
VDE
3 A
130 V
1 mm²
2 kV
82 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
13.34 g
PBK 4291/24/3,50-KD LG
Art:
13308.0 Copied
3.5 mm
24
VDE
3 A
130 V
1 mm²
2 kV
85.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
13.2 g
PBK 4291/24/3,50-KDVP LG
Art:
13332.0 Copied
3.5 mm
24
VDE
3 A
130 V
1 mm²
2 kV
85.5 mm
13 mm
3.25 mm
1.75 mm
1 mm
3.6 mm
0.08 mm²
1.5 mm²
0.5 mm²
1 mm²
16
22
Copper alloy
300 V
6 A
300 V
6 A
130 V
3 A
13.92 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
