PKZ 692

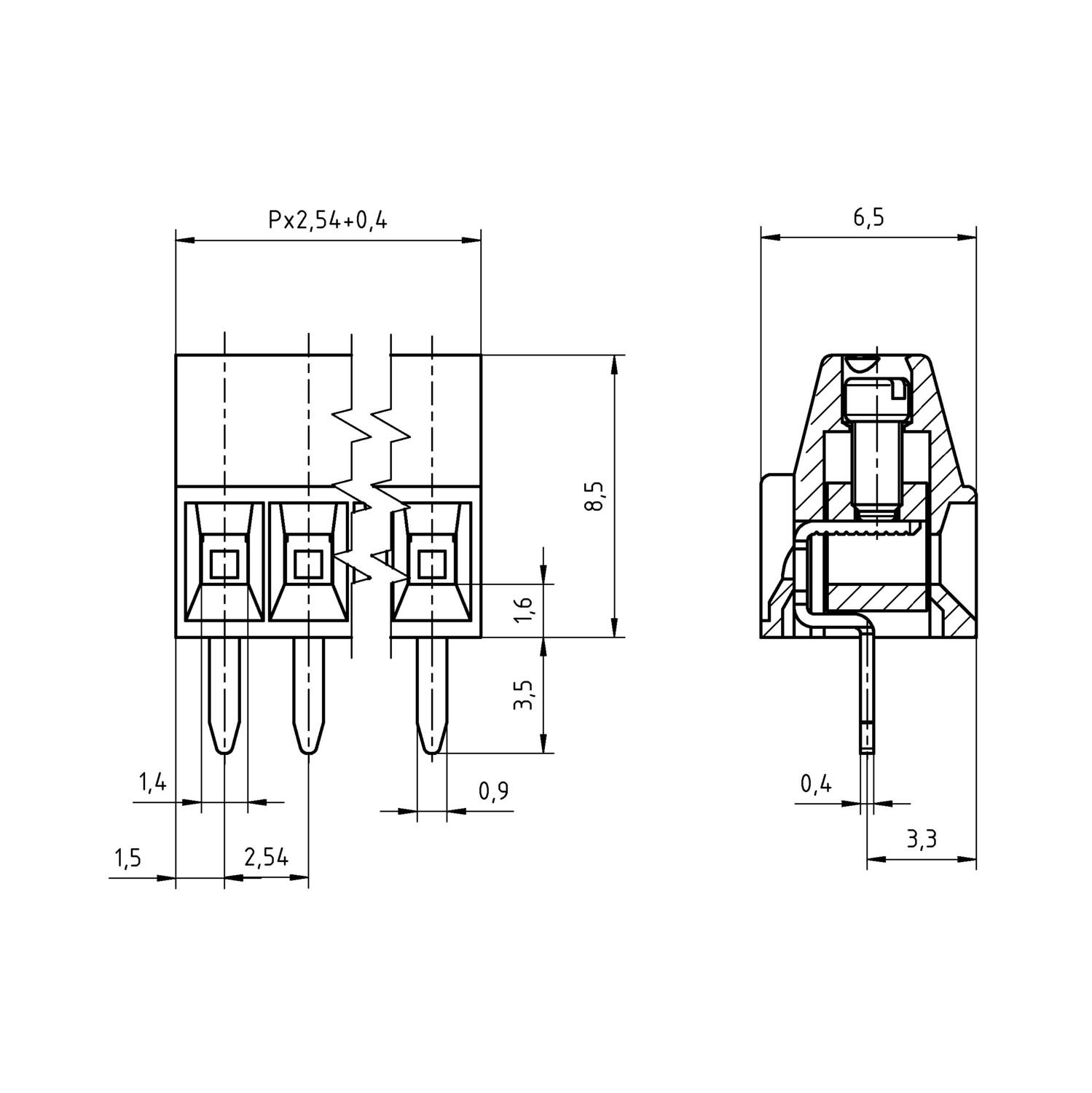

The CONTA-CLIP PKZ 692 series consists of PCB terminal blocks designed for reliable wire-to-board connections in compact electronic assemblies. Available in variants such as the 9-pole and 17-pole versions, the PKZ 692 features a 2.54 mm pitch, making it suitable for high-density circuit layouts where space savings are critical. Its front wire-entry design simplifies insertion and ensures secure clamping, while the vertical orientation of the pins supports straightforward wave-soldering processes during PCB assembly. These terminal blocks are manufactured with durable insulating housings and precision-machined copper alloy contacts, ensuring both mechanical stability and long-term conductivity. The modular nature of the PKZ 692 series allows designers to select the appropriate pole count for their application, while maintaining consistency across different board layouts.

The PKZ 692 is used across a wide range of low-voltage electronic and control applications, including signal transmission, sensor wiring, and compact control modules. Its fine pitch and multi-pole options make it particularly advantageous in devices where limited PCB space must accommodate numerous connections, such as in building automation, telecommunications equipment, and instrumentation systems. By combining a compact footprint with reliable clamping technology, the PKZ 692 provides engineers with a versatile interconnection solution that reduces wiring errors, improves assembly efficiency, and supports both prototyping and volume production environments.
