PKDL 2,5

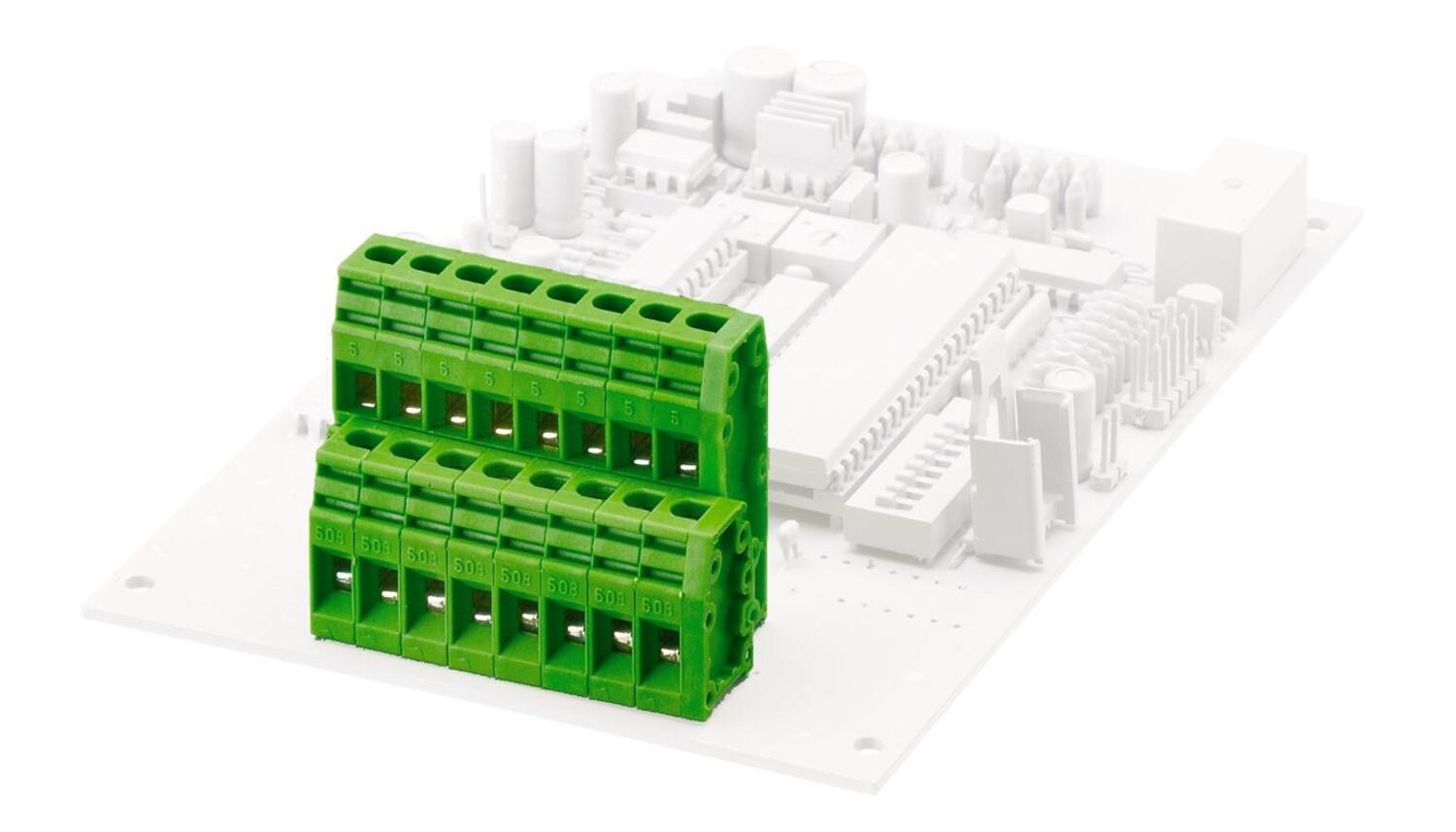

These CONTA‑CLIP PKDL‑2.5 connectors are compact, PCB‑mounted clamping‑yoke terminals designed to accommodate conductor cross‑sections up to 2.5 mm² with rated currents around 24 A and voltages up to 300 V. The series employs a spring‑clamp (yoke) mechanism, closed via a screwdriver or dedicated tool, that secures solid or ferruled wires firmly without damaging insulation. They’re available in multiple pole counts (typically 2 to 12) and offer 5.08 mm nominal pitch, allowing for high‑density mounting while ensuring reliable electrical contact across operating temperatures from –40 °C to +105 °C. Color-coding options (green, blue, grey) streamline PCB layout organisation and circuit identification.

PKDL‑2.5 terminals are ideal for industrial control boards, power supplies, motor controllers, building automation, and instrumentation panels, where secure, maintenance‑free connection of field wiring is required. Their compact footprint and spring-clamp design enable tool‑free wire insertion during assembly, speeding up wiring tasks and reducing wiring faults. They’re particularly useful in vibration‑prone environments, where spring connections maintain consistent contact pressure over time. Modular PCB rows can be linked side-by-side for multi-circuit connections, simplifying prototyping, assembly, and servicing, ensuring a robust, cost‑effective solution for up to 24 A industrial signal and power distribution.
