CONTA-CLIP

PK 350

The PK 350 series from Conta-Clip is a robust range of screw-connection PCB terminal blocks designed for secure and efficient horizontal wire-to-board connections. Offered in multiple pole configurations and pitches, such as 5.0 mm, 5.08 mm, and 10.16 mm, the series supports rated currents up to 17.5 A and operating voltages from 250 V on tighter pitches to as high as 1,000 V on wider models. The blocks provide excellent electrical reliability with an insulation resistance of 1×10¹³ Ω·cm, impulse voltage ratings up to 3.5 kV, and compliance with pollution degree 3 and overvoltage category III. Each unit features an M3 screw with 0.5 Nm torque, a 6 mm stripping length, and solid solder pins (1 mm × 3.5 mm) for reliable PCB mounting. Constructed with flame-retardant polyamide 6.6 (UL 94 V-0), they withstand demanding conditions, including soldering processes and operating temperatures from –30 °C to +105 °C.

Practical applications of the PK 350 series span across industrial automation, control electronics, and power distribution systems, where reliable, vibration-resistant connections are vital. Their horizontal, feed-through design makes them especially useful for compact control boards, interface modules, and equipment requiring frequent wiring changes or maintenance. With international certifications including UL, cUL, and VDE, the PK 350 is trusted for global use in building control systems, instrumentation, and automation panels, where both safety and durability are non-negotiable. Combining high current capacity, space efficiency, and rugged construction, the PK 350 offers engineers a dependable PCB terminal solution for long-term, safety-critical installations.

Read more
  • Multiple pole configurations
  • 250 V on tighter pitches to as high as 1,000 V on wider models
  • Impulse voltage ratings up to 3.5 kV,

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

General Data
Type PCB terminal
Pitch 5 mm
Colour Green
Number of poles 2
Approvals UL, cUL, VDE

Ratings
Rated current 17.5 A
Rated voltage 250 V
Rated cross section 1.5 mm²
Rated impulse voltage 2 kV
Overvoltage category III
Contamination degree 3

Dimensions
Length 9 mm
Width 10.6 mm
Height 13.5 mm
Width left 3.1 mm
Width right 2.5 mm
Drillhole diameter 1.3 mm
Diameter of the connection pin 1 mm
Length of pin 3.5 mm

Connection Data
Connector type/principle Screw
Number of levels 1
Angle of PCB/wire connection 0°/180° (horizontal)
Type of attachment to PCB Connecting contact
Electrical connection type to PCB Solder
Cross section single wire from 0.14 mm²
Cross section single wire to 2.5 mm²
Cross section stranded wire from 0.14 mm²
Cross section stranded with ferrule to 1.5 mm²
Cross section stranded wire to 1.5 mm²
Cross section stranded with ferrule from 0.25 mm²
Rated wire cross section to (AWG) 12
Rated wire cross section from (AWG) 22
Stripping length 6 mm

*Invisible Heading*
Screw size M 3
Torque 0.5

Materials
Housing material Polyamide 6.6
Flammability class UL94-V0
Operating temperature from -30 °C
Operating temperature to 105 °C
Solder lug Brass
Screw material Steel
Clamp material Brass

Approvals
UL test standard UL 1059
Rated voltage UL 300 V
Rated current UL 16 A
cUL test standard C22.2 No 158
Rated voltage cUL 300 V
Rated current cUL 16 A
VDE test standard DIN EN 60998
Rated voltage VDE 250 V
Rated current VDE 17.5 A
Recommended wave solder duration max 4 s
Recommended wave solder duration min 3 s
Recommended wave soldering temperature 265 °C
Tariff code 85369010
Pack size 50
Weight 2.4 g
Connection cycles acc. to standard 5
Country of origin QU
Current creepage resistance CTI 600
Glow wire flammability index (GWFI) GWFI 850
Glow wire ignition temperature (GWIT) GWIT 775
GWFI after-glow time 30 s
GWIT exposure time 5 s
Insulation resistance 1*10^13 Ω x cm

Downloads

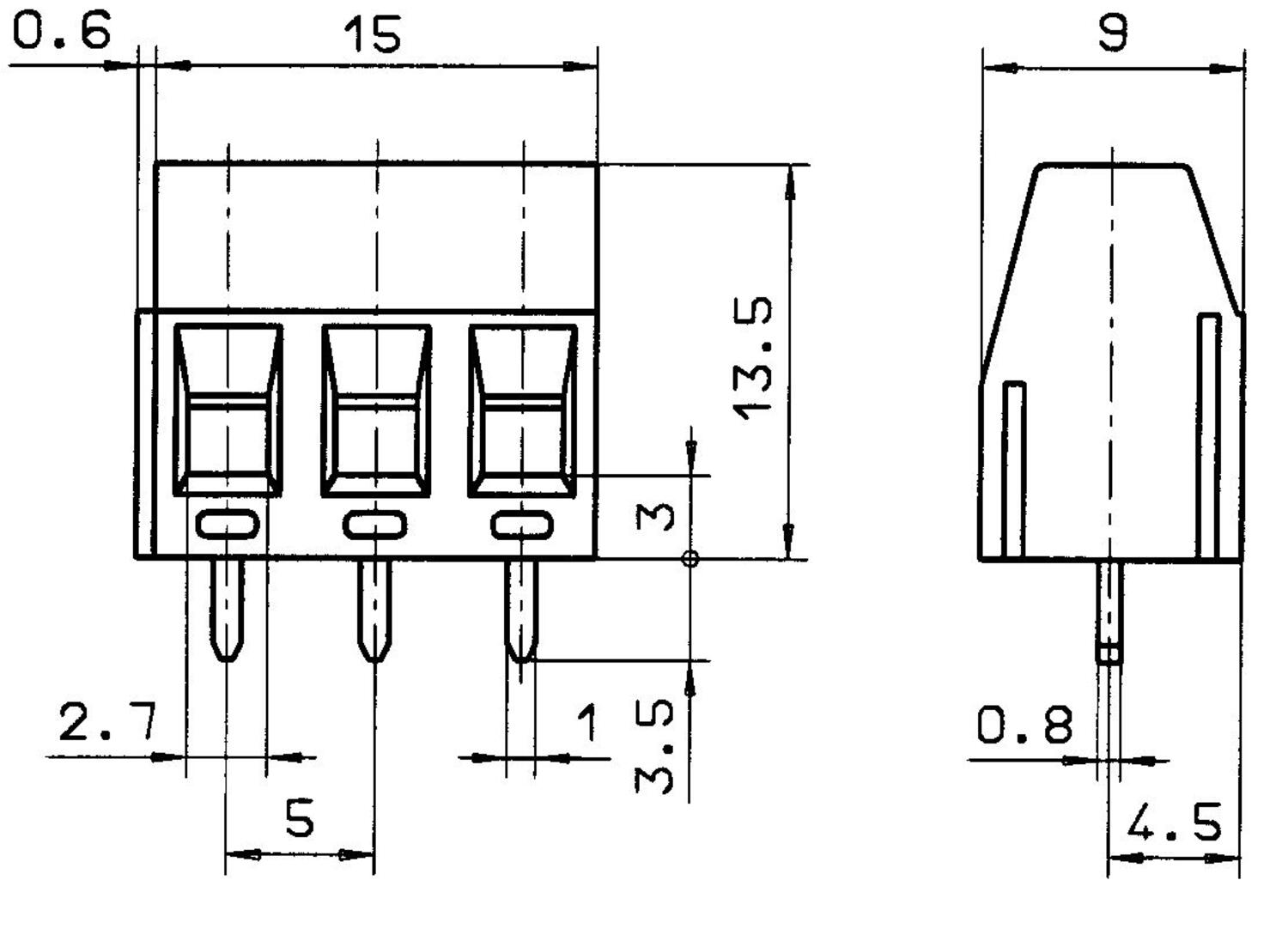

Measurements and connections

Technical illustrations

Product description

The PK 350 series from Conta-Clip is a robust range of screw-connection PCB terminal blocks designed for secure and efficient horizontal wire-to-board connections. Offered in multiple pole configurations and pitches, such as 5.0 mm, 5.08 mm, and 10.16 mm, the series supports rated currents up to 17.5 A and operating voltages from 250 V on tighter pitches to as high as 1,000 V on wider models. The blocks provide excellent electrical reliability with an insulation resistance of 1×10¹³ Ω·cm, impulse voltage ratings up to 3.5 kV, and compliance with pollution degree 3 and overvoltage category III. Each unit features an M3 screw with 0.5 Nm torque, a 6 mm stripping length, and solid solder pins (1 mm × 3.5 mm) for reliable PCB mounting. Constructed with flame-retardant polyamide 6.6 (UL 94 V-0), they withstand demanding conditions, including soldering processes and operating temperatures from –30 °C to +105 °C.

Practical applications of the PK 350 series span across industrial automation, control electronics, and power distribution systems, where reliable, vibration-resistant connections are vital. Their horizontal, feed-through design makes them especially useful for compact control boards, interface modules, and equipment requiring frequent wiring changes or maintenance. With international certifications including UL, cUL, and VDE, the PK 350 is trusted for global use in building control systems, instrumentation, and automation panels, where both safety and durability are non-negotiable. Combining high current capacity, space efficiency, and rugged construction, the PK 350 offers engineers a dependable PCB terminal solution for long-term, safety-critical installations.

Accessories

Related

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Parts Pitch Colour Number of poles Approvals Rated voltage Rated impulse voltage Width Width left Width right Rated current UL Rated current cUL Rated voltage VDE Weight Price
PK 350/5/2V 2P PCB VERT RC
Art:
10357.1 Copied
5 mm
Green
2
UL, cUL, VDE
250 V
2 kV
10.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
2.4 g
PK 350/5.08/2V 2P PCB VERT RC
Art:
10368.1 Copied
5.08 mm
Green
2
UL, cUL, VDE
250 V
2 kV
10.76 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
2.4 g
PK 350/2/10,00-V GN
Art:
10379.1 Copied
10 mm
Green
2
VDE
1000 V
3.5 kV
15.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
2.8 g
PK 350/2/10,16-V GN
Art:
10390.1 Copied
10.16 mm
Green
2
VDE
1000 V
3.5 kV
15.84 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
2.8 g
PK 350/5/3V 3P PCB VERT RC
Art:
10358.1 Copied
5 mm
Green
3
UL, cUL, VDE
250 V
2 kV
15.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
3.7 g
PK 350/5.08/3V 3P PCB VERT RC
Art:
10369.1 Copied
5.08 mm
Green
3
UL, cUL, VDE
250 V
2 kV
15.84 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
3.6 g
PK 350/10.00/3V 3P PCB VERT RC
Art:
10380.1 Copied
10 mm
Green
3
VDE
1000 V
3.5 kV
25.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
4.2 g
PK 350/3/10,16-V GN
Art:
10391.1 Copied
10.16 mm
Green
3
VDE
1000 V
3.5 kV
26 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
4.2 g
PK 350/4/5,00-V GN
Art:
10359.1 Copied
5 mm
Green
4
UL, cUL, VDE
250 V
2 kV
20.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
4.8 g
PK 350/5.08/4V 4P PCB VERT RC
Art:
10370.1 Copied
5.08 mm
Green
4
UL, cUL, VDE
250 V
2 kV
20.92 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
4.8 g
PK 350/4/10,00-V GN
Art:
10381.1 Copied
10 mm
Green
4
VDE
1000 V
3.5 kV
35.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
5.8 g
PK 350/4/10,16-V GN
Art:
10392.1 Copied
10.16 mm
Green
4
VDE
1000 V
3.5 kV
36.16 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
5.44 g
PK 350/5/5,00-V LG
Art:
10360.0 Copied
5 mm
Light grey
5
UL, cUL, VDE
250 V
2 kV
25.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
6.1 g
PK 350/5/5V 5P PCB VERT RC
Art:
10360.1 Copied
5 mm
Green
5
UL, cUL, VDE
250 V
2 kV
25.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
6.1 g
PK 350/5.08/5V 5P PCB VERT RC
Art:
10371.1 Copied
5.08 mm
Green
5
UL, cUL, VDE
250 V
2 kV
26 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
6 g
PK 350/10.00/5V 5P PCB VERT RC
Art:
10382.1 Copied
10 mm
Green
5
VDE
1000 V
3.5 kV
45.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
7.2 g
PK 350/5/10,16-V GN
Art:
10393.1 Copied
10.16 mm
Green
5
VDE
1000 V
3.5 kV
46.32 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
7.2 g
PK 350/6/5,00-V GN
Art:
10361.1 Copied
5 mm
Green
6
UL, cUL, VDE
250 V
2 kV
30.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
7.28 g
PK 350/6/5,08-V GN
Art:
10372.1 Copied
5.08 mm
Green
6
UL, cUL, VDE
250 V
2 kV
31.08 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
7.3 g
PK 350/6/10,00-V GN
Art:
10383.1 Copied
10 mm
Green
6
VDE
1000 V
3.5 kV
55.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
8.8 g
PK 350/6/10,16-V GN
Art:
10394.1 Copied
10.16 mm
Green
6
VDE
1000 V
3.5 kV
56.48 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
8.16 g
PK 350/7/5,00-V GN
Art:
10362.1 Copied
5 mm
Green
7
UL, cUL, VDE
250 V
2 kV
35.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
8.49 g
PK 350/7/5,08-V GN
Art:
10373.1 Copied
5.08 mm
Green
7
UL, cUL, VDE
250 V
2 kV
36.16 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
8.5 g
PK 350/7/10,00-V GN
Art:
10384.1 Copied
10 mm
Green
7
VDE
1000 V
3.5 kV
65.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
9.1 g
PK 350/7/10,16-V GN
Art:
10395.1 Copied
10.16 mm
Green
7
VDE
1000 V
3.5 kV
66.64 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
10.2 g
PK 350/8/5,00-V GN
Art:
10363.1 Copied
5 mm
Green
8
UL, cUL, VDE
250 V
2 kV
40.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
9.7 g

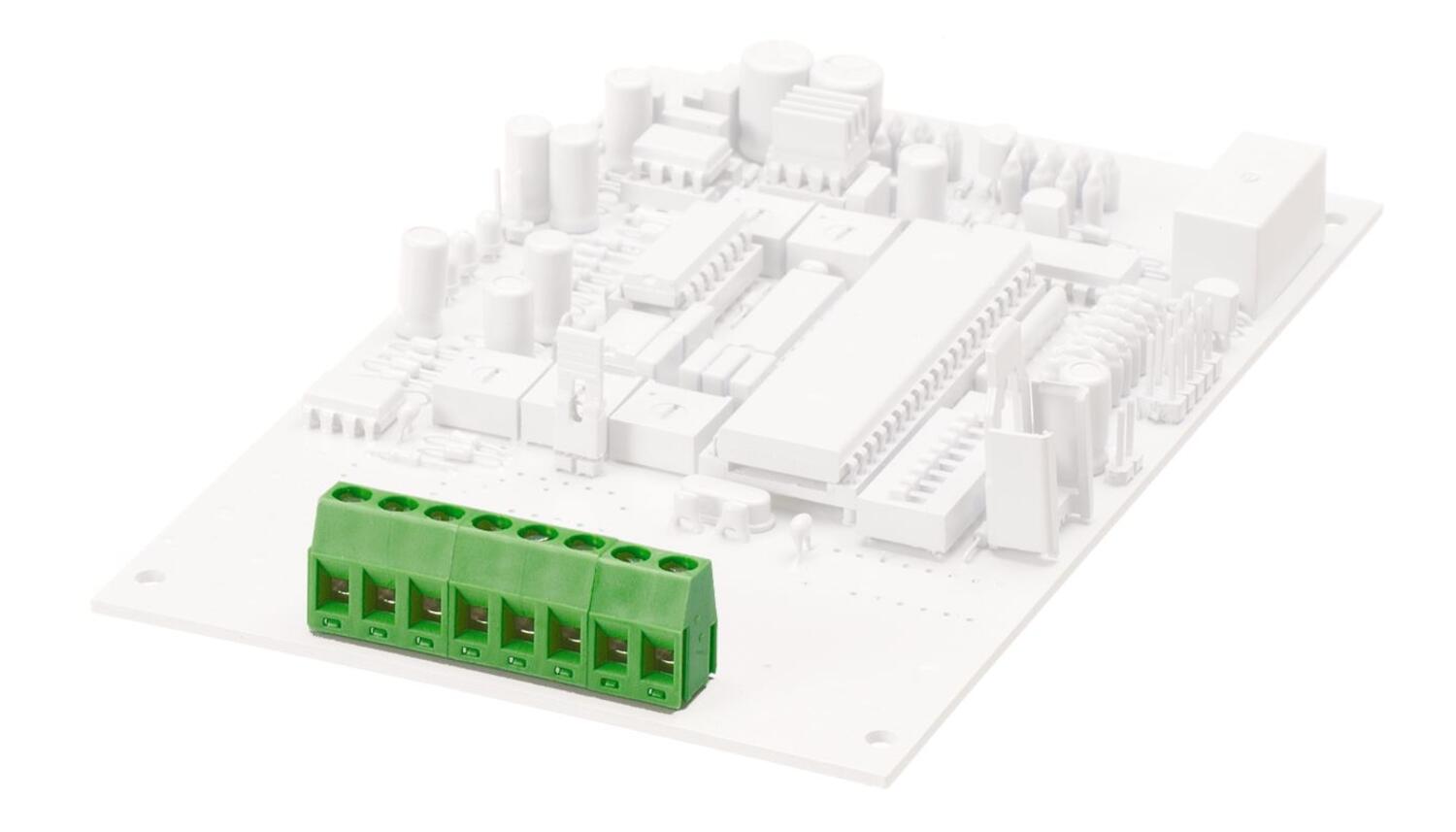

PK 350/5.08/8V 8P PCB VERT RC
Art:
10374.1 Copied
5.08 mm
Green
8
UL, cUL, VDE
250 V
2 kV
41.24 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
9.7 g

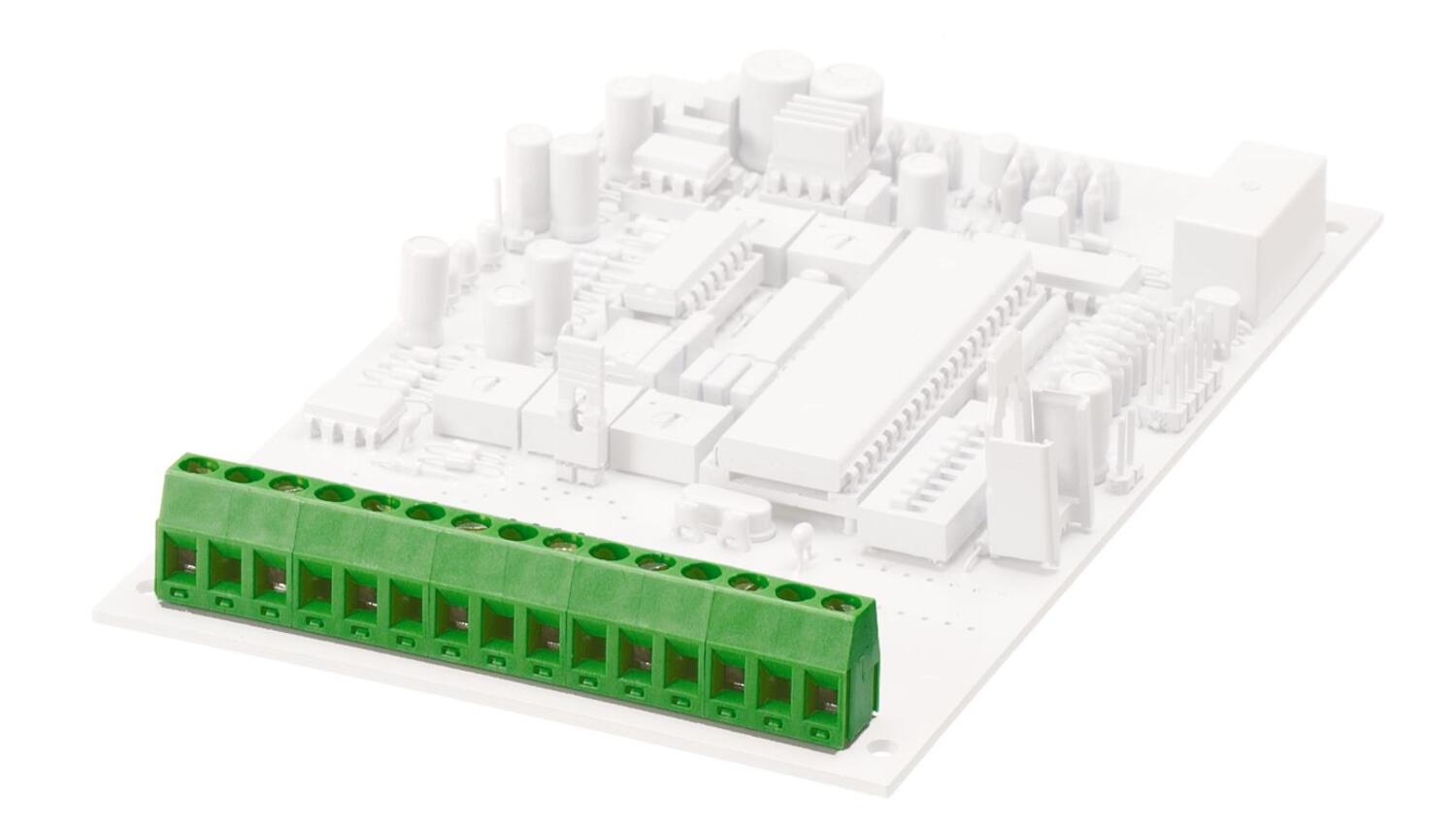

PK 350/8/10,00-V GN
Art:
10385.1 Copied
10 mm
Green
8
VDE
1000 V
3.5 kV
75.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
11.8 g

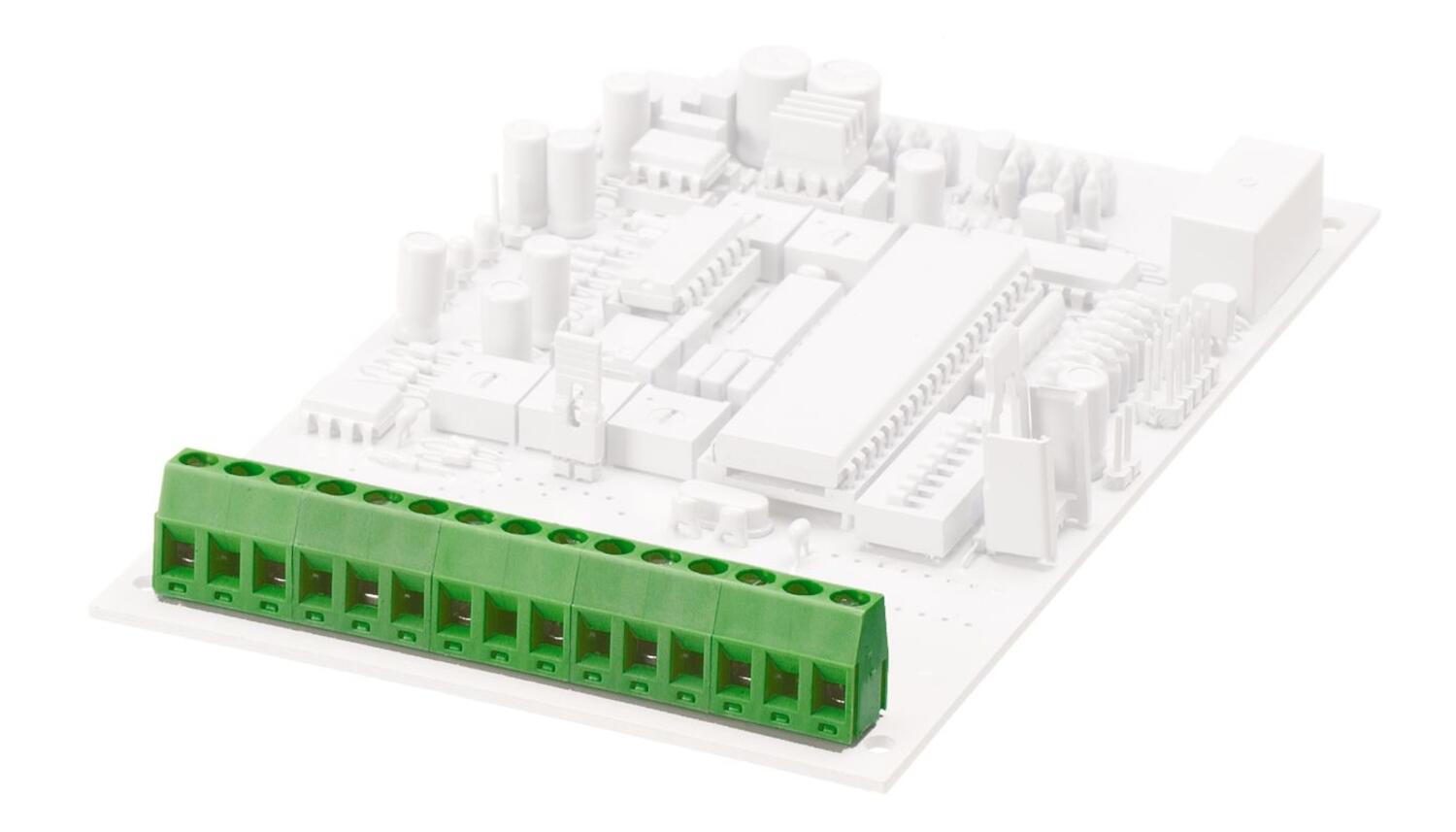

PK 350/8/10,16-V GN
Art:
10396.1 Copied
10.16 mm
Green
8
VDE
1000 V
3.5 kV
76.8 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
11.8 g
PK 350/9/5,00-V GN
Art:
10364.1 Copied
5 mm
Green
9
UL, cUL, VDE
250 V
2 kV
45.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
10.9 g
PK 350/9/5,08-V GN
Art:
10375.1 Copied
5.08 mm
Green
9
UL, cUL, VDE
250 V
2 kV
46.32 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
10.9 g
PK 350/9/10,00-V GN
Art:
10386.1 Copied
10 mm
Green
9
VDE
1000 V
3.5 kV
85.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
11.7 g
PK 350/9/10,16-V GN
Art:
10397.1 Copied
10.16 mm
Green
9
VDE
1000 V
3.5 kV
86.96 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
12.24 g
PK 350/5/10V 10P PCB VERT RC
Art:
10365.1 Copied
5 mm
Green
10
UL, cUL, VDE
250 V
2 kV
50.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
12.1 g
PK 350/10/5,08-V GN
Art:
10376.1 Copied
5.08 mm
Green
10
UL, cUL, VDE
250 V
2 kV
51.4 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
12.2 g
PK 350/10.00/10V 10P PCB VERT RC
Art:
10387.1 Copied
10 mm
Green
10
VDE
1000 V
3.5 kV
95.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
14.9 g
PK 350/10/10,16-V GN
Art:
10398.1 Copied
10.16 mm
Green
10
VDE
1000 V
3.5 kV
97.12 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
14.8 g
PK 350/11/5,00-V GN
Art:
10366.1 Copied
5 mm
Green
11
UL, cUL, VDE
250 V
2 kV
55.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
13.35 g
PK 350/11/5,08-V GN
Art:
10377.1 Copied
5.08 mm
Green
11
UL, cUL, VDE
250 V
2 kV
56.48 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
13.4 g
PK 350/11/10,00-V GN
Art:
10388.1 Copied
10 mm
Green
11
VDE
1000 V
3.5 kV
105.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
16.2 g
PK 350/11/10,16-V GN
Art:
10399.1 Copied
10.16 mm
Green
11
VDE
1000 V
3.5 kV
107.28 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
14.96 g
PK 350/5/12V 12P PCB VERT RC
Art:
10367.1 Copied
5 mm
Green
12
UL, cUL, VDE
250 V
2 kV
60.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
14.56 g
PK 350/5.08/12V 12P PCB VERT RC
Art:
10378.1 Copied
5.08 mm
Green
12
UL, cUL, VDE
250 V
2 kV
61.56 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
14.44 g
PK 350/12/10,00-V GN
Art:
10389.1 Copied
10 mm
Green
12
VDE
1000 V
3.5 kV
115.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
15.6 g
PK 350/12/10,16-V GN
Art:
10400.1 Copied
10.16 mm
Green
12
VDE
1000 V
3.5 kV
117.44 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
17.8 g
PK 350/13/5,00-V GN
Art:
12349.1 Copied
5 mm
Green
13
UL, cUL, VDE
250 V
2 kV
65.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
14.4 g
PK 350/13/5,08-V GN
Art:
12361.1 Copied
5.08 mm
Green
13
UL, cUL, VDE
250 V
2 kV
66.64 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
14.4 g
PK 350/13/10,00-V GN
Art:
13557.1 Copied
10 mm
Green
13
VDE
1000 V
3.5 kV
125.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
18.2 g
PK 350/13/10,16-V GN
Art:
13593.1 Copied
10.16 mm
Green
13
VDE
1000 V
3.5 kV
127.6 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
18.2 g
PK 350/14/5,00-V GN
Art:
12350.1 Copied
5 mm
Green
14
UL, cUL, VDE
250 V
2 kV
70.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
15.4 g
PK 350/14/5,08-V GN
Art:
12362.1 Copied
5.08 mm
Green
14
UL, cUL, VDE
250 V
2 kV
71.72 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
15.3 g
PK 350/14/10,00-V GN
Art:
13558.1 Copied
10 mm
Green
14
VDE
1000 V
3.5 kV
135.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
19.6 g
PK 350/14/10,16-V GN
Art:
13594.1 Copied
10.16 mm
Green
14
VDE
1000 V
3.5 kV
137.76 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
19.6 g
PK 350/15/5,00-V GN
Art:
12351.1 Copied
5 mm
Green
15
UL, cUL, VDE
250 V
2 kV
75.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
16.4 g
PK 350/15/5,08-V GN
Art:
12363.1 Copied
5.08 mm
Green
15
UL, cUL, VDE
250 V
2 kV
76.8 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
16 g
PK 350/15/10,00-V GN
Art:
13559.1 Copied
10 mm
Green
15
VDE
1000 V
3.5 kV
145.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
21 g
PK 350/15/10,16-V GN
Art:
13595.1 Copied
10.16 mm
Green
15
VDE
1000 V
3.5 kV
147.92 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
21 g
PK 350/16/5,00-V GN
Art:
12352.1 Copied
5 mm
Green
16
UL, cUL, VDE
250 V
2 kV
80.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
19.41 g
PK 350/16/5,08-V GN
Art:
12364.1 Copied
5.08 mm
Green
16
UL, cUL, VDE
250 V
2 kV
81.88 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
19.6 g
PK 350/16/10,00-V GN
Art:
13560.1 Copied
10 mm
Green
16
VDE
1000 V
3.5 kV
155.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
22.4 g
PK 350/16/10,16-V GN
Art:
13596.1 Copied
10.16 mm
Green
16
VDE
1000 V
3.5 kV
158.08 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
22.4 g
PK 350/17/5,00-V GN
Art:
12353.1 Copied
5 mm
Green
17
UL, cUL, VDE
250 V
2 kV
85.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
18.4 g
PK 350/17/5,08-V GN
Art:
12365.1 Copied
5.08 mm
Green
17
UL, cUL, VDE
250 V
2 kV
86.96 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
17.5 g
PK 350/17/10,00-V GN
Art:
13561.1 Copied
10 mm
Green
17
VDE
1000 V
3.5 kV
165.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
23.8 g
PK 350/17/10,16-V GN
Art:
13597.1 Copied
10.16 mm
Green
17
VDE
1000 V
3.5 kV
168.24 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
23.8 g
PK 350/18/5,00-V GN
Art:
12354.1 Copied
5 mm
Green
18
UL, cUL, VDE
250 V
2 kV
90.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
19.4 g
PK 350/18/5,08-V GN
Art:
12366.1 Copied
5.08 mm
Green
18
UL, cUL, VDE
250 V
2 kV
92.04 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
16.2 g
PK 350/18/10,00-V GN
Art:
13562.1 Copied
10 mm
Green
18
VDE
1000 V
3.5 kV
175.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
25.2 g
PK 350/18/10,16-V GN
Art:
13598.1 Copied
10.16 mm
Green
18
VDE
1000 V
3.5 kV
178.4 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
25.2 g
PK 350/19/5,00-V GN
Art:
12355.1 Copied
5 mm
Green
19
UL, cUL, VDE
250 V
2 kV
95.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
20.4 g
PK 350/19/5,08-V GN
Art:
12367.1 Copied
5.08 mm
Green
19
UL, cUL, VDE
250 V
2 kV
97.12 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
17 g
PK 350/19/10,00-V GN
Art:
13563.1 Copied
10 mm
Green
19
VDE
1000 V
3.5 kV
185.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
26.6 g
PK 350/19/10,16-V GN
Art:
13599.1 Copied
10.16 mm
Green
19
VDE
1000 V
3.5 kV
188.56 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
26.6 g
PK 350/20/5,00-V GN
Art:
12356.1 Copied
5 mm
Green
20
UL, cUL, VDE
250 V
2 kV
100.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
21.4 g
PK 350/20/5,08-V GN
Art:
12368.1 Copied
5.08 mm
Green
20
UL, cUL, VDE
250 V
2 kV
102.2 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
17.8 g
PK 350/20/10,00-V GN
Art:
13564.1 Copied
10 mm
Green
20
VDE
1000 V
3.5 kV
195.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
28 g
PK 350/20/10,16-V GN
Art:
13600.1 Copied
10.16 mm
Green
20
VDE
1000 V
3.5 kV
198.72 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
28 g
PK 350/21/5,00-V GN
Art:
12357.1 Copied
5 mm
Green
21
UL, cUL, VDE
250 V
2 kV
105.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
22.4 g
PK 350/21/5,08-V GN
Art:
12369.1 Copied
5.08 mm
Green
21
UL, cUL, VDE
250 V
2 kV
107.28 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
18.5 g
PK 350/21/10,00-V GN
Art:
13565.1 Copied
10 mm
Green
21
VDE
1000 V
3.5 kV
205.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
29.4 g
PK 350/21/10,16-V GN
Art:
13601.1 Copied
10.16 mm
Green
21
VDE
1000 V
3.5 kV
208.88 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
29.4 g
PK 350/22/5,00-V GN
Art:
12358.1 Copied
5 mm
Green
22
UL, cUL, VDE
250 V
2 kV
110.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
23.4 g
PK 350/22/5,08-V GN
Art:
12370.1 Copied
5.08 mm
Green
22
UL, cUL, VDE
250 V
2 kV
112.36 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
19.1 g
PK 350/22/10,00-V GN
Art:
13566.1 Copied
10 mm
Green
22
VDE
1000 V
3.5 kV
215.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
30.8 g
PK 350/22/10,16-V GN
Art:
13602.1 Copied
10.16 mm
Green
22
VDE
1000 V
3.5 kV
219.04 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
30.8 g
PK 350/23/5,00-V GN
Art:
12359.1 Copied
5 mm
Green
23
UL, cUL, VDE
250 V
2 kV
115.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
24.4 g
PK 350/23/5,08-V GN
Art:
12371.1 Copied
5.08 mm
Green
23
UL, cUL, VDE
250 V
2 kV
117.44 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
20 g
PK 350/23/10,00-V GN
Art:
13567.1 Copied
10 mm
Green
23
VDE
1000 V
3.5 kV
225.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
32.2 g
PK 350/23/10,16-V GN
Art:
13603.1 Copied
10.16 mm
Green
23
VDE
1000 V
3.5 kV
229.2 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
32.2 g
PK 350/24/5,00-V GN
Art:
12360.1 Copied
5 mm
Green
24
UL, cUL, VDE
250 V
2 kV
120.6 mm
3.1 mm
2.5 mm
16 A
16 A
250 V
25.4 g
PK 350/24/5,08-V GN
Art:
12372.1 Copied
5.08 mm
Green
24
UL, cUL, VDE
250 V
2 kV
122.52 mm
3.14 mm
2.54 mm
16 A
16 A
250 V
20.8 g
PK 350/24/10,00-V GN
Art:
13568.1 Copied
10 mm
Green
24
VDE
1000 V
3.5 kV
235.6 mm
3.1 mm
2.5 mm
15 A
15 A
1000 V
33.6 g
PK 350/24/10,16-V GN
Art:
13604.1 Copied
10.16 mm
Green
24
VDE
1000 V
3.5 kV
239.36 mm
3.14 mm
2.54 mm
15 A
15 A
1000 V
33.6 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
