CROUZET CONTROL
3 phase over/under voltage relay M3US

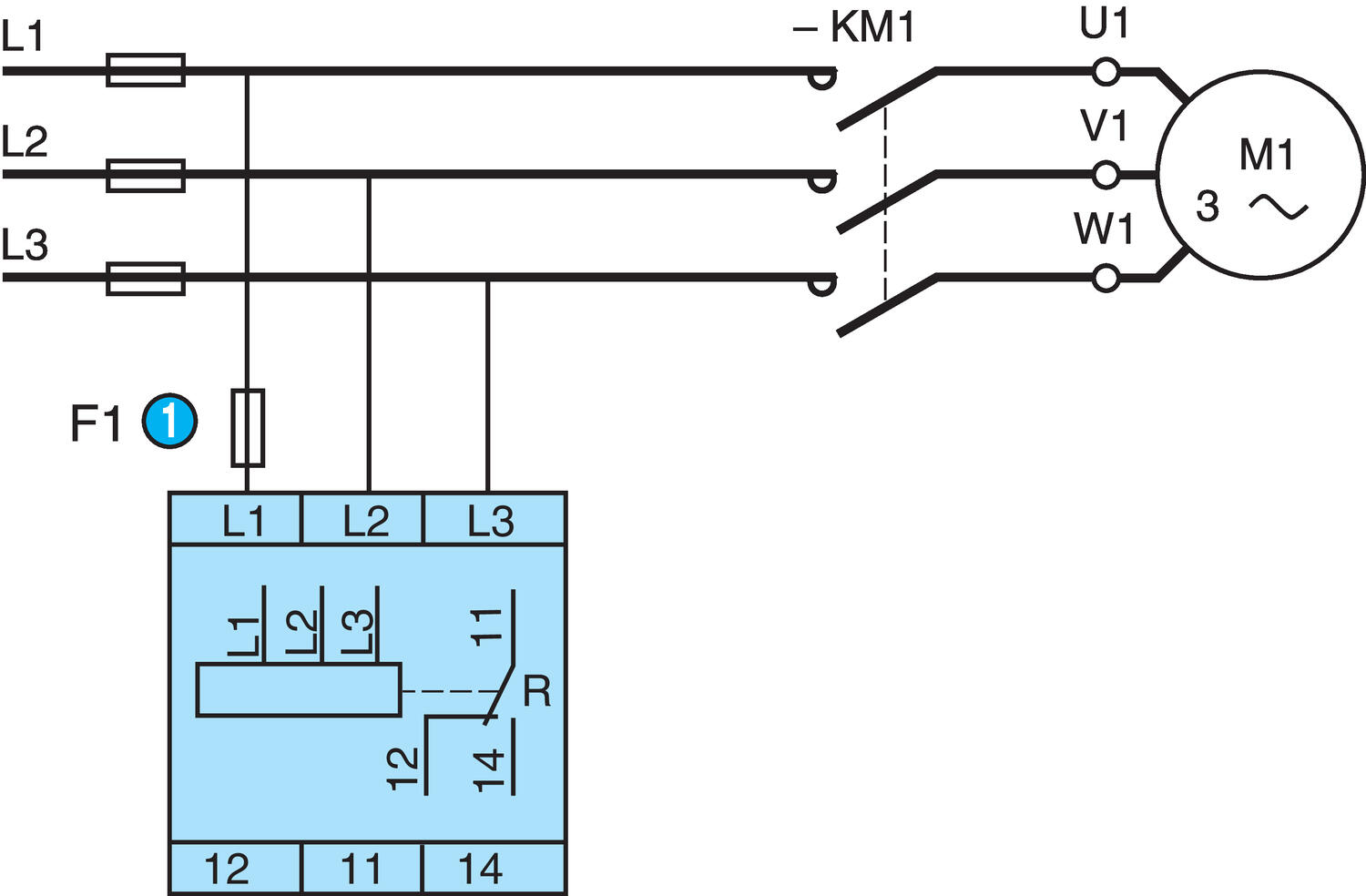

Control relay for monitoring 3-phase networks without neutral. Adjustable switch at the front for adjustment of correct voltage in 3-phase networks. The switch's position is not registered until the operating voltage is switched on. If the switch position is changed during operation, all LEDs (LED indications) begin to flash but the unit will continue to function normally with the voltage that was set at the most recent power connection. Monitors under-voltage between the phases that can be set between -2 % and -20 % of Un (measurement voltage) and over-voltage that can be set between 2 % and 20 % of Un. Time delay Tt prevents relay change-over in the event of temporary disturbances and is adjustable between 0.3-30 s. Green LED (Un) indicates supply voltage OK. Yellow LED (R) indicates active relay output.
Over-/under-voltage |
1: Over-voltage |
2: Hysteresis |
3: Under-voltage |
4: L1, L2, L3 |
5: Relay |
6: Limit value with time delay for over-/under-voltage |
- Phase control of line voltage
- Wide range input voltage
- 17.5 mm cabinet with DIN rail
- LED indication
Selected variant
Technical data
| Approvals | CE, CSA, RoHS, UL |
|---|---|
| Breaking capacity | 5A, 250V AC/DC |
| Function | Under/Overvoltage |
| IP class connection | IP20 |
| IP class housing | IP30 |
| Lower limit | -2 - -20% |
| Mounting | 35 mm DIN-Rail |
| Output | 2x Relay |
| Selection of rated voltage | 208, 220, 380, 400, 415, 440, 480V |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
|---|---|
| Supply voltage | 3 x 208-480V AC |
| Temperature operational max | 50 °C |
| Temperature operational min | -20 °C |
| Time delay startup | 0.5 s |
| Time delay when exceeding the limit value | 0,3-30s |
| Upper limit | 2 - 20% |
| Weight | 80 g |
Downloads
Product description
Control relay for monitoring 3-phase networks without neutral. Adjustable switch at the front for adjustment of correct voltage in 3-phase networks. The switch's position is not registered until the operating voltage is switched on. If the switch position is changed during operation, all LEDs (LED indications) begin to flash but the unit will continue to function normally with the voltage that was set at the most recent power connection. Monitors under-voltage between the phases that can be set between -2 % and -20 % of Un (measurement voltage) and over-voltage that can be set between 2 % and 20 % of Un. Time delay Tt prevents relay change-over in the event of temporary disturbances and is adjustable between 0.3-30 s. Green LED (Un) indicates supply voltage OK. Yellow LED (R) indicates active relay output.

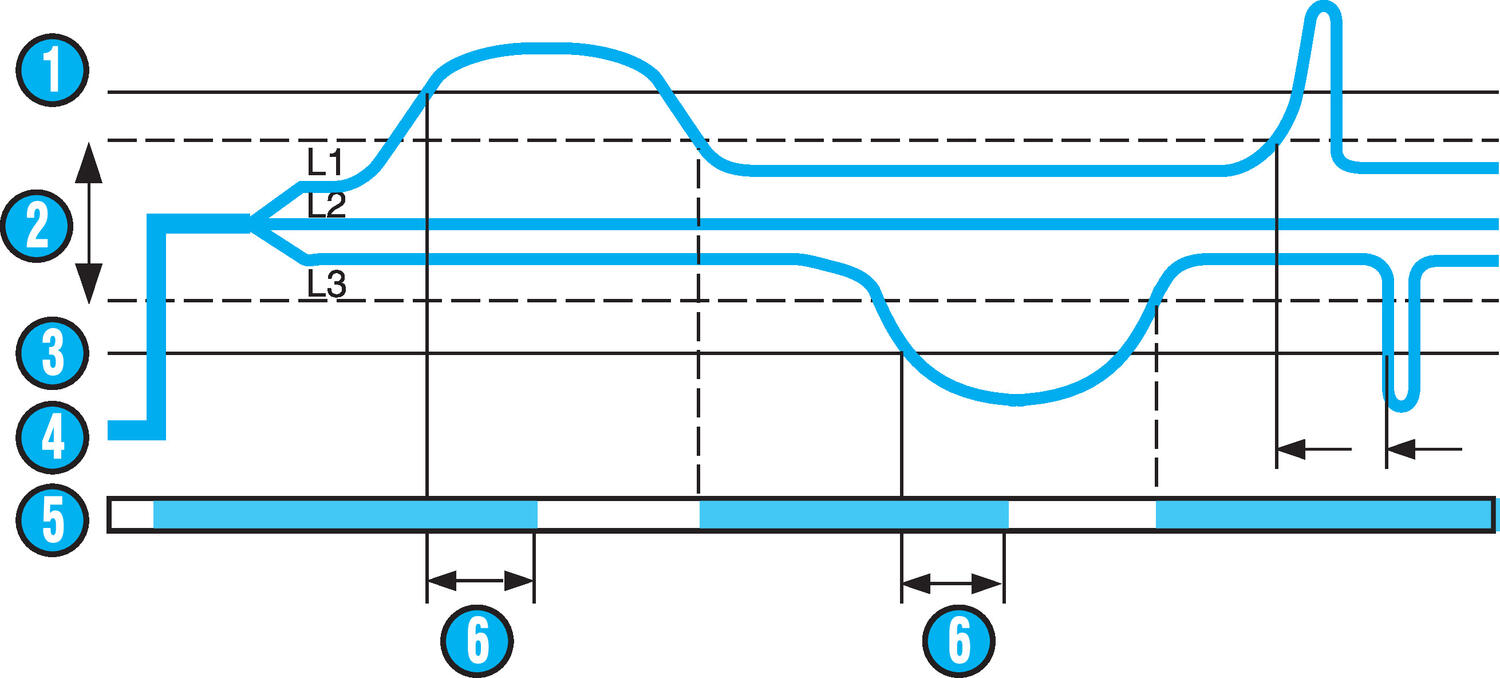

Over-/under-voltage |
1: Over-voltage |
2: Hysteresis |
3: Under-voltage |
4: L1, L2, L3 |
5: Relay |
6: Limit value with time delay for over-/under-voltage |
